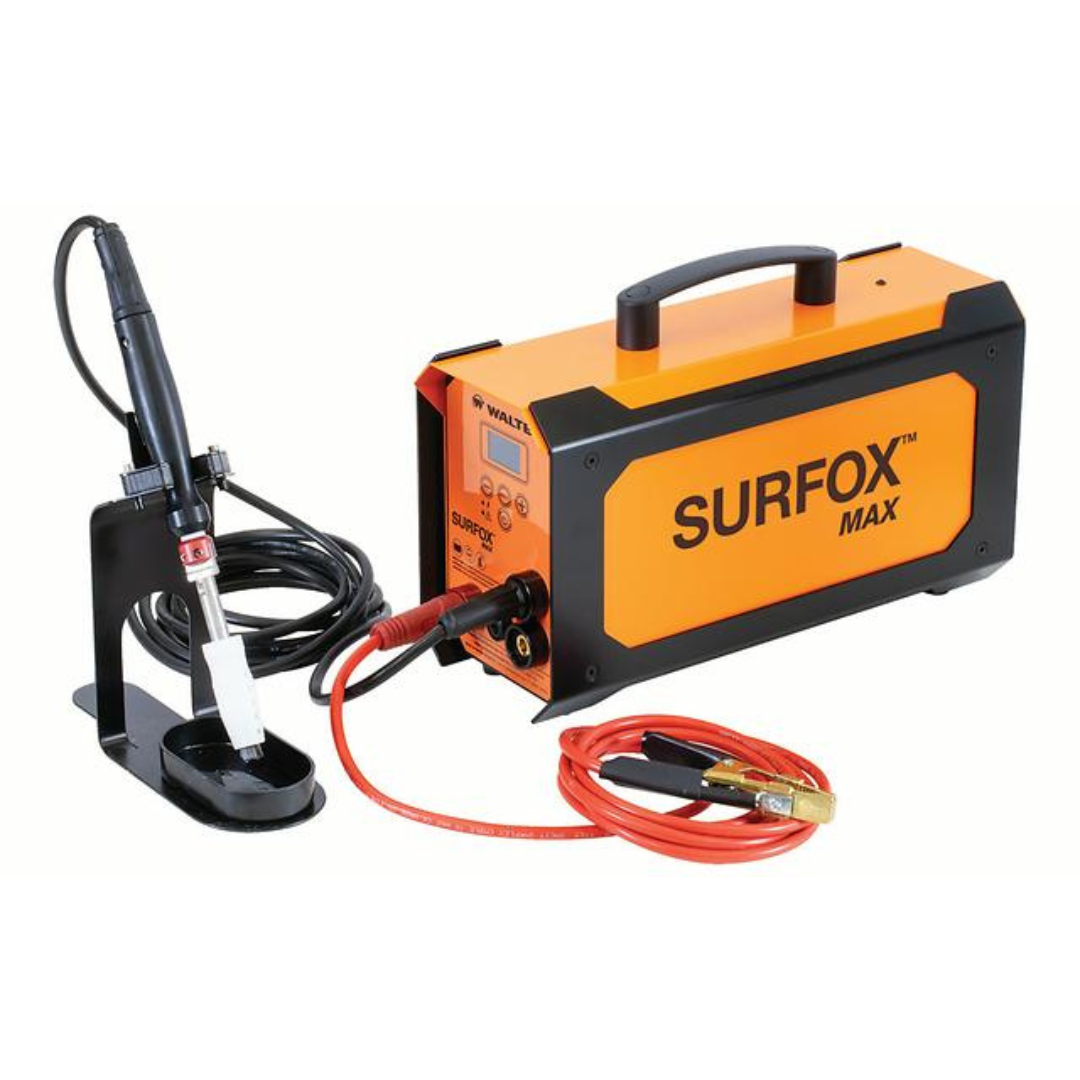

Walter SURFOX™ MAX

Lightweight and ultra powerful; the most versatile unit in the industry

The SURFOX™ MAX is the industry’s most versatile weld cleaning unit. It is powerful enough to tackle Spot, TIG, MIG, Laser and even STICK welds on stainless steel, and is the lightest heavy-production unit on the market, making it ideal for tough fieldwork and heavy-duty industrial use. This unit is equipped with two dip & work ports, so two users can be cleaning welds using the same machine to maximize efficiency.

Why is passivation so important?

Stainless steel is naturally able to resist corrosion thanks to a passive chromium oxide layer that forms on its surface. The formation of this protective layer is called passivation. Abrasion or excessive heat (caused by welding) will destroy this protective layer and expose the metal to corrosion. In order to fully restore the corrosion resistance of stainless steel, heat tint and other surface contaminants must be removed. SURFOX is a safe, effective and fast electrochemical cleaning system. The rate of cleaning welds with this system is between 3-5 feet per minute. The SURFOX system combines both the cleaning power of electrical current and the passivation properties of electrolyte cleaning solutions. Passivation begins instantly after the SURFOX  electrochemical cleaning process is completed. It usually takes between 24 to 48 hours for  passivation to be stable and complete.

Features and benefits 

• 2550 Watts of maximum cleaning output
• Includes dual-user capabilities so two users can work with the same machine
• LCD panel with multi-language settings and more precise settings   
• Dip & work weld cleaning  
• Marking and etching 
• Lightweight and portable

• Specs:

  • Part No: 54-D 096
  • Power Input – 120 V, 50 60 Hz, 10.0 A
  • Power Output – 3-30V AC DC 85 A Max
  • Weight – 22 lb

  • What s Included

    • Dip & Work carbon fiber brush (54-B 604)
    • Dip & Work brush sleeve (54-B 605)
    • Brush adaptor (54-B 149)
    • Ground cable
    • User guide
    • Carrying case

    • Surfox Weld Cleaning Systems

      Interested in trying this machine out before you buy? Contact us at [email protected] to set up a demo with a Walter rep.
