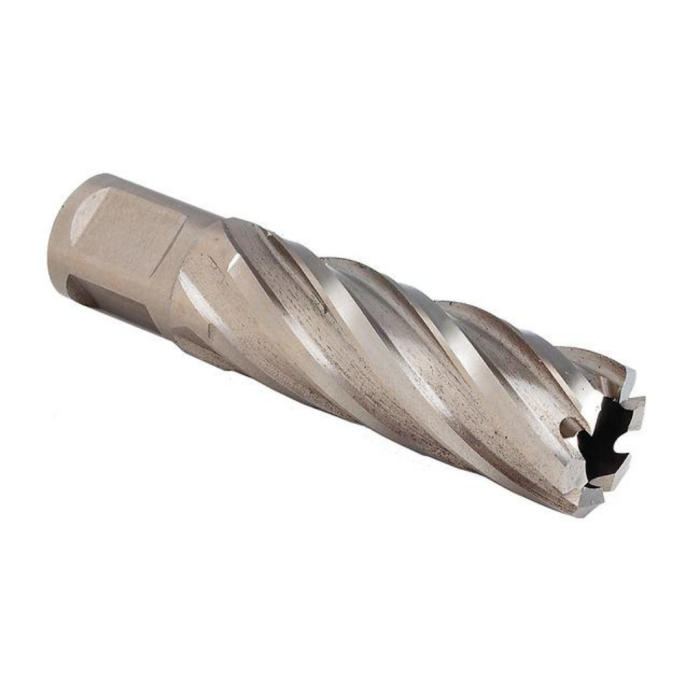

Walter SST Carbide Core Cut Annular Cutters
Guaranteed top performance and maximum productivity on hard metals and uneven surfaces!
Guaranteed top performance and maximum productivity on hard metals and uneven surfaces!
1 Length, TCT – Tungsten Carbide Tipped, Weldon Shank
Super Speed Tip (SST) Core Cutters are made with state-of-the-art surface treatment technology that removes porosity during the fabrication process. This creates a perfectly smooth finish which allows for a better evacuation of material while drilling. The SST finish also helps to improve product life and reduce drilling time as it decreases friction with the work surface, which in turn reduces the amount of heat generated.
Must be used with pilot pin 05-Z 001
Features:
- Fully ground extra large flutes
-
- Modern tooth design and cutter geometry
-
- Special bronze SST surface treatment
-
- Weldon Shank
-
- 1 Max cutting depth
-
Applications
- Aluminum
-
- Stainless and Mild Steel
-
- Structural Steel
-
- Drilling 1 2 to 2 3 8 diameter holes
-
- Drilling with magnetic drilling units
-
- Drilling with stationary machines
-
Options:
Diameter
Part No.
1 2 (12.7 mm)
05-A 008
9 16 (14 mm)
05-A 009
5 8 (16.0 mm)
05-A 010
11 16 (17.5 mm)
05-A 011
3 4 (19.0 mm)
05-A 012
13 16 (20.6 mm)
05-A 013
7 8 (22.2 mm)
05-A 014
15 16 (23.8 mm)
05-A 015
1 (25.4 mm)
05-A 100
1-1 16 (27.0 mm)
05-A 101
1-1 8 (28.6 mm)
05-A 102
1-3 16 (30.2 mm)
05-A 103
1-1 4 (31.8 mm)
05-A 104
1-5 16 (33.3 mm)
05-A 105
1-3 8 (34.9 mm)
05-A 106
1-7 16 (36.5 mm)
05-A 107
1-1 2 (38.1 mm)
05-A 108
1-9 16 (39.7 mm)
05-A 109
1-5 8 (41.3 mm)
05-A 110
1-3 4 (44.5 mm)
05-A 112
1-13 16 (46.0 mm)
05-A 113
1-7 8 (47.6 mm)
05-A 114
1-15 16 (49.2 mm)
05-A 115
2 (50.8 mm)
05-A 200
2-1 16 (52.4 mm)
05-A 201
2-1 8 (54.0 mm)
05-A 202
Diameter
1/2" (12.7 mm), 9/16" (14 mm), 5/8" (16 mm), 11/16" (17.5 mm), 3/4" (19.0 mm), 13/16" (20.6 mm), 7/8" (22.2 mm), 15/16" (23.8 mm), 1" (25.4 mm), 1-1/16" (27.0 mm), 1-1/8" (28.6 mm), 1-3/16" (30.2 mm), 1-1/4" (31.8 mm), 1-5/16" (33.3 mm), 1-3/8" (34.9 mm), 1-7/16" (36.5 mm), 1-1/2" (38.1 mm), 1-9/16" (39.7 mm), 1-5/8" (41.3 mm), 1-3/4" (44.5 mm), 1-13/16 (46.0 mm), 1-7/8" (47.6 mm), 1-15/16" (49.2 mm), 2" (50.8 mm), 2-1/16" (52.4 mm), 2-1/8" (54.0 mm)
