E-WELD PRE-COATED NOZZLES for Lincoln MAGNUM PRO 250L & 300 Torches

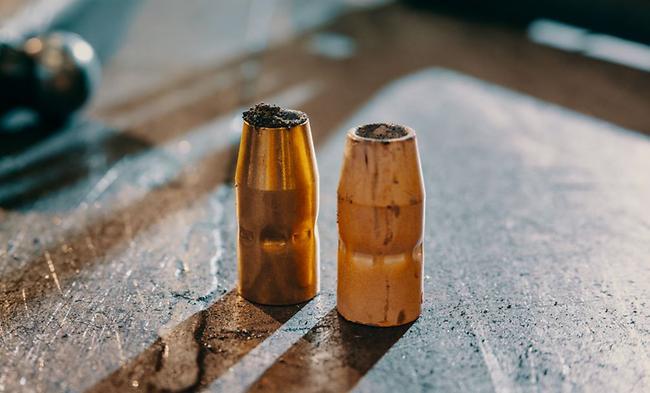

5x longer-lasting ceramic coated nozzles

Reduce downtime spent scraping out spatter and replacing MIG nozzles. The special water-based ceramic coating prevents spatter from adhering to the nozzle and allows the gas to flow freely, ultimately providing a better-quality weld.The unique E-WELD pre-coated nozzles will reduce your welding operation costs.

• Reduce downtime scraping spatter and replacing nozzles
• Lasts up to 5 times longer than standard OEM nozzles
• Safe & non-flammable solution to nozzle spatter build-up
• Prevents nozzle obstructions resulting in a higher quality weld

•

  Options for Lincoln Magnum PRO 250L and 300 Torches

  Bore Diameter		Tip Relationship		Walter Part Number		Lincoln Part Number
  3 8		1 8 Stickout		54-C 021		KP2742-1-38S
  3 8		1 8 Recess		54-C 022		KP2742-1-38R
  3 8		Flush		54-C 023		KP2742-1-38F
  1 2		1 8 Stickout		54-C 031		KP2742-1-50S
  1 2		1 8 Recess		54-C 032		KP2742-1-50R
  1 2		Flush		54-C 033		KP2742-1-50F
  5 8		1 8 Stickout		54-C 041		KP2742-1-62S
  5 8		1 8 Recess		54-C 042		KP2742-1-62R
  5 8		Flush		54-C 043		KP2742-1-62F

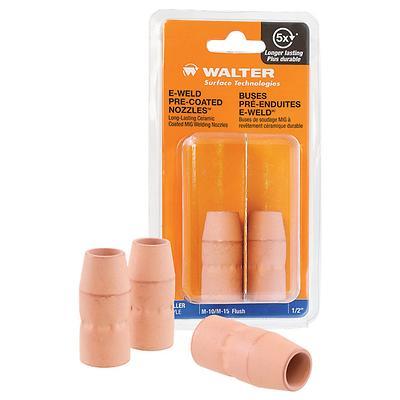

  2 E-Weld Ceramic Coated Nozzles Per Package

  Fits the following torches using MAgnum PRO 350A Expendables (KP2746-1 Diffuser)

  • Magnum PRO 250L & 350L
  • Magnum PRO Curve 200, 300, 300 AL, 250 HDE, 350 HDE
  • Magnum PRO Barrel 250 HDE, 350 HDE

  • Click here to view all available E-Weld Pre-Coated Nozzles

  Bore Diameter and Tip Relationship	3/8" Bore – 1/4" Stickout – 54-C 021, 3/8" Bore – 1/8" Recess – 54-C 022, 3/8" Bore – Flush – 54-C 023, 1/2" Bore – 1/4" Stickout – 54-C 031, 1/2" Bore – 1/8" Recess – 54-C 032, 1/2" Bore – Flush – 54-C 033, 5/8" Bore – 1/4" Stickout – 54-C 041, 5/8" Bore – 1/8" Recess – 54-C 042, 5/8" Bore – Flush – 54-C 043
