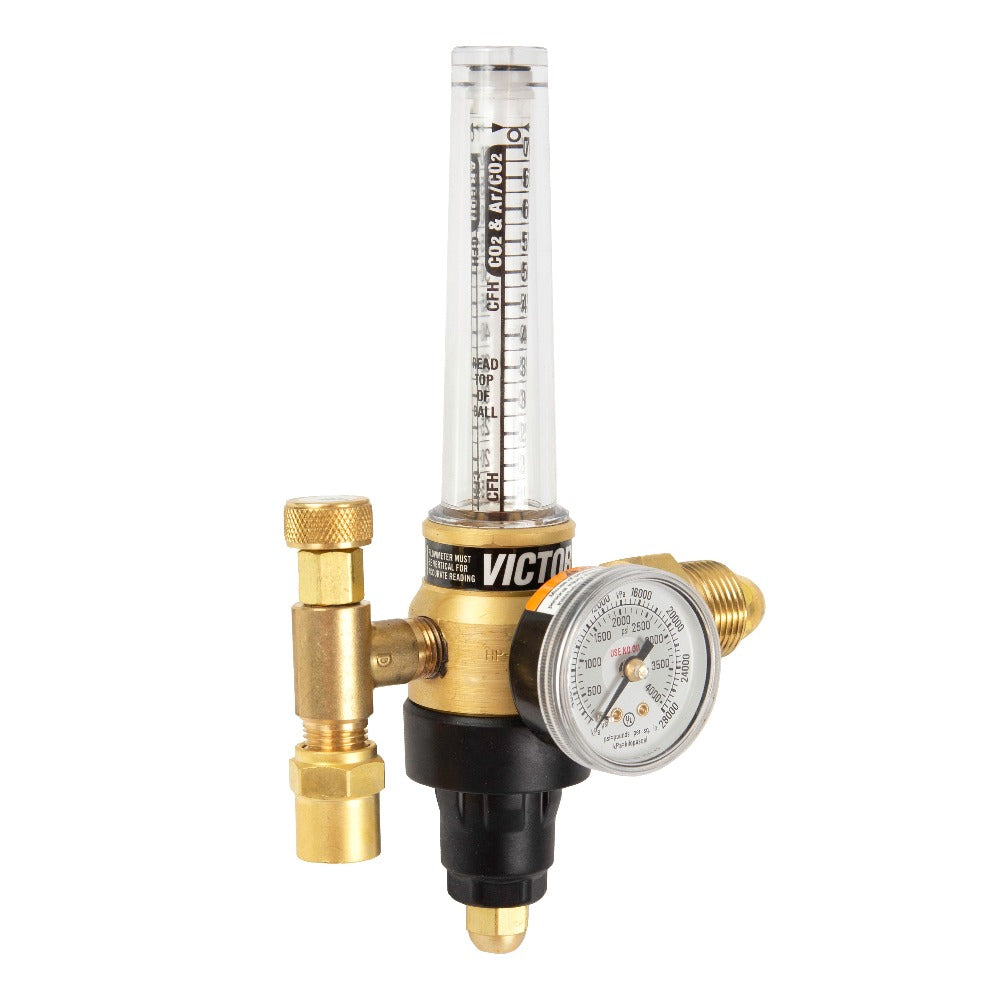

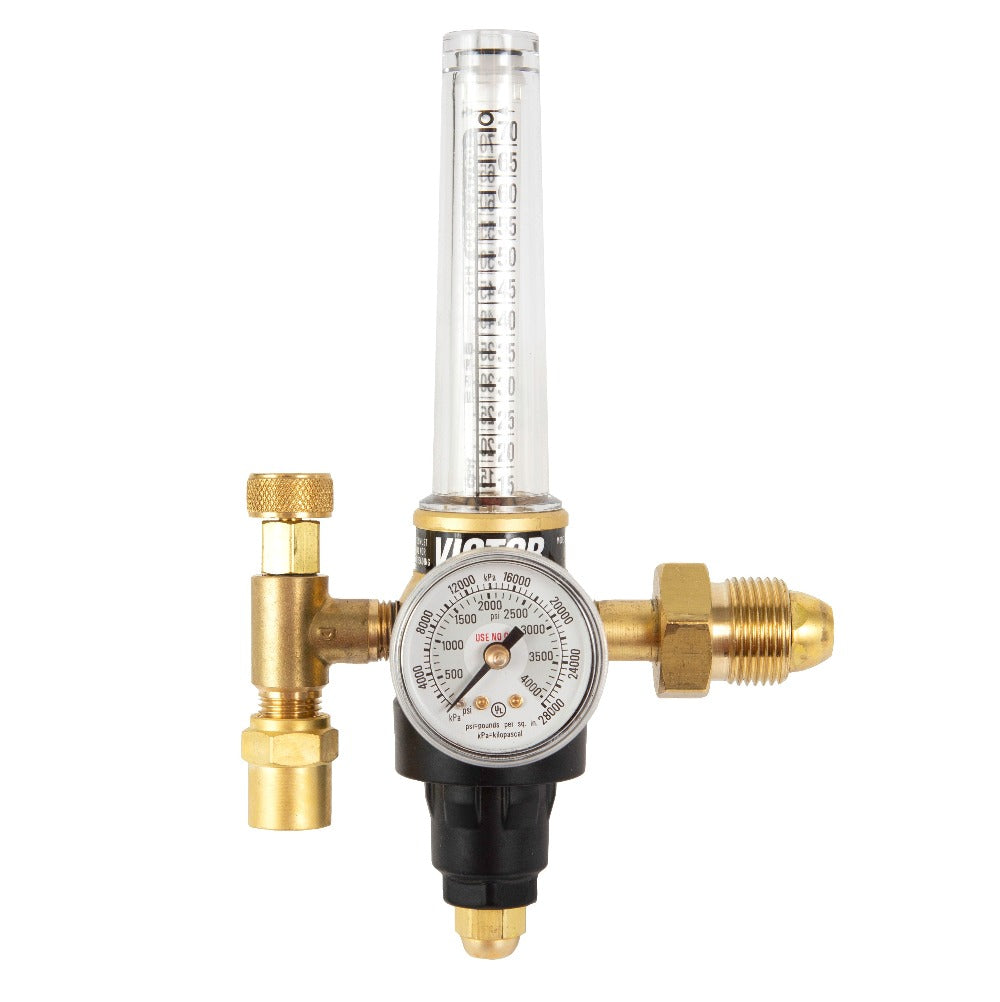

Victor HRF 2400 Pro Series Flowmeters



The HRF2400 Pro Series Argon, C02, Helium flowmeter regulators offer increased flow rate and a new, high-visibility flow tube with an easy-to-read scale. The scale is rotatable and has bolder, bigger print, that can be read from a distance. The flowmeter delivers superior accuracy to ensure proper gas usage, and reduces time wasted on constant adjustments to maintain correct flow. Save time, money on gas, and frustration.

Performance

• 70 CFH Flow Rate to support MIG TIG and other highflow applications
• Ideal for all applications where superior dependability is needed

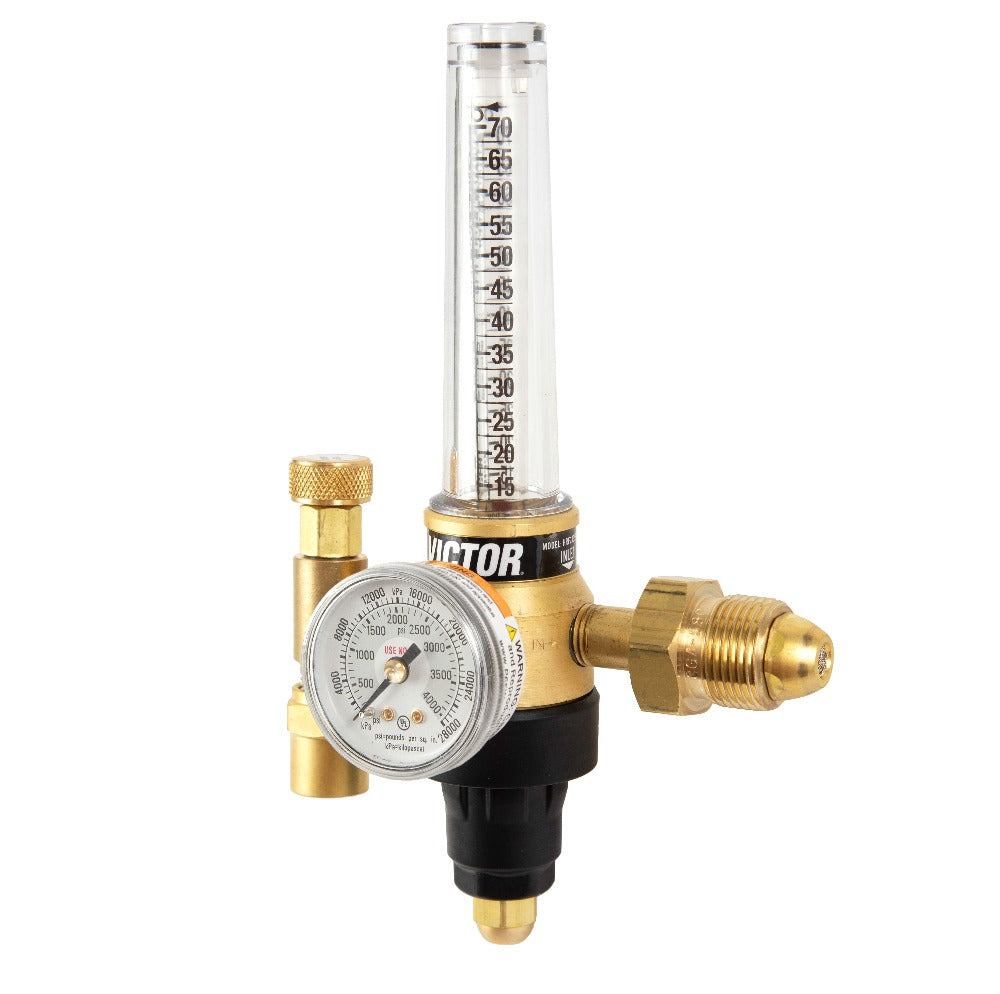

• Newly designed flow tube with improved scale visibility
• Superior CO2 performance for longer CO2 application run time
• Accurate, consistent flow delivery over the life of the cylinder

• Design

  • Regulator flowmeter combination in one compact unit
  • Diaphragm style regulator with fabric-reinforced neoprene diaphragm
  • Back pressure compensated
  • Precision needle valve, ensuring an accurate flow rate, even when exceeding 50 CFH
  • External self-reseating pressure relief valve (not designed to protect downstream equipment)
  • Safety overpressure burst mechanism built into flow tube for added safety
  • Machined brass body & die-cast housing cap
  • Sintered inlet filter – bronze
  • Third-party ETL listed to UL Standard 252

  • Full Product Data Sheet

    Available Options and Part Numbers



    Part Number		Model Name		Gas Type		CGA Inlet		CGA Outlet		Includes Hose
    0781-3656		HRF2435P-580		AR CO2		580		032 022		No
    0781-3657		HRF2435P-580		AR CO2		580		032 022		Yes, 10 Ft.
    0781-3658		HRF2435P-580 w Hose Barb		AR CO2		580		032 022		No
    0781-3659		HRF2480P-320		CO2		320		032 022		No
    0781-3660		HRF2480P-320 w Hose		CO2		320		032 022		Yes, 10 Ft.
    0781-3661		HRF2480P-992		AR CO2		992		032 022		No
    0781-3662		HRF2435P-034 (Pipleline)		AR CO2		34		032 022		No
    0781-3663		HRF2435P-032		AR CO2		32		032 022		No
    0781-3664		HRF2435-580 Helium		Helium		580		032 022		No

    Options	HRF2435P-580 – 0781-3656, HRF2435P-580 w/ 10 ft. Hose – 0781-3657, HRF2435P-580 w/ Hose Barb – 0781-3658, HRF2480P-320 – 0781-3659, HRF2480P-320 w/ 10 ft. Hose – 0781-3660, HRF2480P-992 – 0781-3661, HRF2480P-034 (Pipeline) – 0781-3662, HRF2435P-032 – 0781-3663, HRF2435-580 Helium – 0781-3664
