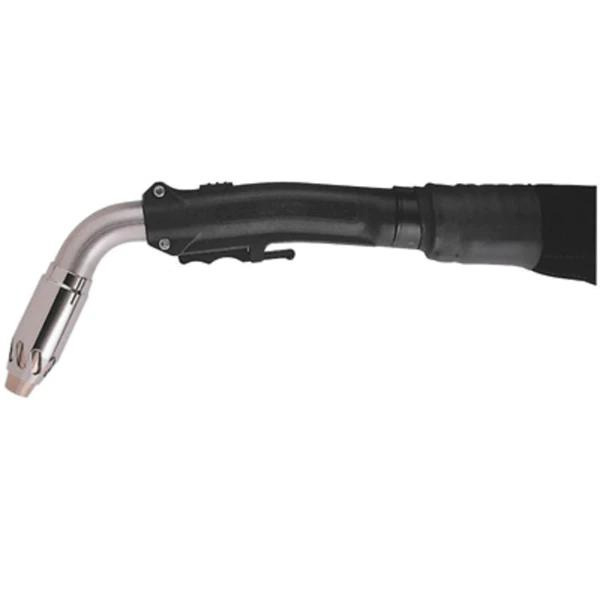

Tweco Smoke Master 450 Fume Extraction Torch

Tweco SmokeMaster MIG torches are designed to effectively reduce the amount of welding fume and smoke in particularly dirty welding environments. These torches feature a slide valve on the handle which allows the operator to quickly and easily adjust the removal flowrate at the source of fume.

Features

• Handle Slide Valve allows the operator to regulate vacuum on the MIG gun


• Efficiently Removes 90% of Smoke from the welding zone


• Surrounding Air is drawn over the front end consumables and conductor tube to keep cool


• Tough Outer Jacket made from leather protecting inner vacuum hose from weld spatter abrasion


• Low Bench Weight for easy to handle MIG gun


• Rugged & Durable Power Cablehoz® with proven abrasion & heat resistance


• Outer Metal Plated Insulated Smoke Tube


• 1-3 8“ (334.9 mm) Inside Diameter PVC Reinforced Vacuum Hose


• Ergonomic Handle to reduce operator fatigue


• Extended Trigger Length to reduce radiated heat

• Smoke Master 450 Specifications

  Amperage Rating		450 Amps
  Duty Cycle		60%
  Shielding gas @ Rated Amperage		Carbon Dioxide
  Wire Size		Up to 1 16 (1.6 mm)
  Cooling		Air
  Connector Style		Tweco® Style
  Length		15 ft (4.6 m)
  Part Number:		1046-1108
