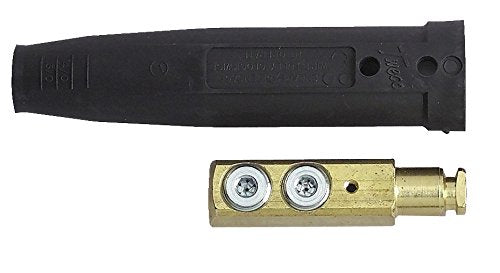

Tweco 4-MPC Cable Connectors



For use with 3 0, 4 0 welding cables providing a positive cam action which optimizes interface between connector halves. The connectors are equipped with heat and oil resistant covers. The MPC connectors are furnished with zinc plated cover and ball-point cable screws.   They are interchangeable with older Tweco MBP Connectors. Whip Cable 2-1 MPC Connector is used when down sizing cable to an electrode holder. It is a No. 2 male connector with cable hole sized to fit 4, 2, 1 or 1 0 cable. The 2-1-MPC will fit any No. 2-MPC or No. 4-MPC Tweco female connector.

• Amperage Capacity – 500A @ 80 volts AC DC

• Options:

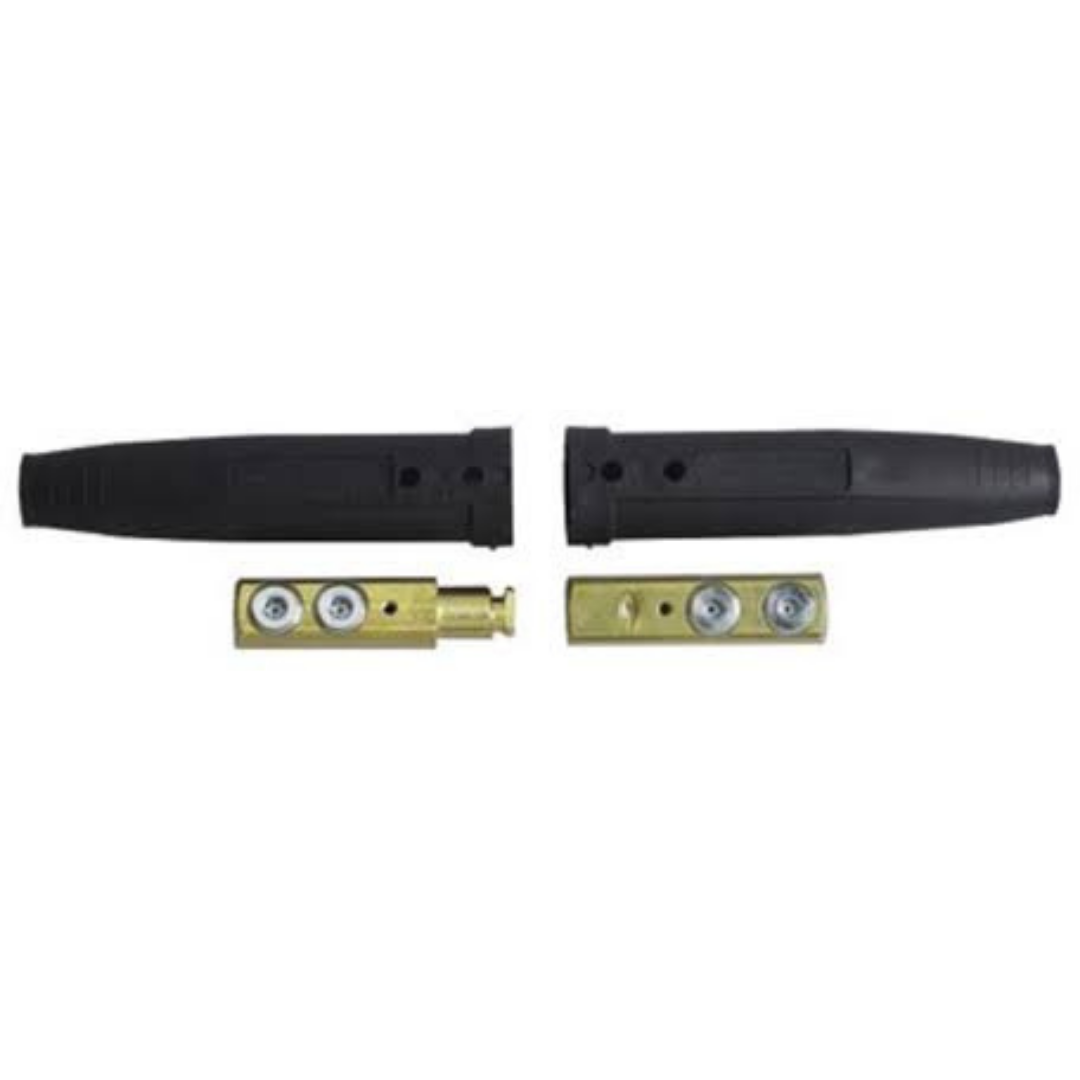

  • Complete Connection – 9425-1400 (One Male, One Female)
  • Male Half Connection – 9425-1410 (Two Male Connectors)
  • Female Half Connection – 9425-1420 (Two Female Connectors)
