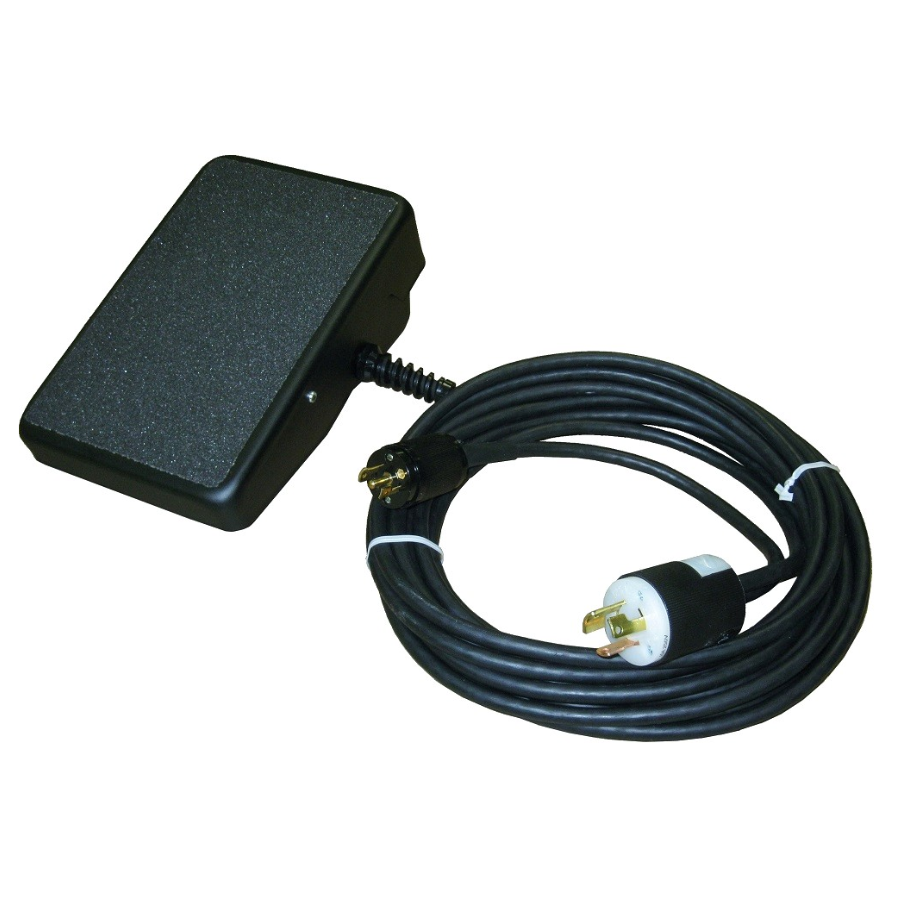

SSC Controls Model C890-0625 for Linde UCC-305



The C-Series TIG foot controls are dependable workhorses with high-performance characteristics. The C890-0625 is designed for use with Linde L-Tec machines with two twist lock plugs.

Designed for the pro, these rugged and dependable controls provide a tremendous value. The design features a durable 16-gauge steel case, an oversized top traction area, non-slip 3M® traction pads, comfortable at-rest and operating foot positions, heavy-duty cable, and high-precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the afterflow cycle. Includes a 25-foot cable and twist lock plugs.

• Patented design is tested to one million lifecycles.
• Designed and manufactured under a quality system certified to ISO 9001 requirements.
• For Linde UCC-305, L-TEC Linde: Heliarc 250 HF
• Connection features two twist-lock Hubbell style plugs
• Made in USA
• Part Number: C890-0625

• Non Stock Item – Please allow 3-5 week lead time

  Optional Heel Rest Attachment Available. Click Here.

  Model:		C890-0625
  Cable Length:		25 ft. (7.62 m)

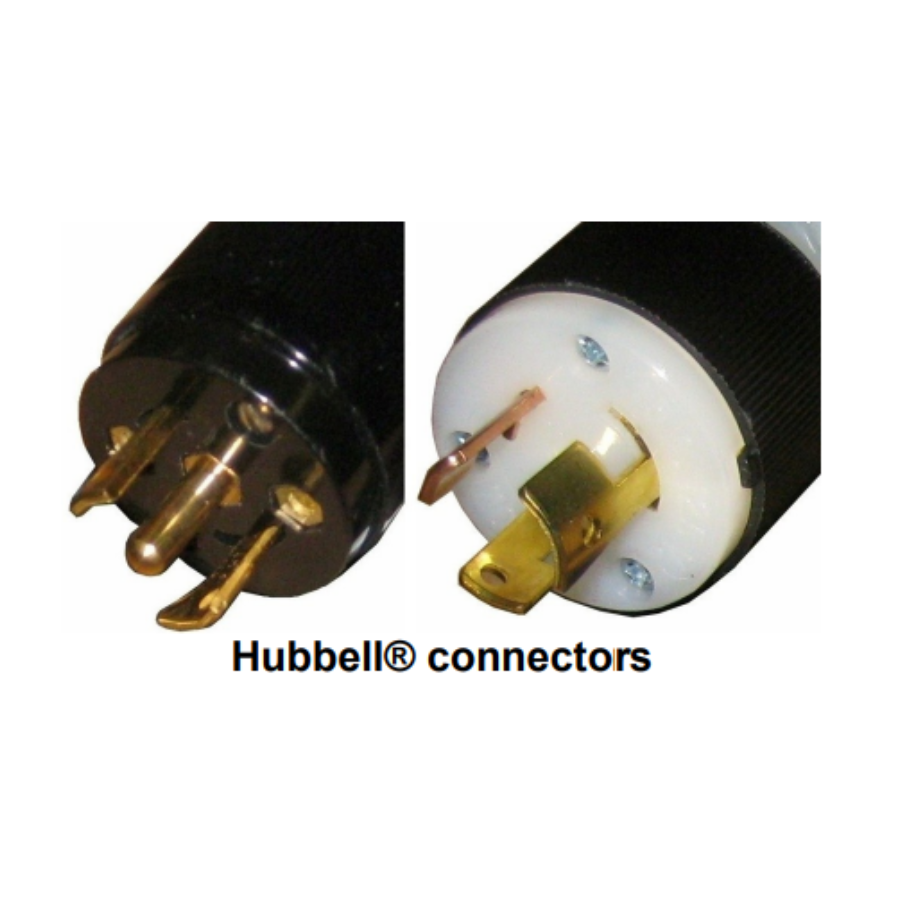

  Connection:		Twin Hubbell Plug – See product photo
  Dimensions, L x W x H, in. (cm.):		10 x 10 x 4.1
  Weight, pounds (kg.):		5.8 lb (2.6 kg)
  Finish:		Black, powder paint

  Product Data Sheet and Wiring Diagram
