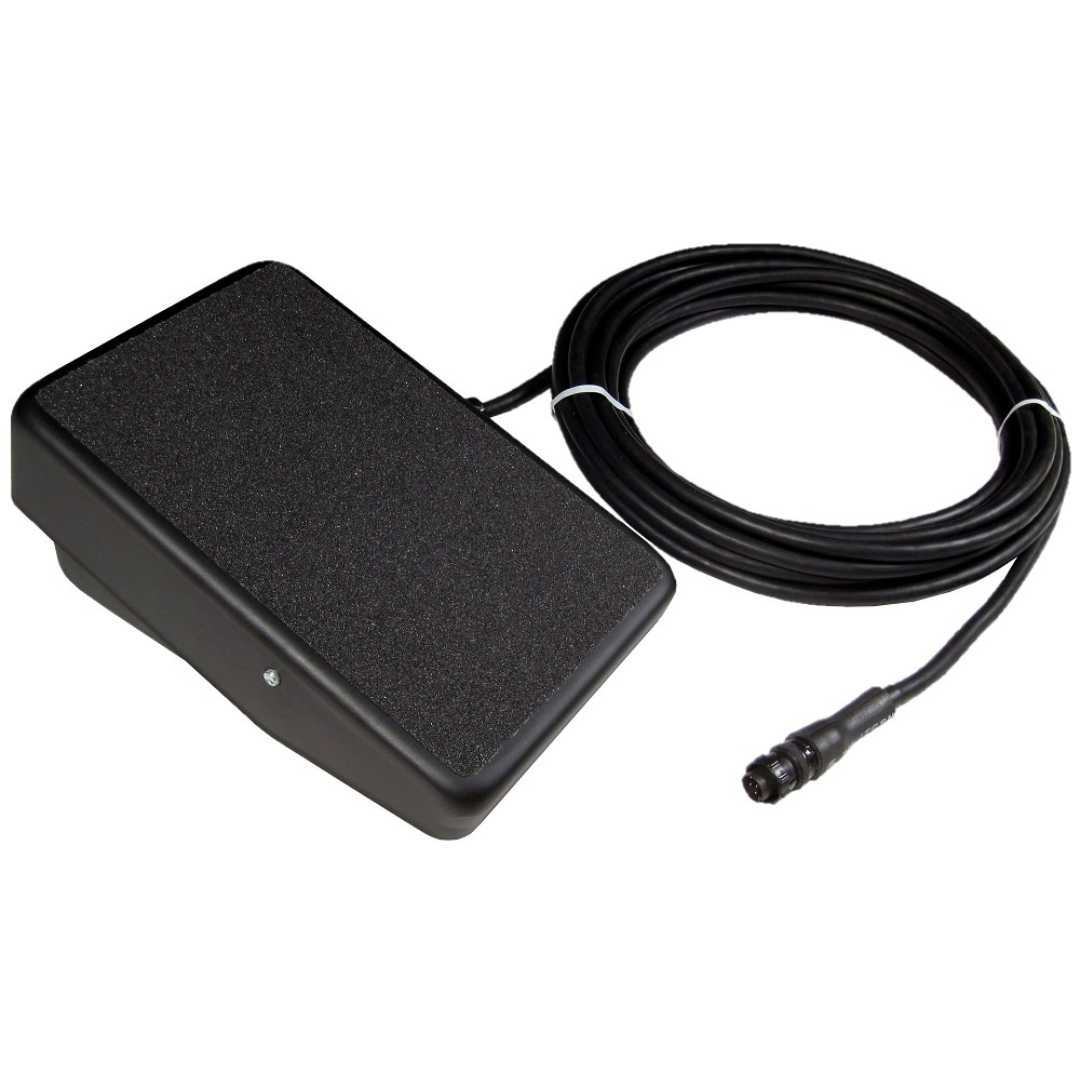

SSC Controls Model C810-0625 for 6-Pin Miller®Machines



The C810 TIG welding remote foot controls are industrial workhorses with high-performance characteristics. The C810-0625 are designed for use with Miller® TIG welding machines.

Designed for the pro, these rugged and dependable controls provide a tremendous value. The patented design improves low-current welding while providing precision arc control.

The design features a durable 16-gauge steel case, oversized top traction area, non-slip 3M® traction pads, comfortable at-rest and operating foot positions, heavy-duty cable, and precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the postflow cycle. Includes a 25-foot cable and 6-pin plug.

Optional Heel Rest Attachment Available. Click Here.

• Patented design is tested to one million cycles.
• Designed and manufactured under a quality system certified to ISO 9001 requirements.
• C810-0625 Replaces Miller RFCS-6M (p n 195183 and 195504)
• Made in USA
• Part Number: C810-0625

• Model:		C810-0625
  Cable Length:		25 ft. (7.62 m)
  Connection:		6-Pin Male (Small Plug)
  Dimensions, L x W x H, in. (cm.):		8.8 x 5.5 x 4.1 (22.4cm x 14.0cm x 10.2cm)
  Weight, pounds (kg.):		5.8 lb (2.6 kg)
  Finish:		Black, powder paint

  Model C810-0625 Direct Connects To:

  • Maxstar 161 STL and 161 STH
  • Maxstar 150 STH and STL
  • Multimatic 200
  • STi160
  • Maxstar 140 STR with Lift-Arc TIG option (current control only)
  • Hobart 150 STi
  • Note: Does not work with Maxstar 140, which has no receptacle.

  • Product Data Sheet and Wiring Diagram
