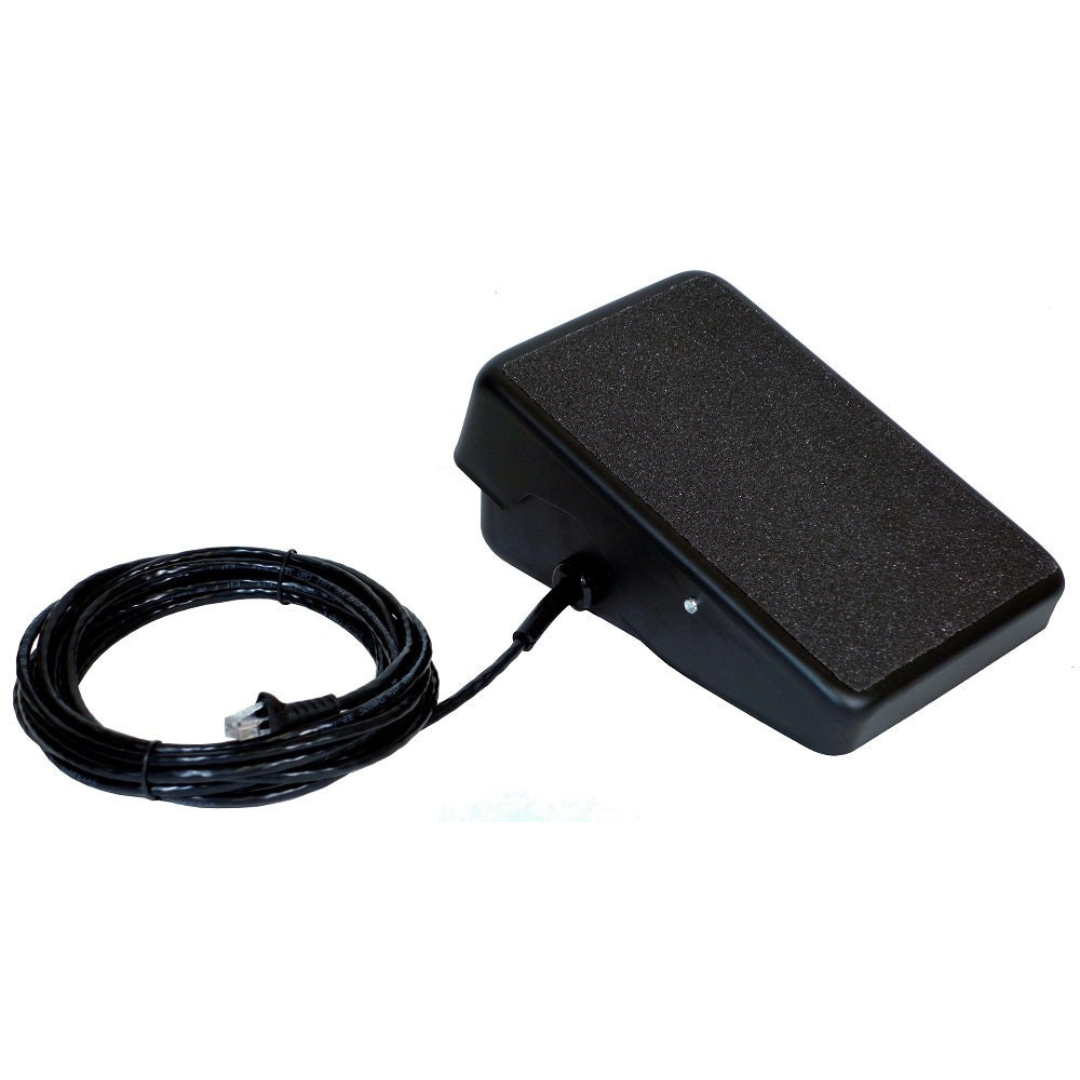

SSC Controls Model C810-0814 for RJ-45 (8-Pin) Miller® and Hobart® Machines

Note: Not for use with Hobart Multihandler 200 or Miller Multimatic 215

The C810-0814 is designed for the Miller® Diversion 165, Diversion 180, and Hobart® EZ-TIG165i TIG welding machines.

These rugged and dependable controls provide a tremendous value, and feature SSC s standard high-quality steel enclosure and precision components, as compared to the light-duty plastic foot control sold by Miller for these welders.

The design features a durable 16-gauge steel case, an oversized top traction area, non-slip traction pads, comfortable at-rest and operating positions, and precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the postflow cycle.
Includes a 14-foot cable and 8-pin RJ-45 plug.

Optional Heel Rest Attachment Available. Click Here.

• Patented design is tested to one million lifecycles.
• Designed and manufactured under a quality system certified to ISO 9001 requirements.
• C810-0814 Replaces Miller® RFCS-RJ45 (part number 300432) and Hobart p n 245589.
• Made in USA
• Part Number: C810-0814

• Model:		C810-0814
  Cable Length:		14 ft. (4.26 m)

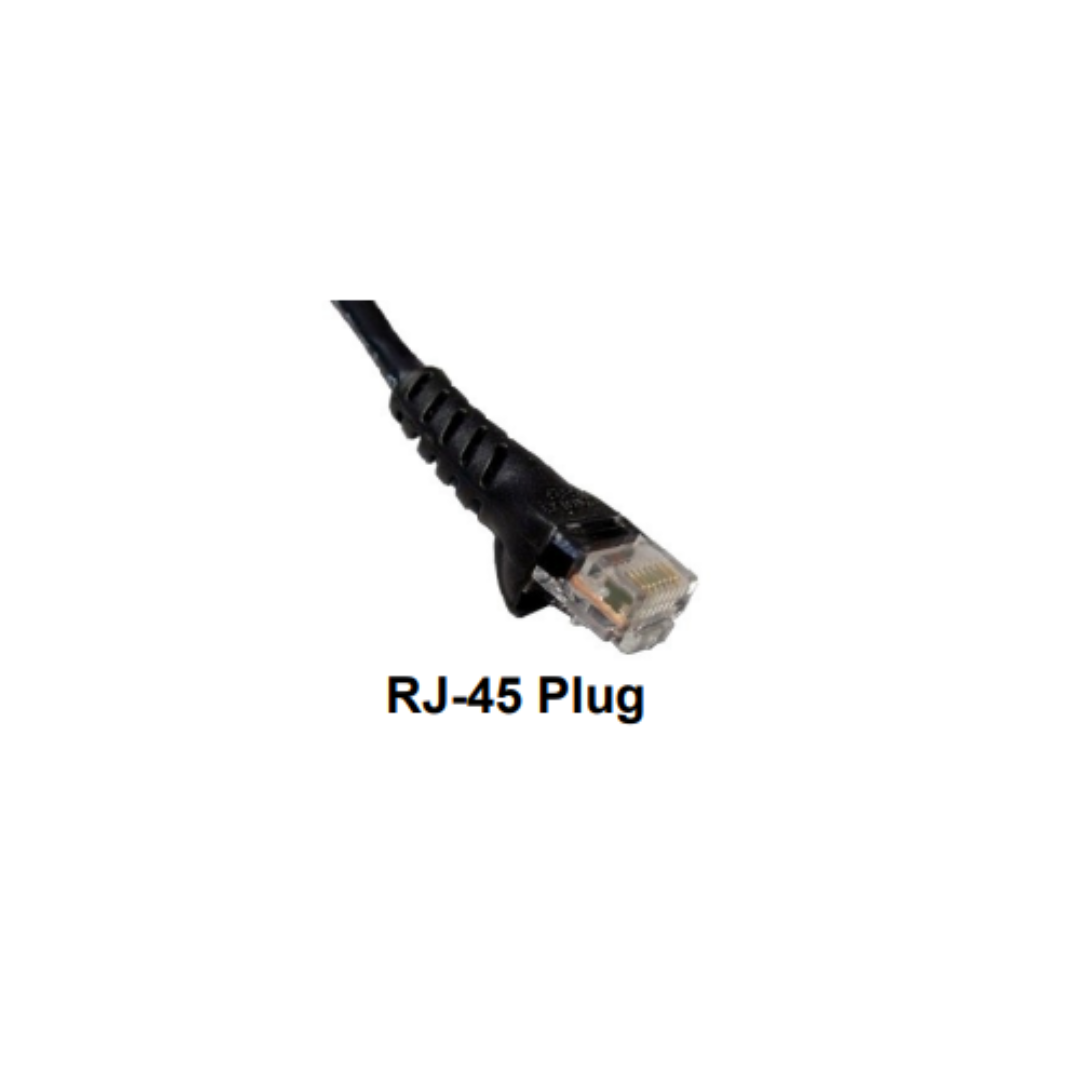

  Connection:		8-Pin RJ-45 Male
  Dimensions, L x W x H, in. (cm.):		8.8 x 5.5 x 4.1 (22.4cm x 14.0cm x 10.2cm)
  Weight, pounds (kg.):		4.8 lb (2.2 kg)
  Finish:		Black, powder paint

  Model C810-0814 Direct Connects To:

  • Diversion 165 and 180
  • Hobart EZ-TIG 165i
  • Note: Not for use with Hobart Multihandler 200 or Miller Multimatic 215

  • Product Data Sheet and Wiring Diagram
