SSC Controls Model C820-0625 for 6-Pin Lincoln® Machines



The C820 TIG welding remote foot controls are industrial workhorses with high-performance characteristics. The C820-0625 and are designed for use with Lincoln® TIG welding machines.  This model is a common replacement for Lincoln® part number K870

Designed for the pro, these rugged and dependable controls provide a tremendous value. The patented design improves low-current welding while providing classic arc control.

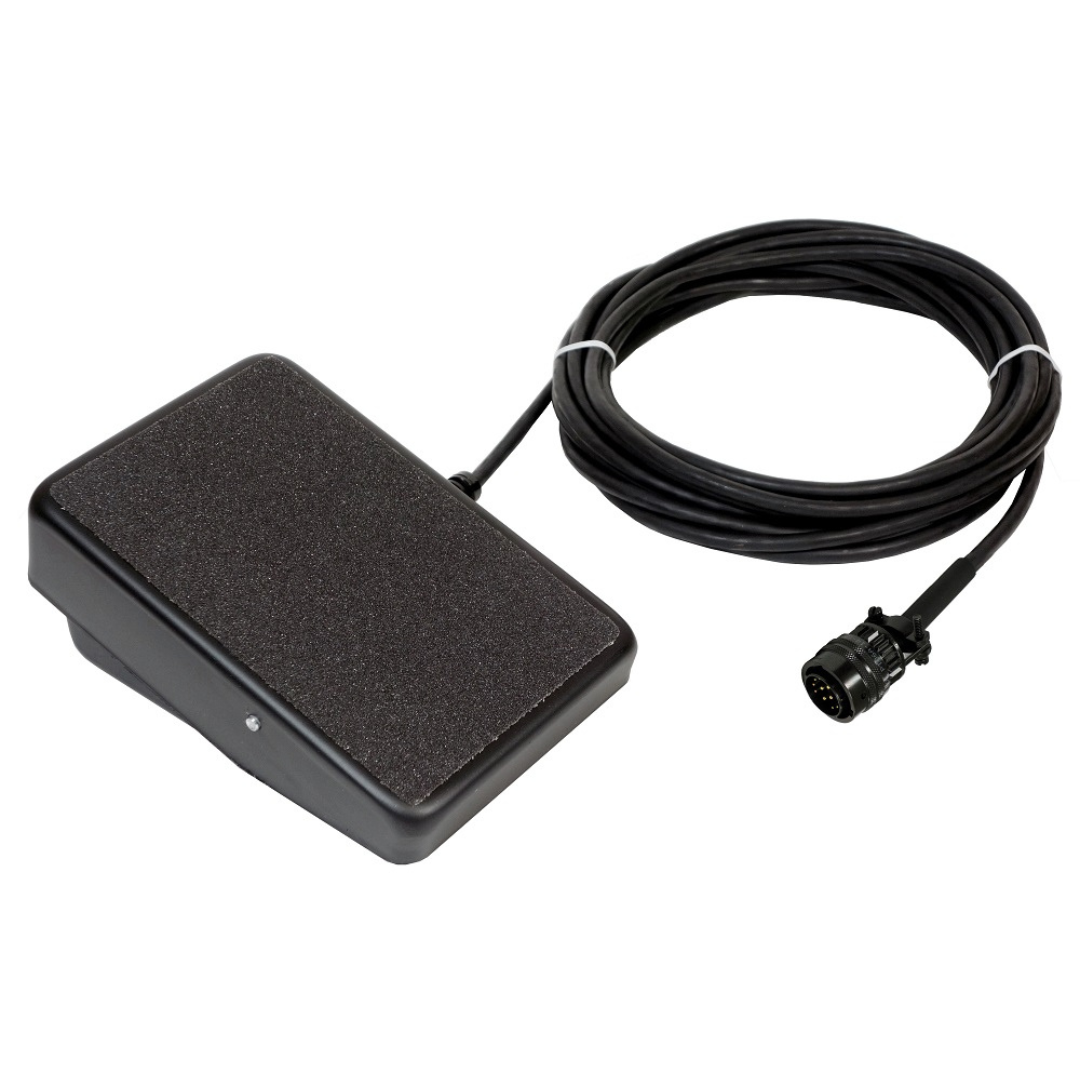

The design features a durable 16-gauge steel case, oversized top traction area, non-slip 3M® traction pads, comfortable at-rest and operating foot positions, heavy-duty cable, and precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the postflow cycle. Includes a 25-foot cable and 6-pin plug.

Optional Heel Rest Attachment Available. Click Here.

• Patented design is tested to one million lifecycles.
• Designed and manufactured under a quality system certified to ISO 9001 requirements.
• C820-0625 Replaces Lincoln Amptrol model number K870
• Made in USA
• Part Number: C820-0625

• Model:		C820-0625
  Cable Length:		25 ft. (7.62 m)
  Connection:		6-Pin Male
  Dimensions, L x W x H, in. (cm.):		8.8 x 5.5 x 4.1 (22.4cm x 14.0cm x 10.2cm)
  Weight, pounds (kg.):		5.8 lb (2.6 kg)
  Finish:		Black, powder paint



  Model C820-0625 Direct Connects To:

  • R3R 300, 400 & 500 (codes 9534 and above)
  • SquareWave TIG 175, 200, 255, 275, 300, 350, 355 and 175 Pro
  • PowerMIG 210MP, Power MIG 215MPi
  • DC400, 600, 655, TIG 250 250, (all) TIG 300 300 (codes 8875 and above)
  • DC TIG Starter (k900-1)
  • TIG Module (K930-1)
  • Invertec™ V200-T, V160-S, V275-S, V300 Pro and V350 Pro, V160T, V250T, Precision TIG 275 and 375

  • Product Data Sheet and Wiring Diagram
