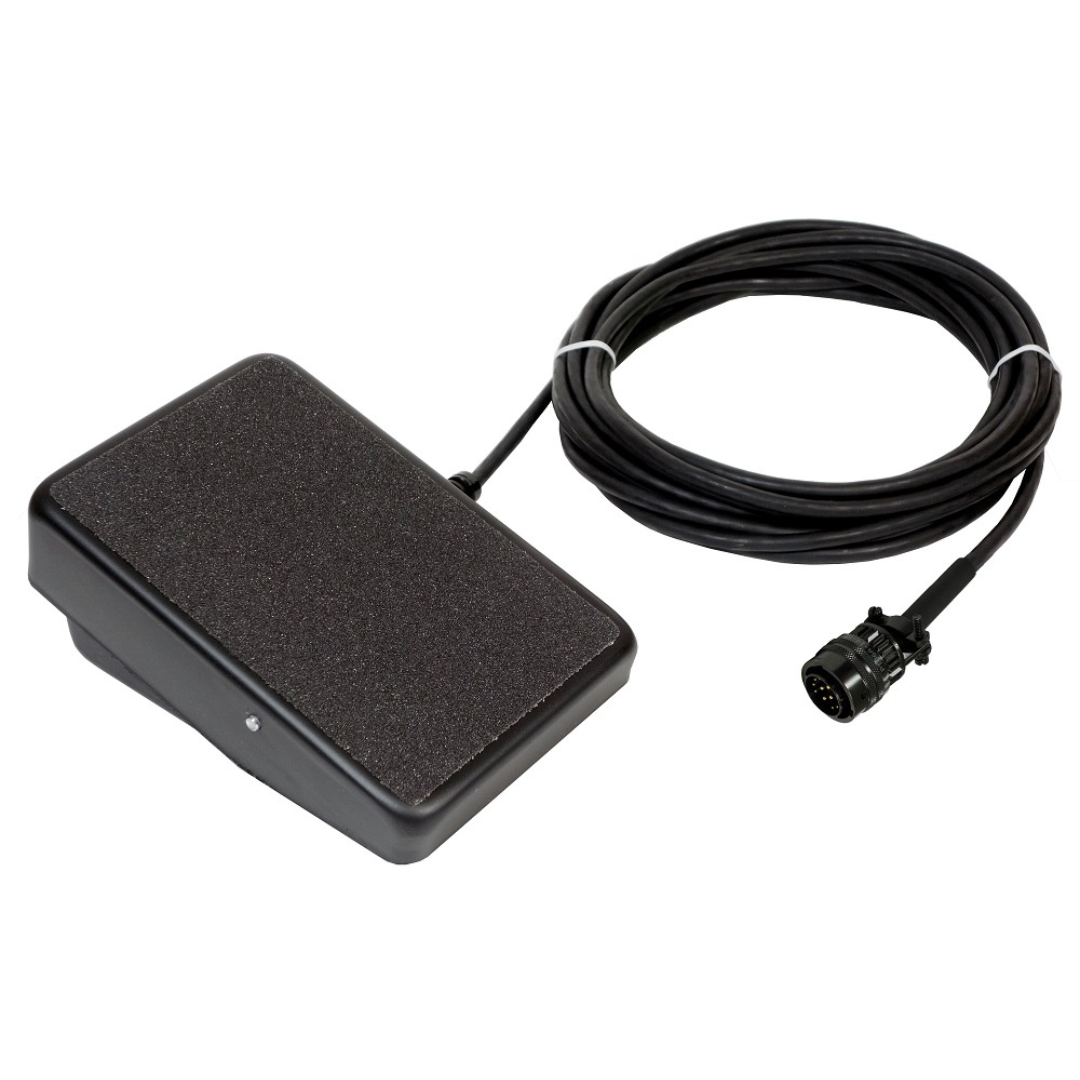

SSC Controls Model C820-1225 for 12-Pin Lincoln® Machines



The C820 TIG welding remote foot controls are industrial workhorses with high-performance characteristics. The C820-1225 and are designed for use with Lincoln® TIG welding machines.

Designed for the pro, these rugged and dependable controls provide a tremendous value. The patented design improves low-current welding while providing classic arc control.

The design features a durable 16-gauge steel case, oversized top traction area, non-slip 3M® traction pads, comfortable at-rest and operating foot positions, heavy-duty cable, and precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the postflow cycle. Includes a 25-foot cable and 12-pin plug.

Optional Heel Rest Attachment Available. Click Here.

• Patented design is tested to one million lifecycles.
• Designed and manufactured under a quality system certified to ISO 9001 requirements.
• C820-1225 Replaces Lincoln Amptrol model number K870-2
• Made in USA
• Part Number: C820-1225

• Model:		C820-1225
  Cable Length:		25 ft. (7.62 m)
  Connection:		12-Pin Male
  Dimensions, L x W x H, in. (cm.):		8.8 x 5.5 x 4.1 (22.4cm x 14.0cm x 10.2cm)
  Weight, pounds (kg.):		5.8 lb (2.6 kg)
  Finish:		Black, powder paint
