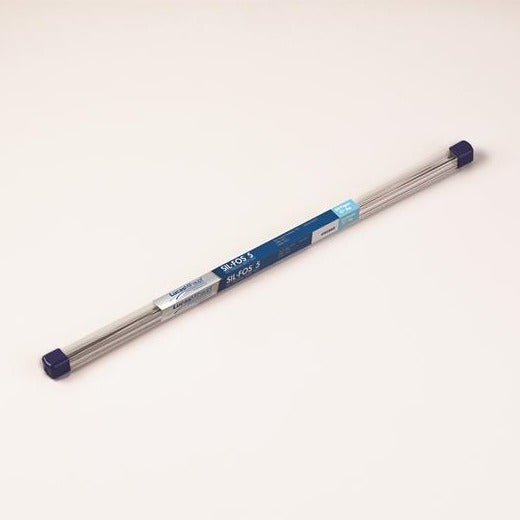

Lucas Milhaupt Sil-Fos 5% Silver Brazing Alloy
Sil-Fos 5 is an alloy for copper-copper brazing, specifically appropriate for filling gaps, forming fillets. No flux required due to phosphorous in the Sil-Fos family.
- Joins CU to CU (phosphorus serves as flux)
- Joins CU to Brass (flux is recommended)
- Designed for applications where close fit-ups cannot be maintained
- Slow Flow
- Made in USA
-
-
Name:SIL-FOS 5
- Nominal Composition:Silver 5.00, Copper 89.00, Phosphorous 6.00,
- Liquidus:1495 °F, 813 °C
- Solidus:1190 °F, 643 °C
- AWS:AWS: BCuP-3
- 1 16 (1.6 mm)
- 3 32 (2.4 mm)
- 1 8 (3.2 mm)
Download Technical Data Sheet
Options: (1 lb Tube)
Diameter 1/16" (1.6 mm), 3/32" (2.4 mm), 1/8" (3.2 mm)
Related products
Review Cart
Sil-Fos 5% Silver Brazing Alloy Hot on Sale$48.50Select optionsSil-Fos 5% Silver Brazing Alloy Hot on Sale$48.50Select options
Industry Applications:
HVAC R Refrigerant systems, air conditioning coils, evaporator coils -
Name:SIL-FOS 5
