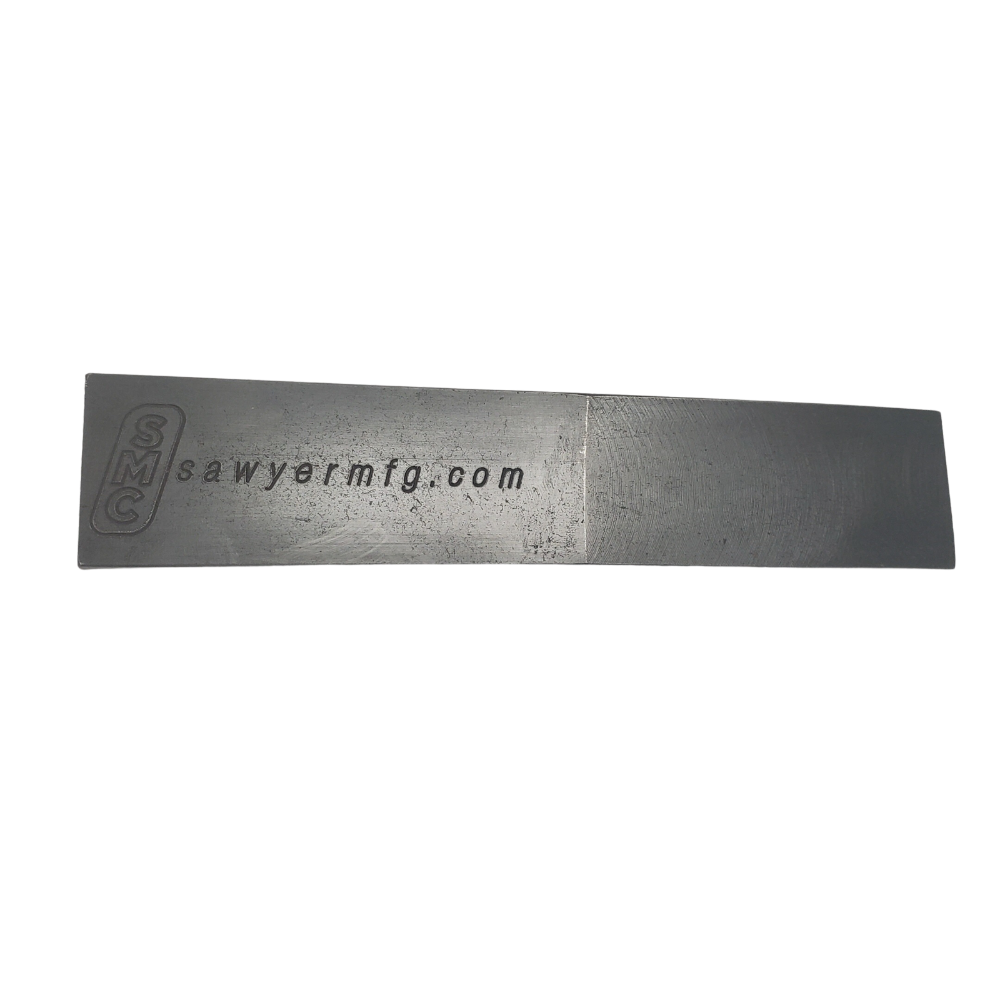

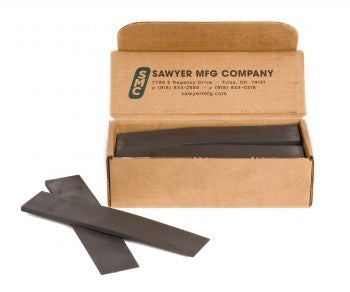

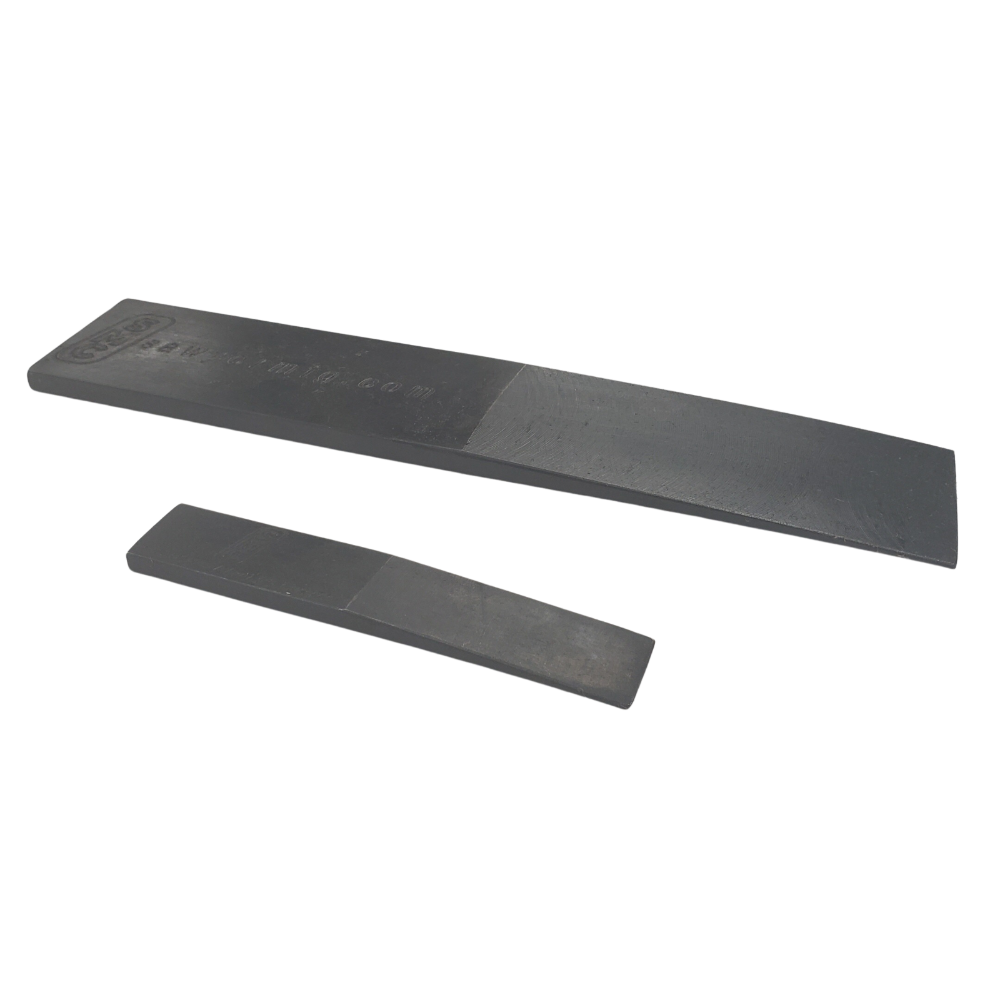

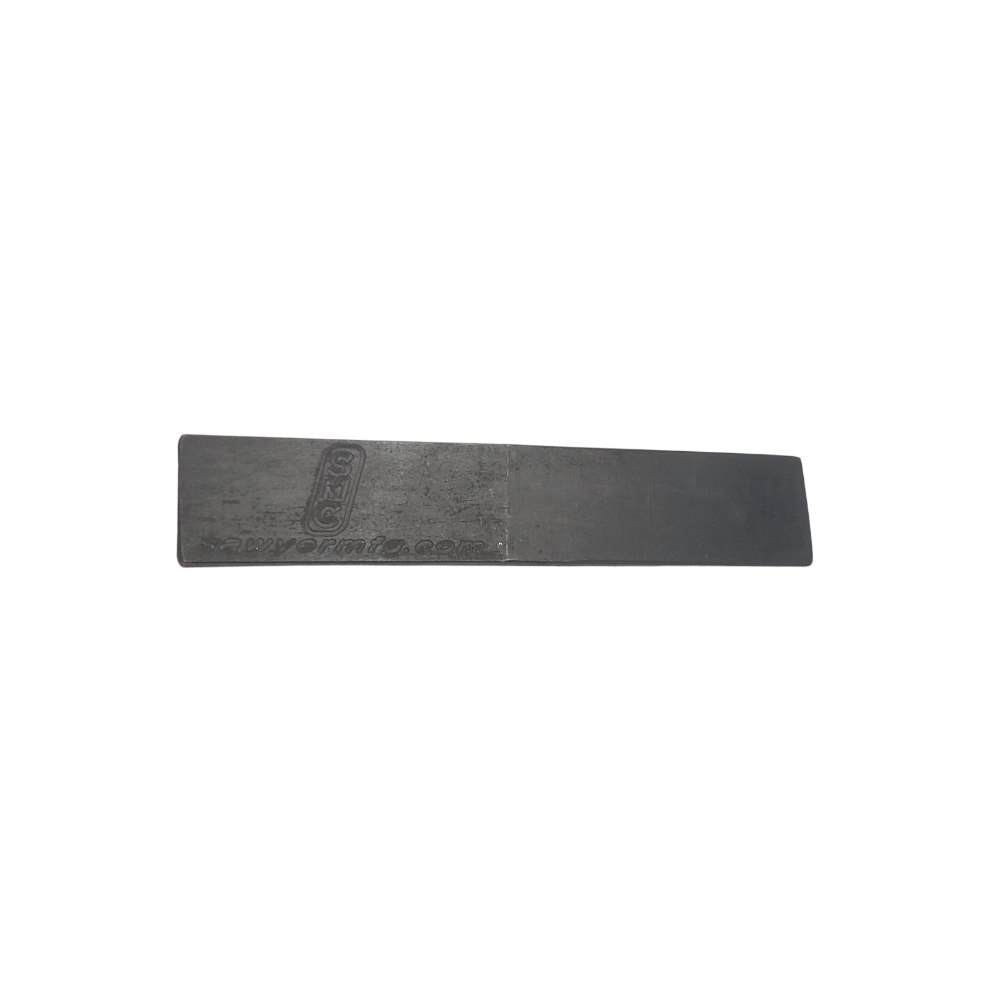

Sawyer Pipe Spacing Tools – 420 & 420S



Two sizes of Sawyer’s Spacing Tools spread the welding gap to the exact desired width,
accommodating a range of small to large diameter pipe. The Spacing Tool also has a longer blade space and a gradual taper.

Spacing wedges are traditionally made of hardened spring steel; through a different hardening process, they are able to get a harder wedge that is not brittle. Spacing Tools and Short Spacing Tools work in conjunction with our range of clamps to optimize any pipe fit up requirement.

Features

• Quickly obtain exact weld gap
• Spacing Tool has a maximum thickness of 1⁄4”
• Short Spacing Tool has a maximum thickness of 3⁄16”
• Tapers to a chiseled point
• Special process hardens steel; will not bend or mushroom
• Hard-wearing and precision machined

• Model 420 420-S Cut Sheet

  Sawyer Model 420 Series Spacing Tool Specifications:

  Model No.		Description		Dimensions		Weight
  420		Spacing Tool		8-3⁄4” x 1-3⁄4” x 1⁄4”		14 oz. (0.396 kg.)
  420-S		Short Spacing Tool		4” x 3⁄4” x 3⁄16”		1.9 oz. (0.053 kg)

  Options	Short – 3/16" Thickness, Standard – 1/4" Thickness
