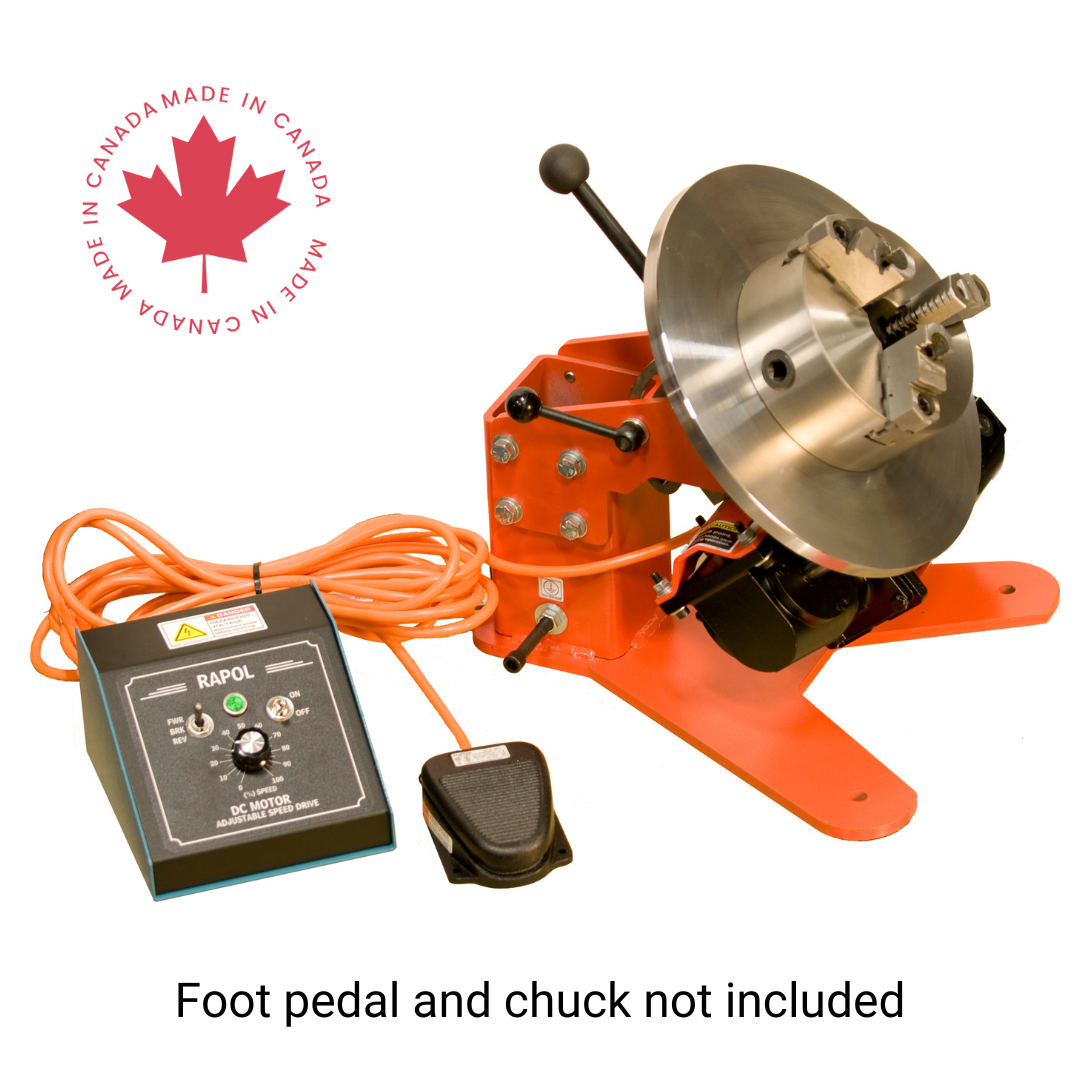

Features

• Control The solid state (SCR) DC control with dynamic braking – variable speed table rotation motor system will always provide proper weld speed settings and steady rotation rates. Rotation speeds are electronically controlled in both forward and reverse direction.

• Drive Heavy-duty self-locking worm gear reducer on rotation drive positively prevents the load from moving unless the worm gear is revolving.

• Electrical System The electrical control components are housed in an easy access cabinet in the front of the machine. Components and wiring are neatly laid out and labeled for easy troubleshooting.

• Control Panel User friendly and positioned on the back of the machine.

• CSA Certified

• Specifications:

  Load Capacity		200 lbs (at 0°)
  Load Capacity		150 lbs (at 90°)
  Table Style		Disc Table with Pre-Drilled Holes
  Table Height		5”
  Rotation Speed		0.2 – 10 RPM OR 0.1 – 5 RPM
  Rotation Motor		1 8 HP DC
  Tilt Range		0 – 90 Degrees
  Voltage		115V 60 Hz



  Download User Manual

  Optional Extras:  Contact [email protected] for pricing

  • On Off Foot Switch
  • Variable Speed Foot Switch
  • Digital Display (Reference)
  • 1⁄4” NPT Spindle Purge Hole

  • *Heavy item – additional shipping charges apply at checkout
