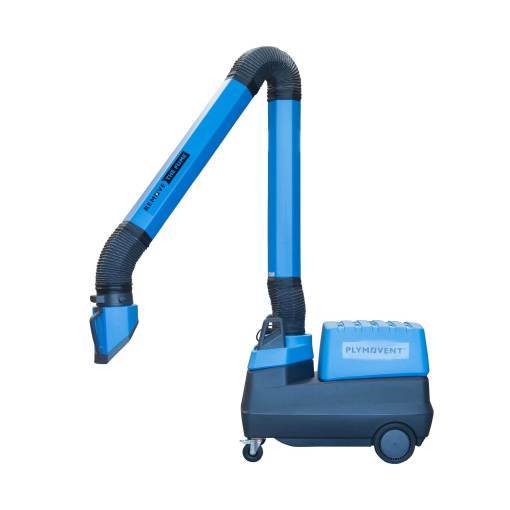

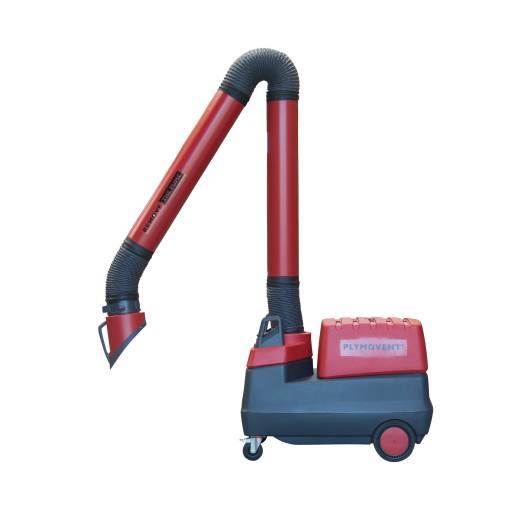

Plymovent MFD, MFS Ultra Fume Extractors

The mobile filter fume extractor MFD MFS ULTRA, with UltraFlex extraction arm, is a robustly designed mobile fume extractor that effectively removes hazardous welding and grinding fumes at-the-source. With the UltraFlex extraction arm and its built in work lamp and auto start sensor, the MFS ULTRA offers welders and fabricators an extremely flexible, user-friendly solution to capture fumes.

The MFD MFS ULTRA is optimal for small welding and fabrication shops, plant maintenance, schools and general fabrication and production facilities demanding a mobile fume extractor that can protect their personnel from hazardous fumes in multiple locations.

System Type Options:

• Disposable Filter (MFD Ultra)

• • MFD system utilizes a mechanical DuraFilter and filter pollution indicator for longer life disposable filtration.
  • • Self Cleaning (MFS Ultra)

    • • MFS system is designed with a RotaPulse system for automatic sectional cleaning of the filter cartridge, the fume and dust particles end up in the MFS ULTRA dust tray. (Requires compressed air)

      •  Filter Efficiency Options:

        • Standard Efficiency – LongLife MERV 15

        • High Efficiency – LongLife MERV 16

        • • Recommended for applications such as stainless steel welding or removal of Hexavalent chrome

          • Colour Options

            • Yellow
            • Red
            • Blue

            • Benefits Highlights

              • 1 HP (.75 kW) fan for optimal extraction capacity of 735 CFM 1250 m3 h with UltraFlex-4 extraction arm. 13 ft. (4 m) Length
              • RotaPulse System for automatic sectional filter cleaning lowers operational and maintenance costs.

              • Internal Spark Arrestor – pre-filter to increase unit life and reduces risk of system damage.

              • UltraFlex-4 extraction arm allows for optimal motion and reach for multiple work areas.

              • BalanceWheel system creates frictionless, user friendly UltraFlex-4 extraction arm positioning.

              • RotaHood 360-degree friction free rotatable hood optimized hood positioning and fume removal.

              • Integrated Work Lamp
              • Manual On Off Switch
              • Automatic Start Stop Sensor to increase operator productivity and energy savings.

              • Front Casters and Rear Wheels for ideal MFS ULTRA mobility and positioning.
              • Sound Level very quiet < 69 dB(A); operating quieter than most other workshop equipment.
              • Safe and Easy Operation.
              • CSA Approved

              • The UltraFlex is a top of the line extraction arm and comes with a built-in work lamp and automatic start stop sensor. This combination offers welders and fabricators an extremely effective, flexible and user friendly solution to capture fumes.  Available in 10ft (3 m) or 13 ft. (4 m) Length

                The optional RotaPulse system automatically cleans the filter cartridge, collecting debris and dust particles in a convenient dust tray for easy maintenance and service.

                The MFS ULTRA is optimal for welding and fabrication shops, plant maintenance, schools and general fabrication and production facilities demanding a mobile fume extractor that can protect their personnel from hazardous fumes in multiple locations.

                Product Data Sheets

                MFD Ultra Disposable Filter Model Data Sheet

                MFS Ultra Self Cleaning Filter Model Data Sheet

                UltraFlex-4 Extraction Arm Data Sheet

                Freight cost of $120 automatically added at checkout.  Shipped direct from Plymovent – please allow 5-10 days processing time. Priority shipping not available for this item.  Please contact our Support team if you have any questions.
