Piher Maxi R Series Clamps (6.5 Throat) Supply

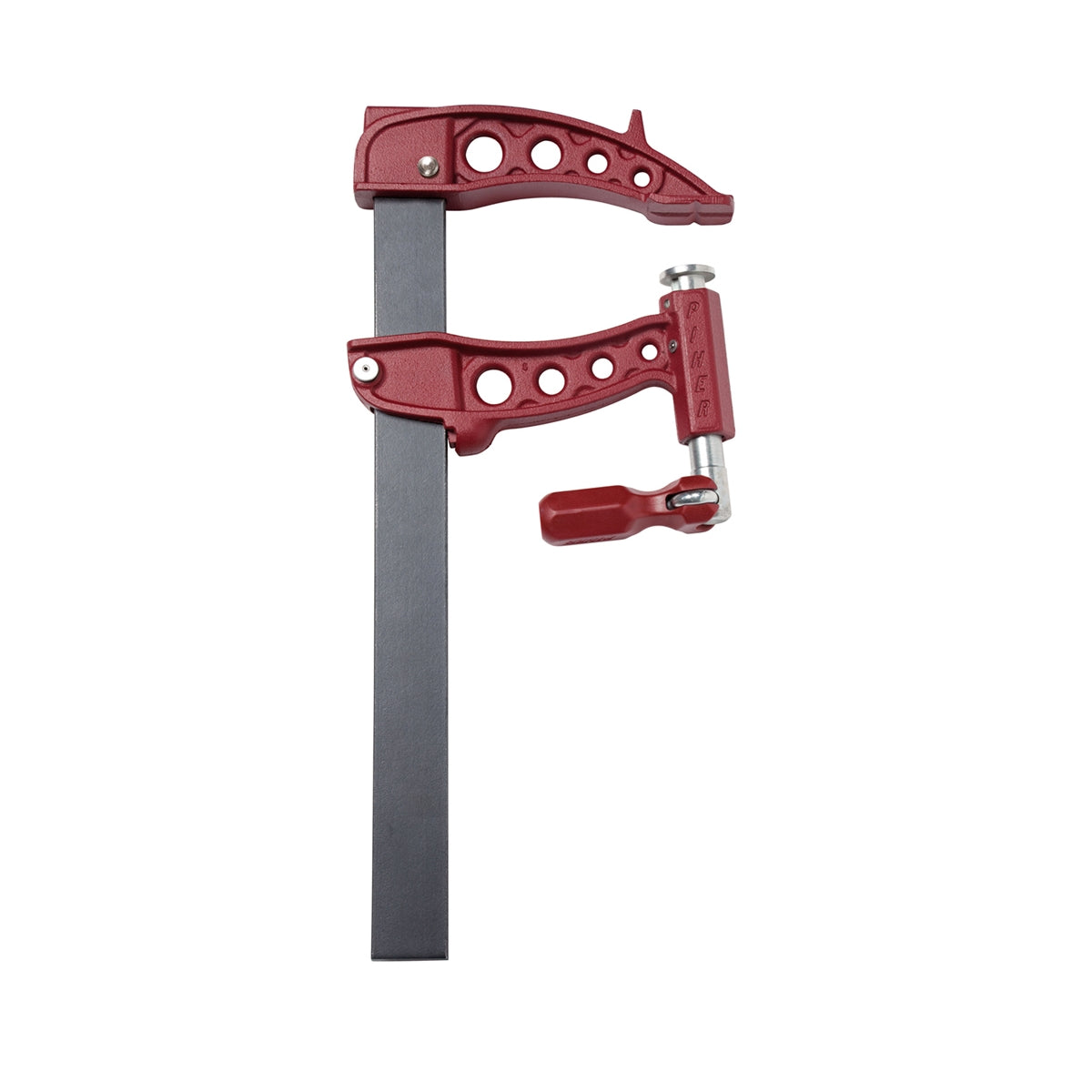

Piher Maxi R Series Metal Clamps

Piher is changing the game of material clamping with the innovative line of Maxi bar clamps.  The R series feature a 16 cm (6.5 ) throat and are rated at 10,000n (2250 lb-force)

Model Number		Item Number
12 MAXI R-30 (30 cm)		61030
16 MAXI R-40 (40 cm)		61040
20 MAXI R-50 (50 cm)		61050
24 MAXI R-60 (60 cm)		61060
32 MAXI R-80 (80 cm)		61080
40 MAXI R-100 (100 cm)		61100

 Non-stock item – please allow 1 week lead time



 Features:

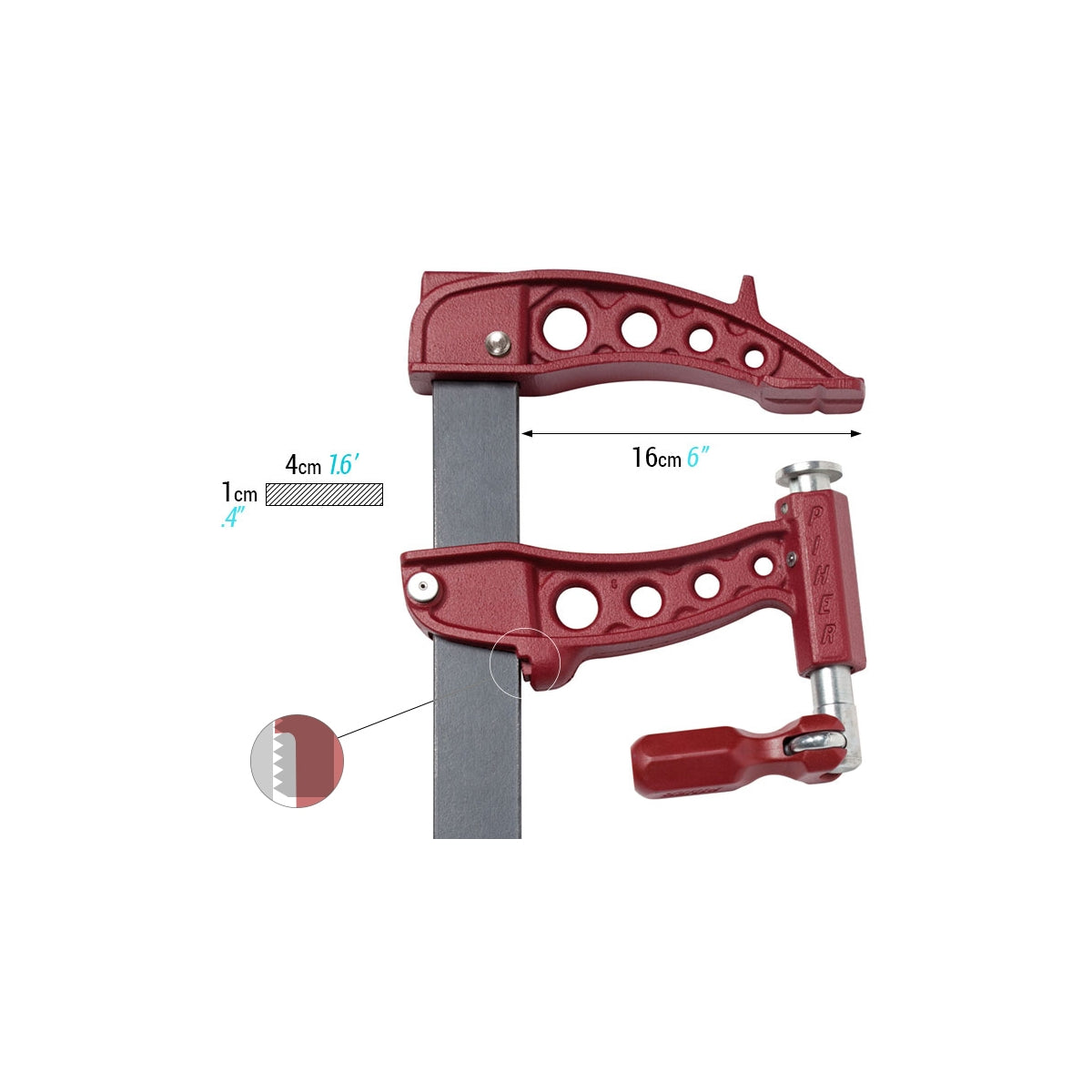

• 16 cm (6.5 ) throat.
• 40mm x 10mm rolled spring steel bar which gives maximum pressure held throughout the whole job.

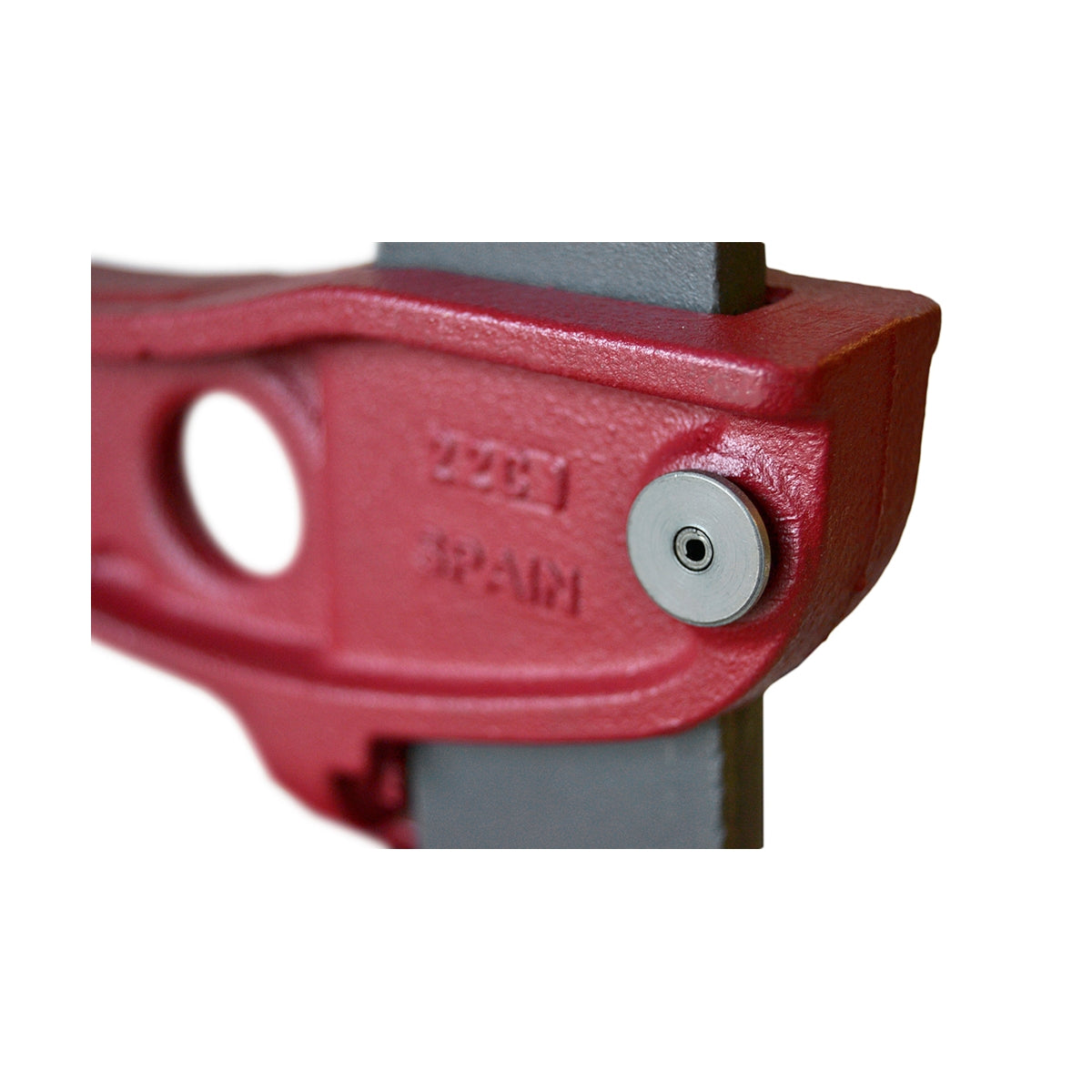

• Nodular cast iron jaws.

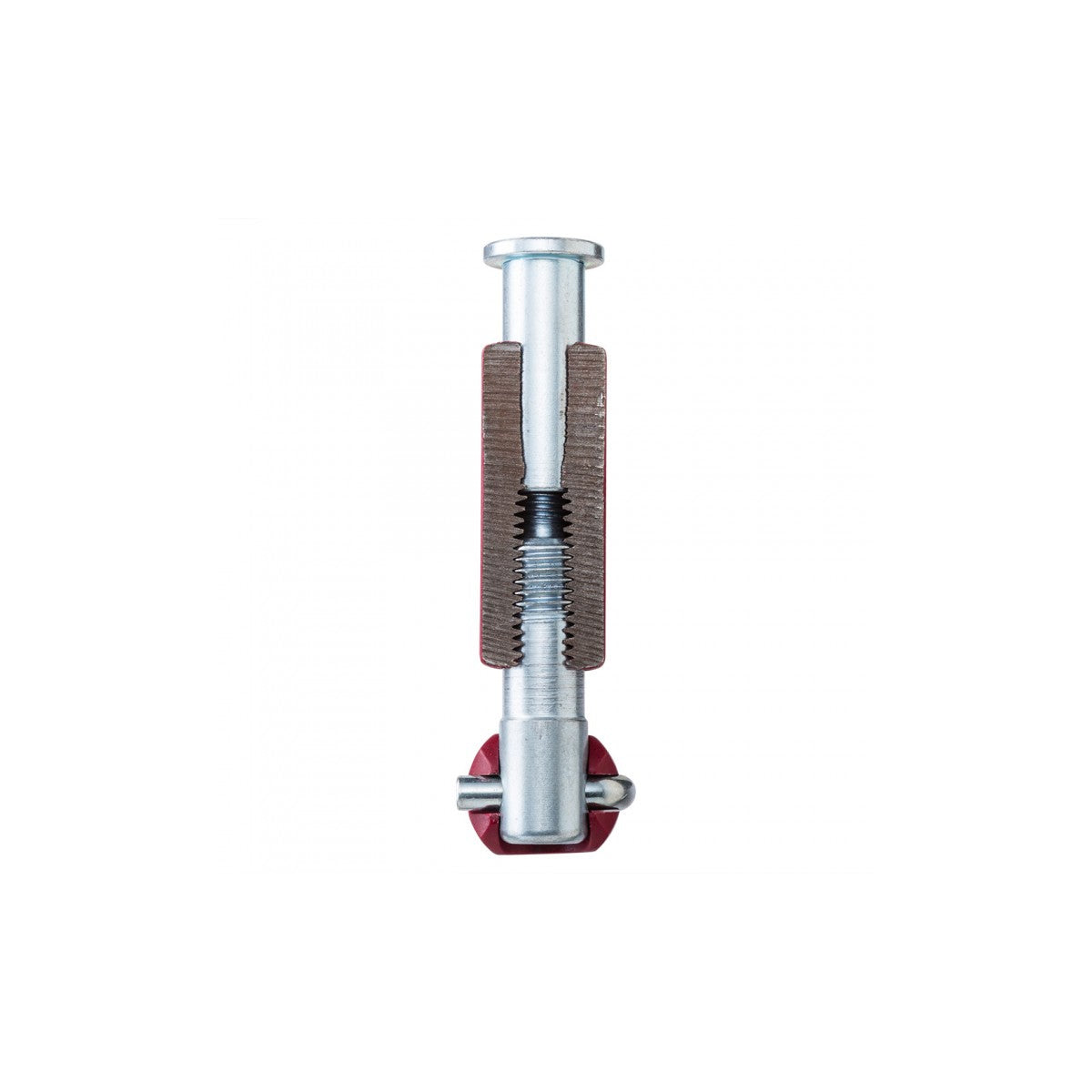

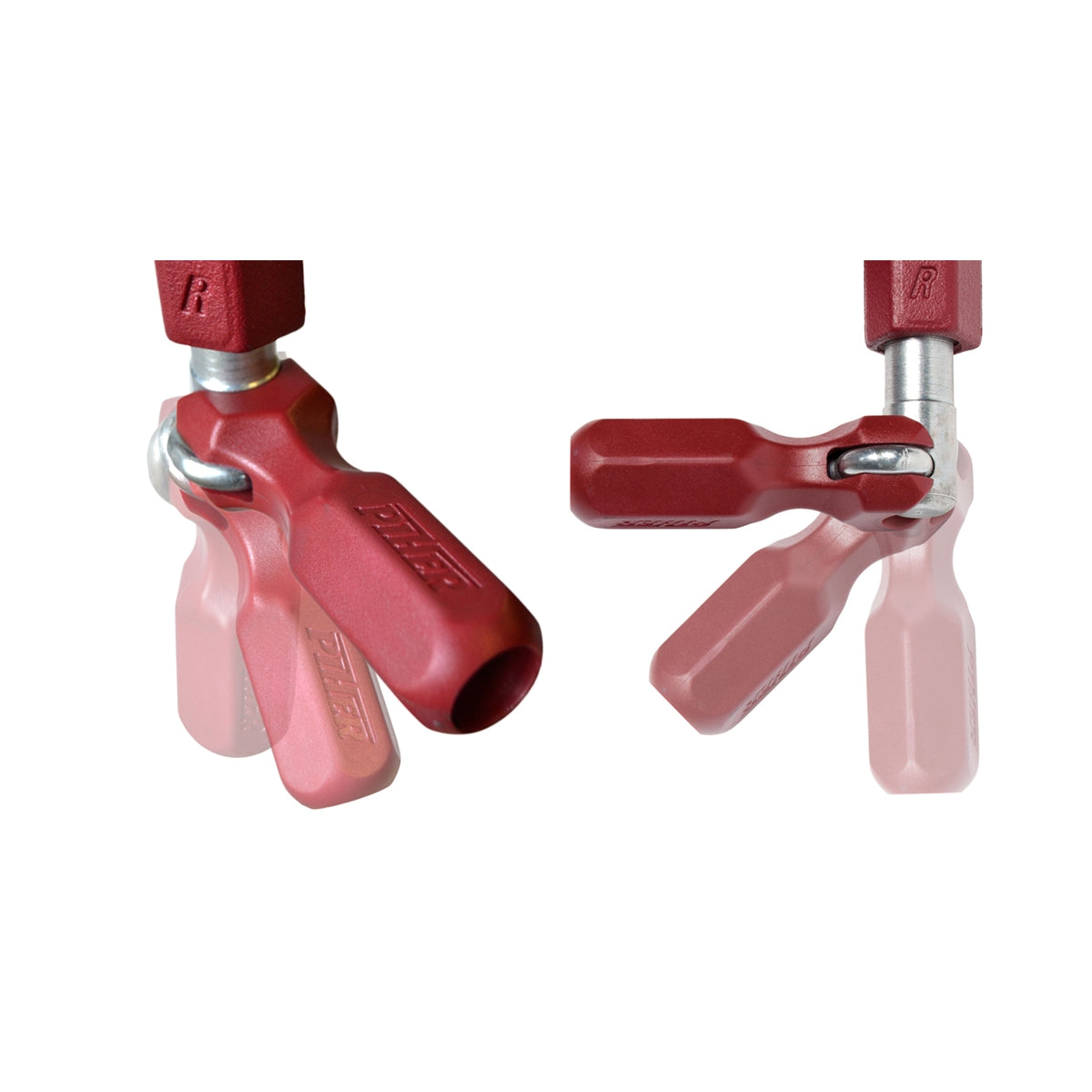

• Covered double threaded screw which doubles both the pressure and the speed with a greasing hole for optimum lubrication and a new dismountable, interchangeable easy grip handle.
• The surface of the fixed jaw is grooved to achieve maximum grip on angled pieces, tubes,etc.
• The moving jaw is kept firmly in position thanks to the spring activated brake at the back.
• Made in Spain

• Spec Sheet

Model	12" MAXI R-30 (30 cm) – 61030, 16" MAXI R-40 (40 cm) – 61040, 20" MAXI R-50 (50 cm) – 61050, 24" MAXI R-60 (60 cm) – 61060, 32" MAXI R-80 (80 cm) – 61080, 40" MAXI R-100 (100 cm) – 61100
