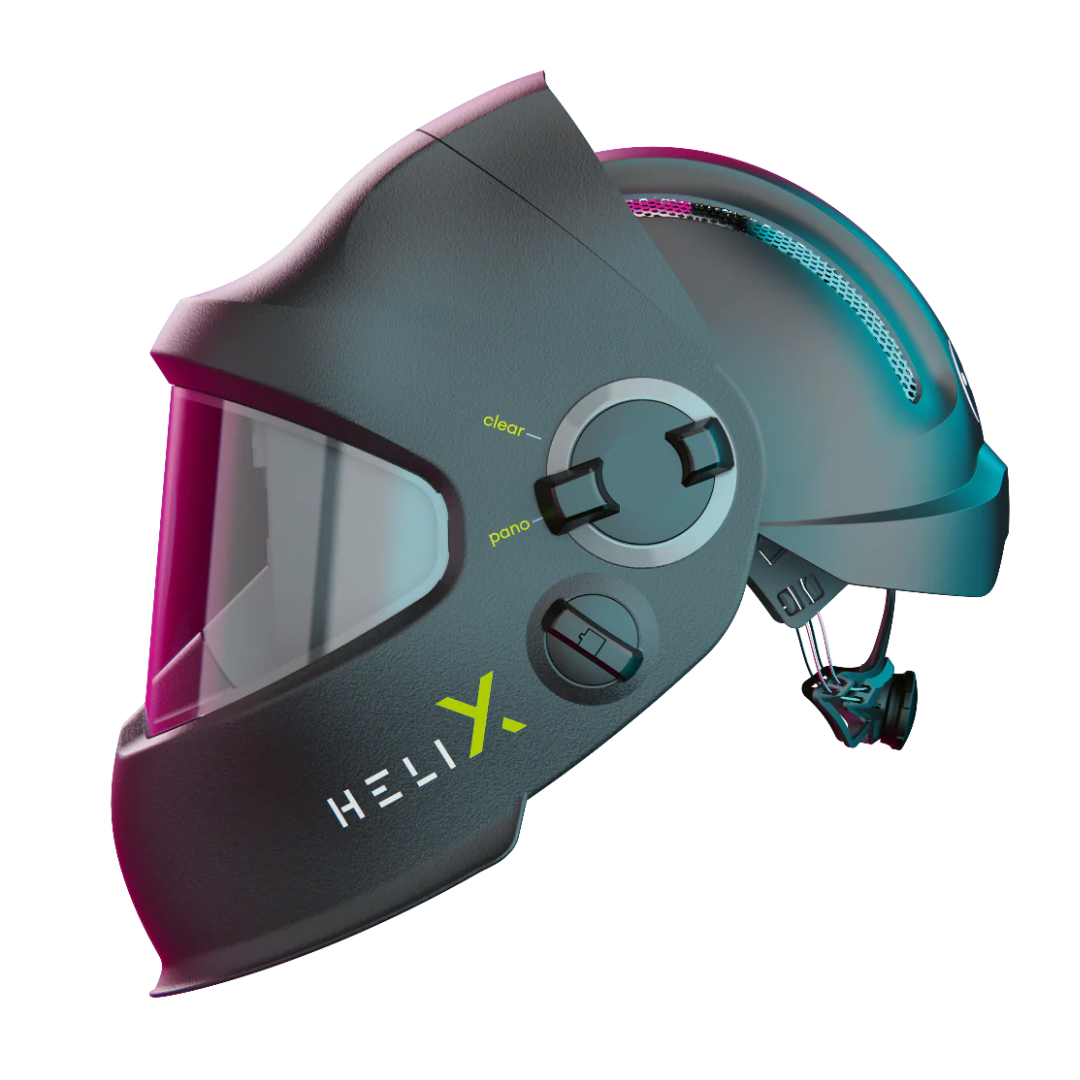

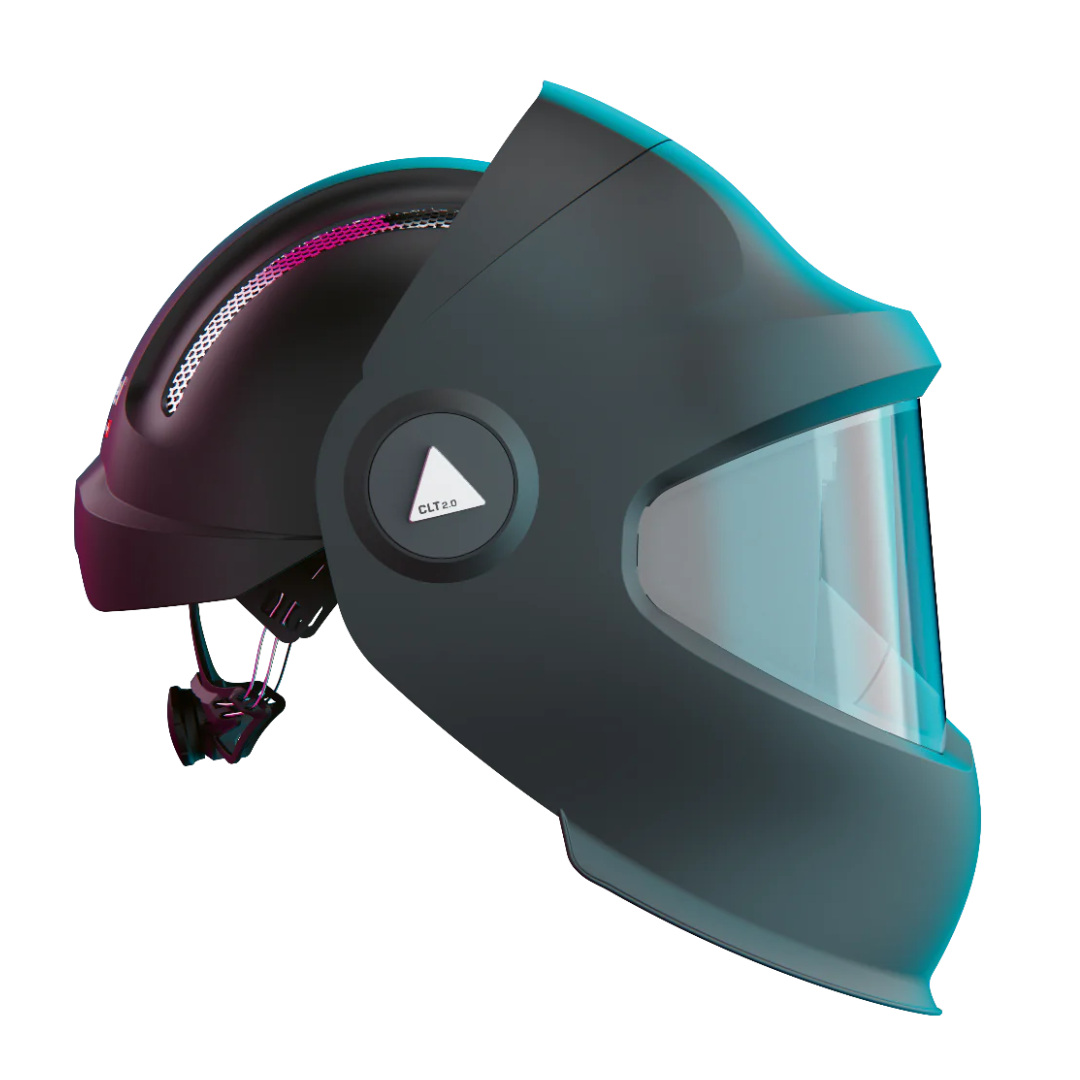

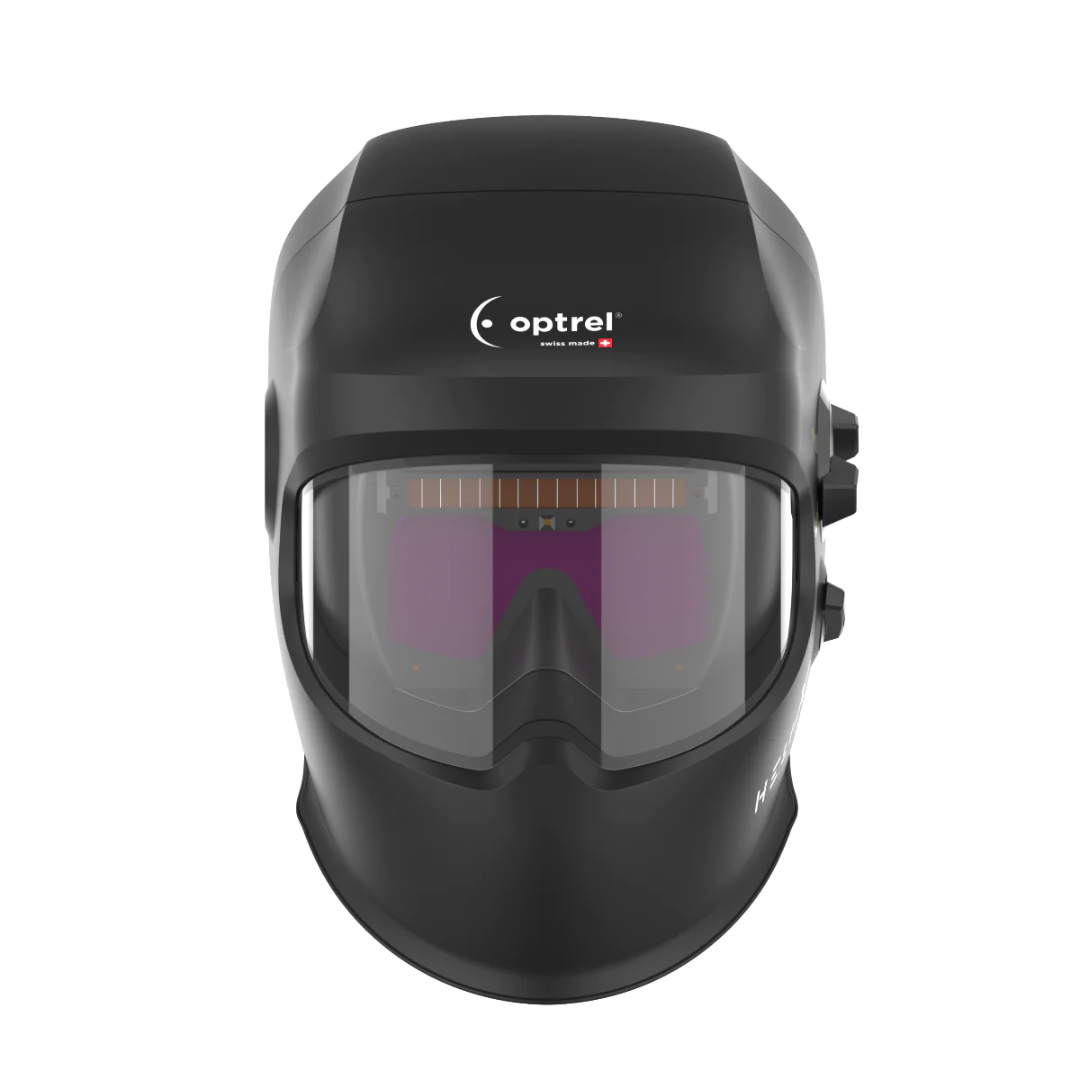

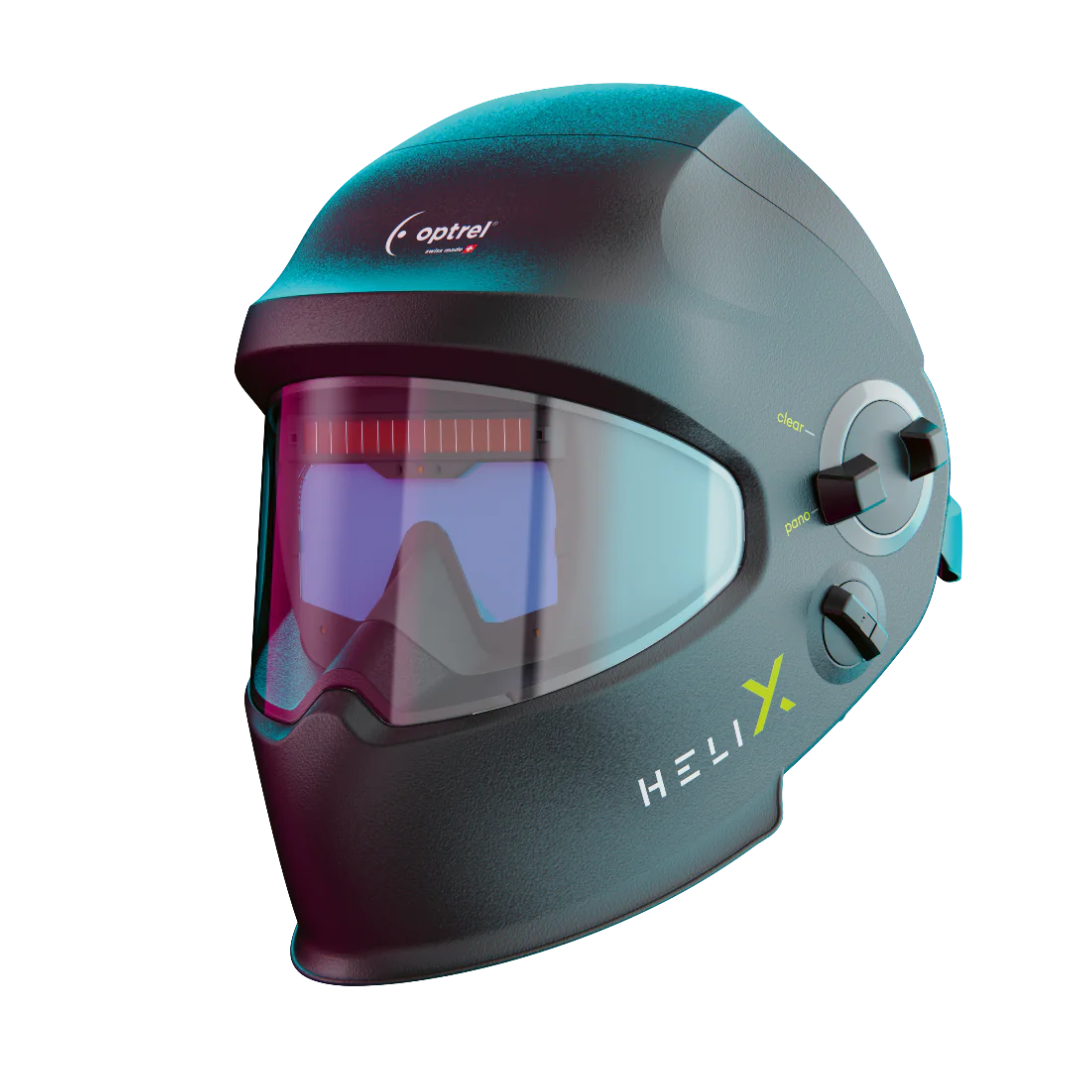

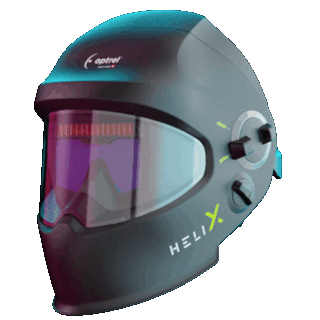

Optrel Helix CLT Welding Helmet

The new slide-up welding helmet with panoramic field of vision and Crystal Lens Technology

With the Helix CLT, Optrel offers a welding helmet for working under the toughest conditions. A slide-up helmet with an internal anti-glare unit that has all the technical features of an Optrel helmet:

• Panoramic XXL field of view,
• ShadeTronic®
• Fadetronic,
• Rechargeable battery unit with charging via the welding arc and
• 5-point multi-detection sensors

• The Helix CLT welding helmet is ideal for you if you need the practical slide-up function to switch between different tasks and also want a large field of vision with an extremely bright and true-colour view when welding.

  The Optrel Helix CLT is available with an integrated IsoFit® headgear

  NEW Position Locker

  The new two-position locking function for a safely open or closed helmet. Now standard with all Optrel Panoramaxx series welding helmets and with the IsoFit® headgear.

  Features and Technical Specs

  • Integrated, removable hard hat included
  • Detection of the arc brightness and fully automated shade level adjustment from 4 to 12
  • Sensitivity Control prevents ADF from responding too soon or not at all to their arc flash
  • Opening Delay: Adjust the time it takes to switch from dark to light
  • Curved helmet optimized for overhead welding
  • Meets CSA standard Z94.3
  • Part No. 1050.200

  • Shade levels		Light State: Protection level 2.0 Manual: Protection levels 7-12 Shadetronic Automatic protection level regulation over the protection level range 4<12M with individual calibration option of ± 2.
    Energy supply		Solar cells with Li-Polymer battery pack, chargeable via Micro-USB
    Battery life range		300 to 500 charging cycles
    Sensors		Five sensors
    Sensitivity		Infinitely adjustable, with “Super High” sensitivity
    Switching time		0.090 ms at 20°C 0.070 ms at 55°C dark to light: 0.1 s to 2.0 s (with FadeTronic)
    Field of vision		2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF
    Optical Classification EN379		1 1 1 2
    Shape stability		Mask: up to 220°C Front cover lens: up to 137°C
    Eye protection		UV IR protection: maximum protection at all shade levels
    Operating temperature		-10°C to + 55°C 14°F to 131°F
    Storage temperature		-20°C to + 70°C -4°F to 158°F
    Weight		640 grams
    Warranty		2 Years, 3 Years with registration

    What s Included

    • Welding helmet
    • Optrel IsoFit® headgear
    • Hard Hat
    • Storage Bag
    • Micro USB Charging Cable
    • Front Cover Lens
    • Warranty Card

    • Warranty

      • From the date of purchase: 2 years for manufacturing and material defects, 6 months for the battery
      • 1 year warranty extension (except batteries) for online product registration within the first 6 months

      • Optrel Panoramaxx Replacement Parts & Accessories
