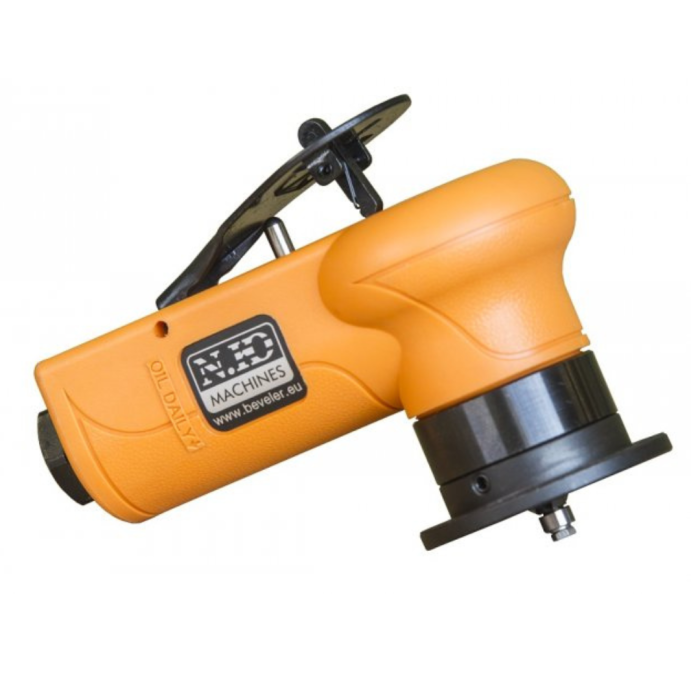

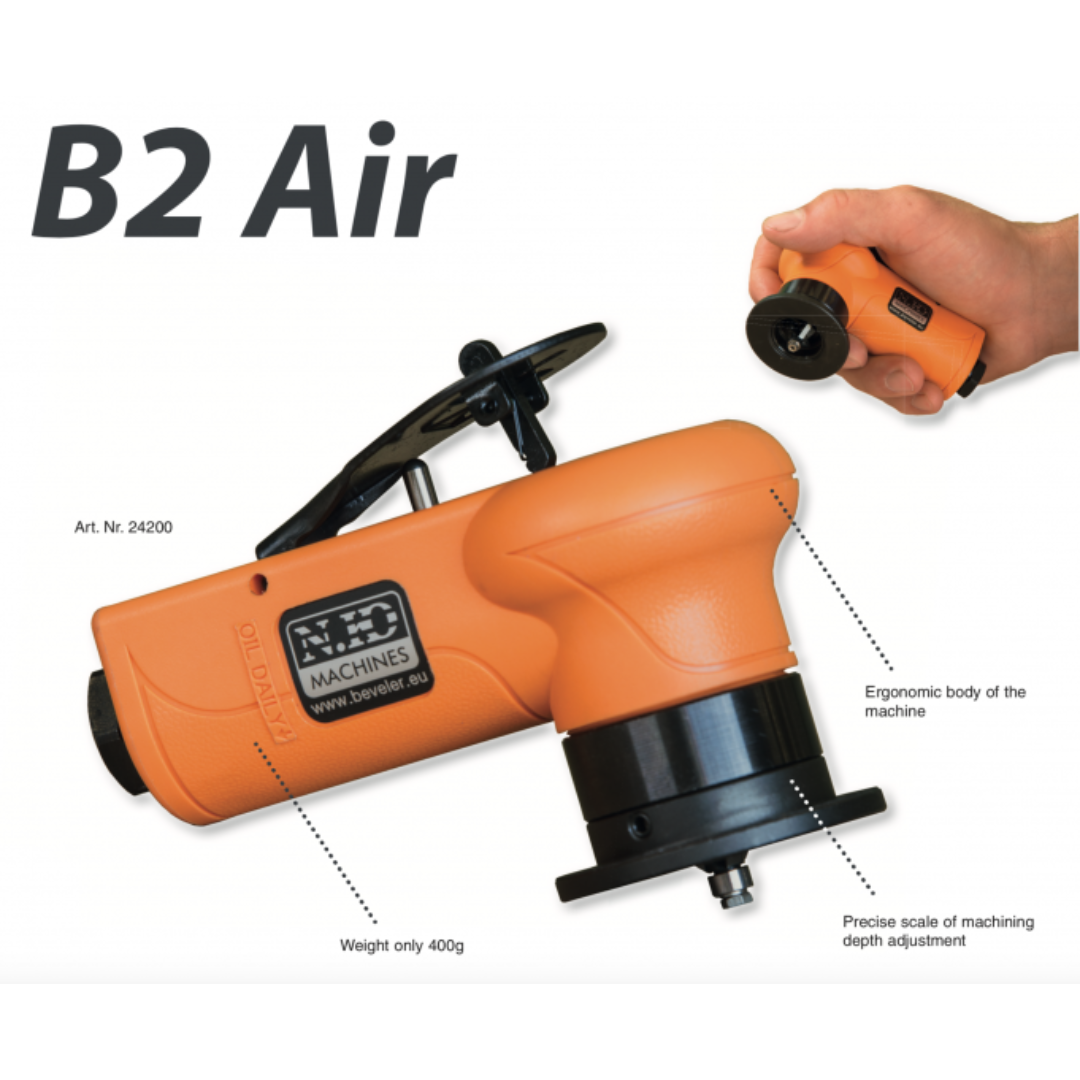

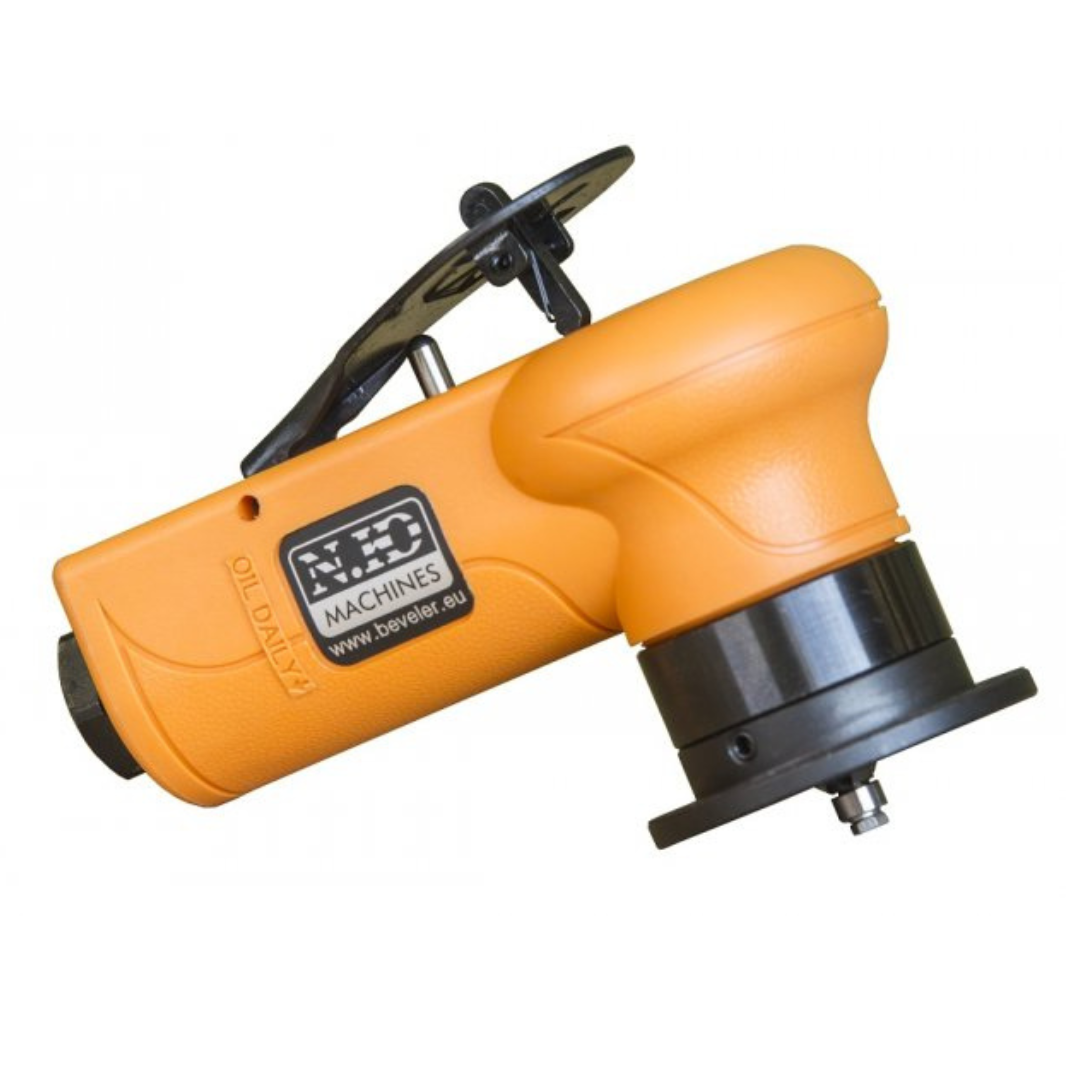

N.KO Machines B2 Air Beveling Tool

Hand held pneumatic deburring tool B2 AIR

(max width of deburring 0,08 2mm)

Intended for deburring and rounding of parts and workpieces made from steel, aluminium, stainless steel and other materials.  The B2 AIR deburrs holes from 0,26 6,8mm of inside diameter.

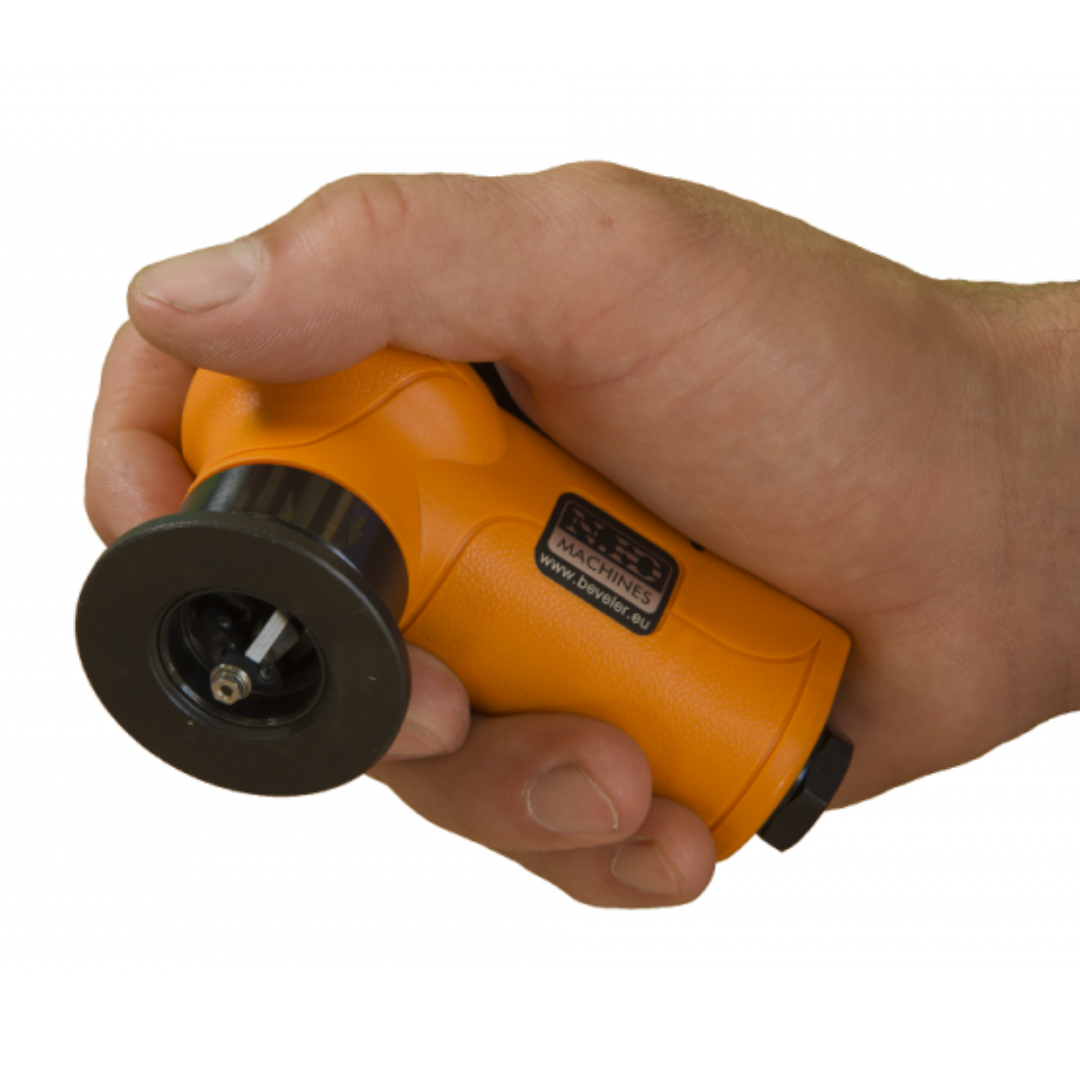

• Very compact design. Fits to the hand. Great ergonomy.
• Weight only 0,88 lbs 400g
• Creating of rounding R 1,5mm 0,06 1,5 mm on the plate edges as a preparation before painting.
• High reliable pneumatic motor.

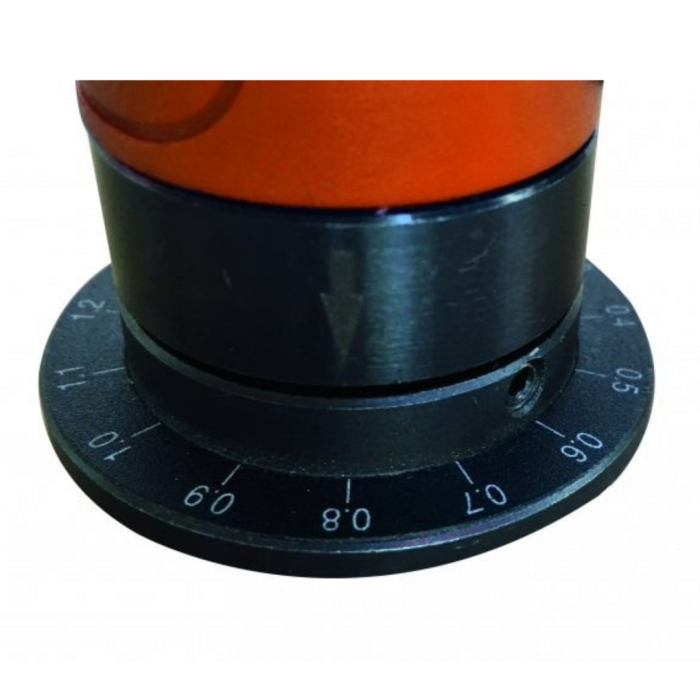

• The precision dial scale allows precise adjustment size of deburring.
• Model# 24200

• Download User Manual

  Technical data:

  • Deburring angle: 45°
  • Deburring width: max 0,08 2 mm
  • Rounding size: R 0,06 1,5 mm
  • Speed: 23000 RPM
  • Air consumption: 320 l min
  • Feed: manual
  • Dimensions: 4.4 x 2.36 x 1.9 112x60x48mm
  • Weight: 0,88 lbs 400 g

  • What s Included?:

    • Deburring machine B2 AIR ( Including of the milling head)
    • Standard three sided cutting inserts 24201 (3 pcs total, installed)
    • Tools needed for operation
    • Operation manual

    • Replacement Inserts:		Part No.
      Cutting inserts – three-sided – pack of 10 pcs		24201
      Cutting inserts radius R1,5 mm [≈ length of a large mosquito] – three-sided – pack of 10 pcs		24202
      TiN Coated cutting inserts – three-sided – pack of 10 pcs		24204
      Screw for the inserts		7252F-04
