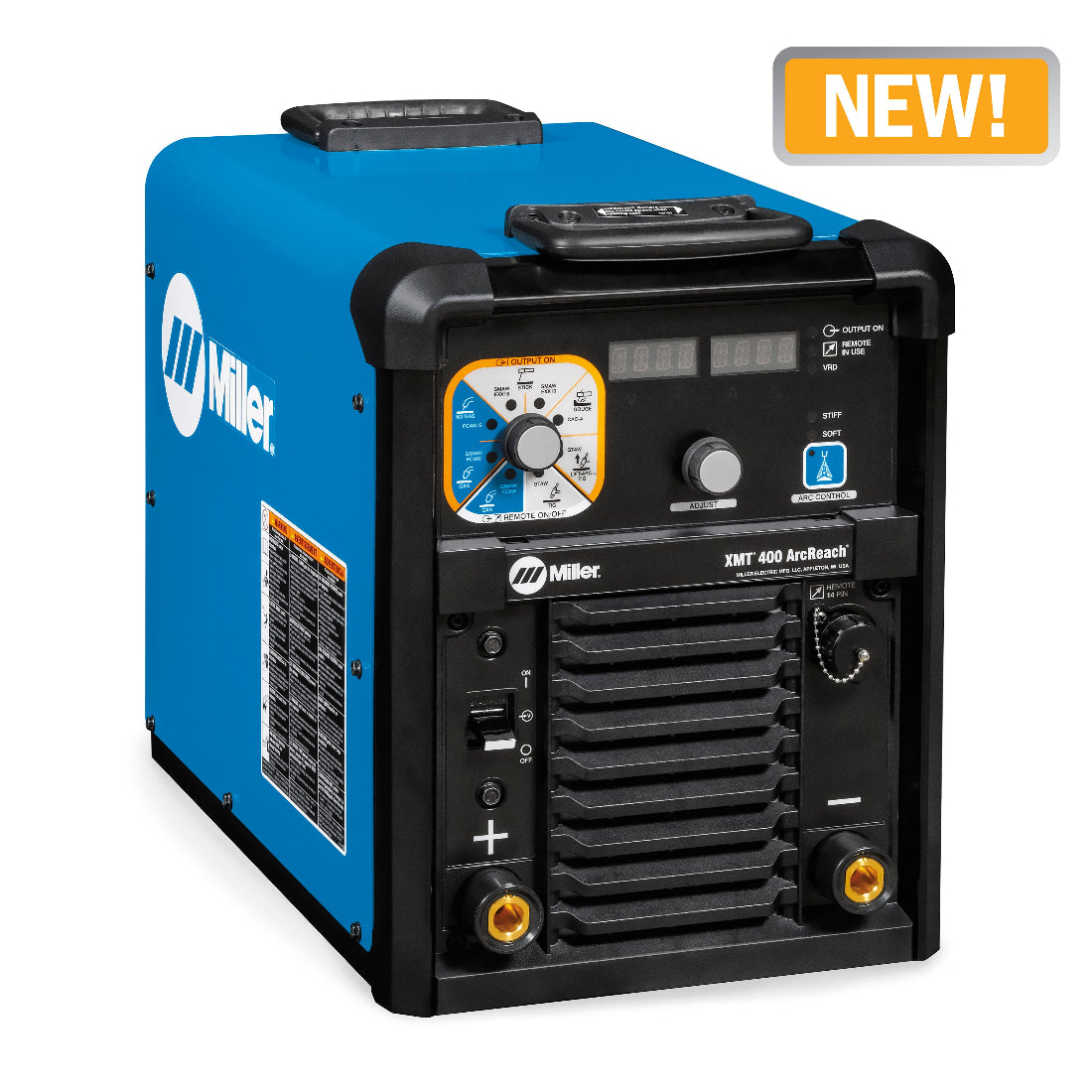

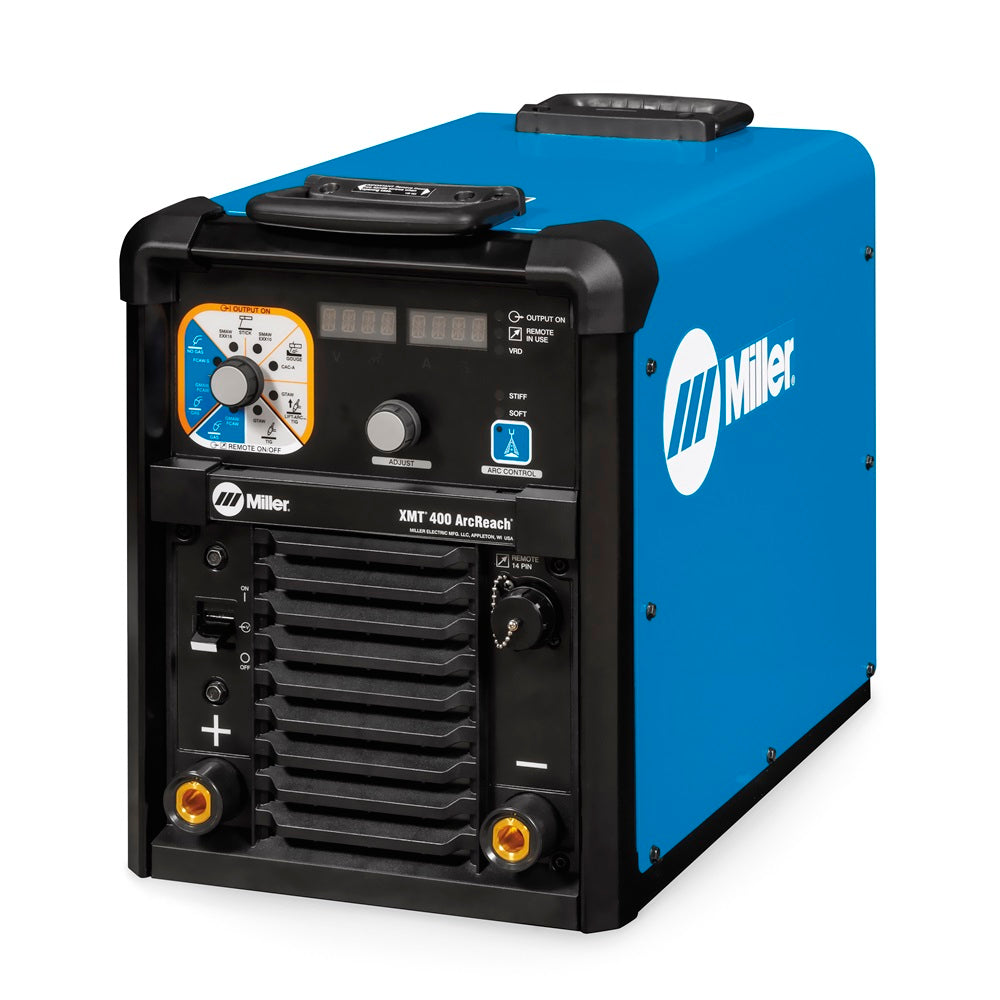

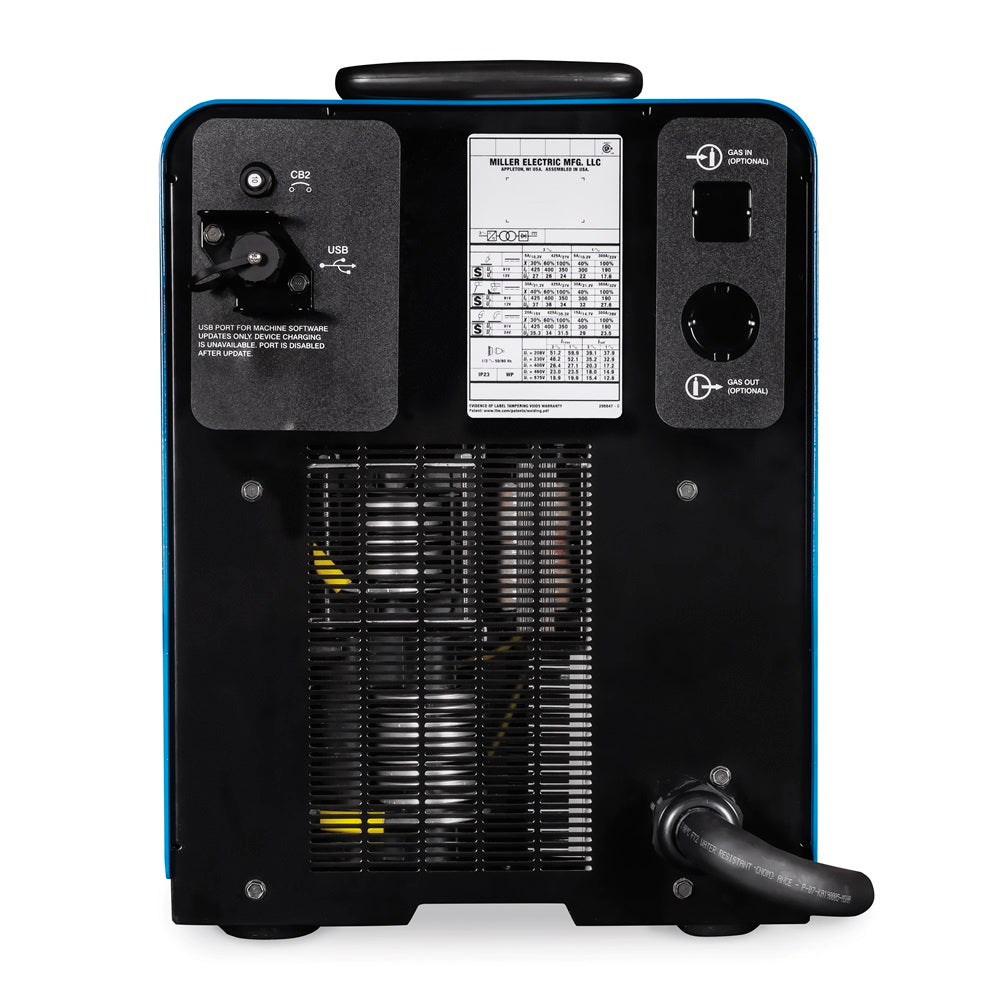

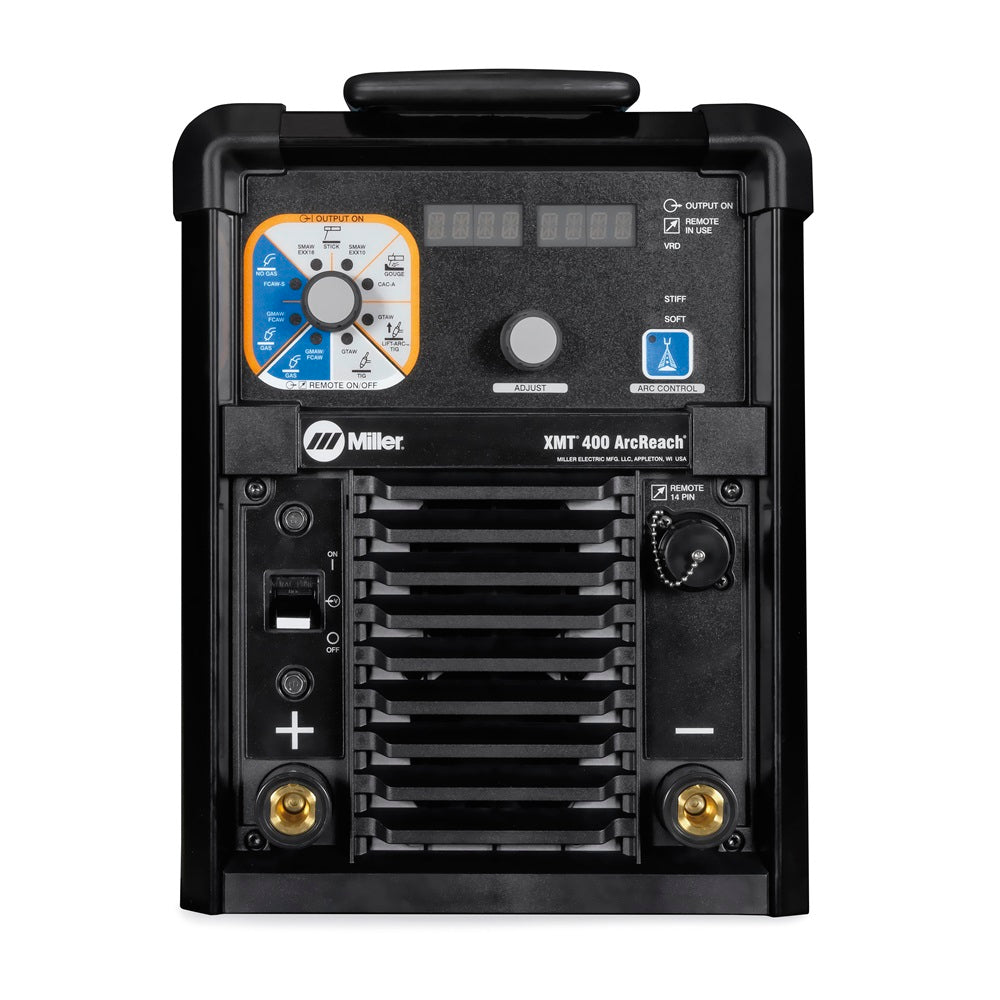

Miller XMT® 400 ArcReach®

XMT® 400 ArcReach®: The Ultimate Multiprocess Welding System for Industrial Applications

The XMT® 400 ArcReach® is a versatile, industrial-grade welding machine designed for heavy-duty applications such as construction, shipbuilding, and power generation. It supports multiple welding processes, including MIG, TIG, Stick, and Flux-cored welding, with advanced features like ArcReach® technology for remote control without a control cable, Auto-Line™ for flexible power input, and Wind Tunnel Technology™ to protect internal components from harsh environments. With its lightweight design and innovative capabilities, the XMT 400 ensures higher productivity, mobility, and welding performance, making it a reliable choice for demanding job sites.

Features:

• ArcReach® Technology: Allows remote control of the welding process and parameters directly from the feeder or remote, eliminating the need for control cords.

• Auto-Line™ Technology: Automatically adjusts to input voltages ranging from 208 to 575 V, making it adaptable to different job sites without manual linking.

• Multiprocess Capabilities: Supports a wide range of welding processes, including MIG, Pulsed MIG, TIG, Stick, and Flux-cored welding, increasing its versatility.

• Cable Length Compensation (CLC™): Adjusts output to compensate for voltage drops over long cable lengths, ensuring consistent weld quality.

• Wind Tunnel Technology™: Protects internal components from contaminants like dust and debris, improving reliability in tough conditions.

• Fan-On-Demand™: Operates only when needed, reducing noise and energy consumption while limiting the intake of contaminants.

• Portable Design: Weighing just 75 lbs., the XMT 400 is one of the lightest machines in its class, enhancing job site mobility.

• Product Name		Miller XMT 400 ArcReach
  Input Power		208–575 V, single- or three-phase
  Output Range		10–38 V, 15–425 A
  Duty Cycle		60% at 400 A (3-phase)
  Net Weight		75 lbs. (34 kg)
  Dimensions		H: 17.25 in., W: 12.75 in., D: 20.25 in.
  Warranty		3 years (parts and labor)

  Available Packages and Components

  XMT® 400 ArcReach® MIG Flux-Cored System (Part No. 951000113)

  • XMT® 400 ArcReach® power source
  • ArcReach® SuitCase 12 feeder
  • Drive rolls
  • Bernard® BTB Gun 300 A with AccuLock™ consumables

  • XMT® 400 ArcReach® Stick TIG System (Part No. 951000114)

    • XMT® 400 ArcReach® power source
    • ArcReach® Stick TIG Remote
    • Remote process change capability

    • XMT® 400 ArcReach® RMD® Pulse System (Part No. 951000112)

      • XMT® 400 ArcReach® power source
      • ArcReach® Smart Feeder
      • Drive rolls
      • Bernard® PipeWorx 300-15 MIG Gun
      • RMD® and pulsed MIG processes
      • Weld up to 200 feet away from the power source without special cables
      • Ability to save welding parameters on an SD memory card

      • XMT® 400 ArcReach® Power Source (Part No. 907864)

        • XMT® 400 ArcReach® power source w Tweco style connectors
        • 208–575 V AutoLine input voltage

        • Full Product Data Sheet
