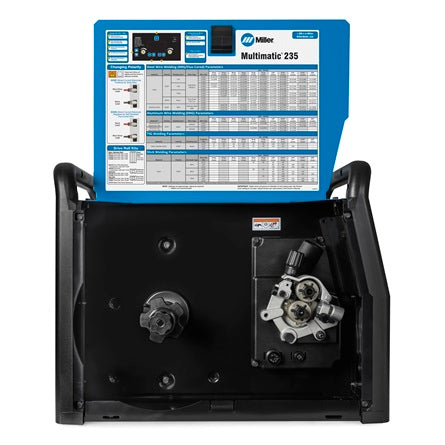

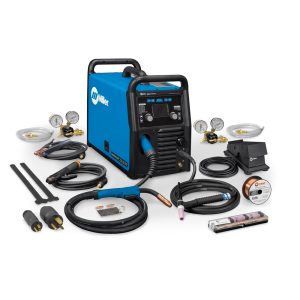

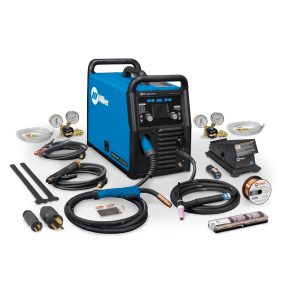

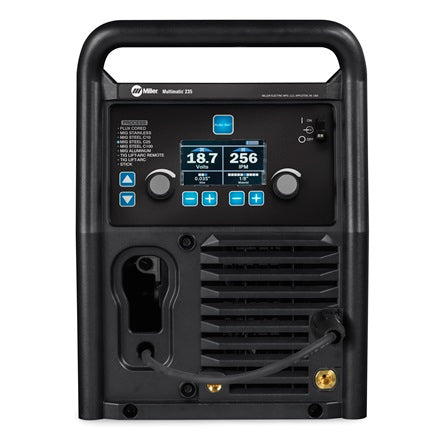

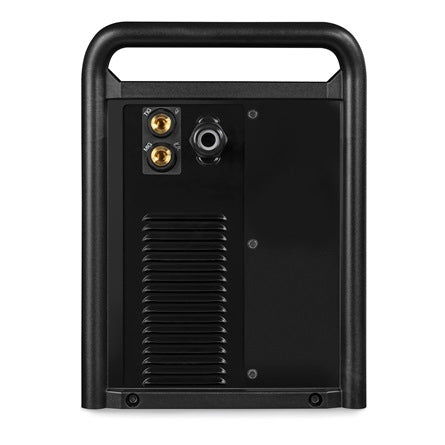

Miller Multimatic® 235 Multiprocess Welder



Built for professionals in the manufacturing fabrication, MRO and construction fabrication and education segments, the Multimatic 235 allows welders of all skill levels to be more efficient for all their MIG, flux-cored, stick and DC TIG welding needs. Setup is quick and easy, letting operators have faster uptime and weld with confidence.

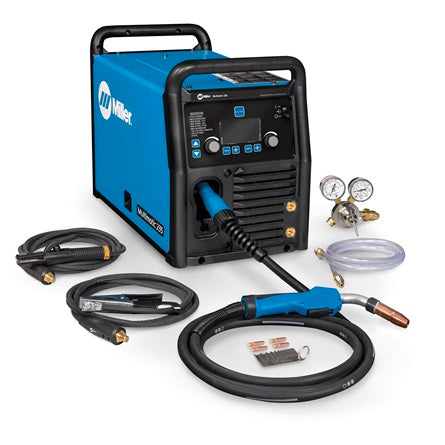

What s Included (MIG Package 907780)

• Power source with 7 ft. (2.1 m) industrial power cord
• 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun with AccuLock™ MDX consumables for .030 .035 in. (0.8 0.9 mm) wire
• 10 ft. (3 m) cable with electrode holder and 50 mm Dinse-style connector
• 10 ft. (3 m) work cable with clamp and 50 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon or AR CO2 mix
• 0.030 .035 in. (0.8 0.9 mm) reversible drive rolls
• Extra contact tips
• Material thickness gauge

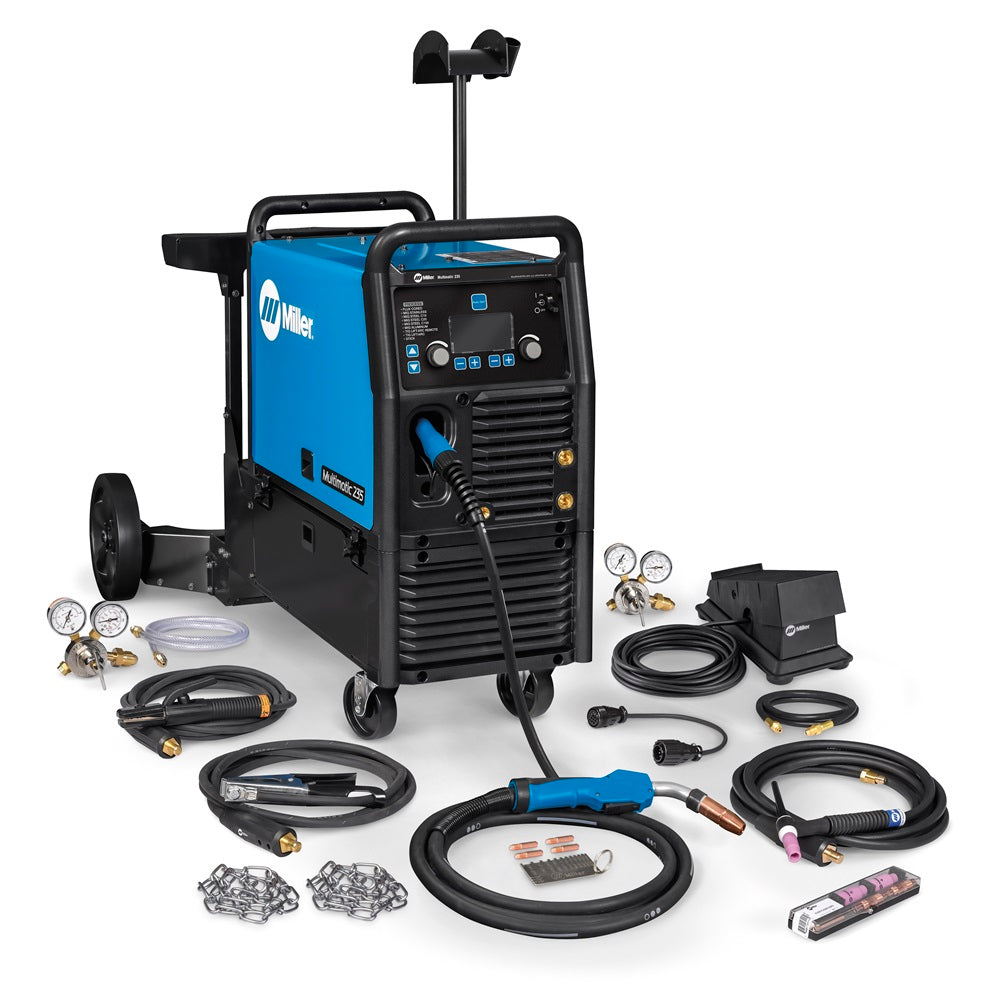

  TIG Package (951847) Adds:

  EZ-Latch™ dual cylinder running gear with elevated gun and cable rack

  Multimatic 235 255 TIG kit

  Two chains to secure gas cylinders

  Product Name Part Number		Miller Multimatic 235 907780
  Welding Processes		MIG (GMAW), Flux Core (FCAW), TIG (GTAW), Stick (SMAW)
  Input Voltage		208V – 230V, Single Phase
  Input Current		20A
  Welding Output Amps (230V)		MIG: 30 – 235A TIG: 20 – 210A Stick: 30 – 200A
  Output Current		DC – CC CV
  Aluminum TIG		❌
  Spool Gun Ready		✔️ – Spoolmate 150
  Dimensions		H: 19.24 in. (489 mm) W: 13.75 in. (349 mm) D: 24.25 in. (616 mm)
  Weight		63 lb
  Warranty		Machine: 3-Year Parts & Labour, Torch: 90 Days Parts



  Non Stock Item – Please allow 2 week lead time



  Full Product Data Sheet | MultiMatic 235 User Manual | MDX Torch Consumables

  Package	MIG Package – 907780, TIG Package w/ Cart – 951847
