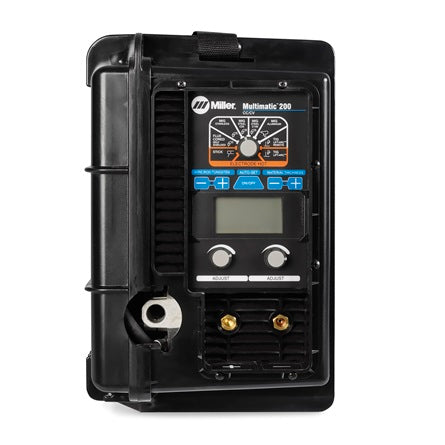

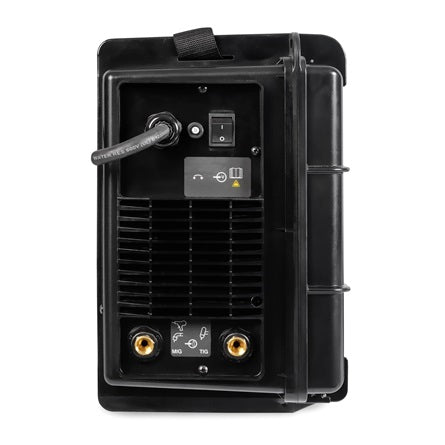

Miller Multimatic® 200 Multiprocess Welder



Lightweight MIG, Stick and DC TIG welder. Impact-resistant case provides durability on the job. This all-in-one multiprocess welder connects to 120 or 230 volt input power. Welds up to 3 8” mild steel.

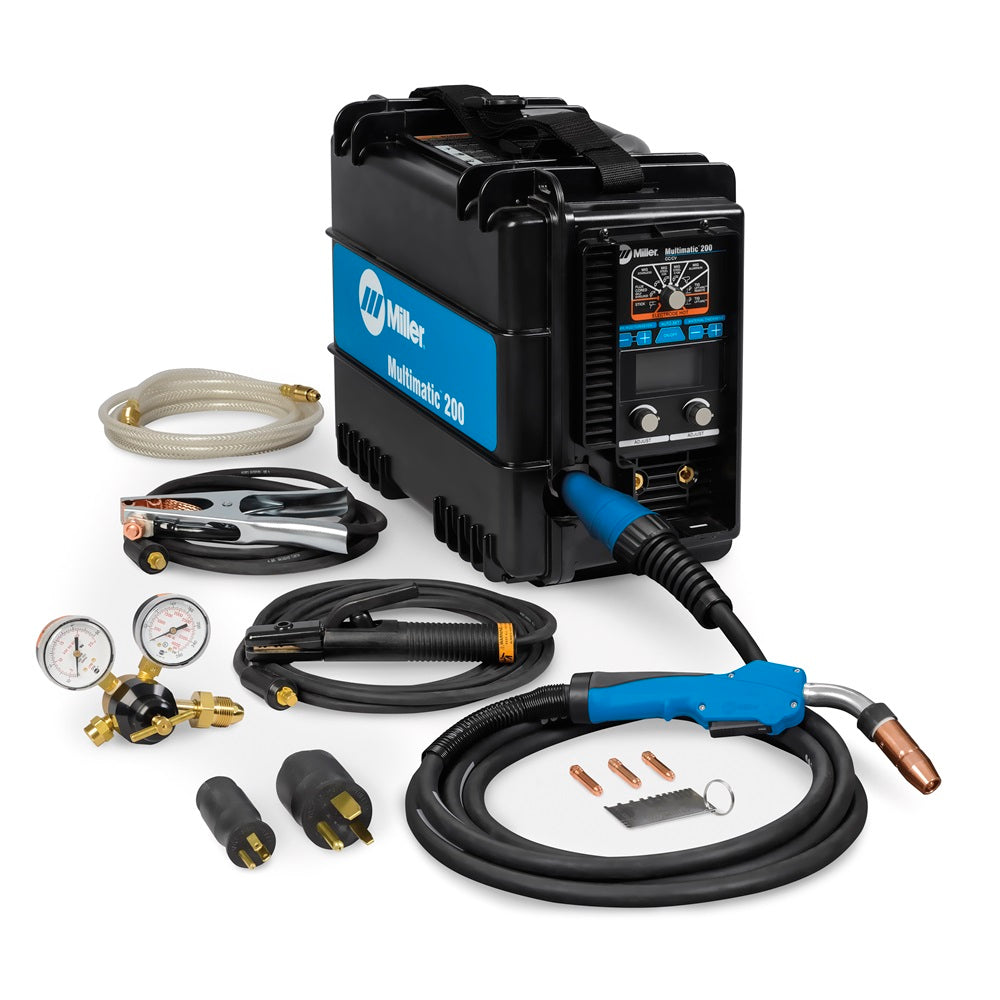

What s Included

• Multimatic 200 Power Source
• 10 ft. (3 m) MDX™-250 MIG gun (1770035)
• 13 ft. (4 m) cable with electrode holder and 25 mm Dinse-style connector
• 10 ft. (3 m) work cable with clamp and 25 mm Dinse-style connector
• Power cord with MVP™ plugs for 120 and 230 V
• Flow gauge regulator and gas hose for argon or AR CO2 mix
• Two contact tips for .030 in. (0.8 mm) wire, and two contact tips for .035 in. (0.9 mm) wire
• Quick Select™ drive roll for .024 in. (0.6 mm) or .030 .035 in. (0.8 0.9 mm) solid wire, and .030 .035 in. (0.8 0.9 mm) flux-cored wire

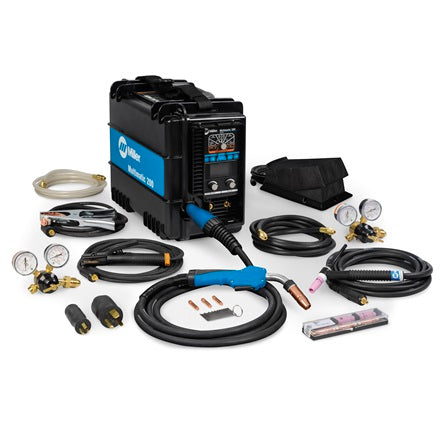

• TIG Contractor Kit also Includes

  • Multimatic 200 DC TIG Kit #301287
  • RFCS-6M Foot Control (13.25-ft. cable)

  • Full Product Data Sheet | MultiMatic 200 User Manual | MDX Torch Consumables

    Product Name Part Number		Miller Multimatic 200 907518
    Welding Processes		MIG (GMAW), Flux Core (FCAW), TIG (GTAW), Stick (SMAW)
    Input Voltage		120V or 230V Dual Input
    Input Current		120V: 15.8A – 27A 230V: 8A – 20.8A
    Welding Output Amps (120V)		MIG: 30-140A TIG: 5-150A Stick: 20-100A
    Welding Output Amps (230V)		MIG: 30-200A TIG: 5-150A Stick: 20-150A
    Output Current		DC – CC CV
    Aluminum TIG		❌
    Spool Gun Ready		✔️ – Spoolmate 100 or Spoolmate 150
    Dimensions		14.5 x 9.75 x 17
    Weight		29 lb
    Warranty		Machine: 3-Year Parts & Labour, Torch: 90 Days Parts





    Options	Machine Package Only – 907518, Include TIG Contractor Kit – 951649
