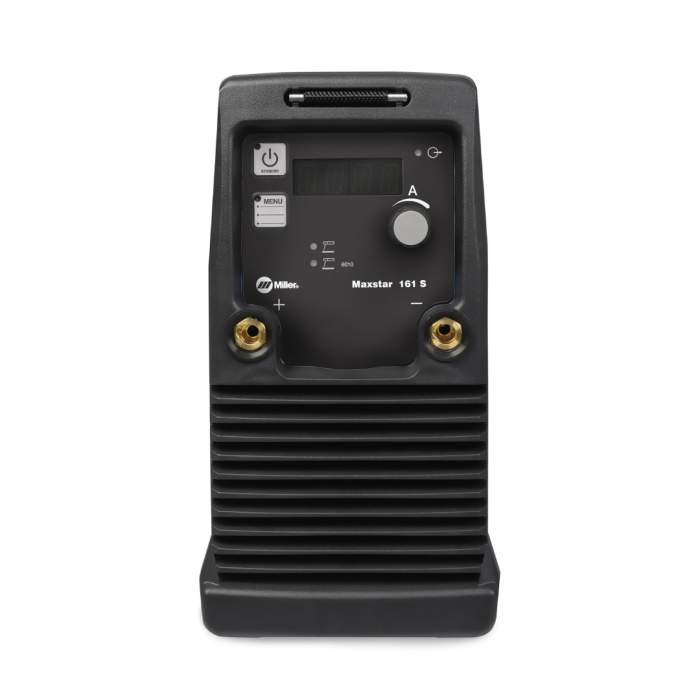

Miller Maxstar® 161 S 120-240 V, X-Case, Stick Package



Best-of-class – provides maximum portability and performance in the most compact Stick package in the industry. Packs dependability and performance all in one machine.

Top Features

• Auto-Line Power Management Technology
  Allows for any input voltage hookup (120–240 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or
  unreliable power.

• Portable
  in the shop or at the jobsite — at 13 pounds, the handle shoulder strap allows
  the end user to easily move from location to location.

• No More Sticky Electrodes
  With Miller s Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes

• Technical Specs

  Product Name Part Number		Miller Maxstar 161 S, X-Case 907709001
  Input Voltage		120V thru 240V, 1Ph, 50 60 Hz
  Input Current (120V)		60 A at 22.4 VDC, 100% duty cycle – 14.68A 90 A at 23.6 VDC, 30% duty cycle – 23.16A
  Input Current (240V)		110 A at 24.4 VDC, 100% duty cycle – 14.31A 160 A at 26.4 VDC, 20% duty cycle – 22.55A
  Dimensions		H: 10.3 in. (262 mm) W: 5.6 in. (142 mm) D: 13.5 in. (343 mm)
  Weight		13 lb

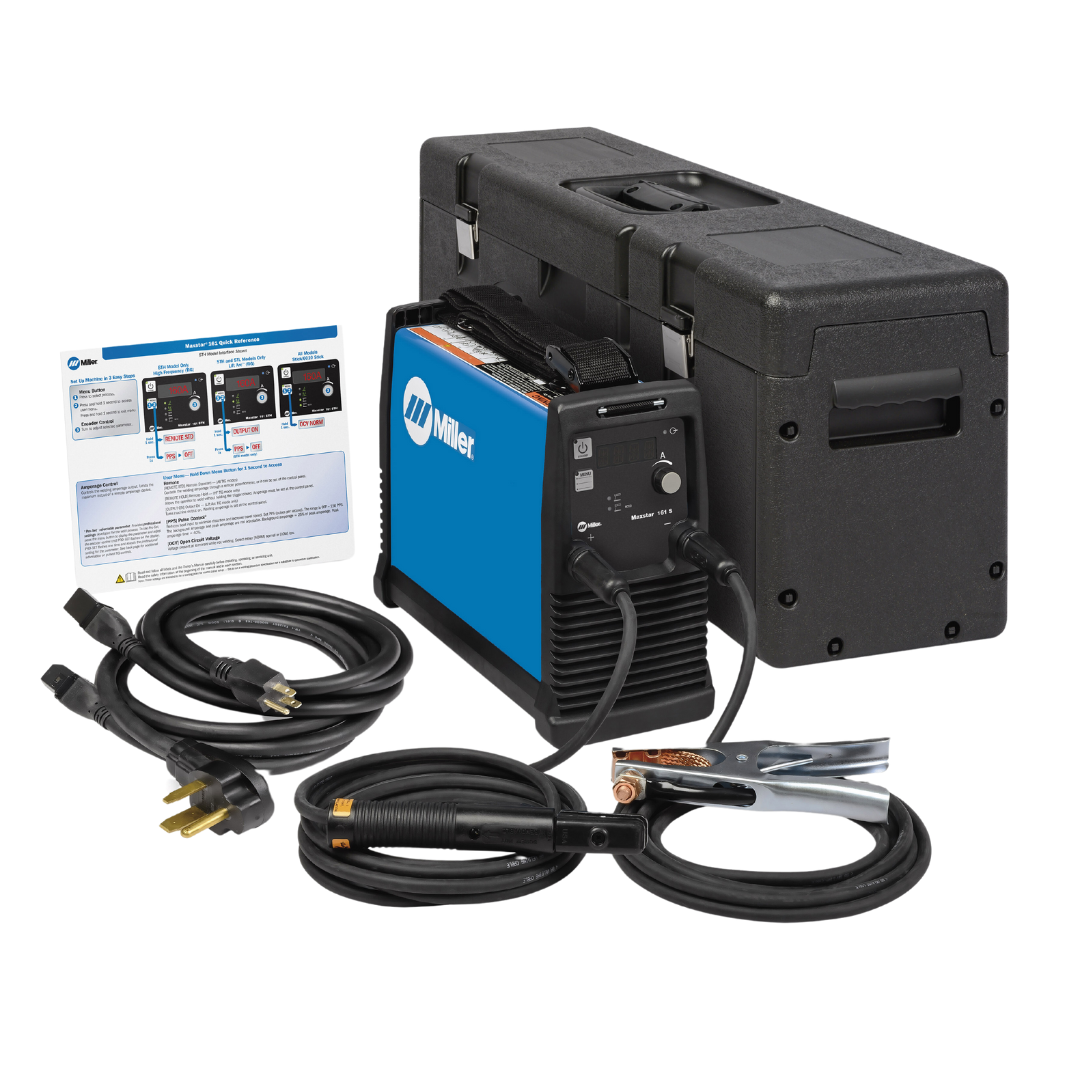

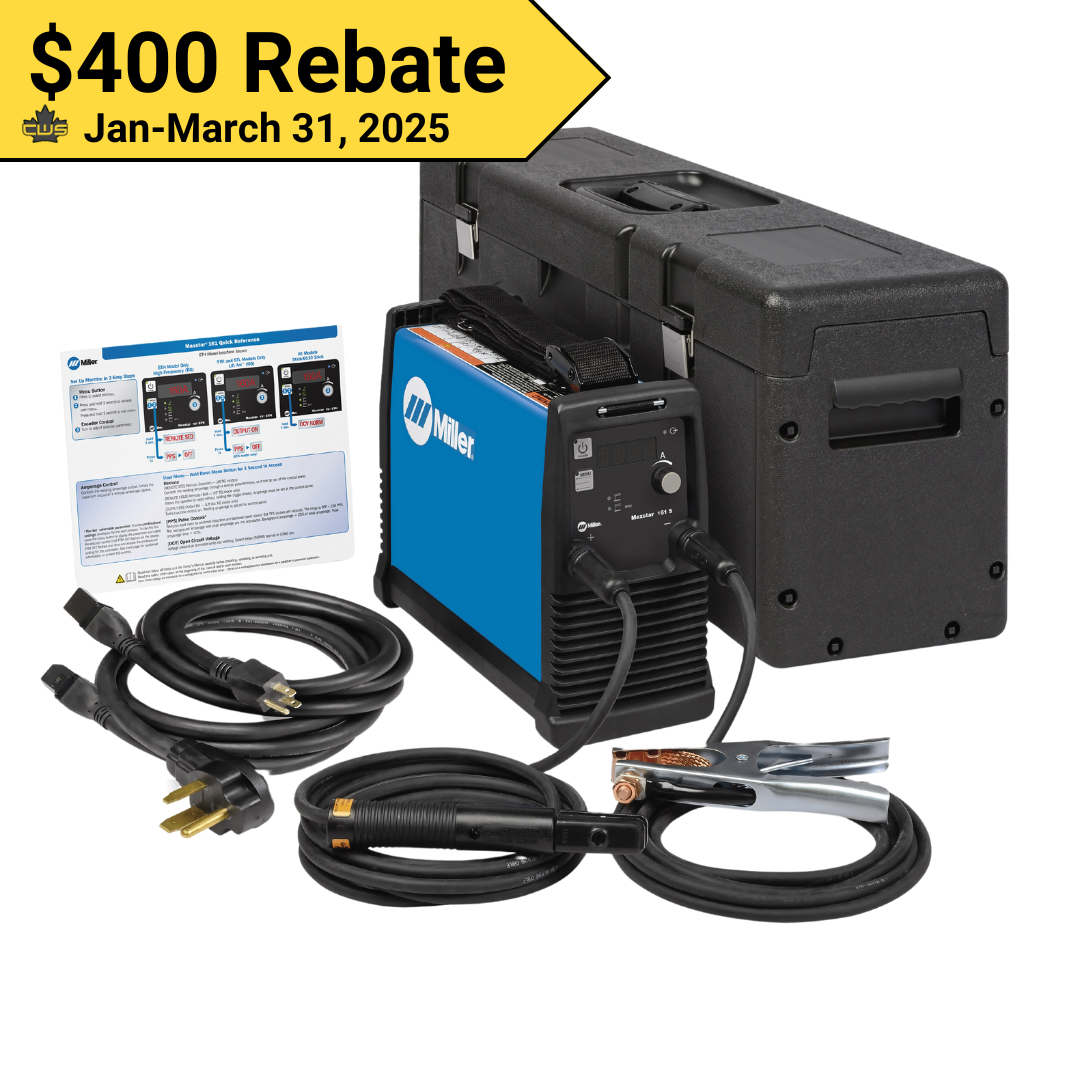

  What s Included

  • Maxstar® 161 S
  • X-CASE™ — provides protection in transport and storage
  • 6.5 ft. (2 m.) primary cords for 120 V and 240 V
  • 13 ft. (4 m.) stick electrode holder with 25 mm. Dinse-style connector
  • 10 ft. (3 m.) work clamp with 25 mm. Dinse-stlye connector
  • Adjustable handle shoulder strap


  • Full Product Spec Sheet
