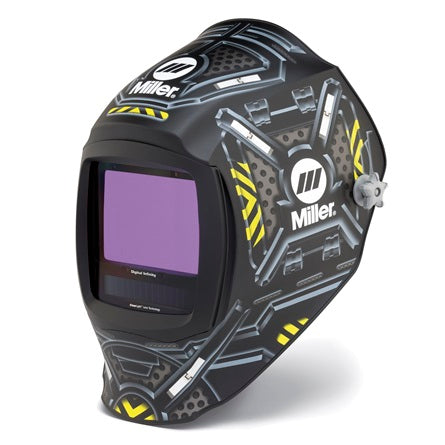

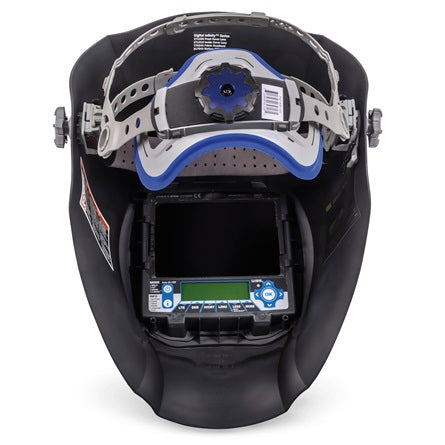

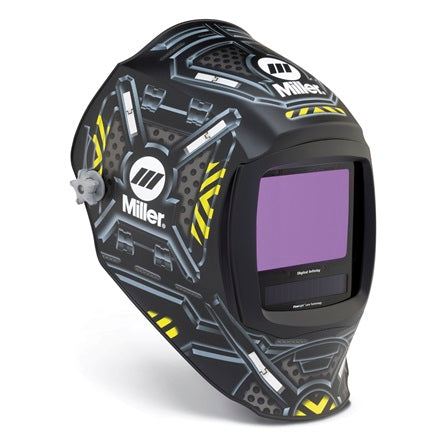

Miller Digital Infinity™, Black Ops™ Welding Helmet



Digital Infinity™ Series welding helmets are ideal for commercial and industrial weld operators who need an extra large viewing area for maximum visibility. Features ClearLight™ 2.0 Lens Technology and a large viewing area.

Part No. 289715

Features:

• 13.4 sq. in. Viewing Area Provides the largest viewing area for maximum visibility.

• 3.0 Light State brighter light state that allows operators to keep their hood down, improving safety and productivity

• Quick Release Cover Lens simplifies lens changes and reduces downtime.

• Four independent arc sensors provide superior lens response for obstructed or low amp welding.

• X-Mode – Electromagnetically senses the weld to eliminate sunlight interference and continuously detects the arc even if sensors are blocked.

• • InfoTrack™ – Exclusive arc tracking technology features arc time, time and timer functions, and a multi-language help menu.

  • Four Operating Modes: Weld, Cut, Grind, and X-Mode provide ultimate versatility.

  • Variable Shades – Welding shades 8-13 and cutting shades 5-8 allow operators to customize the lens shade to their needs.

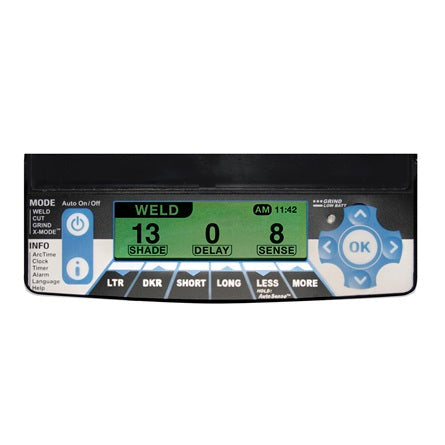

  • Digital Controls – intuitive design and large push buttons allow user to easily adjust mode and settings.

  • ClearLight™ Lens Technology – High-definition optics for precision arc recognition.

  •

    Name Part No.		Digital Infinity™, Black Ops™   289715
    Arc Sensors		4
    Delay Control		✔
    Digital		✔
    Grind Mode		✔
    Low Amp TIG Rated		✔ (5 amps and below)
    Modes		Weld Cut Grind X-Mode
    Reaction Time		1 20,000
    Sensitivity Control		✔
    Viewing Field		13.4 in² (4.4 x 3.1 in)
    Battery		CR2450 Lithium
    Operating Temperatures		14°F to 131°F -10°C to +55°C
    Weight		23 oz. (652 g)
    Warranty		3 Years



    Digital Infinity Series Data Sheet | Digital Infinity Series Manual | Replacement Parts
