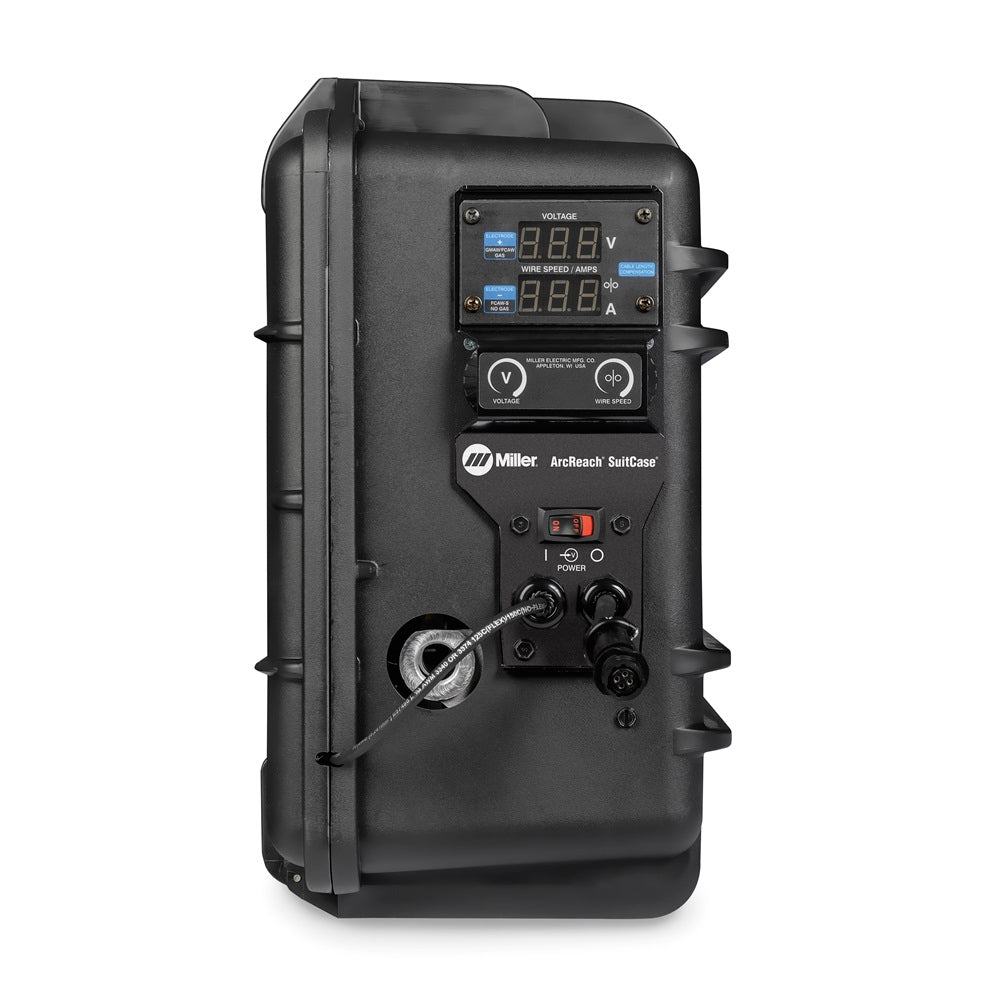

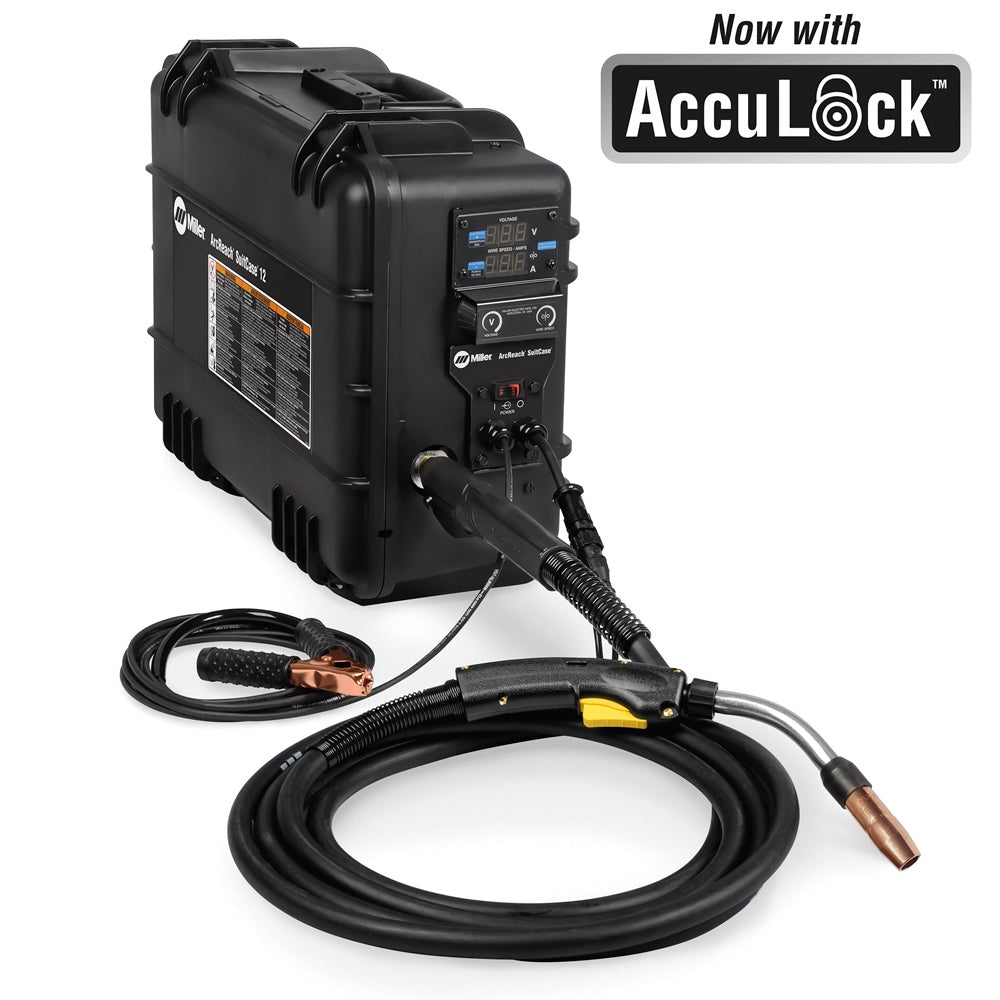

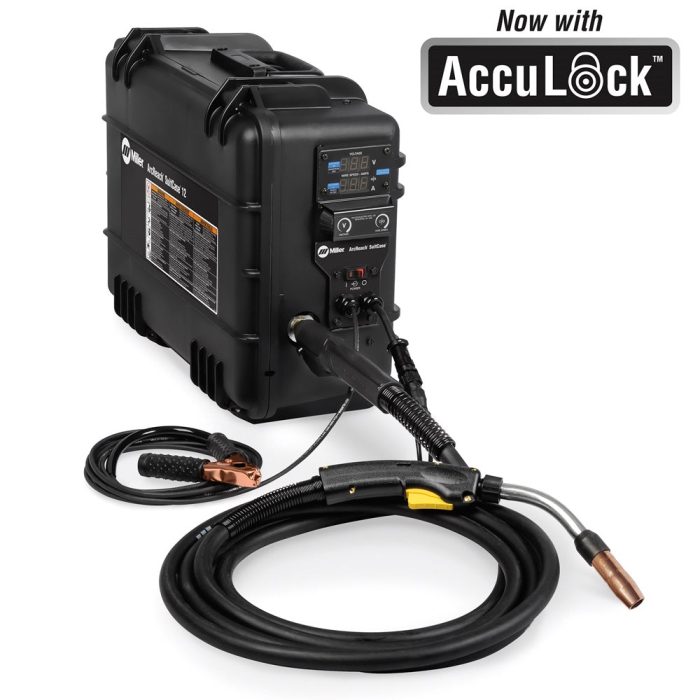

ArcReach® SuitCase® 12, Bernard™ BTB 300 A Gun Pkg

Setting the standard for performance

Heavy-duty drive motor with tachometer control provides wire feed speed that is accurate and consistent from the start of the weld to the finish and from one weld to the next, which provides consistent arc quality. Wide voltage range for small and large wires with no contactor chatter or arc outages

Durable design reduces downtime

Impactresistant case and the elimination of feeder control cords provides a solid solution to last in harsh environments.

Specifications

• Number of rollers: 2
• Arc Voltage range: 14 – 48 VDC 110V Max OCV
• Input Circuit Capacity: 330A @ 60% duty cycle
• Wire Speed: 50 – 780 IPM
• Wire Diameter: .023 – 5 64 (0.6mm – 2.0mm) Solid Wire, .030– 5 64 in. (0.8–2.0 mm) Flux Core
• Package Part Number: 951729001

• Full Product Spec Sheet

  Features

  • More Jobsite Productivity and Efficiency
  • Cable Length Compensation

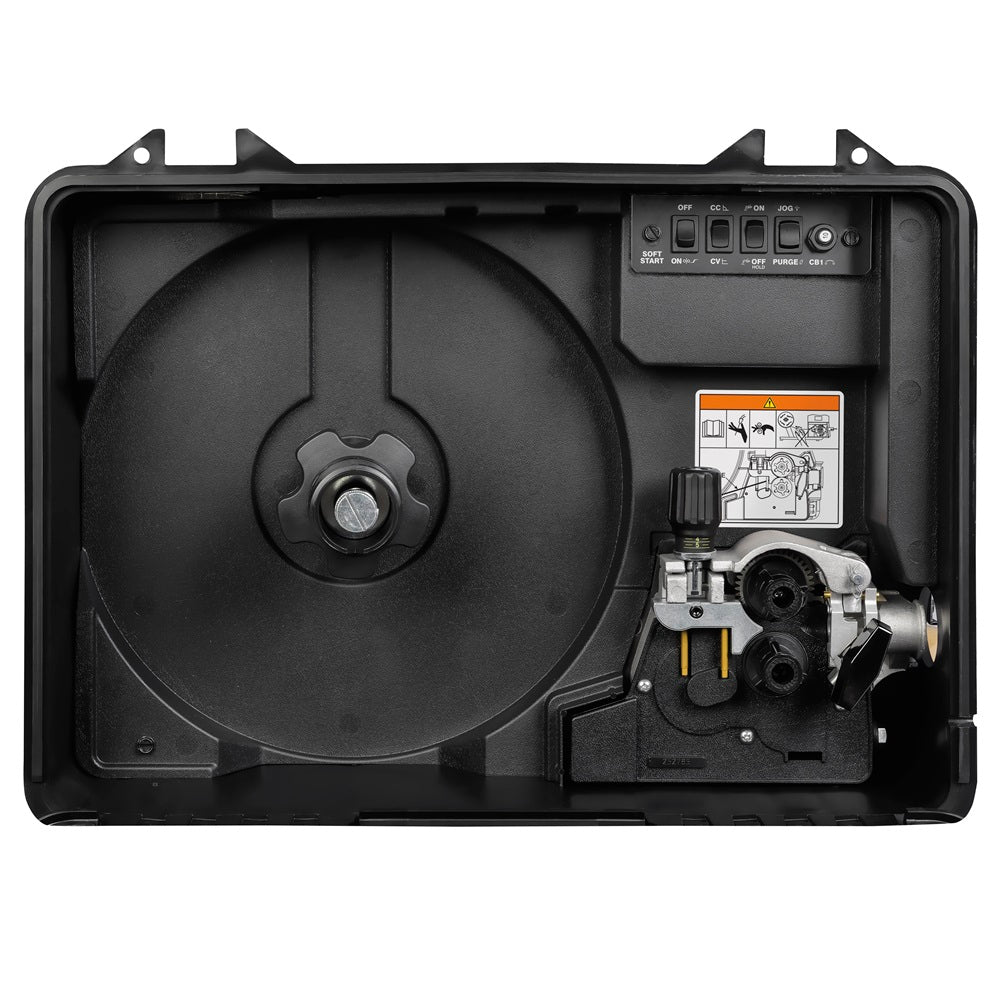

  • Heavy-duty drive motor with tachometer control
  • Unique and Durable Case
  • Extreme reliability potted and trayed main printed circuit board
  • Ultra-low Drag Inlet Guide Pins
  • Scaled Wire Pressure Knob
  • Digital Meters with SunVision™ Technology

  • What s Included

    • ArcReach® SuitCase® 12
    • .045 – 1 16 reversible dual VK (flux core) drive rolls
    • Bernard™ BTB Gun 300 AMP, 15FT
    • Centerfire contact tips, .045 (QTY 3), .052 (QTY 2)
