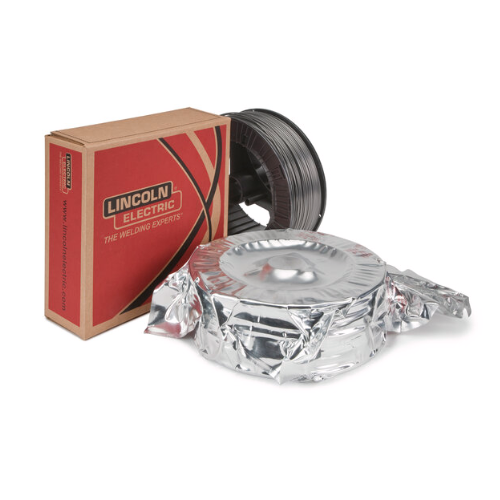

Lincoln UltraCore® 81Ni1A75-H Flux-Cored (FCAW-G) Wire



Designed for high strength, low-alloy applications using 75% Argon 25% CO2. The use of mixed shielding gas stabilizes arc characteristics, reduces spatter levels, and washes out the weld bead for a flat appearance.

Features

• Capable of producing weld deposits with impact toughness exceeding 88 – 123 J (65 – 91 ft·lbf) at -40°C (-40°F)
• Designed for welding with 75-85% Argon Balance CO2 shielding gas
• Premium arc performance and bead appearance
• Meets AWS D1.8 seismic lot waiver requirements
• ProTech® foil bag packaging

• Classifications

  SPECIFICATION		CLASSIFICATION
  AWS A5.29		E81T1-Ni1M-JH4
  AWS A5.36		E81T1-M21A4-Ni1-H4
  NACE		NACE Applications
  ABS – Part 2		4YQ460SA H5
  CSA W48		E551T1-M21A4-Ni1M-H4 (E551T1-Ni1M-JH4)
  DNV – 2.9		IV Y46MS H5
  LR – Chapter 11		4Y46S H5

  Documents and Specs

  Available Spool Sizes, Wire Diameter & Item Number:

  • 33 lb (15 kg) – 0.045 (1.2mm) – ED032206
  • 33 lb (15 kg) – 0.052 (1.4mm) – ED032279
  • 33 lb (15 kg) – 1 16 (1.6mm) – ED032207

  • Please allow 1 week lead time on this item

  Wire Diameter	0.045" (1.2mm) – 33lb spool, 0.052" (1.4mm) – 33lb spool, 1/16" (1.6mm) – 33lb spool
