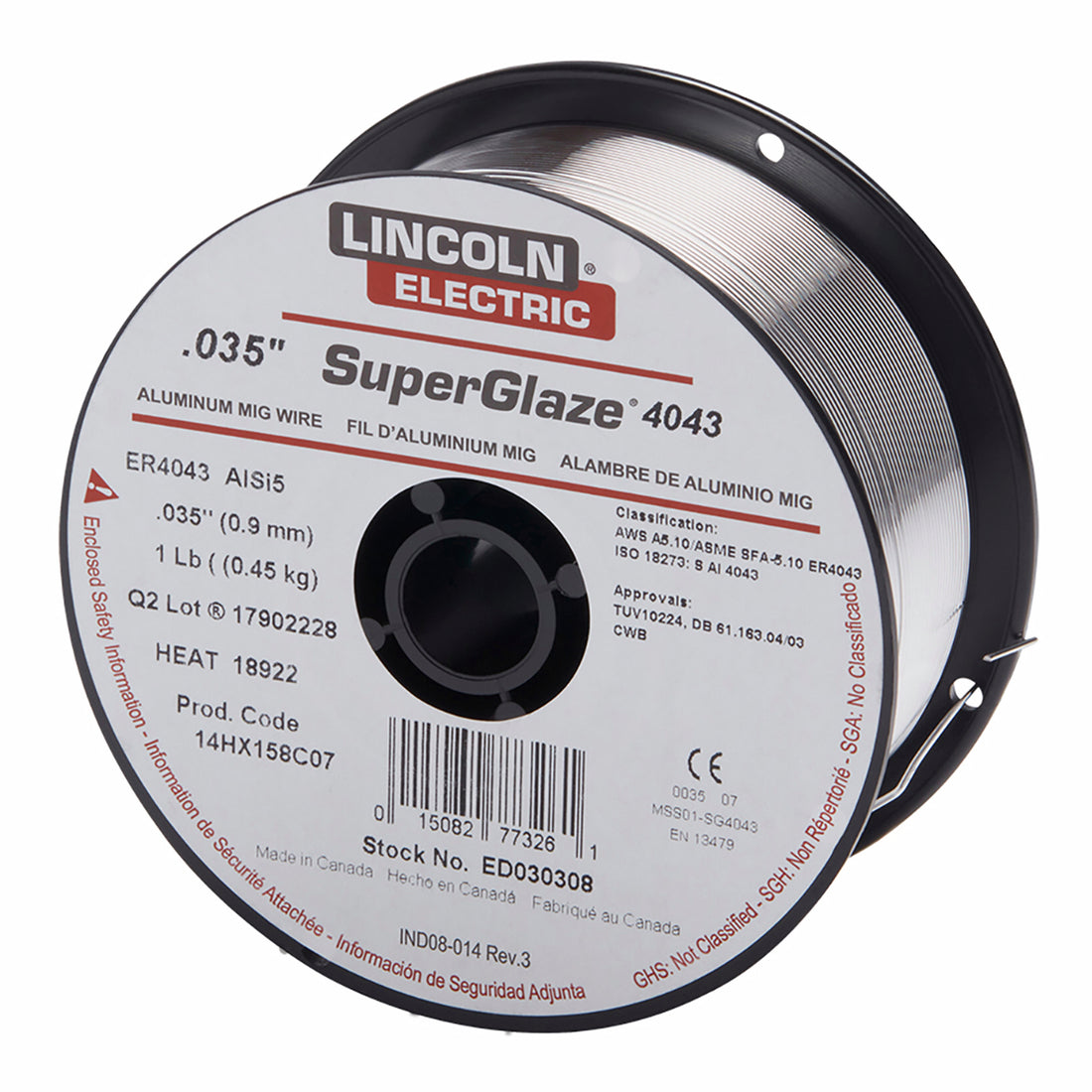

Lincoln SuperGlaze 4043 Aluminum MIG Wire



SuperGlaze® 4043 Aluminum Silicon alloy is very commonly used to weld on 6XXX base materials and other heat treatable alloys. SuperGlaze® 4043 is a soft alloy, with good crack resistance and high penetration compared to other filler metals. It can be used for certain brazing applications and to weld on high silicon casts like A356. Welding of 5XXX base materials with 4043 and other 4XXX filler metals should be avoided.

Features

• Designed for welding heat-treatable base alloys and more specifically the 6XXX series alloys
• Lower melting point and more fluidity than the 5XXX series filler alloys
• Low sensitivity to weld cracking with the 6XXX series base alloys
• Made in Canada

• Typical Applications:

  • For welding 6XXX alloys, and most casting alloys
  • Automotive components such as frame and drive shafts
  • Bicycle frames

  • Available spool and wire sizes:

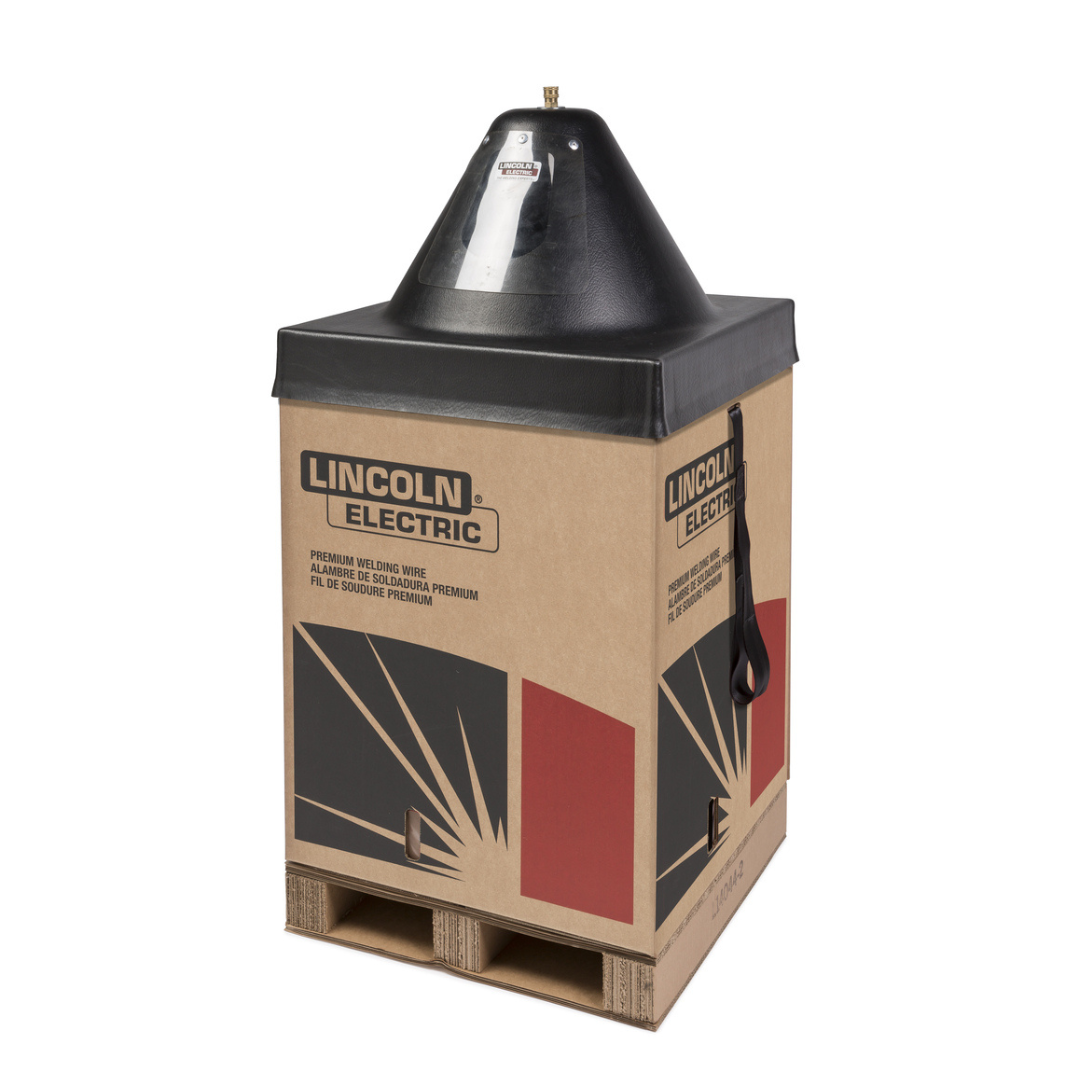

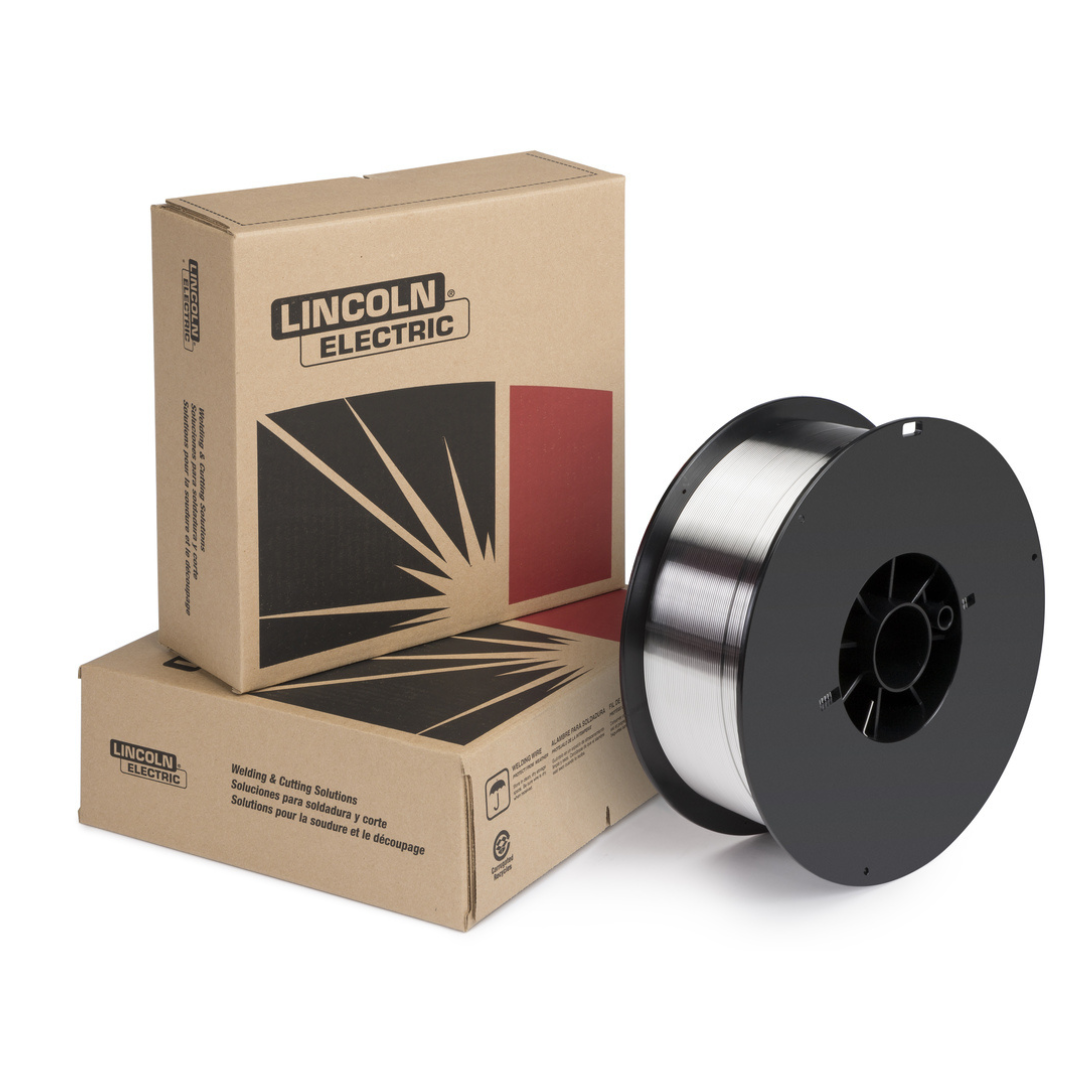

    Diameter in. (mm)		1 lb (0.5 kg) Spool		16 lb (7.3 kg) Spool		20 lb (9.1 kg) Spool		300 lb (136 kg) Box
    0.030 (0.8)		ED030307
    0.035 (0.9)		ED030308		ED028395		ED700115		ED036609
    3 64 (1.2)		ED030310				ED029234		ED036610
    1 16 (1.6)						ED030281		ED036611

    Download Data Sheet

    Spool Size	4" – 1 lb, 12" – 20 lb
    Wire Diameter	.030", .035", 3/64", 1/16"
