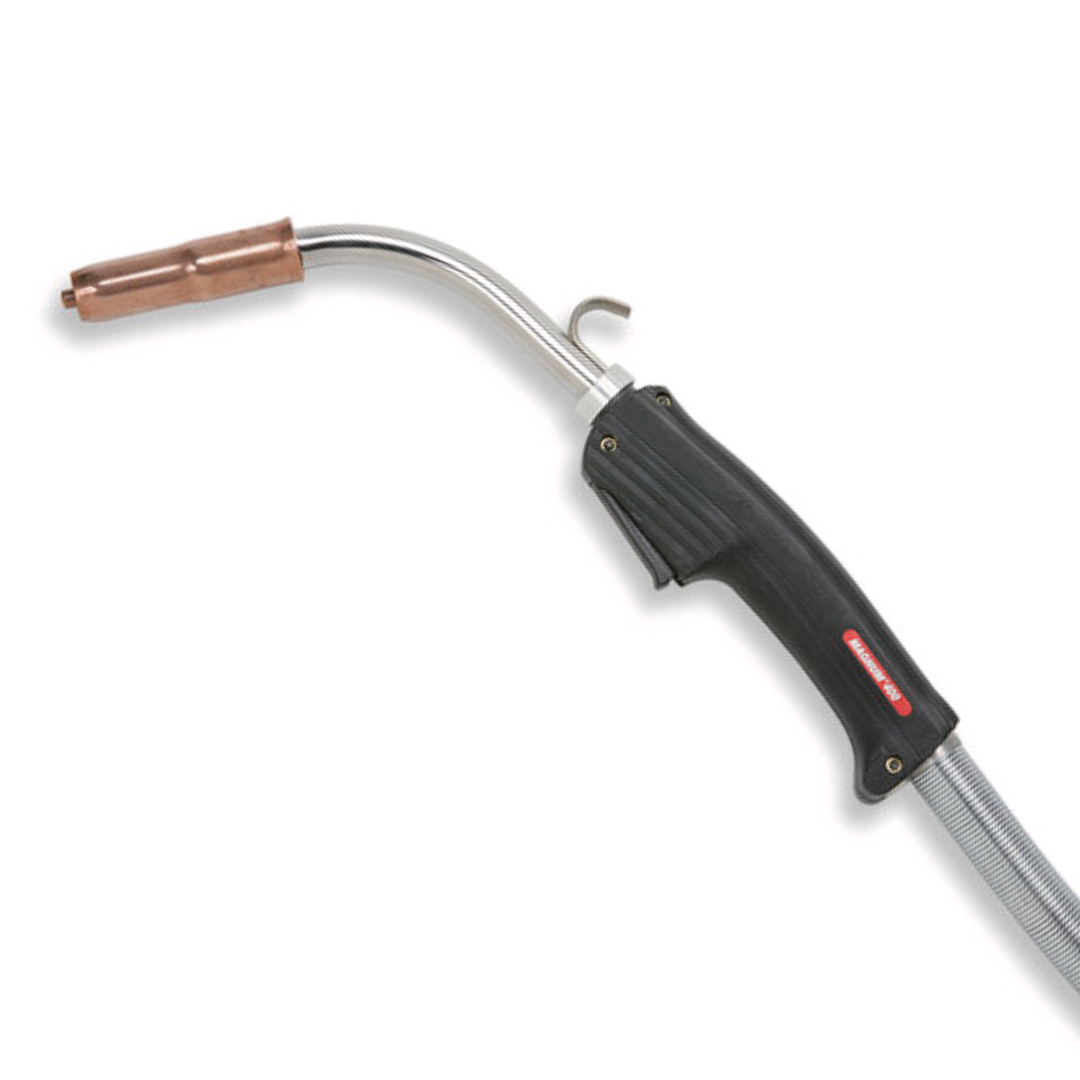

Lincoln MAGNUM® 400 MIG Welding Gun

Semiautomatic Air-Cooled MIG Torches

Magnum® guns for MIG or flux-cored welding feature our classic curved handle and are available in a number of amperage ranges for use in many applications.

• Built for operator comfort when welding with the greater heat levels generated by higher amperage applications for most .045-1 16 in. (1.2-1.6 mm) gas-shielded operations.

• One-piece modular trigger assembly – Molded out of high heat resistant material to withstand head and spatter and ensure long life.

• Gun tube design – Armored with an electrically insulated metal jacket optimizing fine wire welding performance.

• Abrasion-resistant, extruded rubber jacket – Adds strength and long life to the cable.

• Classic curved handle – Lightweight and balanced, providing a comfortable grip to reduce fatigue.

• Rotating gun tube and gun hanger clip – Allow any number of hand positions to reduce fatigue or fit into tight spaces.

• Please note torches do not include a machine connector.

  Options

  Torch Length		Machine Connector		Liner Size		Part Number
  10 ft.		NONE		.035 – .045		K471-1
  15 ft.		NONE		.035 – .045		K471-2
  15 ft.		NONE		.052 – 1 16		K471-4
  20 ft.		NONE		.035 – .045		K471-10
  25 ft.		NONE		.035 – .045		K471-13

  What s Included?

  • 14 Series Contact Tip

  • 54A Gas Diffuser

  • Gas Nozzle
  • Insulator
  • Cable Liner
  • Gun Tube (60°)

  • Consumables

  Nozzle		Nozzle Insulator		Contact Tip		Diffuser
  Tweco 24A Series		Tweco 34A		Tweco 14 Series		Tweco 54A

  Non-stock Item – Please allow two week lead time*

  Cable Length	10 ft. (3m), 15 ft. (4.5m), 20ft. (6.1m), 25ft. (7.6m)
  Cable Liner Diameter	.035 – .045, .052" – 1/16"
