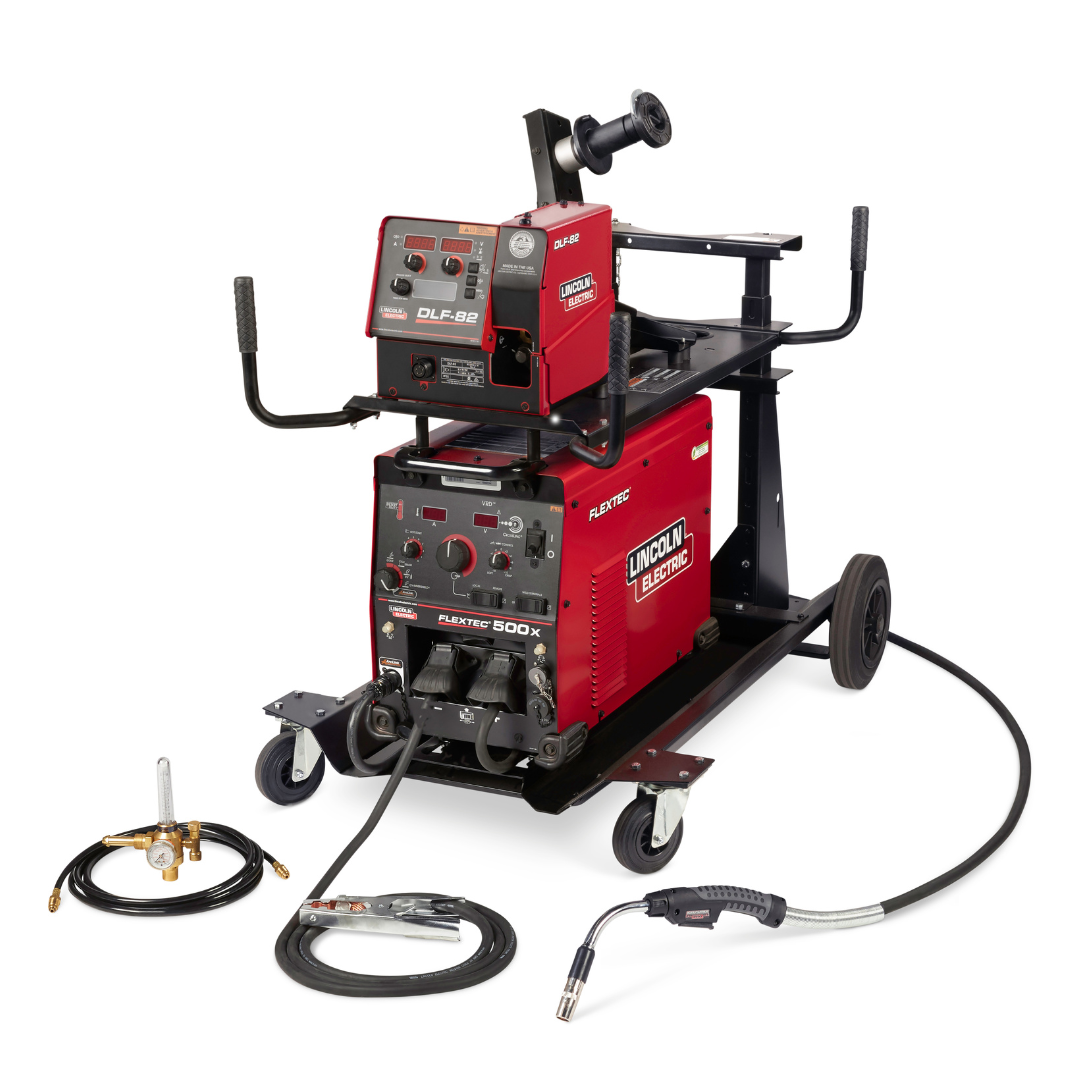

Lincoln Flextec 500X DLF-82 Ready-Pak – K3608-5
The Flextec 500X DLF-82 Ready-Pak is the perfect 500A fabrication shop pulsed MIG system. Utilizing the tough and realiable Flextec 500X mulit-process power source, the ready-pak combines the DLF-82 wire feeder for a 500A system that is simple and realiable with the added benefit of pulsed MIG capability, as well as true multi-process support.
Features
- Lincoln Ready-Paks are fully assembled. Just connect power and add wire and sheilding gas.
-
- Includes assembled inverter wire feeder cart
-
- Simple to Use – For synergic setup, choose desired weld process, wire type, wire diameter and gas type.
-
- Synergic weld modes = one knob control. Set higher wire feed speeds for thicker materials and lower wire feed speeds for thinner materials. Voltage is automatically adjusted.
-
- Pulsed MIG Support – lower spatter, greater puddle control, more forgiving MIG process.
-
- 380-575V 3-phase input power required
-
Flexible
- Compatible with across-the-arc, analog, digital or CrossLinc™ feeders
-
- Premium multi-process arc characteristics works with all DC wire, stick and TIG processes
-
- Lightweight and portable
-
Product Highlights
- Desert Duty Rated™ for extreme temperatures up to 55°C
-
- VRD® Voltage Reduction Device reduces Open Circuit Voltage for added safety
-
- Offered in 4 and 6 pack rack configurations
-
- Wide 5-425 amperage range
-
- Capable of Arc Gouging with 3 16 in. (4.8 mm) carbons
-
Input Power
200-600V 1Phase 3Phase
Rated Output
350A 34V 60%
300A 32V 100%
Output Range
5-425A
Solid Wire Size Range
.023-1 16 in. (.6-1.6 mm.)
Cored Wire Size Range
.030-5 64 in. (.8-2 mm.)
Wire Feed Speed Range
50-800 ipm
DIMENSIONS (H X W X D)
17 x 13 x 24 in.
NET WEIGHT
84 lb
What s Included?
- Fkextec 500X DLF-82 Ready-Pak
-
- DLF-Feeder Cart Mounting Bracket | K5395-1
-
- Weld Power Cable – Lug to Lug (3 0, 600A, 60%) – 10 ft (3 m) | K1842-10
-
- Flextec® 500X Locking Foot Kit | K3056-2
-
- Inverter and Wire Feeder Cart | K3059-4
-
- Flextec® 500X Multi-Process Welder | K3607-1
-
- DLF-82 Bench Model (w Gun) | K5282-3
-
- Model 355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit | 3100211
-
