Lincoln Elevate SLi Battery Powered Welder



Designed, built, and tested to deliver the industry’s leading battery powered welder,
the ELEVATE ™ SLi combines unlimited portability with the trusted, reliable arc
performance you expect from Lincoln Electric.

Engineered to withstand rugged jobsite conditions, this durable and lightweight system offers up a powerful cordless Stick & TIG welder that ELEVATEs your operator’s versatility on the jobsite

• Portability – Welcome to the world of convenience with ELEVATE™ SLi.
  This cordless design with internal rechargeable battery technology is designed to be lightweight and portable, allowing you to take it on a construction site or repair equipment in the field. The ELEVATE™ SLi is always there to help you get the job done.

• Arc Performance – Thanks to its premium performance utilizing Lincoln Electrics’
  proven Chopper Technology®, ELEVATE™ SLi delivers superior DC arc welding performance for both Stick and Touch Start TIG®  welding. Featuring cellulosic capability with the ability to handle up to a 5 32 in. (4.0 mm) diameter electrodes, this welding machine allows both whip and drag techniques for
  a wider range of construction and fabrication applications.


• Straightforward & Simple – ELEVATE™ SLi has an impressive all-in-one internal charging system that eliminates the need for an external charger, multiple battery packs, or custom power cords. This charging system is designed to regulate the charging process and prevent the battery from being overcharged while
  continuously monitoring its status.


• Durability – Not all lithium-ion battery technologies are the same. ELEVATE™ SLi uses lithium iron phosphate battery technology, which offers a longer lifespan, improved discharge and charge efficiency, and increased safety. Built to withstand challenging welding environments with an IP23S rating and fan-as-needed circuitry, ensuring long-lasting performance

• 		E6010			E6013			E7018
  		Electrodes Consumed		Amps		Electrodes Consumed		Amps		Electrodes Consumed		Amps
  3 32 x 12 in		21.7		60		16.8		75		12.3*		90
  1 8 x 14 in		9.2		90		9.4		110		8.1		120
  5 32 x 14 in		6.3		120		5.8		140		5.3		140
  *3 32 x 14 in

  Product Name		Elevate SLi Battery Powered Welder
  Welding Processes		Stick (SMAW), DC TIG (GTAW)
  Input Voltage (Charging Hybrid)		120 1 60 Max 6A
  Welding Output Amps		Stick: 20-145A TIG: 4-145A
  Output Current		DC – CC, Pulse TIG
  Aluminum TIG		❌
  Remote Control Connector		❌
  Dimensions		14 x 11 x 20
  Weight		33 lb.
  Warranty		3-Year Parts & Labour



  Available Options and Part Numbers

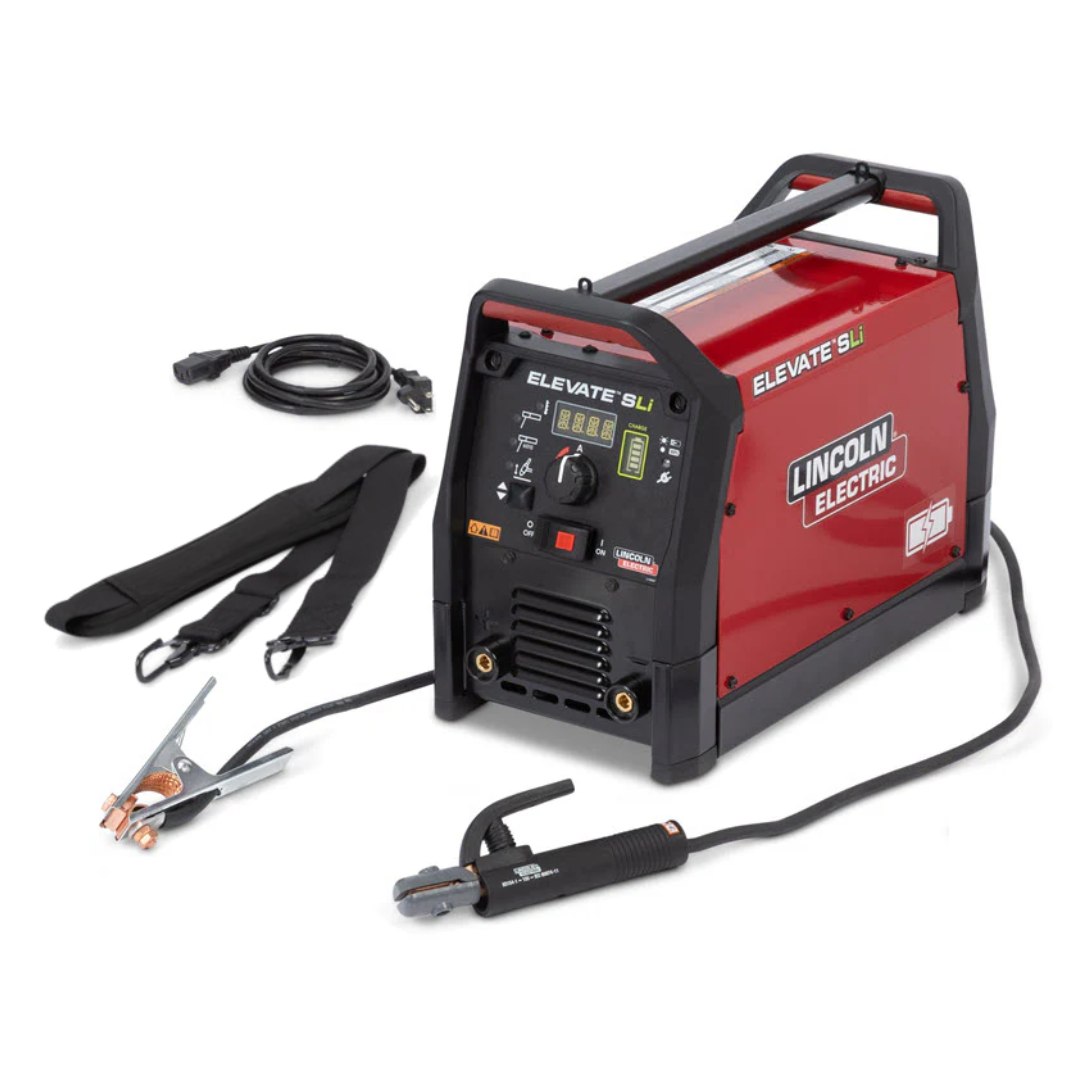

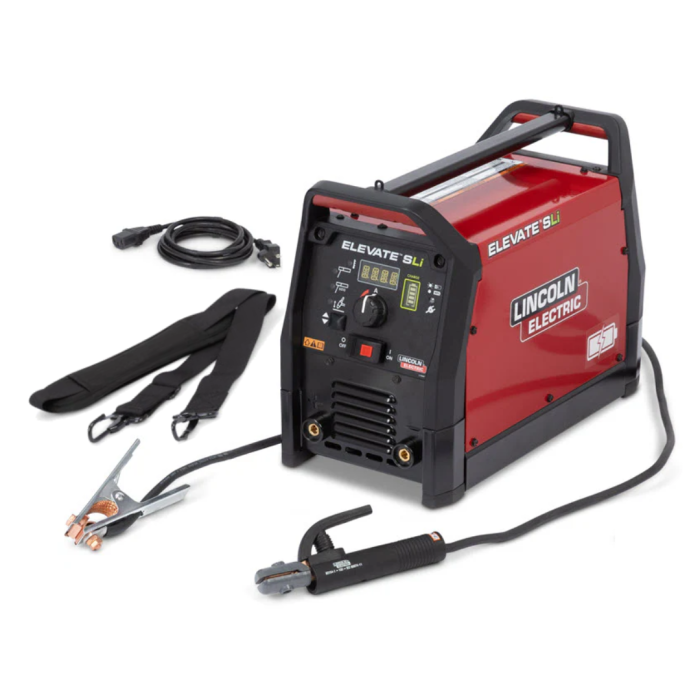

  • Elevate SLi Machine Package – K4706-1

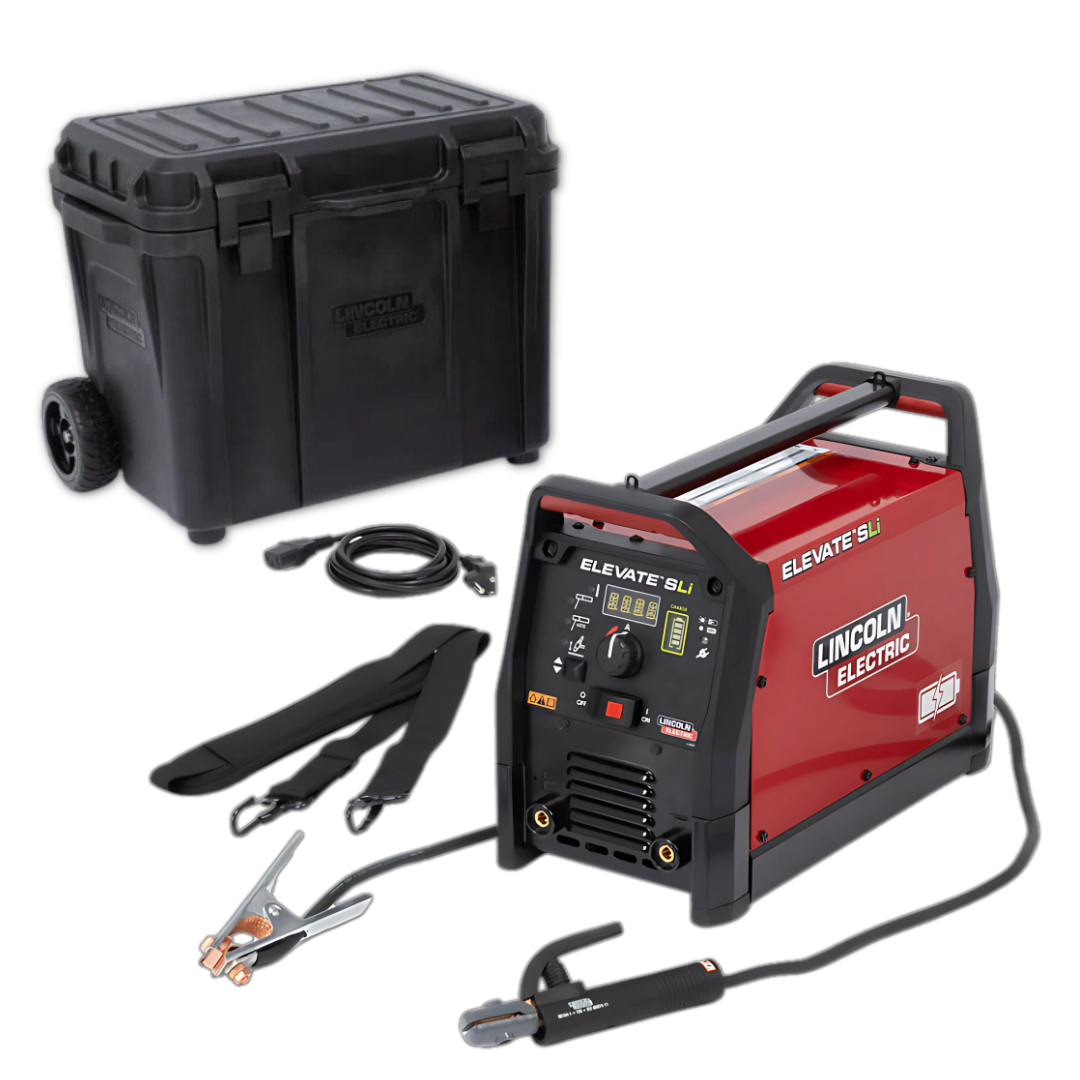

  • Elevate SLi Machine Package with Hard Rolling Case – K5622-1

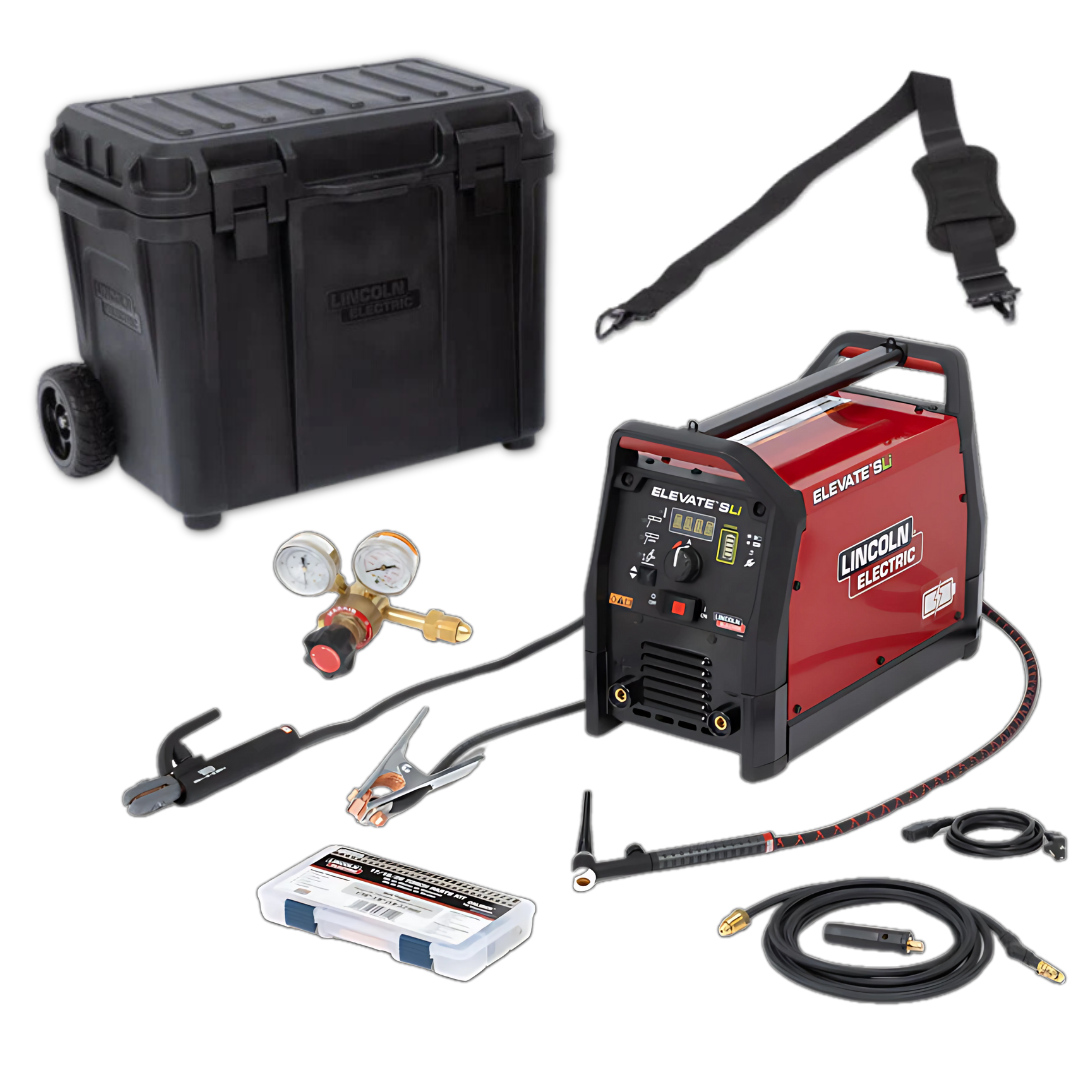

  • Elevate SLi TIG Package with Hard Rolling Case – K5624-1

  • Please see this link for the Sprinter 180Si TIG Packages

    All Packages Include

    • ELEVATE™ SLi Battery Powered Welder
    • 200A Industrial Electrode Holder, Cable and Twist Mate™ Plug (K5612-1)
    • Work Cable and Clamp with Twist Mate™ Plug (K5482-1)
    • Fully Adjustable Shoulder Strap (KP5656-1)
    • 120V Input Cord, 8 ft. (2.4m) (KP5655-1)

    • TIG Package Includes

      • Rolling Carrying Case (K5548-1)
      • Caliber® 17 Series TIG Torch – Flex Valve 12.5 ft. (K4841-17FV-1)
      • Small Twist Mate™ Torch Adapter (K960-2)
      • Caliber® 17 18 26 Series TIG Torch Expendables Kit – 1 16 in. -1 8 in. (KP4760-HD)
      • Single-Stage Flowgauge Regulator Ar5-30-580 (3000369)

      • Full Product Data Sheet

  Package Option	Machine Package Only (K4706-1), Machine Package with Case (K5622-1), TIG Package with Case (K5624-1)
