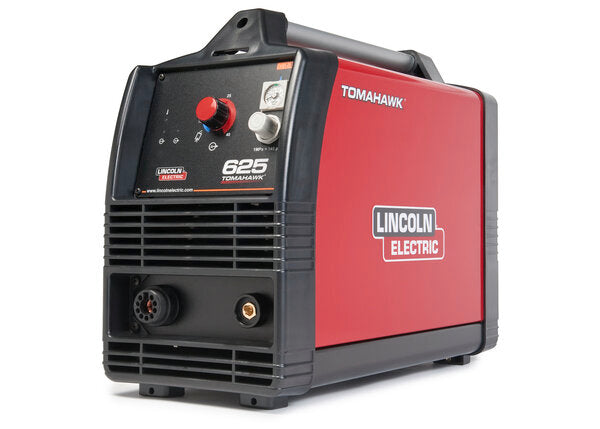

Lincoln Electric Tomahawk 625 Plasma Cutter



The Tomahawk 625 Plasma Cutter is portable for plasma cutting and gouging on a wide variety of materials including mild steel, stainless steel, aluminum, brass, and copper.

Features

• Lightweight and Portable – Easily carried by one person.

• Continuous Output Control – Focus the arc for different material thickness.

• Touch Start System – Reliable plasma arc initiation without high frequency.

• Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.

• Front Panel Purge Control – Makes it easy to set the air flow rate without initiating the plasma arc.

• Cool Operation, Long Consumable Life – New electrode and nozzle design helps you save money in the long run.

• Added Safety – Our Parts-in-Place system detects correct installation of consumables and torch.

• Engine Drive Compatible
• Optional Machine Plasma Torch available for use on CNC plasma cutting tables.

• Technical Specifications

  Input Power		208 230V, 50 60Hz, Single Phase
  Output Power		10-40A
  Duty Cycle (Breaker Size)		24A @ 100% 29A @ 60% 40A @ 35%
  Compressed Air Consumption		70psi @ 125-200 SCFH
  Torch & Leads		LC40 hand torch and 20 ft. (6 m) cable

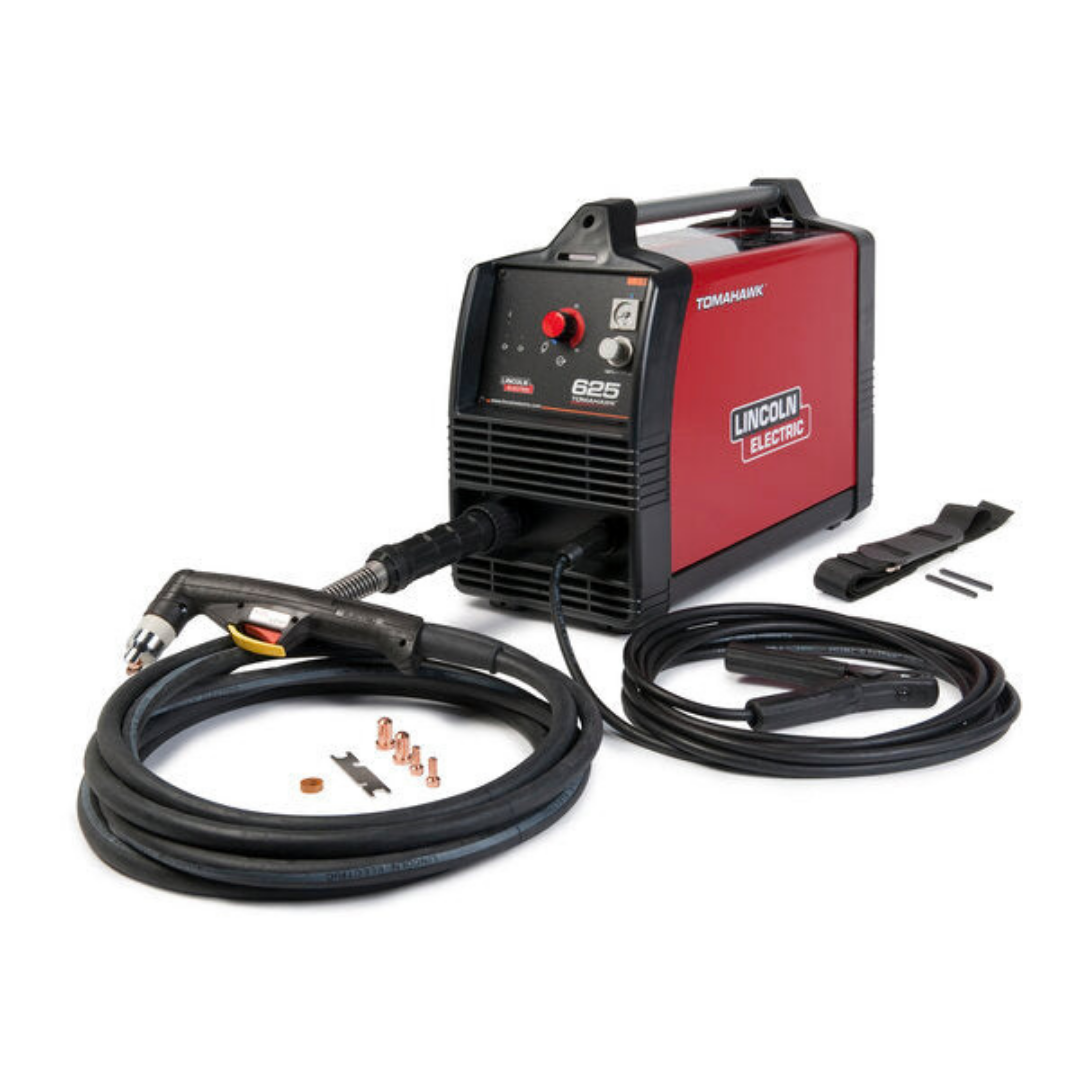

  What s Included

  • Tomahawk 625 Plasma Cutting Power Source
  • LC40 hand torch and 20 ft. (6 m) cable with electrode | nozzle 40A | swirl ring | retaining cap (standard) | drag spacer
  • Air regulator and pressure gauge
  • Internal water separator
  • Work clamp and cable
  • Spare consumables include (2) electrodes | (2) nozzles 40A | (1) swirl ring
  • Shoulder strap
  • Input power cord
  • 3 Year Warranty on Power Source, 1 Year Warranty on Torch

  • Product Data Sheet | Consumables
