Lincoln Electric Murex 309LSi Stainless Steel MIG Wire

Murex® stainless MIG wire offers reliable quality and consistent welding performance

Features

• Similar in composition to 309L with higher silicon content to increase puddle fluidity and improve the bead appearance
• Q2 Lot® – Certificate showing actual wire composition and calculated ferrite number (FN) available online
• Excellent contour of the weld minimizes the need for grinding

• Typical Applications

  • Designed for joining stainless steel to mild or low alloy steel

  • Welding Positions

    • All

    • Shielding Gas

      • Short Circuiting Transfer: 90% He 7.5% Ar 2.5% CO2
      • Axial Spray Transfer:  98% Argon 2% Oxygen

      • Available Options and Part Numbers

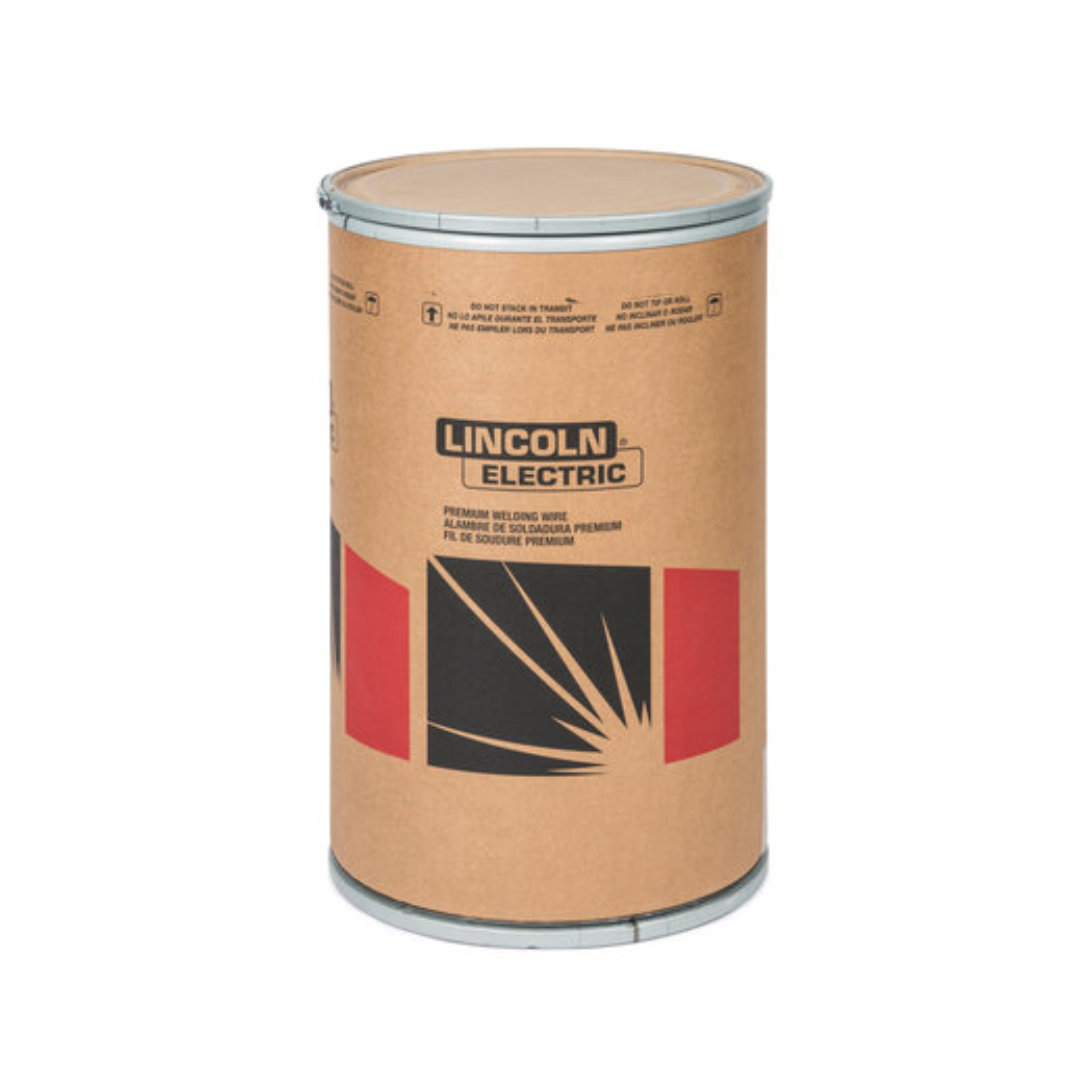

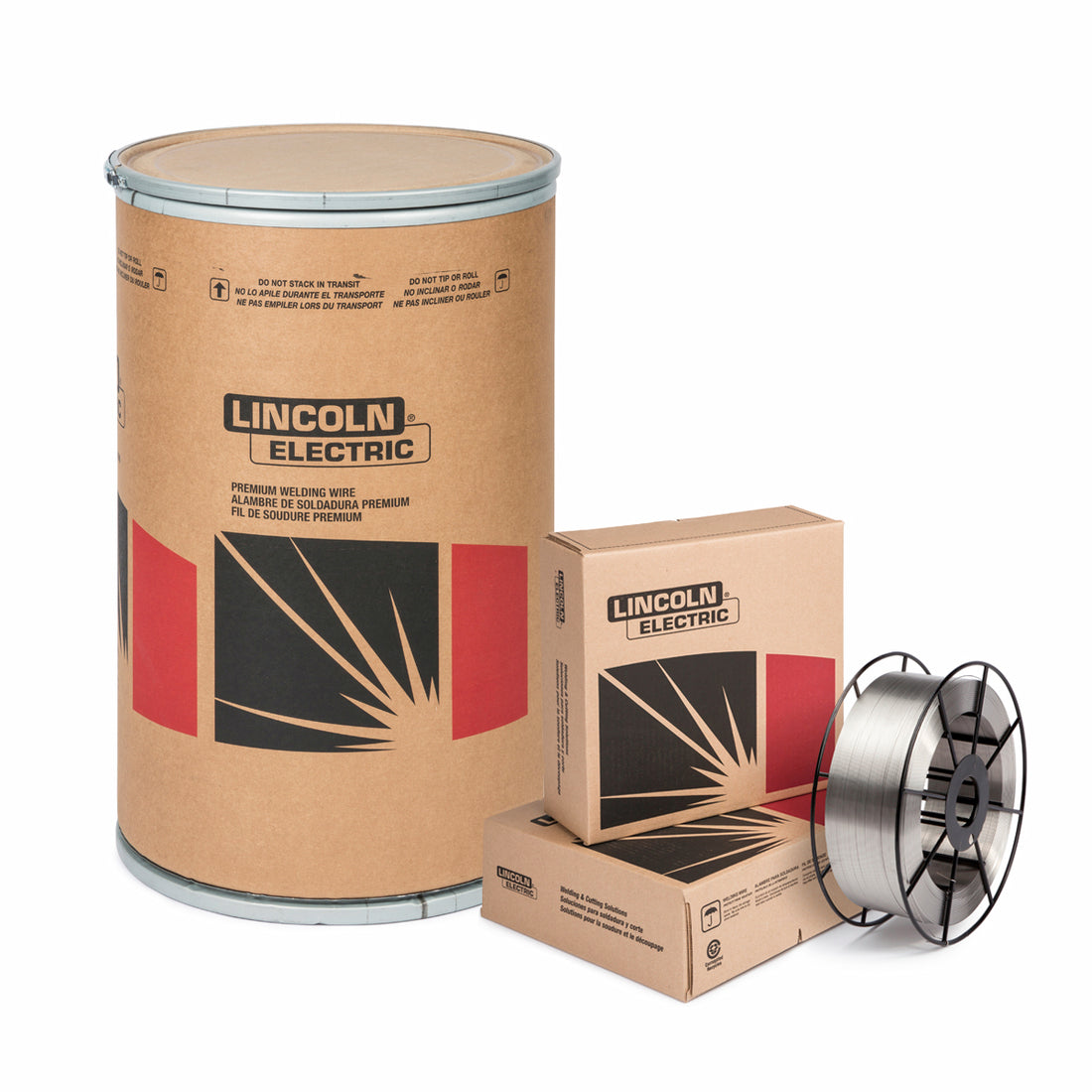

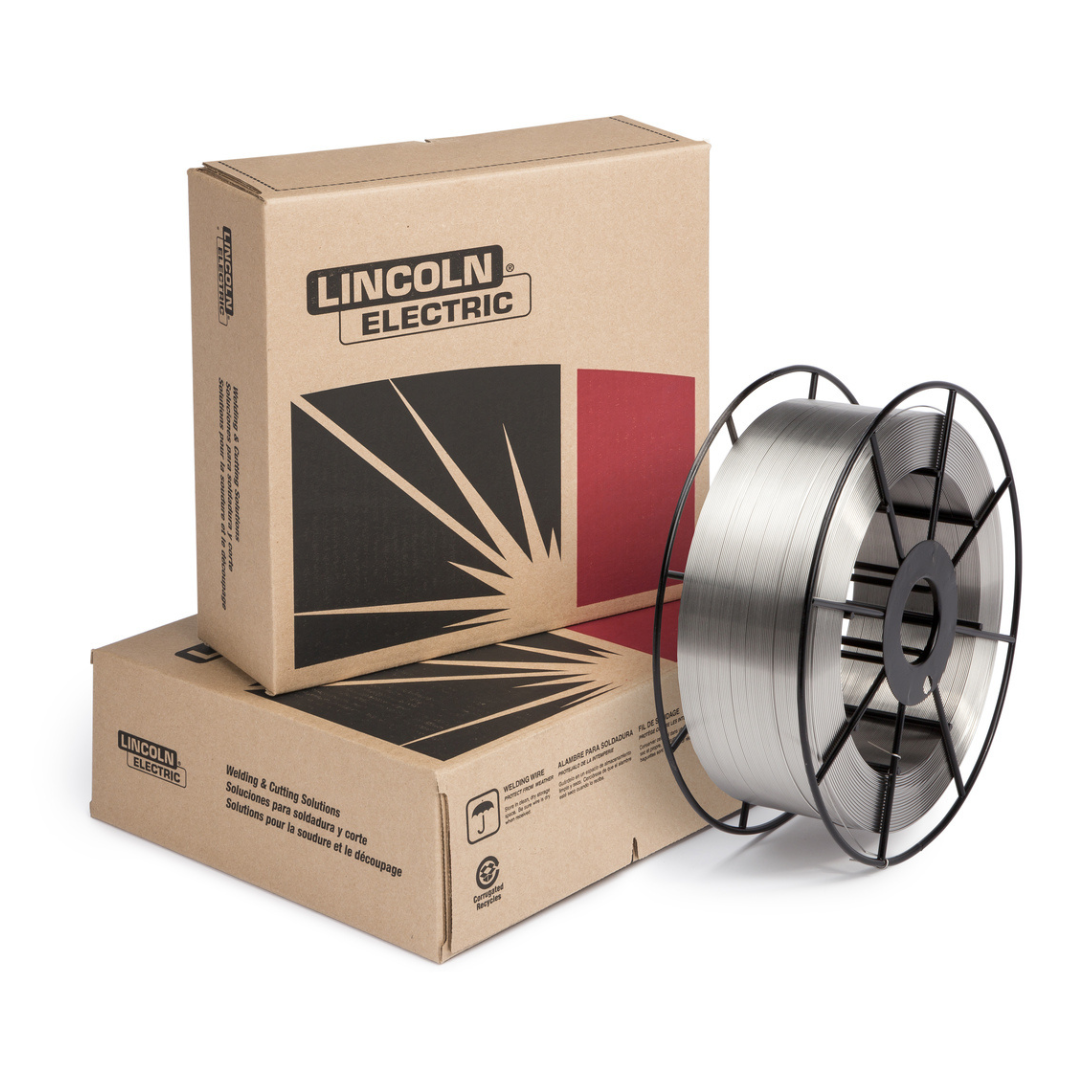

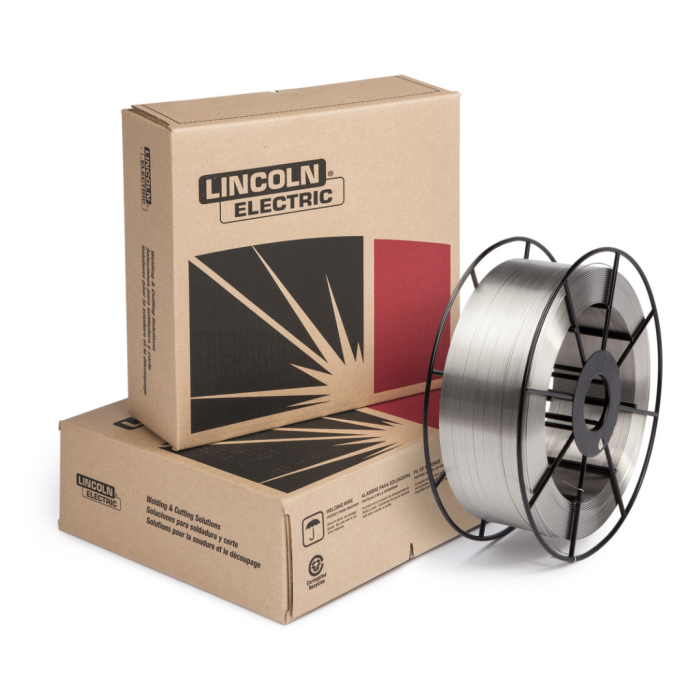

        Diameter* in (mm)		33 lb (14.9 kg) Steel Spool		500 lb (227 kg) Accu-Trak® Drum
        0.035 (0.9)		ED035606		ED035609
        0.045 (1.1)		ED035608		ED035610

        Documents and Specs

        Wire Diameter	0.035" (0.9 mm), 0.045" (1.2 mm)
        Package Size	33 lb. Spool, 1000 lb. Pallet (2 x 500lb. Drums)
