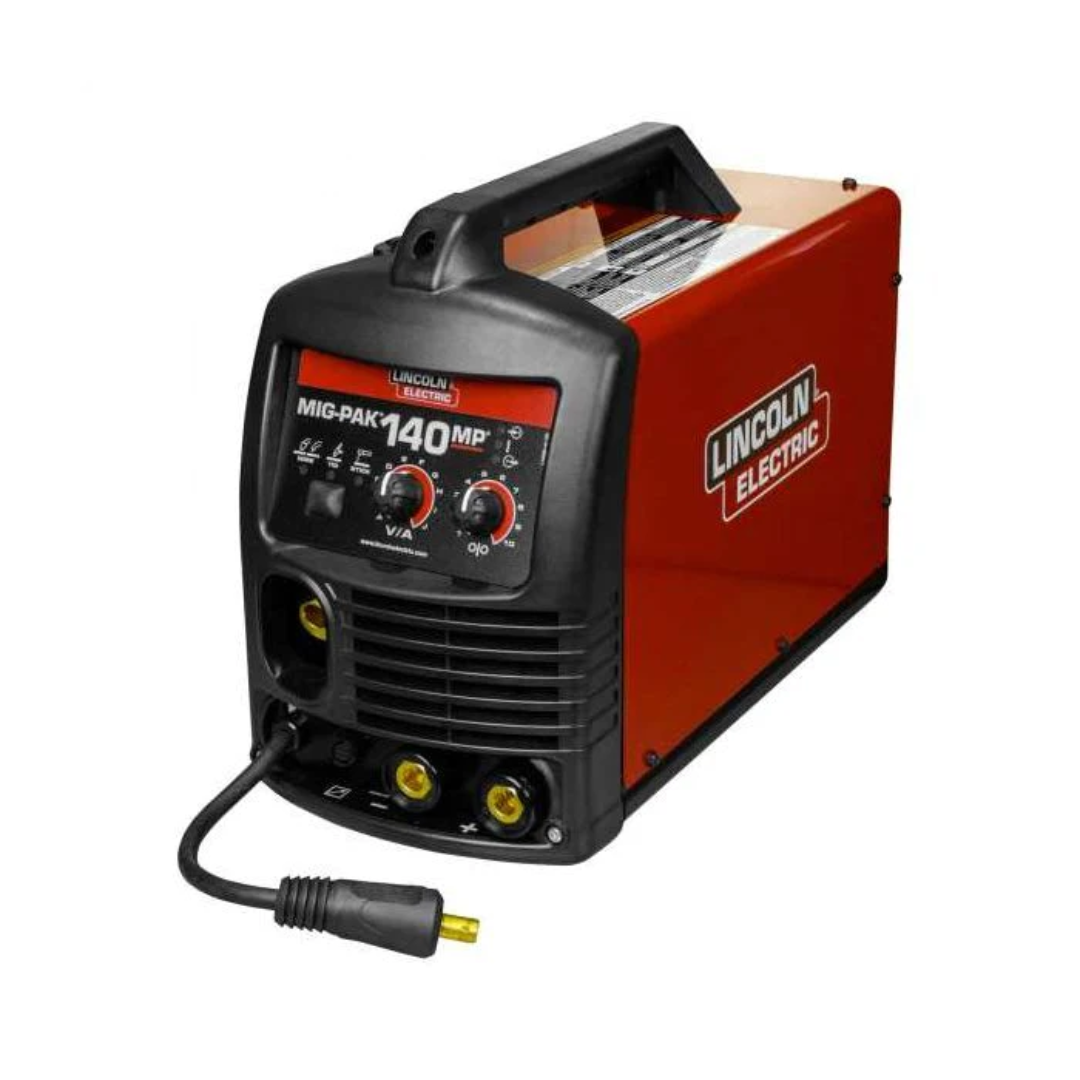

Lincoln Electric MIG PAK® 140 Multi-Process Welder

115 120 Volt AC Input Compact Wire Welder

The Lincoln Electric MIG-PAK® 140MP®lightweight and portable welder connects
to 120 volt power and is an excellent choice for MIG, STICK, Spool Gun, Flux Cored, or TIG welding. The intuitive user interface, easy setup, and full list of accessories permits welding in no-time.

Top Features

• Fully adjustable drive system reduces the chance of wire tangling and crushing
• Brass-to-brass gun connection enhances conductivity
• Durable cast aluminum gear box delivers added drive torque and quiet operation

• Output Range

  • MIG (GMAW, FCAW)): 30 – 140 A
  • Stick (SMAW): 25 – 90 A
  • TIG( GTAW): 10 – 120 A
  • Wire Feed Speed: 40-500 IPM (1.3-12.7 m min)

  • Input Power:
    Single phase, 115 or 120V, 20A

    Processes:
    MIG, Self-Shielded Flux Core, Stick, TIG

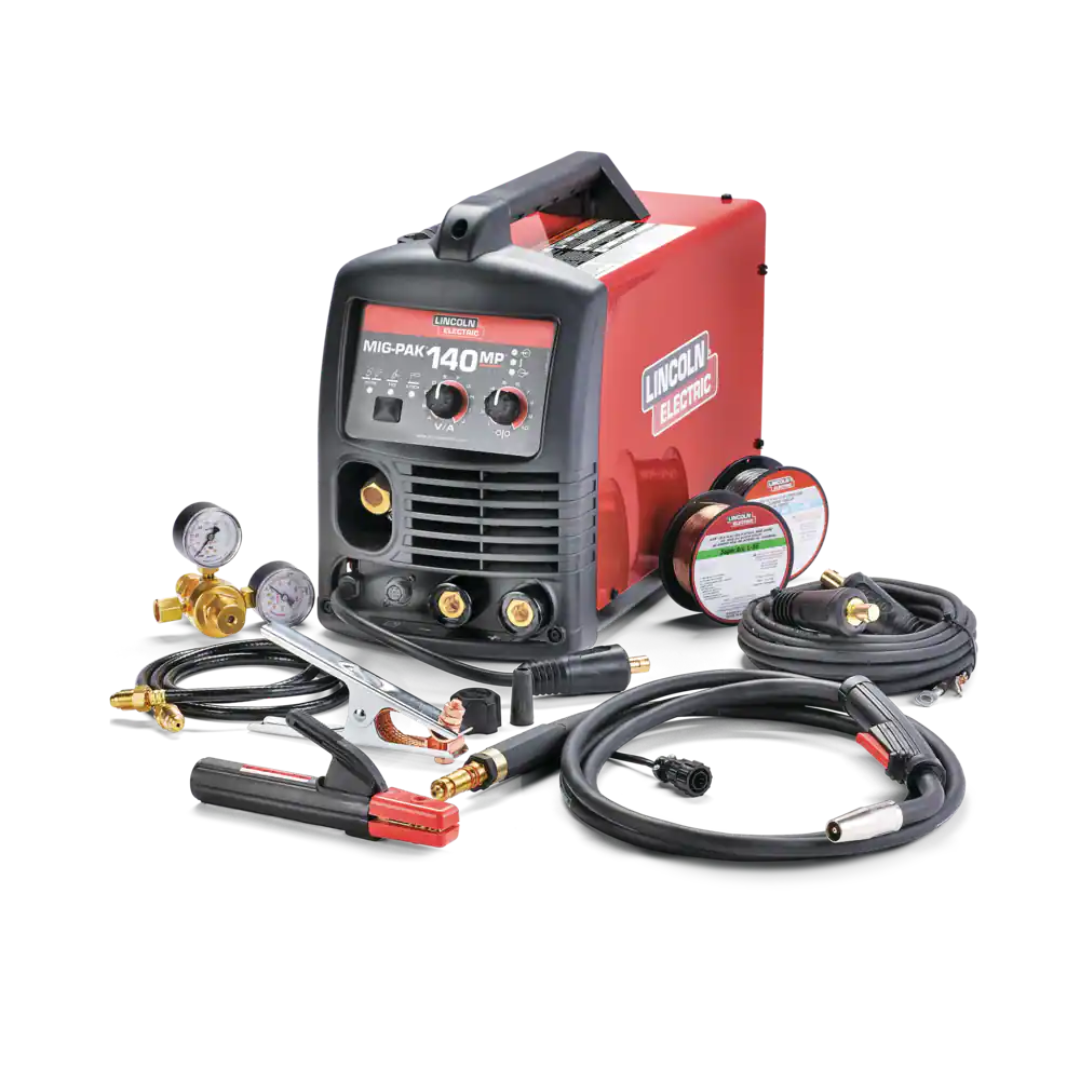

    What s Included:

    • Magnum® PRO 100L gun and 10 ft. (3.0 m) cable assembly with brass connection and 8-pin trigger connector (K530-7).
    • 0.025 in. (0.6 mm) tapered contact tips (Qty 3) (KH831) }
    • 0.035 in. (0.9 mm) tapered contact tips (Qty. 3) (KH833)
    • Gasless nozzle for Innershield® welding (KH836)
    • Gas nozzle for MIG welding (KH835)
    • Spindle adapter for 8 in. (203 mm) diameter spools (KH720)
    • .025 – .035 in. (0.6 – 0.9 mm) wire diameter welding (KP2948-1)
    • Harris 3000290 Gas Regulator and 52 hose for use with Ar CO2 blend gases.
    • Sample spool of 0.025 SuperArc L-56 premium MIG wire
    • Sample spool of 0.035 Innershield NR-211-MP flux cored wire
    • Work clamp and 10 cable
    • Electrode holder with 10 cable for stick welding
    • 10 MIG gun 10 stinger & ground clamp
    • TIG torch, foot pedal, and spool gun sold separately

    • Optional Accessories

      • Spool Gun – K4360-1

      • Manufacturer Part Number: K3821-1

        Product Data Sheet
