Harris Safety-Silv® 50N High Silver Brazing Alloy

2% Nickel Brazing Alloy – Excellent for Brazing Tungsten Carbides

Safety-Silv® 50N is a 50% high silver brazing filler metal engineered for brazing copper, brass, steel, nickel filler metals, and stainless steel. It is especially helpful where low brazing temperature must be maintained.

This filler metal exhibits improved corrosion resistance on stainless steel compared to other silver braze filler metal deposits. It is frequently used to braze tungsten carbide to steel and tool steel for cutting tips, drill bits, and saw blades. The 2% nickel addition improves wetting and strength.

Options:

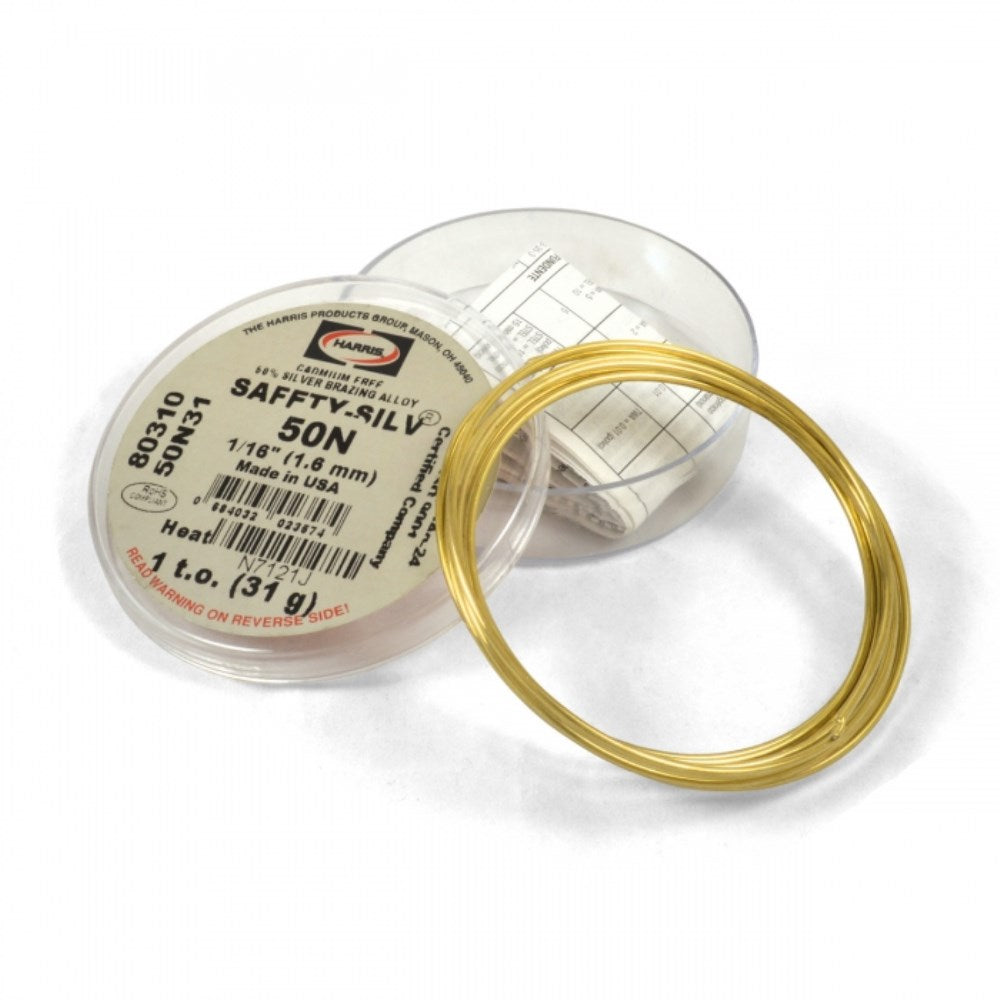

• 50N31 – 1 16 diameter coil, 1 Troy Ounce
• 50N35 – 1 16 diameter coil, 5 Troy Ounce

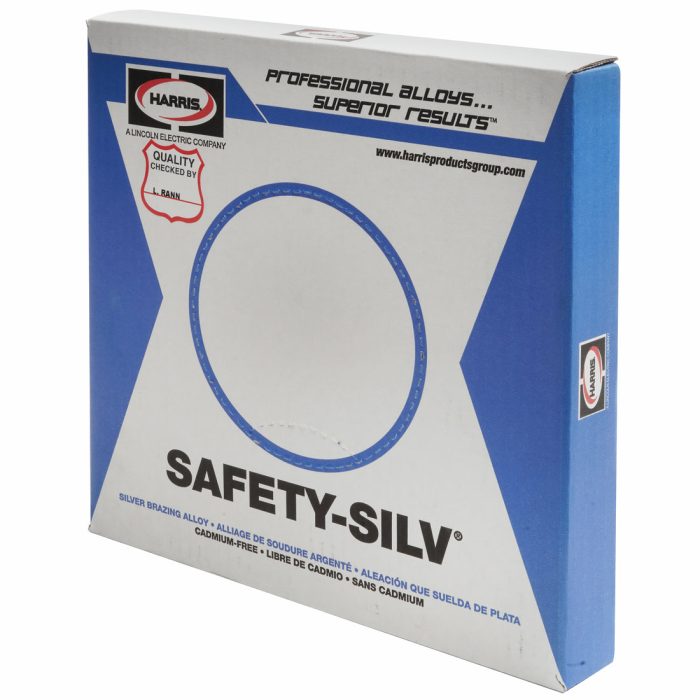

• 50N350 -1 16 diameter coil, 50 Troy Ounce
• More diameters and package sizes available upon request

• Features

  • Cadmium-free brazing alloy, good replacement for cadmium-bearing alloys
  • 2% Nickel addition improves wetting and strength
  • Low melting range provides good flow
  • Exhibits improved corrosion resistance on stainless steel compared to other silver braze alloy deposits
  • Engineered for brazing copper, brass, steel, nickel alloys, and stainless steel
  • Conforms to the EU Reach & RoHS directive
  • Made in the USA

  • Typical Application:  Brazing tungsten carbide to steel and tool steel for cutting tips, drill bits, and saw blades

    • ANSI AWS A5.8, ASME SFA 5.8, Classification: BAg-24
    • Excellent alternative for BAg-22 material
    • Stay Silv® white flux is suitable for some applications

    • Stay Silv® black brazing flux is often used if brazing stainless steel or tungsten carbide and where heating cycles are prolonged or focused as in induction brazing

    • Specifications and Composition

      • Brazing Range 1305°F- 1500°F (707°C -816°C)
      • Solidus 1220ºF (660°C) Liquidus 1305°F (707°C)
      • Silver: 49-51%, Copper 19- 21%, Zinc: 26-30%, Nickel: 1.5-2.5%, Other (Total): 0.15
      •
