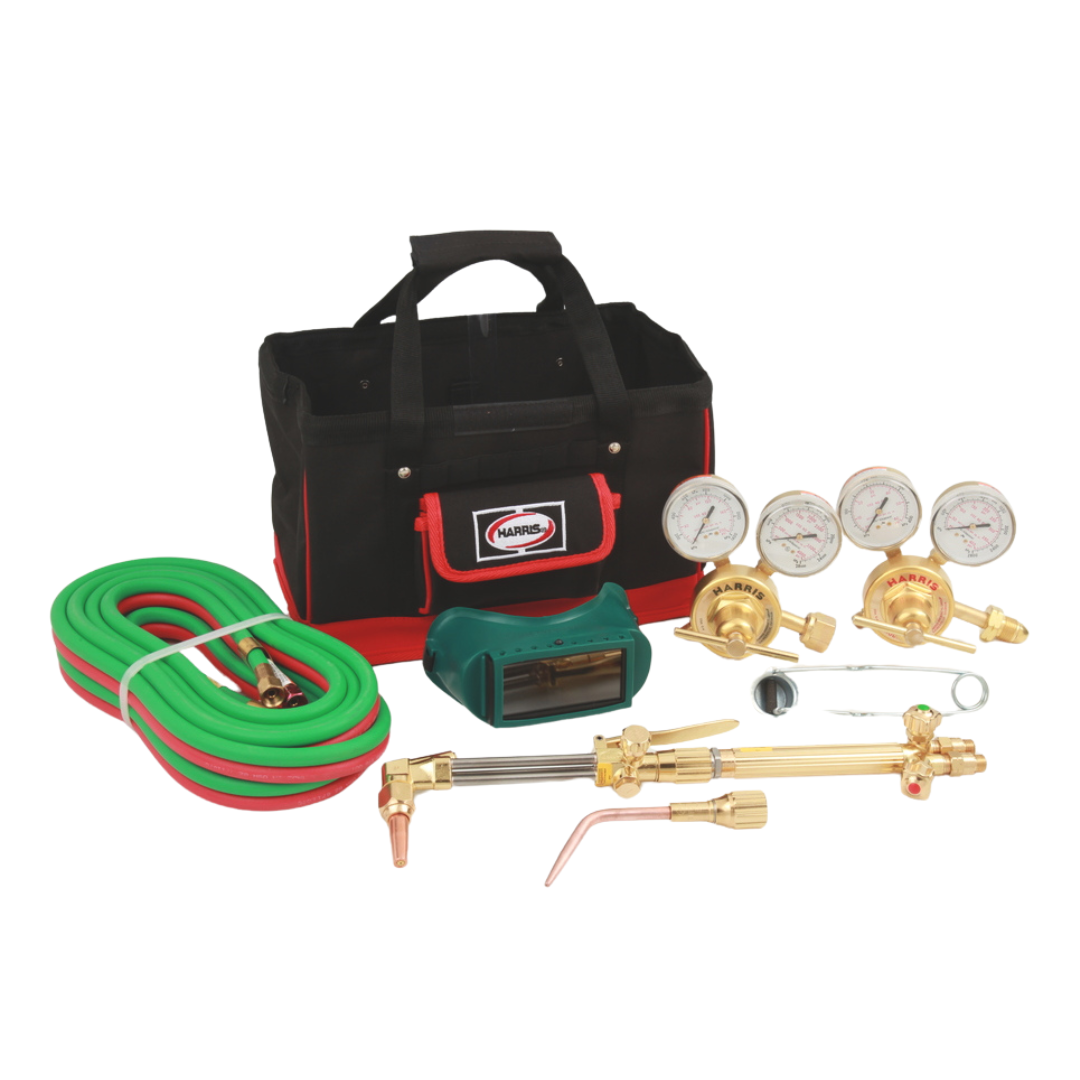

Harris Pipeliner® Welding, Cutting and Brazing Outfit

Welding, Cutting and Brazing Outfit – Acetylene Fuel

This combination Pipeliner® Classic Deluxe kit contains all the major components needed for cutting, welding, brazing and heating using all fuel gases.  As supplied, the outfit is capable of cutting up to a 1 plate and welding up to a 1⁄8 plate. The outfit can also cut up to a 5 plate and weld up to a 1 plate with optional larger tips.

Capacity: Cuts to 1 (25.4mm) plate with supplied tips. Cuts to 5 (127.0mm) plate with larger tips. Welds to 1 8 (3.2mm) plate with supplied tips. Welds to 1 (25.4mm) plate with larger tips.

• Regulator Seat: One-piece encapsulated seat design with internal filter and PTFE Teflon® seat
• Warranty: 7 years – Regulator; 1 year – All other components
• Mixer Type: Equal pressure
• Handle equipped with: FlashGuard® Check Valves
• Model No. 43425-510 DLX
• Part No. 4403235

• Kit Includes:

  • 43-2 Torch handle
  • 6290-1AC – Acetylene Cutting Tip
  • 73-3 Cutting Attachment
  • E-43 Mixer
  • 23A90-5 Acetylene Welding Tip
  • 425-125-540 Oxygen Regulator (CGA 540)
  • 425-15-510 Acetylene Regulator (CGA 510)
  • Goggles
  • Striker
  • 20 x 1 4 Twin line Type-R Hose
  • Tool Bag

  • Replacement Cutting Tips & Accessories
