Exact PRO SERIES PipeCut 360 Cold Saw Pipe Cutting System

Heavy-Duty Pipe Cutting Saw

Exact PipeCut 360 Pro Series is intended for heavy-duty pipe cutting. Suitable for all pipe materials. Portable and easily transportable.

The set-up is fast and simple. The clean and user-friendly design makes it fast to mount on pipe sizes 3”- 14” and up with a maximum wall thickness of 0.8” for steel, 2” for plastics.

Exact PipeCut 360 Pro Series is the first and most popular pipe saw of the Pro Series product family. The machine is intended for professionals that appreciate easiness, fast cutting and accurate, straight cutting results. The machine creates only minimum amount of sparks and all in all is an extremely safe tool to use thanks to the user-friendly design.

Cuts steel pipes with wall thickness up to 20 mm (1 2 )  Featuring a heavy duty 15 AMP motor with electronics protecting the motor from overload and “traffic lights” guiding the operator.  Laser indicator for precise cutting and improved adjustment mechanism for straight cutting.  Professional quality – Made in EU.

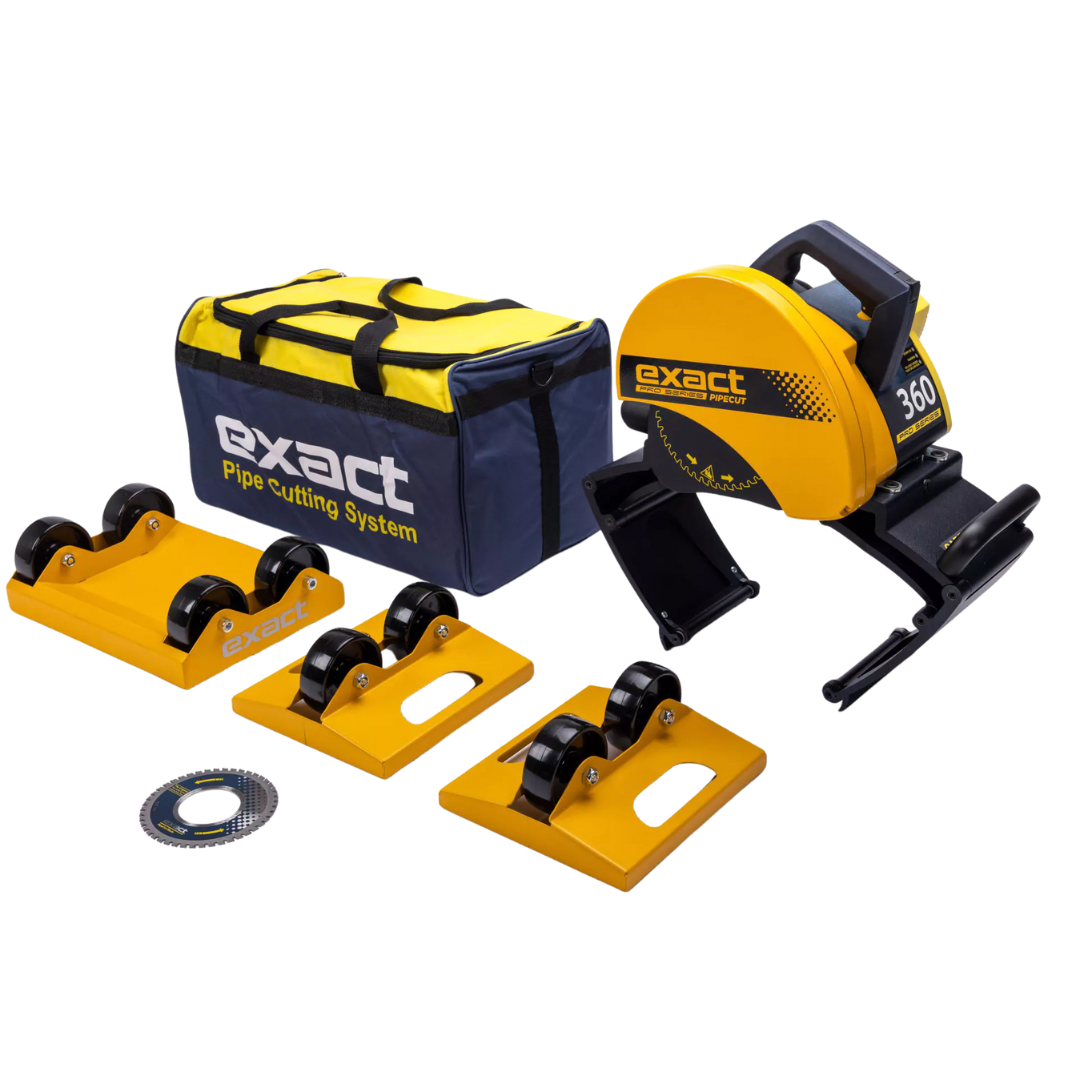

Package Includes:

• Exact PipeCut 360 Pro Series pipe saw
• Pipe Supports 1 x Double, 2 x Small
• Operating instructions
• Hex socket key 5 mm and 2 mm fitted to the machine
• Cermet 165 blade fitted to the machine

• Link to Replacement Saw Blades

  Pipe material		Aluminum, Cast iron, Copper, Multi-layered materials, Plastic, Stainless Inox steel, Steel
  Pipe cutting capacity (OD)		3” to 14” (75mm – 360mm)
  Max. wall thickness		2” (45mm) Plastic, 0.6 (16mm) Steel 110V
  Laser for cutting point definition		Yes
  Traffic lights for overheat control		Yes
  Input Power		110-120V, 15A
  No-Load speed		I (low) = 1900 min, II (high) = 2885 min
  Duty Cycle		25% 2.5 min on 7.5 min off
  Blade diameter		140 mm (5.6 ), 165 mm (6.5 ), 180 mm (7.2 )
  Mounting bore		2.44” (62mm)
  Weight		38.6 lbs (17.5 kg)
  Electronical unit		Blade speed preselection, automatic fuse, soft start, torque control
  Loading capacity of supports		1025 lbs (465 kg) 3 supports
