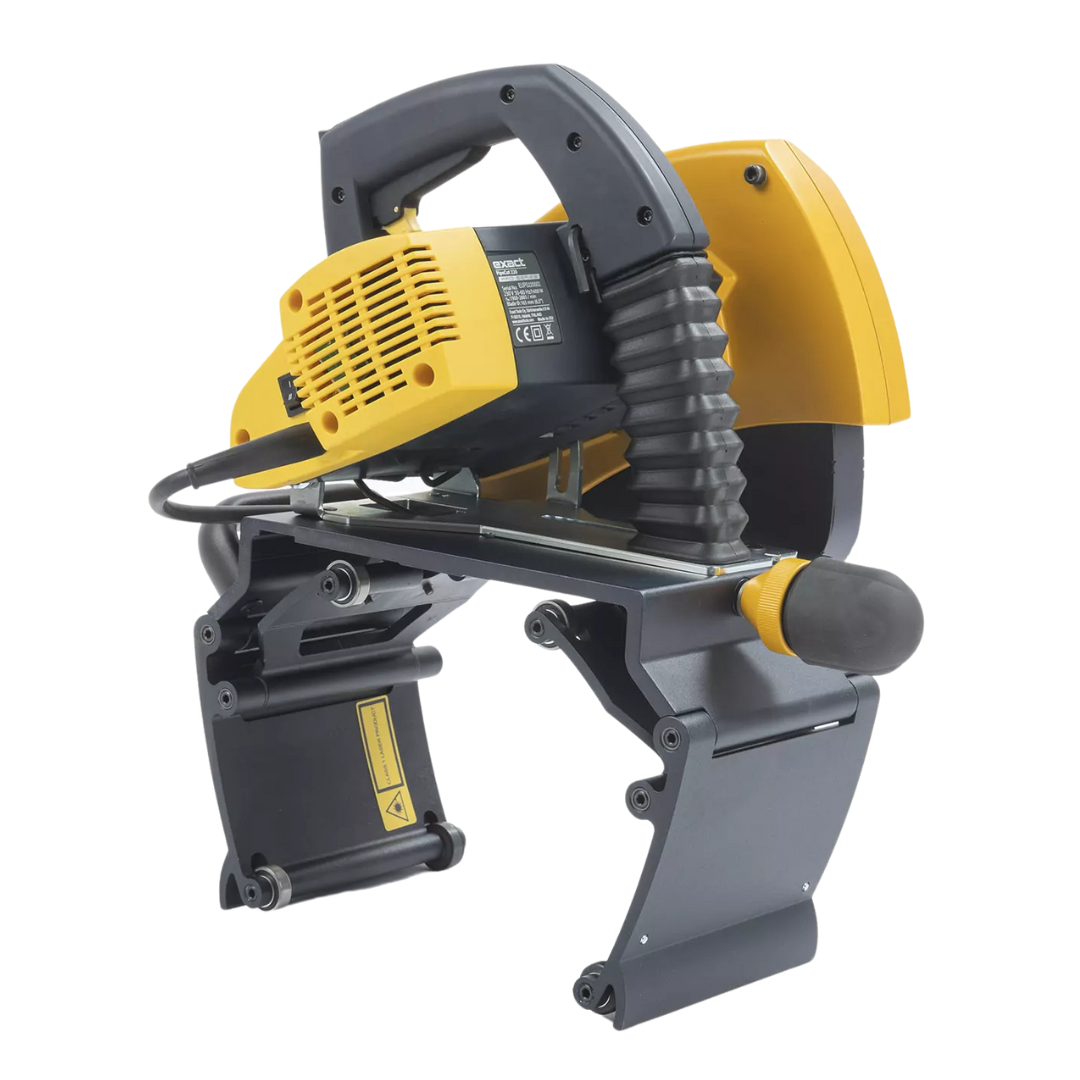

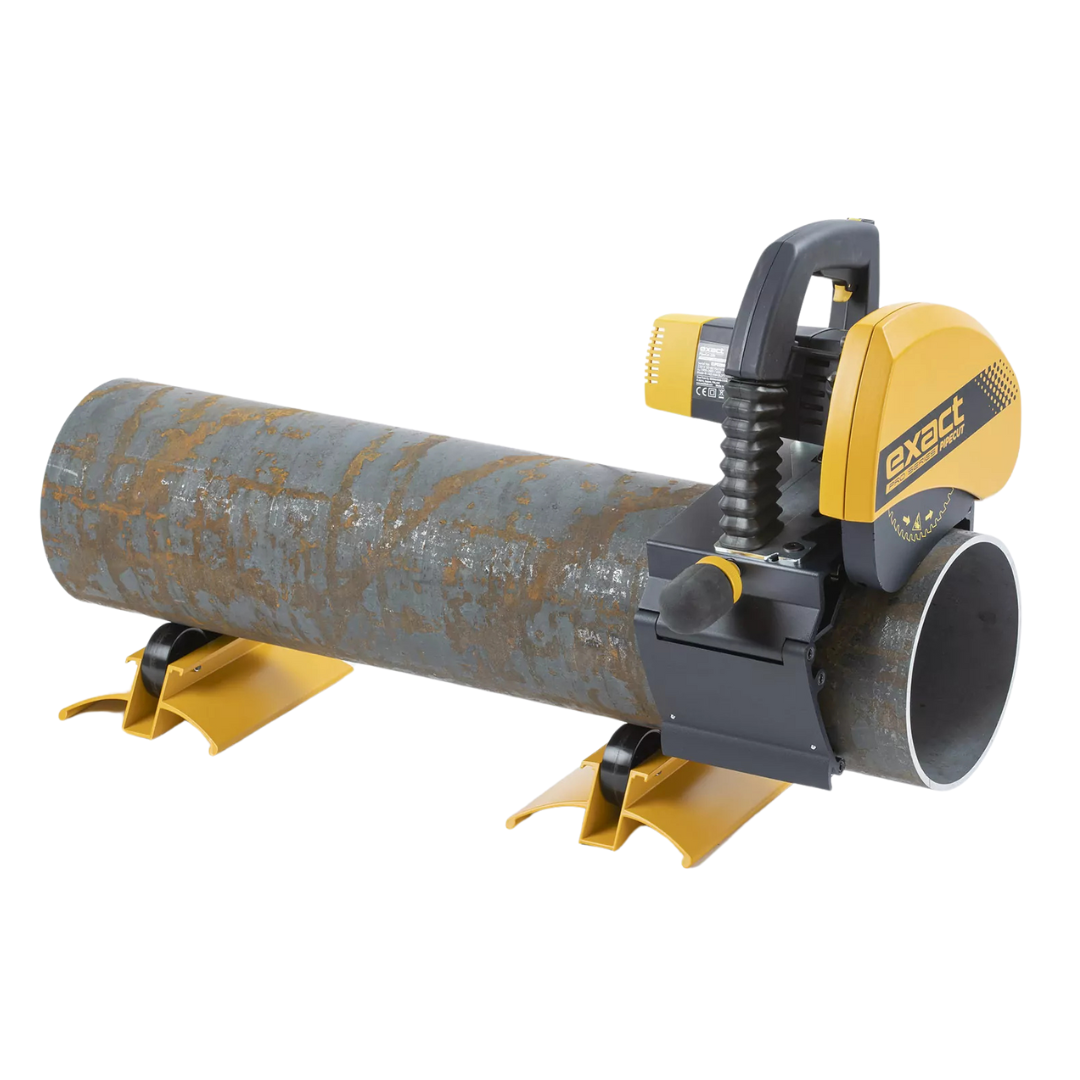

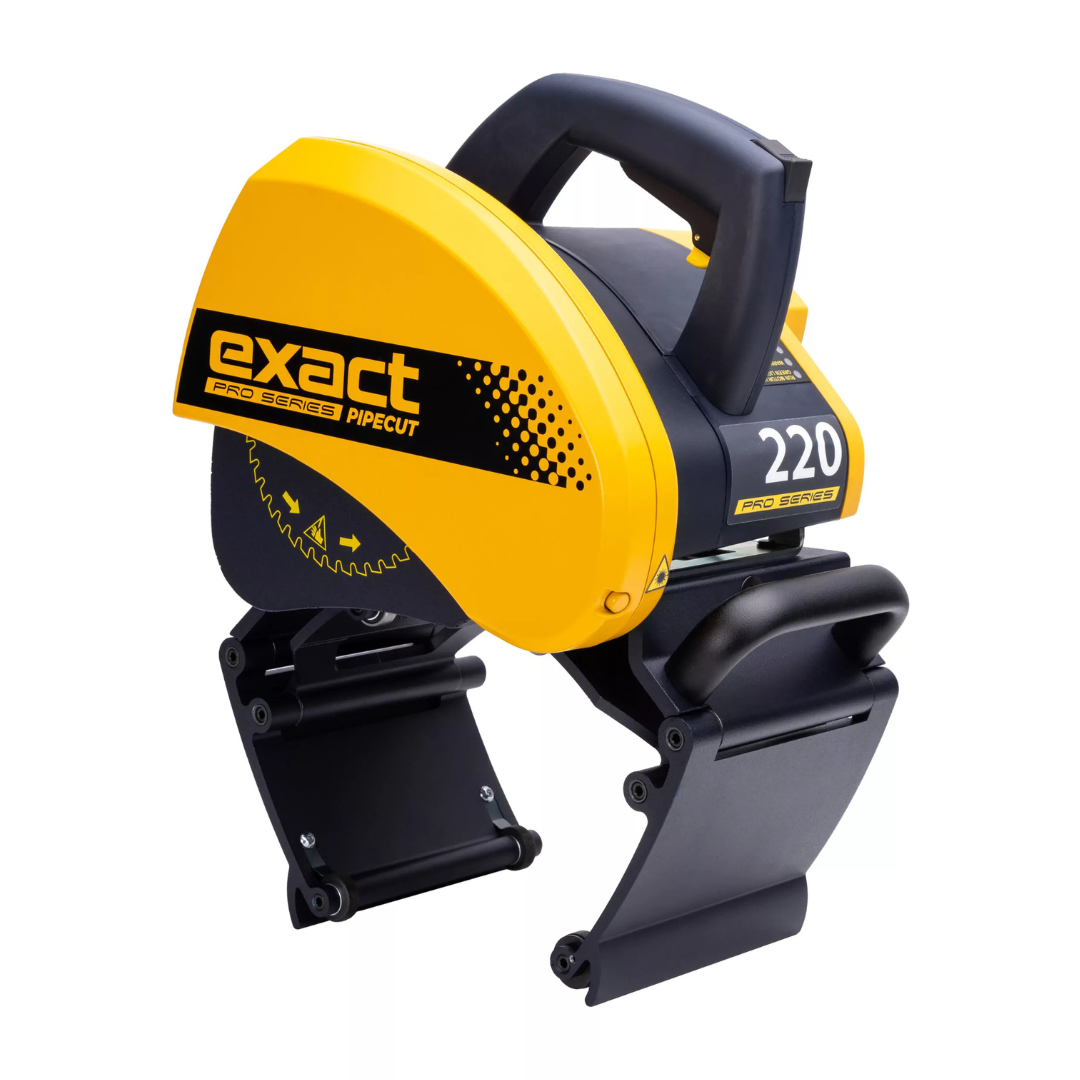

Exact PRO SERIES PipeCut 220 Cold Saw Pipe Cutting System

Heavy-duty pipe saw for small and medium diameter pipes

This machine is the best choice when you need to cut any small to medium diameter pipes made from the toughest materials.  Wall thickness capacity for steel pipes is 0.5″ and 1.37″ in plastic.  The cutting capacity for pipe outside diameter is 0.8″ – 8.7″.

Equipped with and providing the following benefits for you:

• User friendliness, extremely easy and convenient to use
• Efficiency, extremely fast cuts
• Improved precision with a traffic light system enabling the user to cut pipes at the correct travel speeds

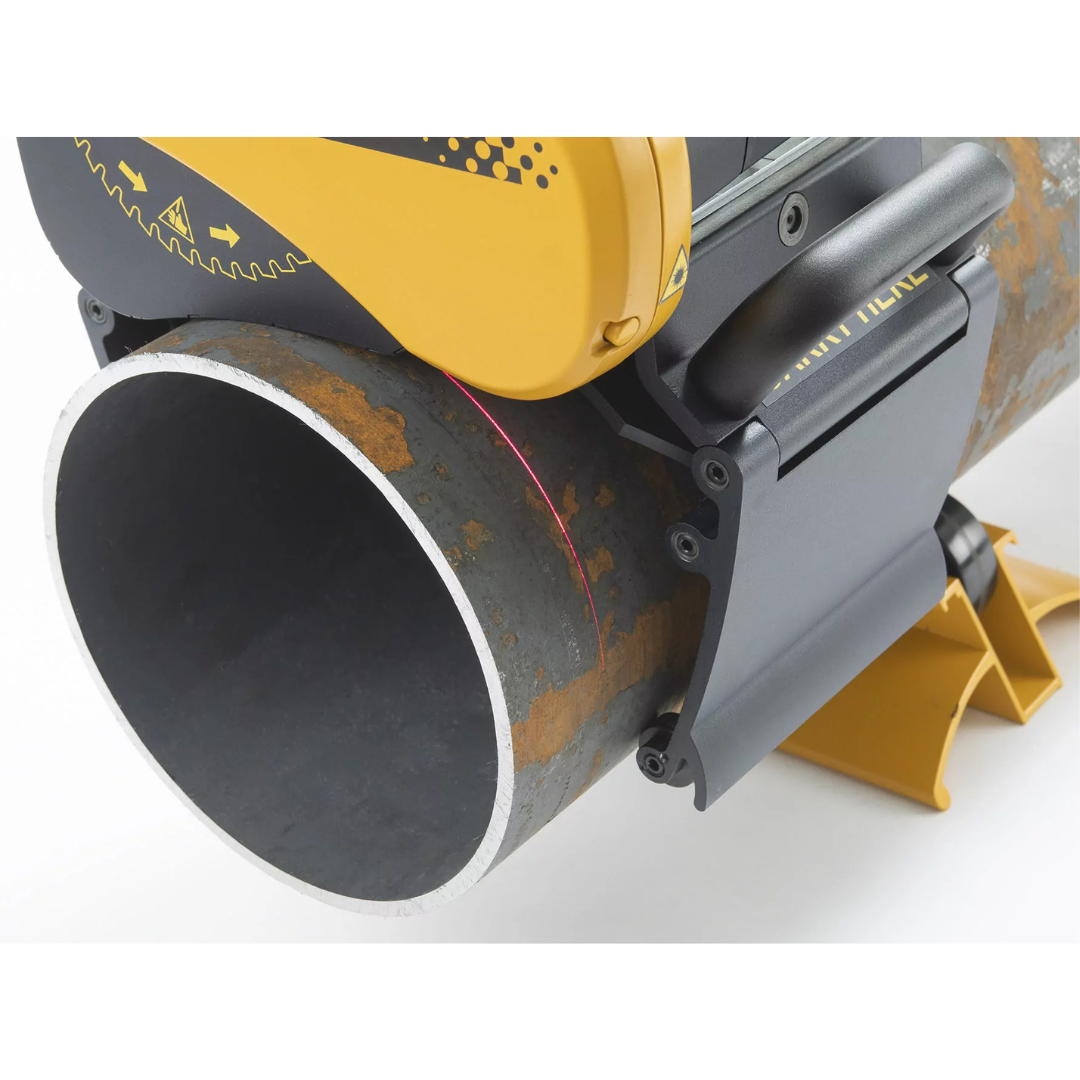

• Laser indicator for cutting point precision
• Updated adjustment mechanism
• Easy to carry, easy to move. The machine weighs only 25 lbs

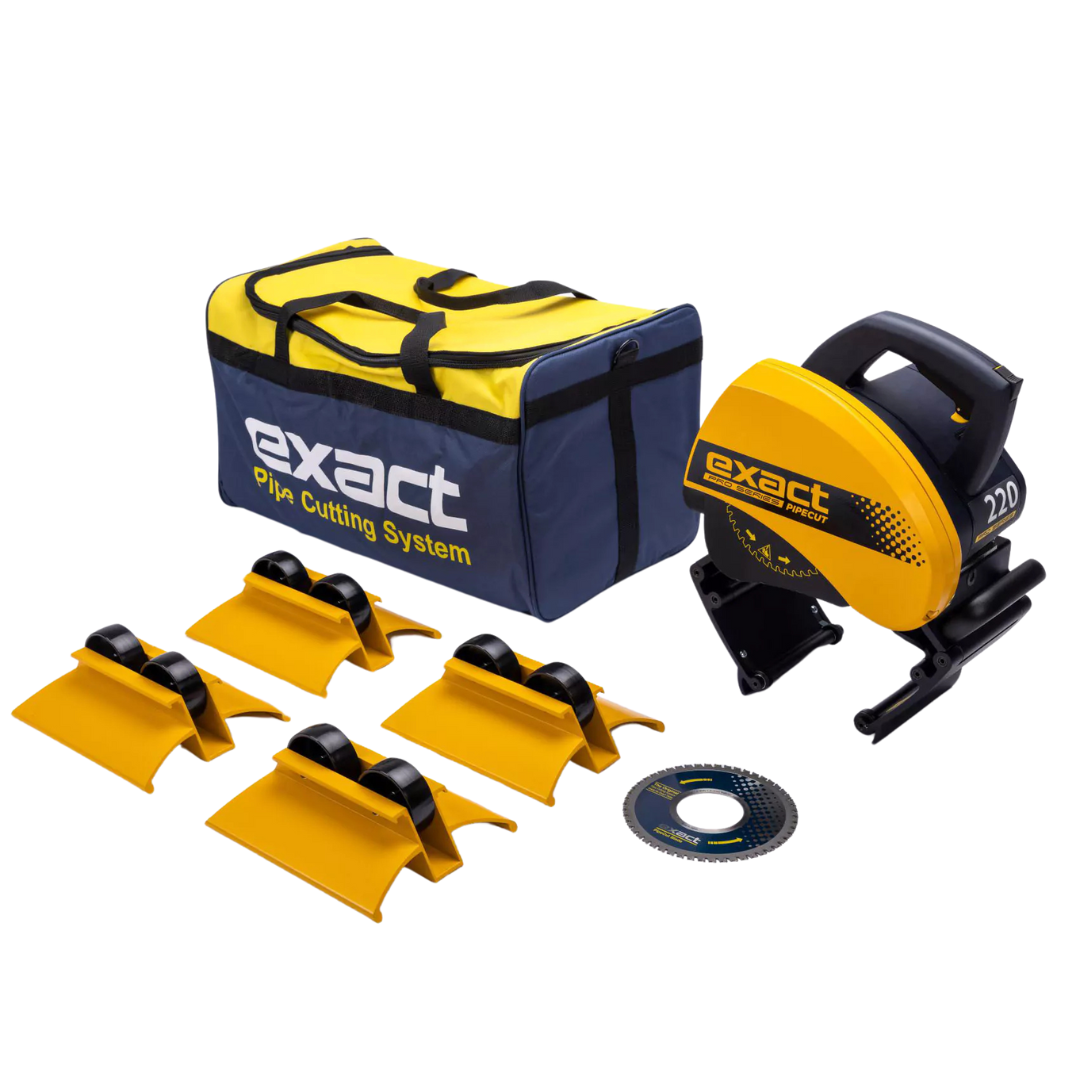

• Package Includes:

  • PipeCut 220 Pro Series pipe saw
  • Cermet 165 blade pre-installed
  • Shoulder bag
  • Pipe support x 4 pcs
  • Hex socket key 5 mm and 2 mm fitted to the machine

  • Link to Replacement Saw Blades

    Pipe material		Aluminum, Cast iron, Copper, Multi-layered materials, Plastic, Stainless Inox steel, Steel
    Pipe cutting capacity (OD)		0.8 to 8.7 (20mm – 220mm)
    Max. wall thickness		0.6 (16 mm) Steel 230V, 1.4” (35 mm) Plastic
    Laser for cutting point definition		Yes
    Traffic lights for overheat control		Yes
    Input Power		110-120V, 15A
    No-Load speed		I (low) = 1900 min, II (high) = 2885 min
    Duty Cycle		25% 2.5 min on 7.5 min off
    Blade diameter		140 mm (5.6 ), 165 mm (6.5 ), 180 mm (7.2 )
    Mounting bore		2.44” (62mm)
    Weight		25 lbs (11.5 kg)
    Electronical unit		Blade speed preselection, automatic fuse, soft start, torque control
    Speed preselection		4= Stainless steel and acid-resistant steel, 5= steel, 6= all other materials
    Loading capacity of supports		692 lbs (314 kg) 4 supports
