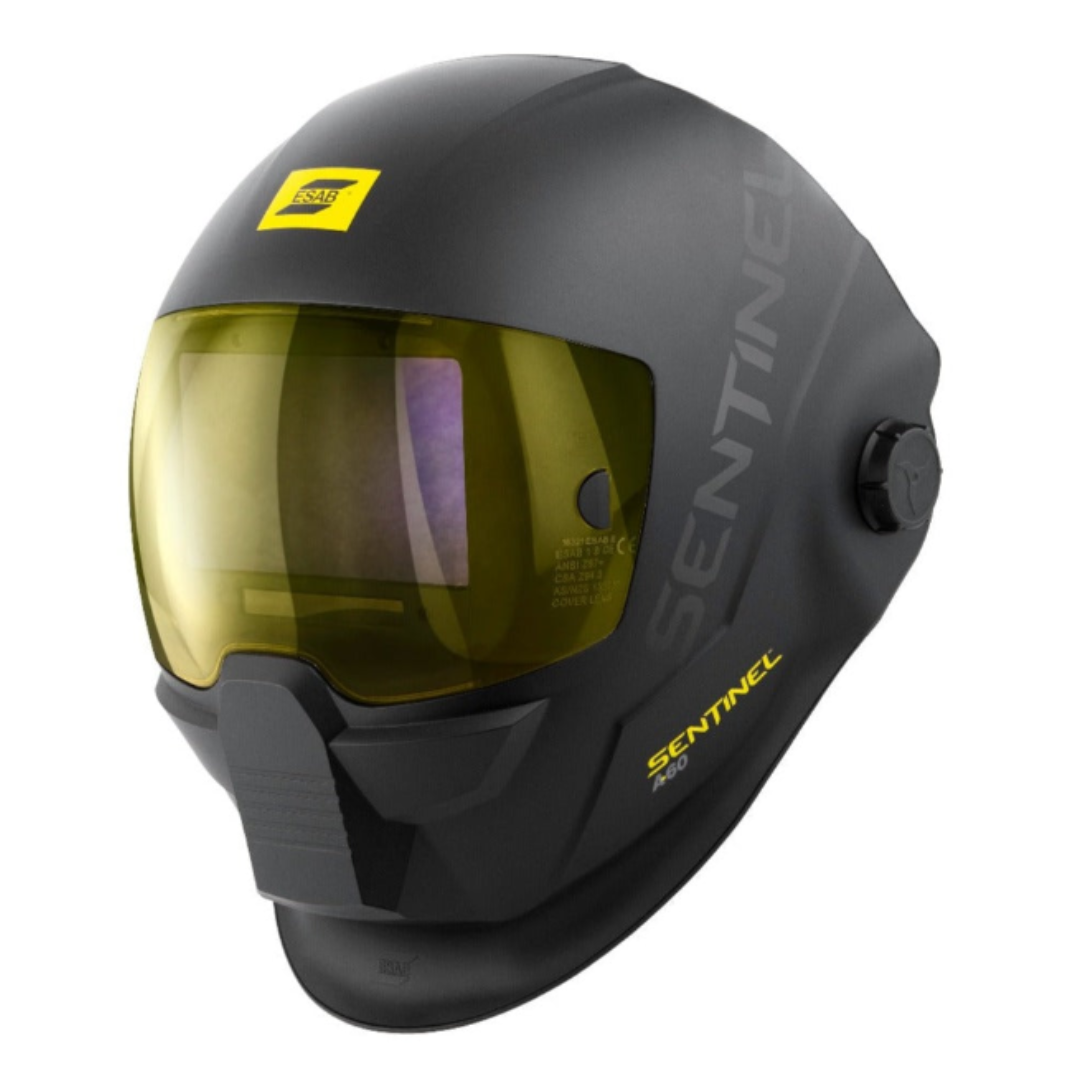

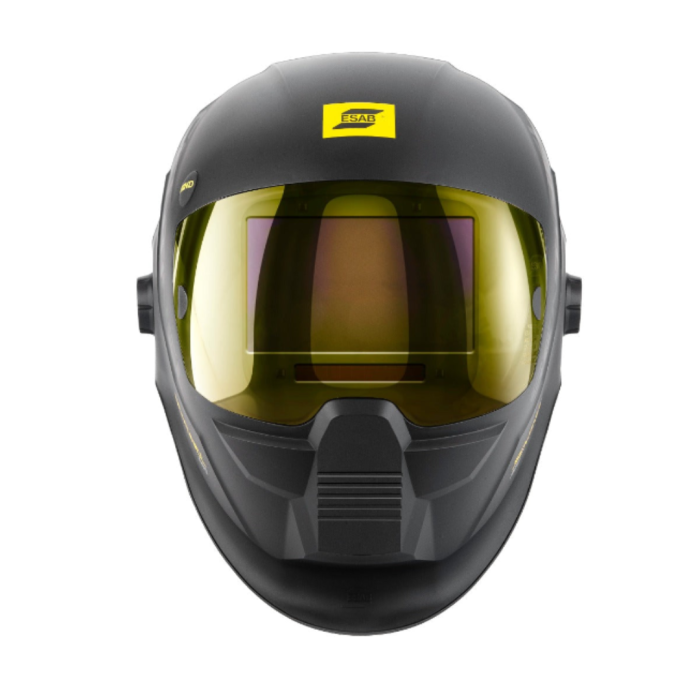

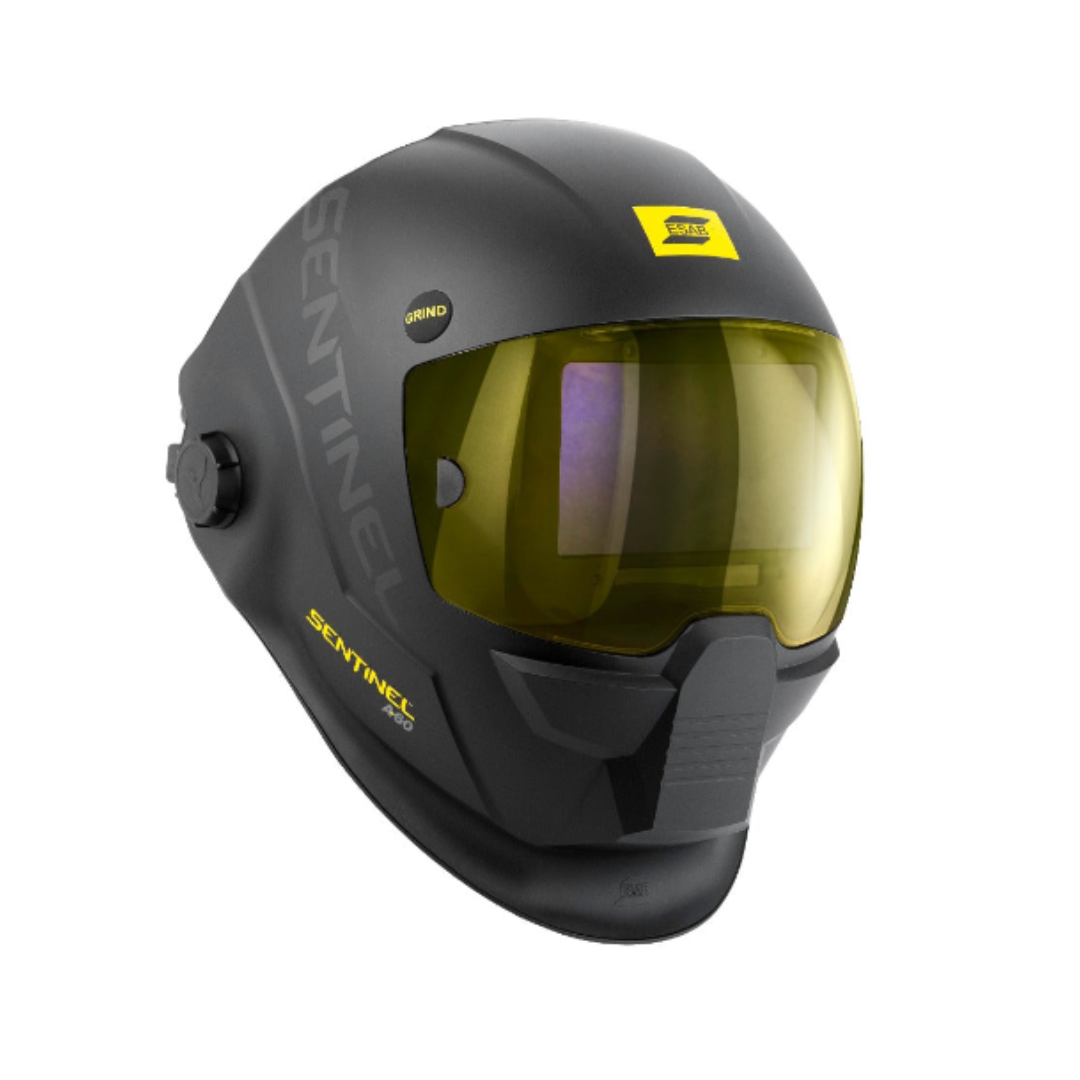

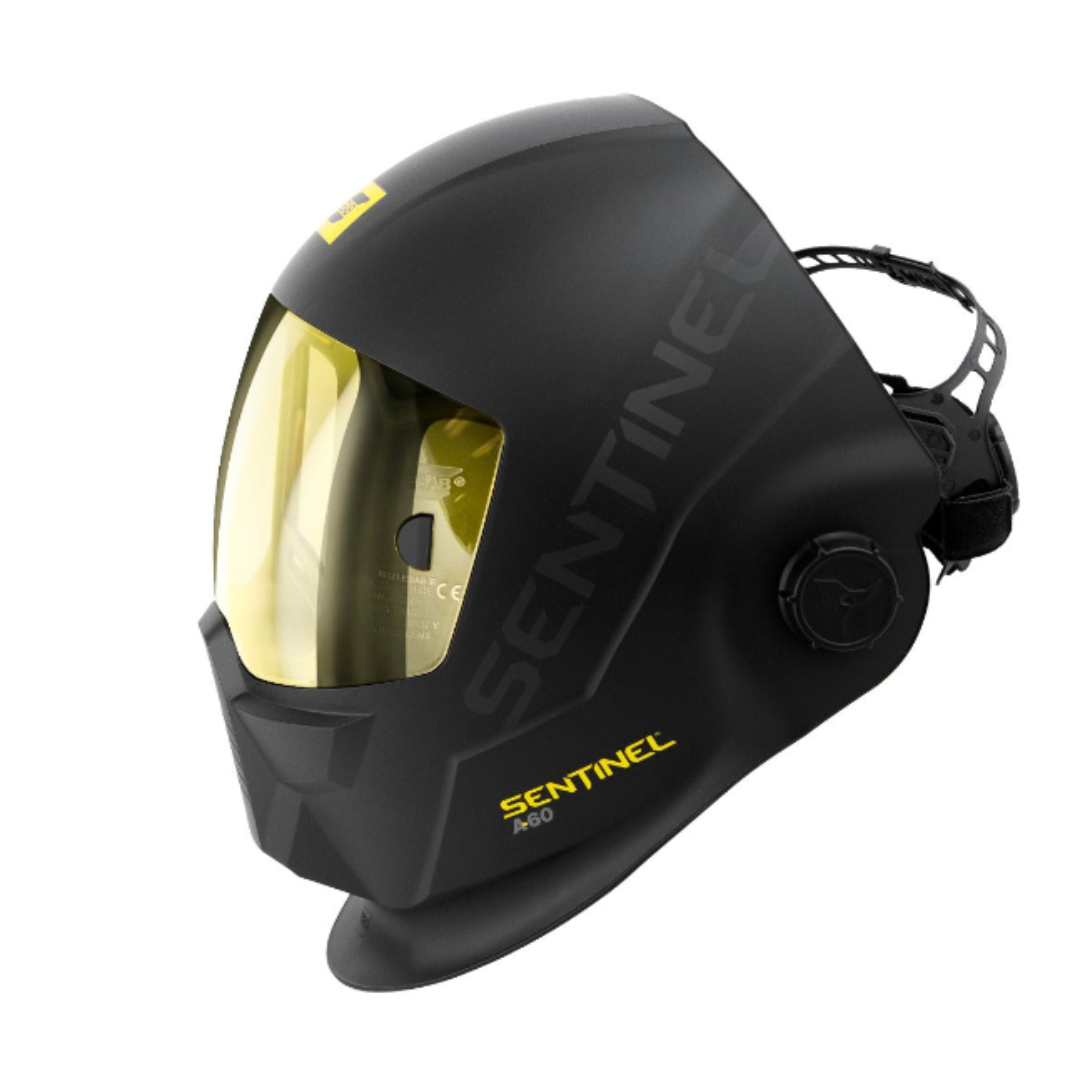

ESAB Sentinel A60 Welding Helmet

The new Sentinel A60 welding helmet is taking your welding to the next level with a huge panoramic view and perfect 1 1 1 1 EN optical clarity. Now you’ll have an even wider view of the weld pool without any distortion.

The re-engineered auto-darkening filter lens (ADF) is 40% larger than the original A50 lens and features the new ESAB OpTCS™ broad-spectrum light control technology.  This delivers an enhanced True Colour view with reduced eye fatigue for the most demanding days on the job.  This technology also features 0.5 increment shade adjustment to give you more precise control of your welding shade and view of the puddle.

The signature shell design of Sentinel, fully adjustable Halo™ headgear, and external grind mode button complete the most comfortable, highest performance helmet ESAB has ever produced.

Features:

• ADF viewing area: 118 x 71 mm (4.65 x 2.80 in.) and intuitive internal ADF controls including sensitivity and delay


• Shade range: DIN 3 5–13, adjustable in 0.5 increments and ADF a shade lock setting


• ESAB OpTCS True Color Lens Technology


• On-board memory for up to 9 settings
• Fast switching time of 0.08 millisecond


• Replaceable CR2450 battery
• Photovoltaic cells for solar recharging of battery
• Three year ESAB warranty
• Part no. 0700600860

• Specifications
  Viewing Area		118 x 71 mm (4.65 x 2.8 in.)
  Active Lens Shade		5–13 (Adjustable in 0.5 shade increments)
  Passive Lens Shade		3
  Power Supply		2 CR2450 batteries, replaceable
  Arc Sensors		4
  Switch Time (Light to Dark)		1 25,000 second
  Switch Time (Dark to Light)		Digitally adjustable from 0.1 to 0.9 second
  CE Optical Classification		1 1 1 1
  Standards and Certifications		CE: EN175; EN379; EN166 | ANSI: Z87.1 | CSA: Z94.3 | AS NZS 1338.1 | ISO 16321 +TIG
  Weight		644 g (1.4 lbs)

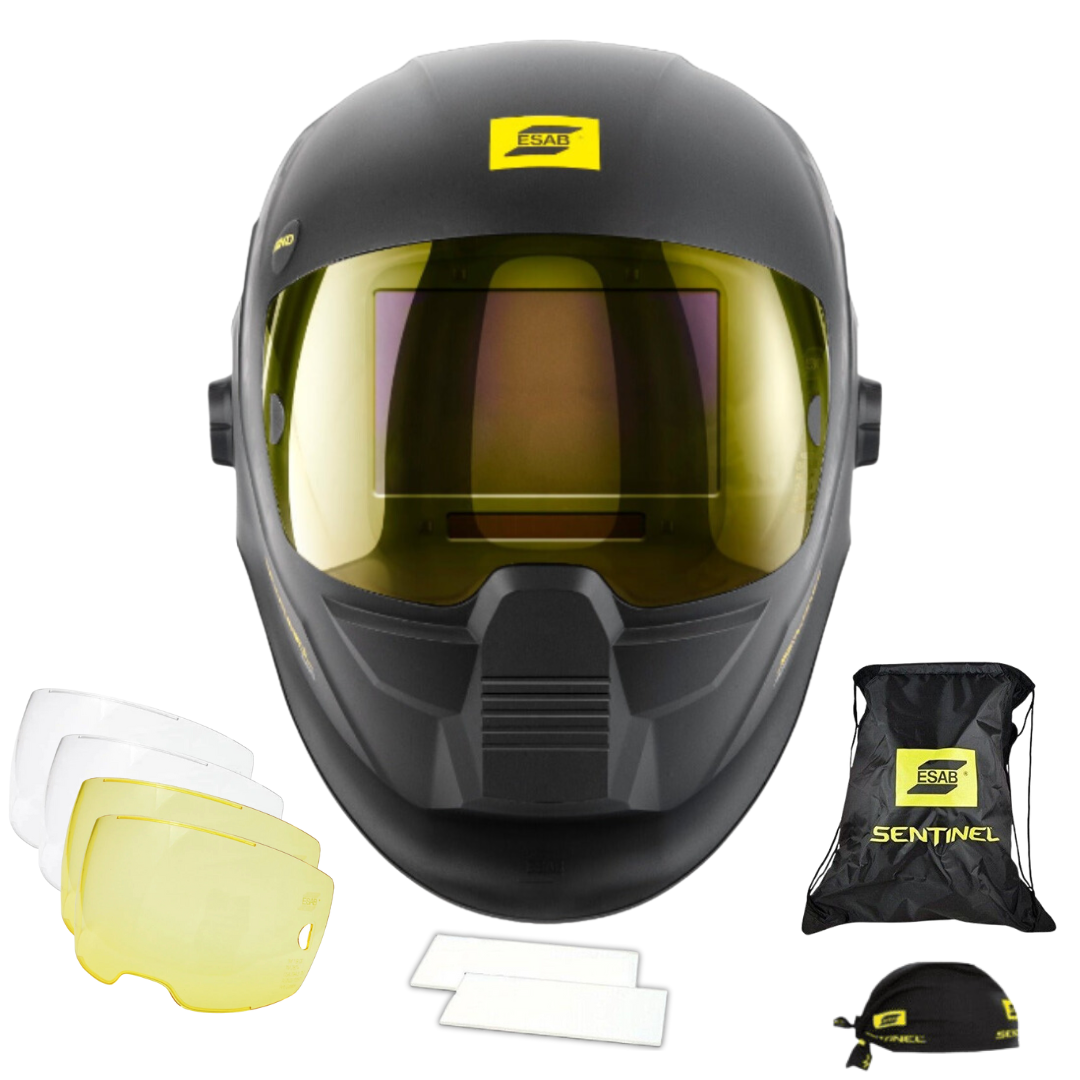

  Included with Product:

  • 1 – ESAB storage bag
  • 4 – Outside cover lenses
  • 2 – CR2450 batteries
  • 2 – Inside cover lenses

  • Sentinel doo rag

  • ESAB Sentinel A60 Fact Sheet | Sentinel A60 Replacement Parts
