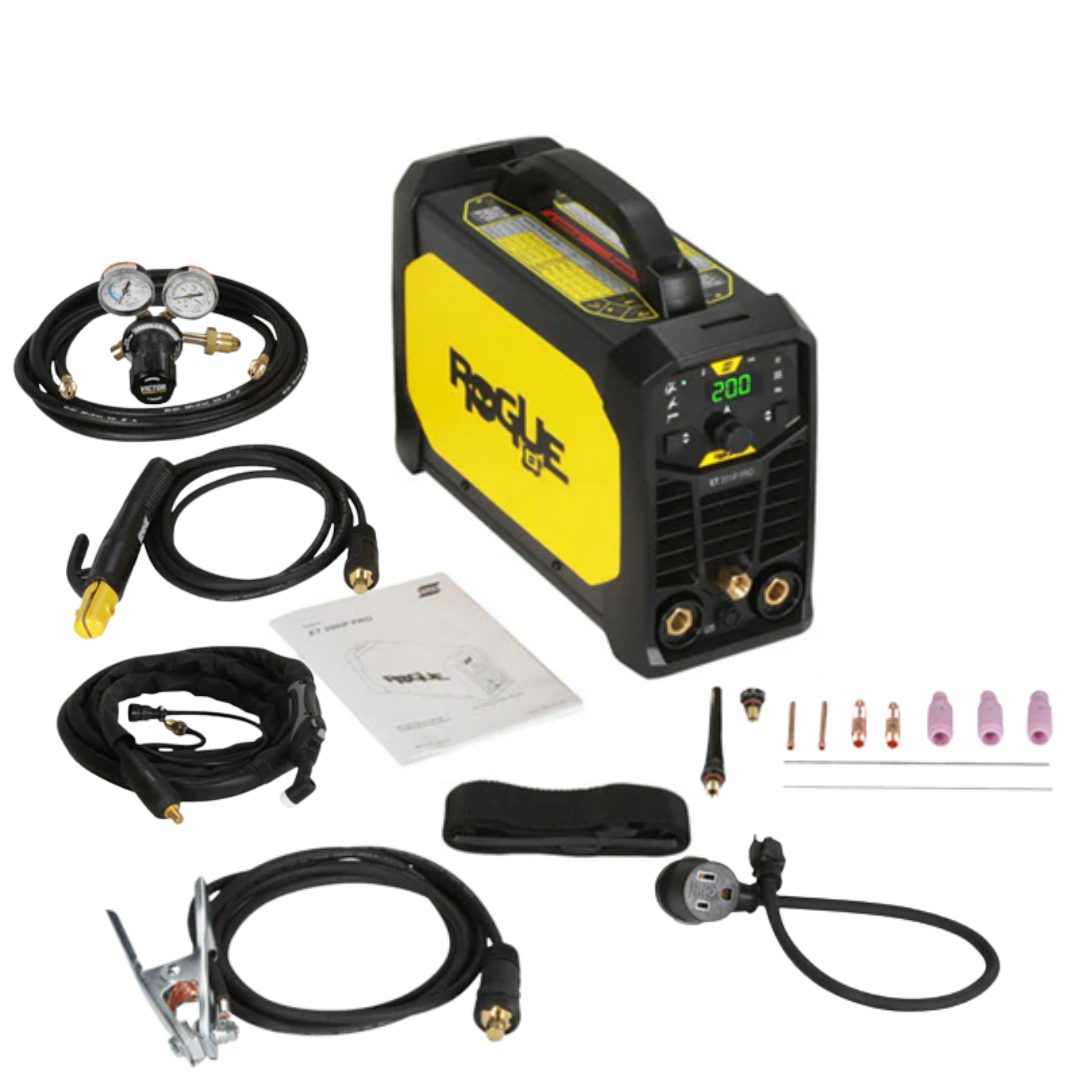

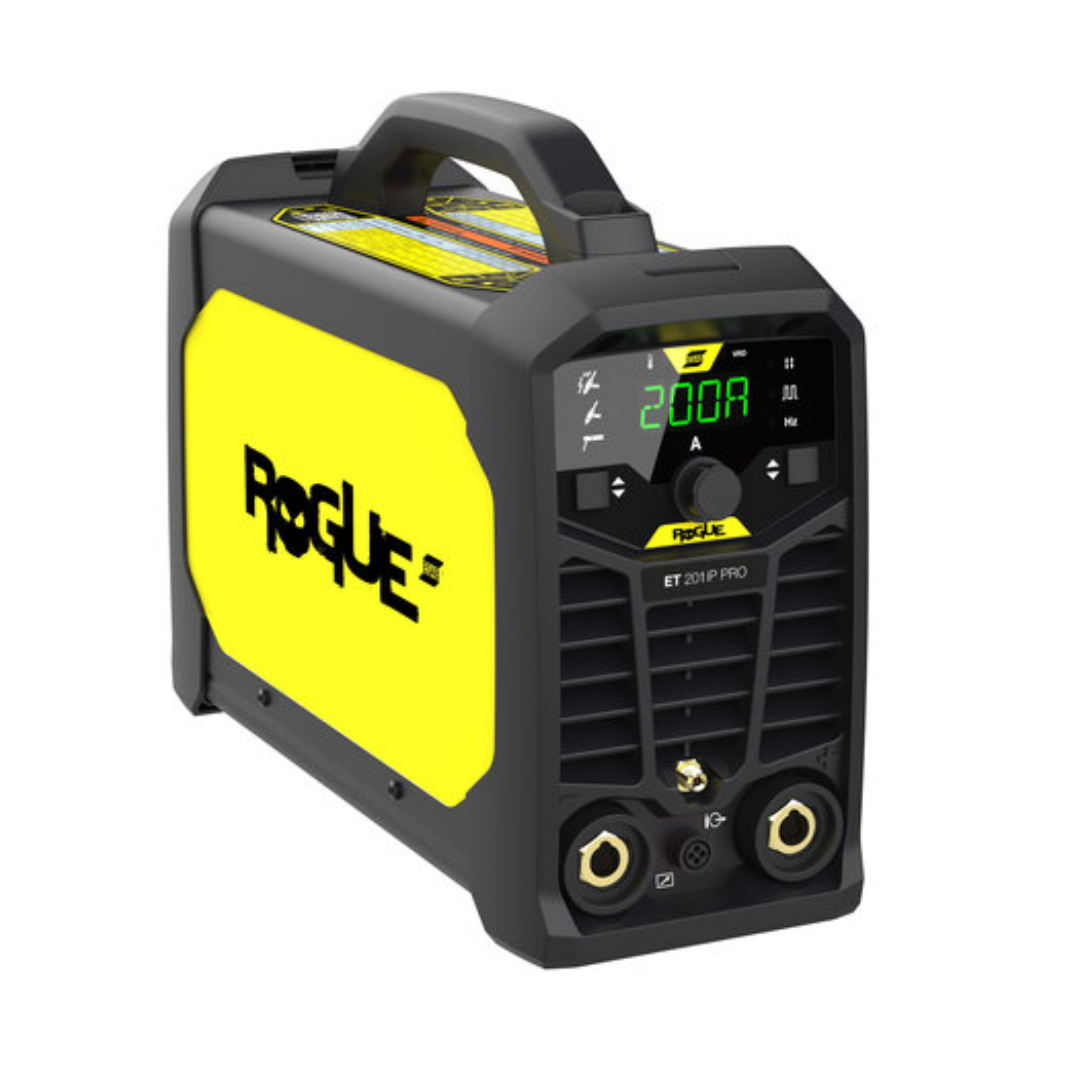

ESAB Rogue ET 201iP PRO Pulsed TIG Stick Welder
Rogue ET 201iP Pro is a powerful high frequency start TIG machine. This easy to use welder is designed with a robust and durable housing that is IP23S rated. Weighing only 9.6 kg (21.2 lbs) this lightweight welder features an ergonomic handle, carrying strap and long extension cables for maximum portability.
Rogue ET offers exceptional arc characteristics, both in TIG and Stick mode. Want more control over your welder? Rogue ET provides several TIG parameters that can be easily adjusted including gas pre flow, start current, ramp up time, ramp down time, finish current and post flow. All of which can be programmed using 2 or 4 stroke mode for greater arc control. Additionally, Rogue ET 201iP PRO offers a pulse feature with background current control and frequency adjustments up to 500 Hz for better heat input control. In Stick mode, Hot Start or Arc Force can be adjusted according to individual welding preferences or applications.
New Pulse SMAW functionality enhances Rogue s performance and improves the heat input control, to minimize thin gauge materials distortion , facilitate out-of-position welding with no undercuts and reducing spatter, thus helping to effectively avoid a number of welding defects. Rogue ES can TIG weld mild-steel or stainless steel via LIVE TIG functionality (TIG torch sold separately) for even more versatility
Product Name Part Number
|
| ESAB Rogue ET 201iP Pro 0705002023
|
| Input Power
|
|
| 120 – 230 VAC ± 15%, 50 60 Hz
| Maximum Output Power
|
| 200 A
|
| Rated kVA
|
| 6 kVA
|
| Energy Save Mode
|
| 50 W
|
| Open Circuit Voltage
|
| 78 V DC
|
| Stick Welding Output (230V)
|
|
| 200 A @ 25% Duty Cycle, 129 A @ 60%, 100 A @ 100%
| Stick Welding Output (120V)
|
|
| 110 A @ 25% Duty Cycle, 70 A @ 60%, 55 A @ 100%
| TIG Welding Output (230V)
|
|
| 200 A @ 25% Duty Cycle, 129 A @ 60%, 100 A @ 100%
| TIG Welding Output (120V)
|
|
| 140 A @ 25% Duty Cycle, 90 A @ 60%, 70 A @ 100%
| Current Range
|
|
| 10-200 A (230V), 10-140 A (120V)
| Pulse SMAW Frequency
|
| 0.2 – 100 Hz
|
| Operating Temperature
|
|
| -10 to +40 °C (+14 to +104 °F)
| Enclosure Class
|
| IP23S
|
| Dimensions
|
|
| 403 x 153 x 264 mm (15.8 x 6 x 10.4 in.)
| Weight
|
|
| 9.6 kg (21.12 lbs)
| Special Features
|
|
| Dual voltage input, Pulse SMAW functionality, superior arc characteristics, generator compliant, portability, robust design, PFC for stable arc.
| |
