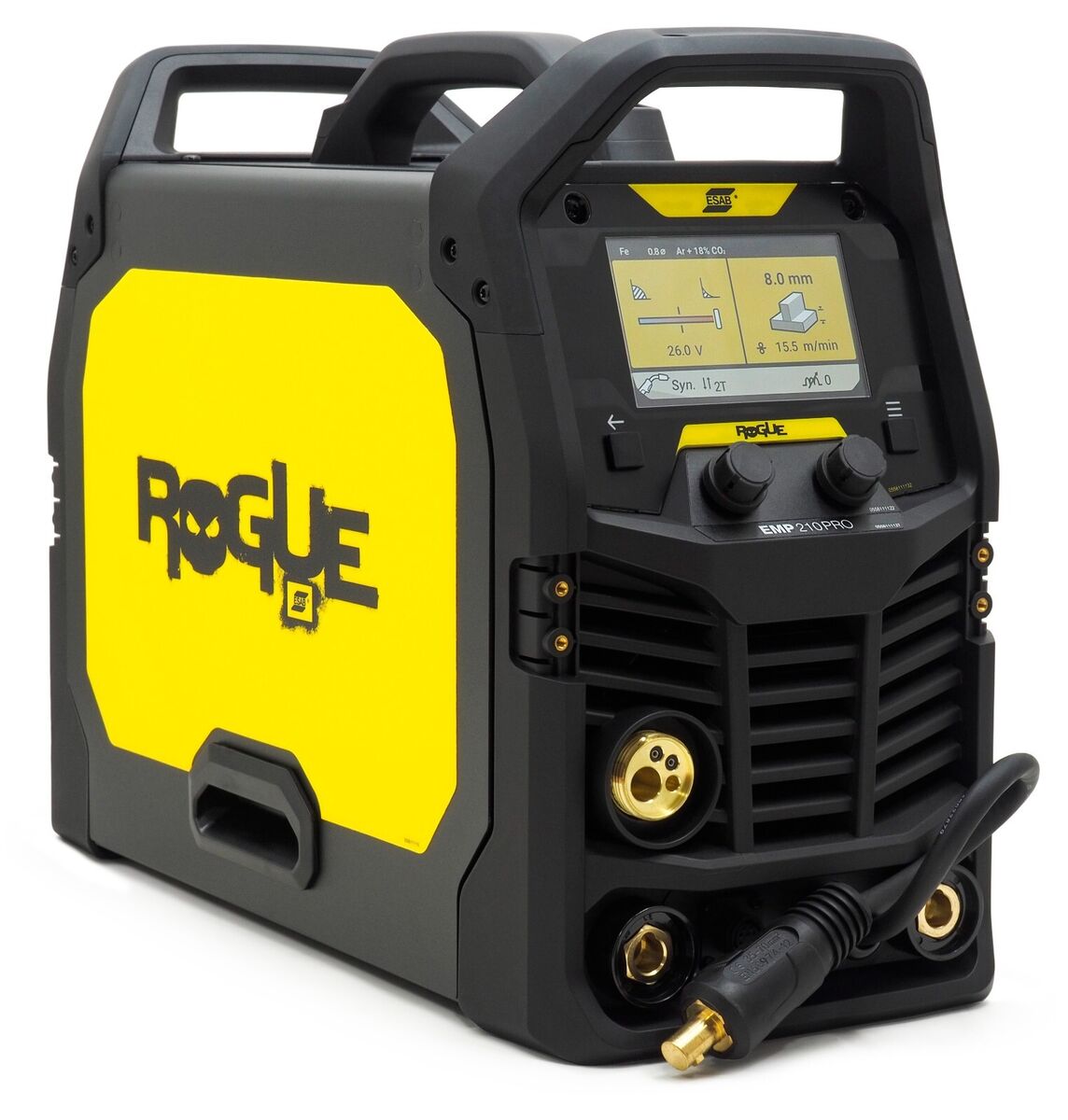

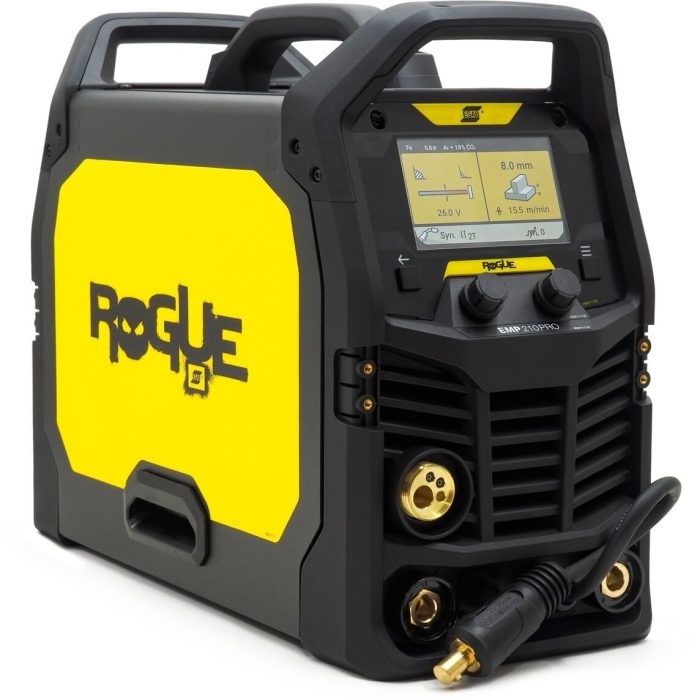

ESAB Rogue EMP 210 PRO MultiProcess Welding Machine



Portable, 120 230V Powered Stick, TIG, MIG and Flux Core Welding System

ESAB Rogue EMP 210 PRO is an inverter-based multi-process welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.

With a weight of only 16.7 kg, 230 V single-phase input and compatibility with 10 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.

Top Features

• True multi-process with Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored, Lift TIG, and Stick (including 6010)
• Intuitive 5.0 in TFT screen offers clear views with direct interaction
• Synergic Weld Programs – full range of welding parameters, 0.5 – 10.0 mm (0.020 – 0. 375 in.) with single knob control
• Power Factor Correction (PFC) – ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft)
• Unique rugged industrial design – supporting multiple lift points and cable management
• Arc Dynamics – fine tune arc characteristics for a crisp stiff arc for carbon steel or a smooth soft arc for stainless steel
• Jobs – 10 memory save recall function
• Spool Gun Ready – Rogue automatically configures set up when spool gun is connected (Spool gun sold separately)
• Multi-language display – configure the display to 1 of 29 languages
• Energy Save Mode – after 2 minutes of inactivity the unit will enter this state to reduce power consumption
• IP23S rated for indoor outdoor use

• Additional Product Specifications

  Product Name Part Number		ESAB Rogue EMP210 PRO 0700301085
  Welding Processes		MIG, Flux Core, TIG (DC, lift-arc)
  Spool Gun Compatible		✅ – Tweco Spool Gun 160A
  Spool Sizes		4 and 8 Spools Accepted
  Input Voltage		120 230V AC, 50 60 Hz.
  Max. Output Power (230V)		Current: 210A Voltage: 10.4-27.2V (78V OCV)
  Dimensions		23.2 x 8.7 x 15.2 in.
  Weight		37.3 lb. (Unloaded)
  Warranty		3 Year, ESAB Authorized Repair Centres



  What s in the Box?

  • ESAB Rogue EMP210 Multi-Process Power Source
  • Tweco Velocity contact tips 1 ea 0.6 0.8 0.9 mm (0.023 0.030 0.035 in.),
  • Tweco Fusion 180 MIG Torch 3 m (10 ft)
  • Victor Gas Regulator Flow gauge
  • 10 ft. Ground Cable Work Lead

  • 10 ft. Gas Hose
  • Sample Spool of ESAB OK AristoRod 12.50 (ER70S-6), 0.030 , 2.2 lb
  • Power Adapter – NEMA 6- 50R to NEMA 5-15P
  • SR – 17V, 4 m (12.5 ft) TIG torch and accessories
  • Drive Rolls: 0.6 0.8 mm (0.023 0.030 in.) V (fitted), 0.8 0.9 mm (0.030 0.035 in.) V and 0.8 0.9 mm (0.030 0.035 in.) Knurled
  • Instruction manual

  • Full Product Spec Sheet | Tweco Fusion 180 – Velocity Light Duty Torch Consumables
