ESAB Rogue EM 210 PRO Welding Machine

Portable MIG MAG Dual Voltage Welding Package

ESAB Rogue EM 210 PRO is an inverter-based MIG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.

With a weight of only 16.9 kg (37.3 lbs), dual voltage 120 230V single-phase input and compatibility with 11 kVA (10 kW) generators, this system provides maximum
flexibility and portability, both in the shop and in the field.

Top Features

• Full-feature MIG MAG machine for Synergic MIG, Manual MIG, MIG Brazing, and Flux-Cored welding
• 5.0 in TFT screen with an intuitive interface for clear views and direct interaction
• Synergic Weld Programs covering a full range of welding parameters (0.5 – 8.0 mm 0.020 – 0.30 in.) with single-knob control
• Power Factor Correction (PFC) ensures a stable arc, resistant to power fluctuations, even on long extension cables (up to 100 m 328 ft)
• Rugged industrial design with multiple lift points and cable management
• Arc Dynamics allows fine-tuning for a crisp stiff arc (carbon steel) or a smooth soft arc (stainless steel)
• Jobs function with 10 memory save recall slots
• Spool Gun Ready – Rogue automatically configures setup when a spool gun is connected (sold separately)
• Multi-language display with 29 language options
• Energy Save Mode activates after 2 minutes of inactivity to reduce power consumption
• IP23S rated for reliable indoor outdoor use

• Additional Product Specifications

  Product Name Part Number		ESAB Rogue EM210 PRO 0700301084
  Welding Processes		MIG, Flux Core
  Spool Gun Compatible		✅ – Tweco Spool Gun 160A
  Spool Sizes		4 and 8 Spools Accepted
  Input Voltage		120 230V AC, 50 60 Hz.
  Max. Output Power (230V)		Current: 210A Voltage: 10.4-27.2V (78V OCV)
  Dimensions		23.2 x 8.7 x 15.2 in.
  Weight		37.3 lb. (Unloaded)
  Warranty		3 Year, ESAB Authorized Repair Centres

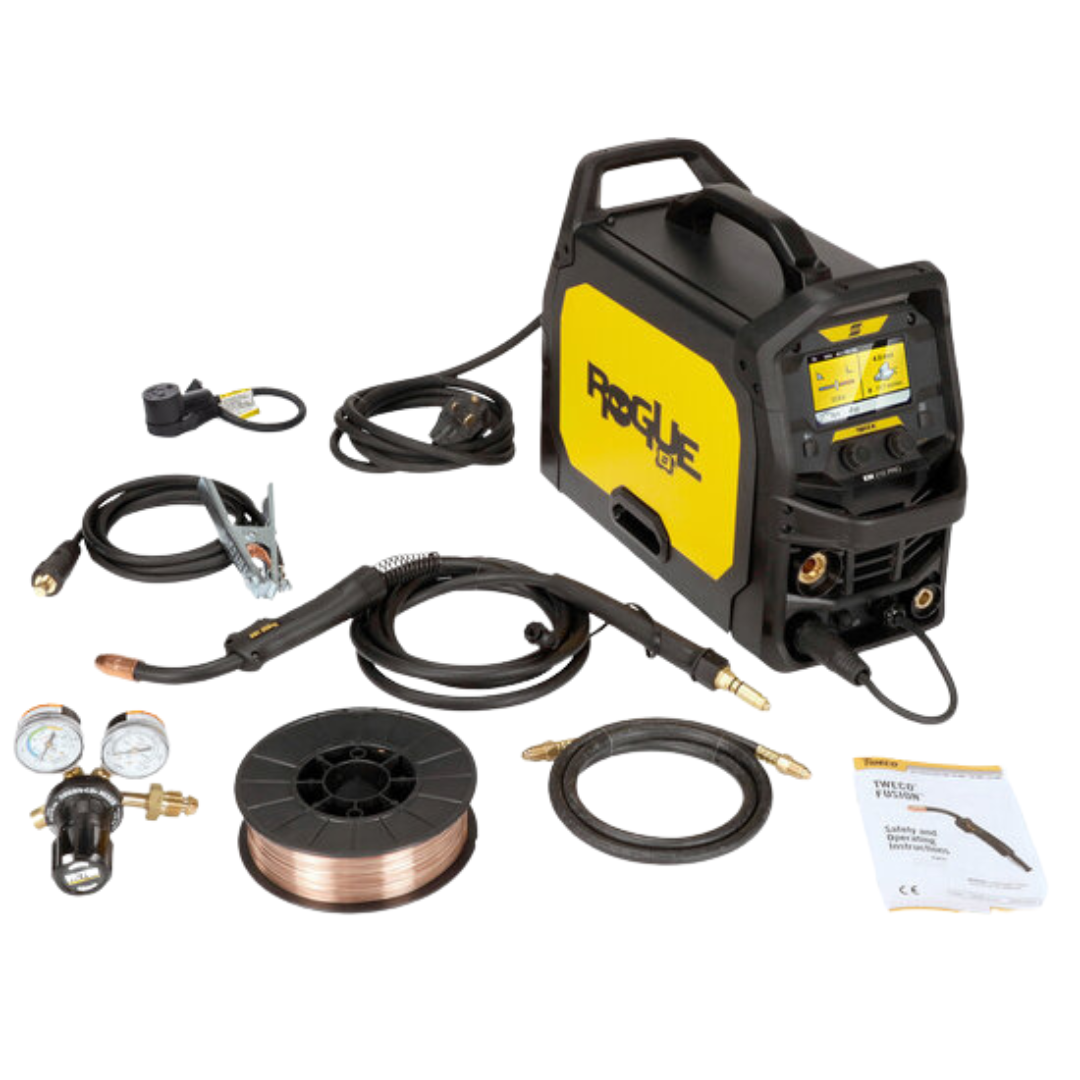

  What s in the Box?

  • ESAB Rogue EM210 Pro Power Source
  • Tweco Velocity contact tips 1 ea 0.6 0.8 0.9 mm (0.023 0.030 0.035 in.),
  • Tweco Fusion 180 MIG Torch 3 m (10 ft)
  • Victor Gas Regulator Flow gauge
  • 10 ft. Ground Cable Work Lead

  • 10 ft. Gas Hose
  • Sample Spool of ESAB OK AristoRod 12.50 (ER70S-6), 0.030 , 2.2 lb
  • Power Adapter – NEMA 6- 50R to NEMA 5-15P
  • Drive Rolls: 0.6 0.8 mm (0.023 0.030 in.) V (fitted), 0.8 0.9 mm (0.030 0.035 in.) V and 0.8 0.9 mm (0.030 0.035 in.) Knurled
  • Instruction manual

  • Full Product Spec Sheet | Tweco Fusion 180 – Velocity Light Duty Torch Consumables
