ESAB Renegade VOLT™ ES 200i



SHOCKINGLY PORTABLE GRAB-AND-GO WELDING.

ESAB Renegade VOLT™ ES 200i 0447800880 is a portable, cordless battery powered, Stick (SMAW) and Live TIG (GTAW) welder with the versatility to operate in Battery, Mains, or AMP+ Hybrid Mode.

This cordless welder runs on 6 Ah, 9 Ah, and 12 Ah DEWALT^{® FLEXVOLT® batteries. Renegade VOLT provides the power to burn up to 33 (E6013) electrodes on a single charge using four 12 Ah batteries, that are included in the package.*}

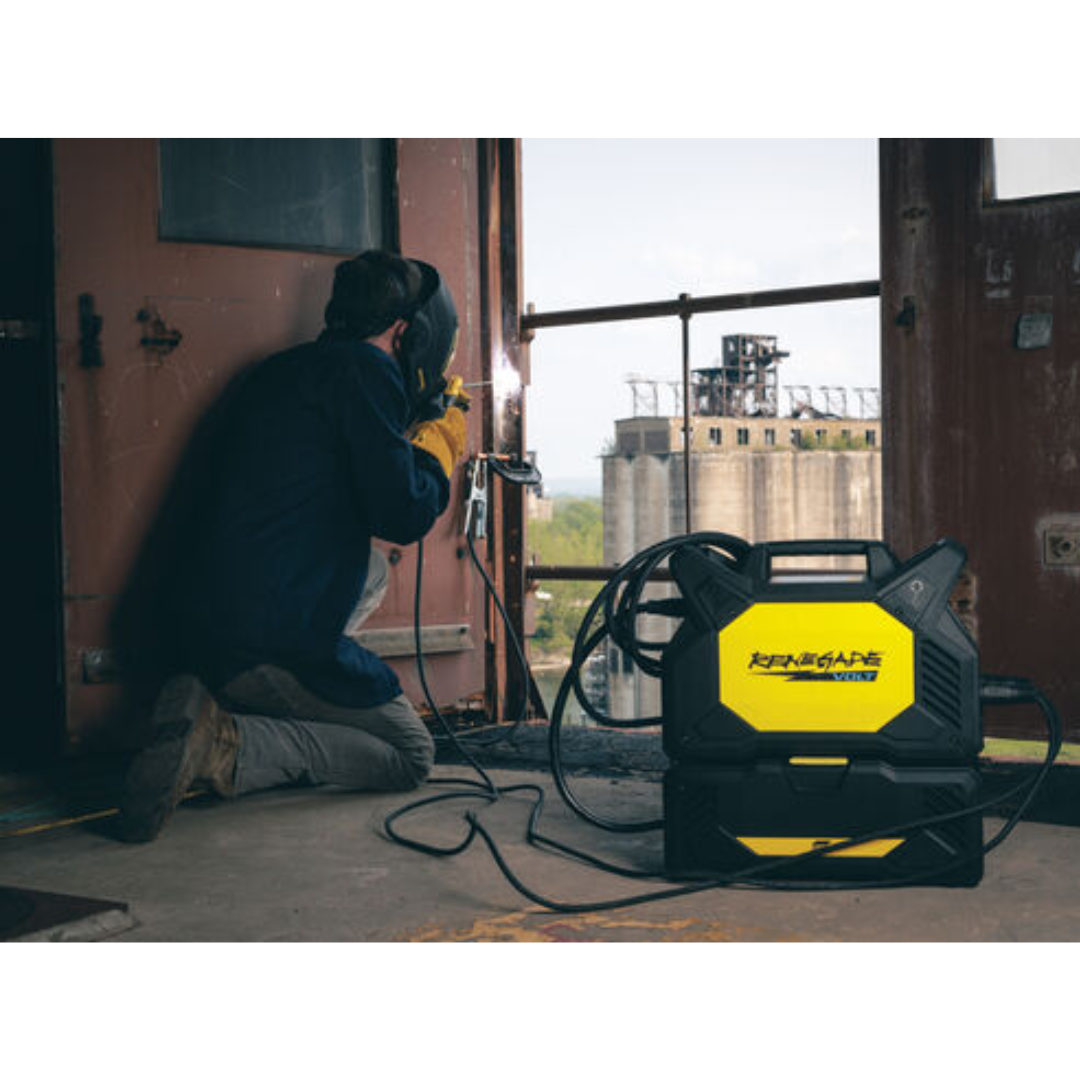

Renegade VOLT is a highly portable and powerful unit perfect for mobile welders operating in remote, offsite, or hard-to-reach locations without easy access to AC mains power.

In AMP+ Hybrid Mode, Renegade VOLT supplements AC mains power with battery power to prevent nuisance trips on smaller breaker sizes (e.g., 10A, 16A) or to provide more output when welding on 120V input.

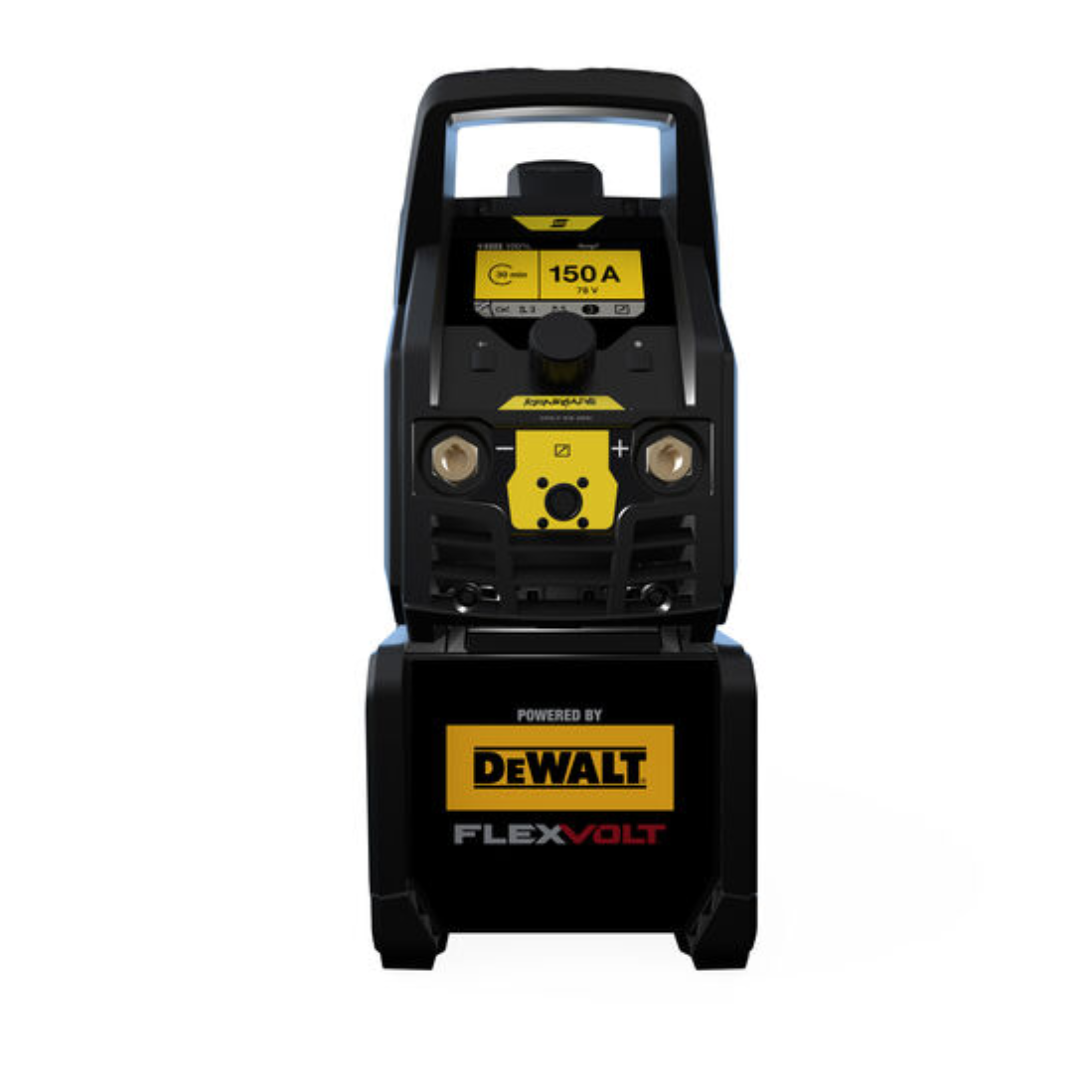

Renegade VOLT features a rugged industrial design with durable, impact-resistant housing and multiple lift points for easy operation and transport in the field. The bright, intuitive color-screen user interface is designed for outdoor use, even in direct sunlight, and features a battery status display and remaining arc time calculator.

This powerful welder offers the highest arc quality with special features that include hot start, arc force, memory storage, and cellulosic mode (6010) to optimize performance based on application or user preference.

Top Features

• 200 A output on AC mains (230V)
• Up to 140 A output on battery power
• Includes (4) DEWALT FLEXVOLT 20V 60V max 12 Ah batteries
• AMP+ hybrid mode for extra power
• Lightweight and portable battery powered welder
• Durable, impact-resistant housing
• Sun-friendly, intuitive user interface
• Memory storage for welding parameters

• Additional Product Specifications

  Product Name Part Number		ESAB Renegade VOLT™ ES 200i  0447800880
  Input Voltage		120 230V AC, 50 60 Hz.
  Input Current		16A Max
  Output Power		140A SMAW, 150A TIG (Battery) Up to 200A Max. on 230V Mains
  Dimensions		460 x 200 x 320 mm (18 x 8 x 13 in.) (No Battery Box) 480 x 220 x 485 mm (19 x 9 x 19 in.) (With Battery Box)
  Weight		41 lb. (No Batteries) 54 lb. (With Batteries)
  Warranty		3 Year, ESAB Authorized Repair Centres
  Electrode Consumption		Please see Full Product Spec Sheet
  UPC Code		7330725085109

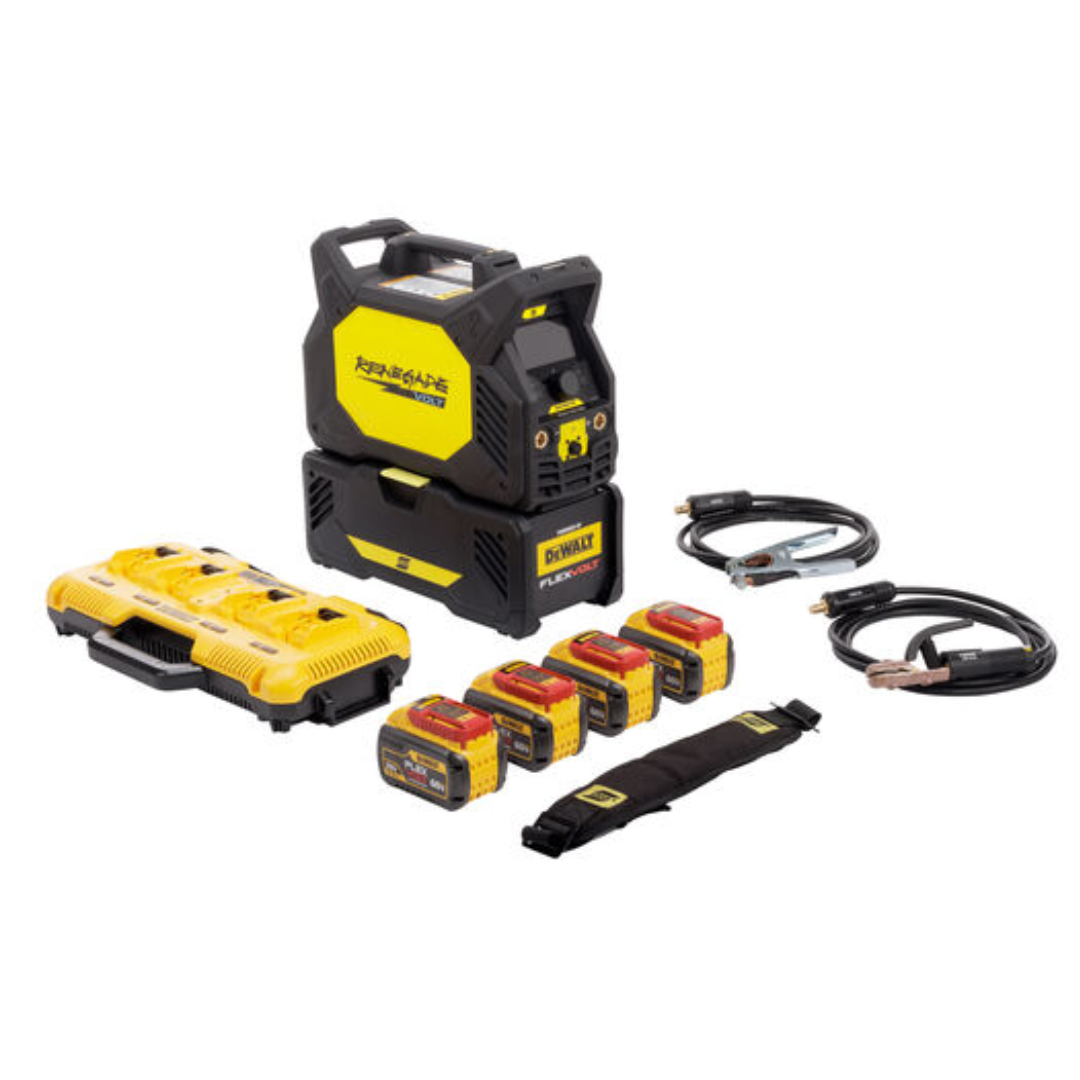

  What s in the Box?

  • Power source
  • (4) DEWALT FLEXVOLT 20V 60V max 12Ah batteries
  • DEWALT FLEXVOLT four-port fast charger
  • Electrode holder 3m (10 ft) cable and Dinse 35 Connector
  • Ground cable 3m (10 ft) with clamp and Dinse 35 Connector
  • Shoulder strap

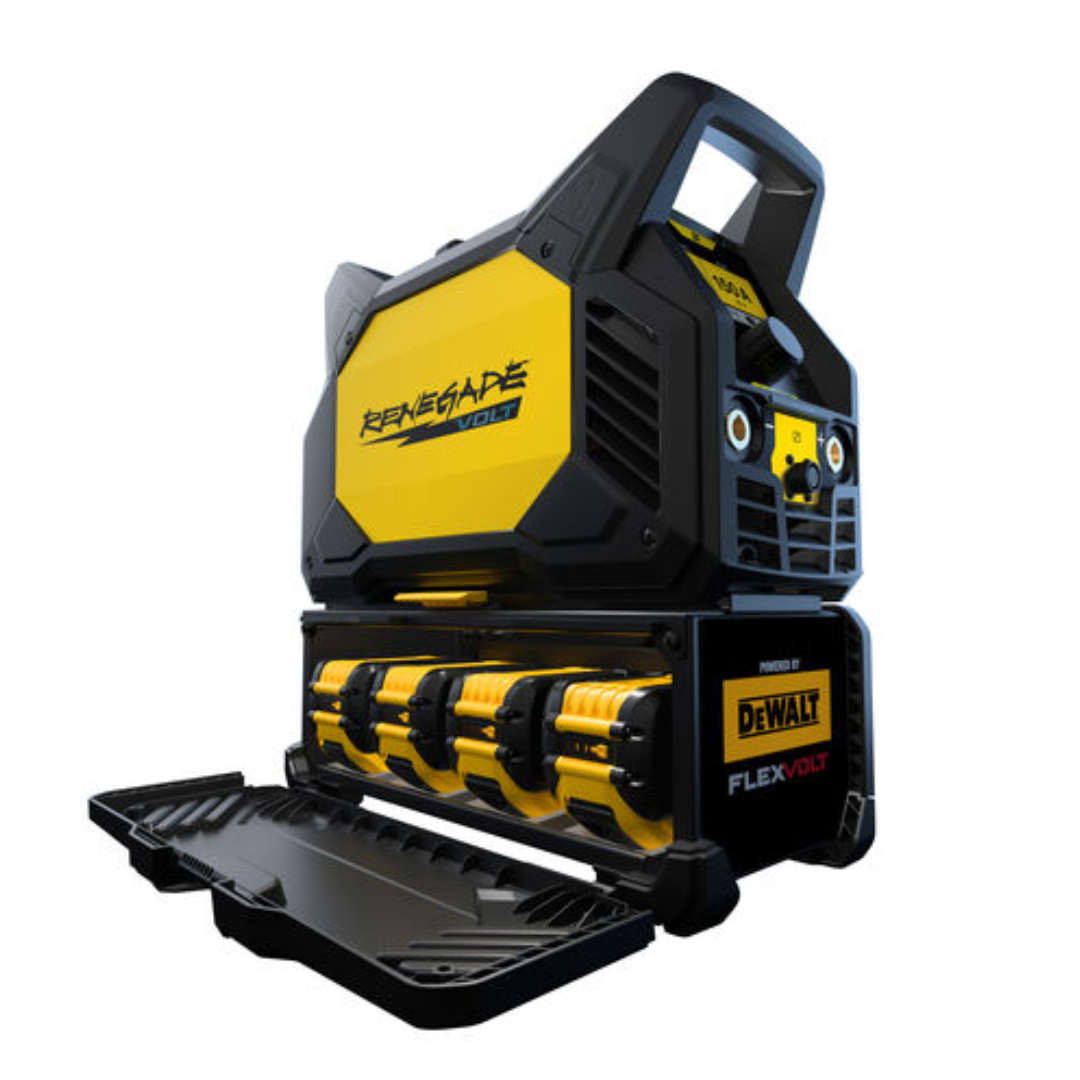

  • Detachable battery box
  • Power adapter 115V 230V

  • Full Product Spec Sheet
