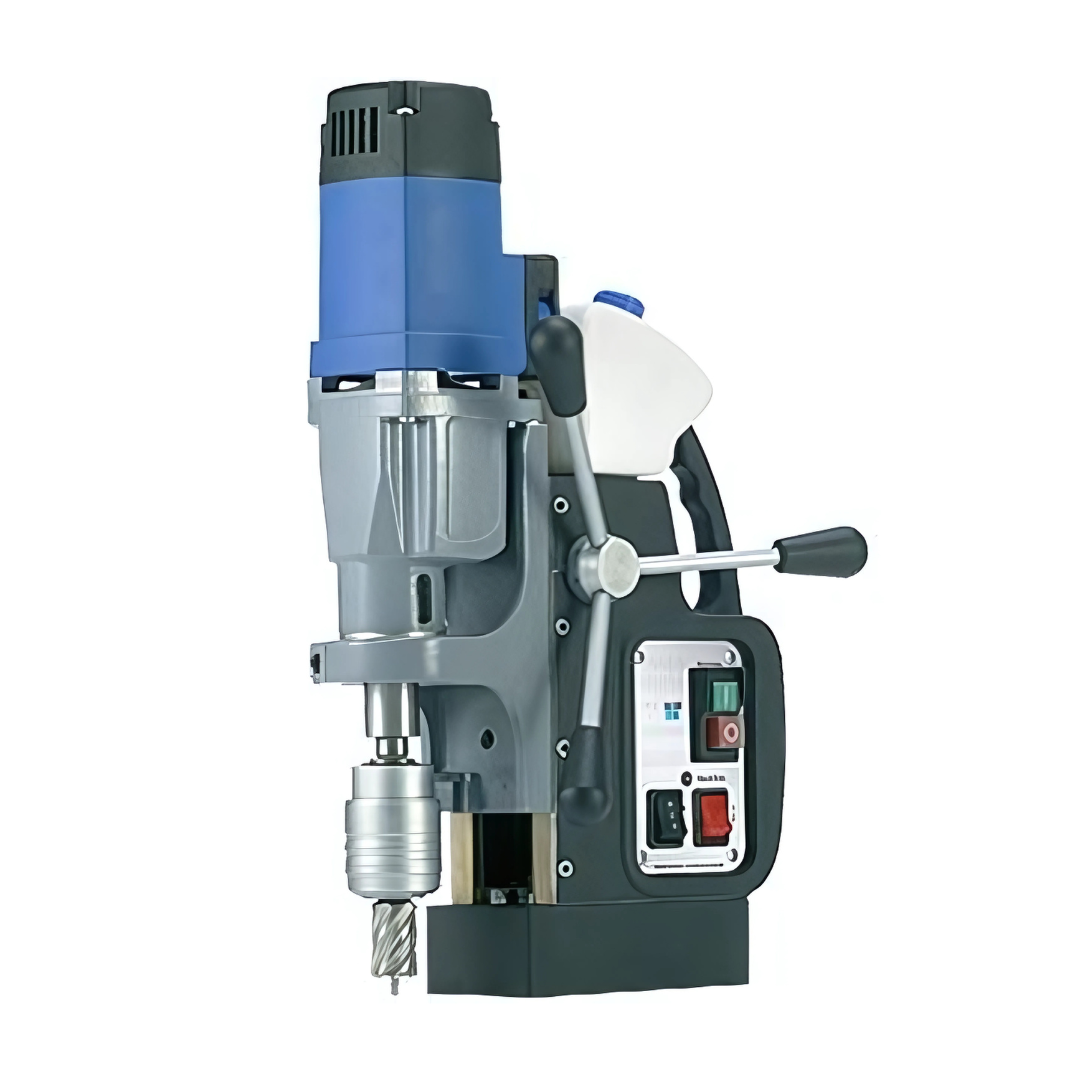

CS Unitec MAB 485 Portable Magnetic Drill

Powerful, Compact 2-1 16 Magnetic Drill

Features:

• Powerful and reliable
• Quick-change keyless cutter system
• Integrated cutting oil reservoir
• Automatic internal lubrication

• Items Included:

  • 1 Magnetic drilling machine
  • 1 Quick-change arbor system KEYLESS Weldon 3 4
  • 1 Manual arbor with set screws, Weldon 3 4 , MT2
  • 1 1 2 Geared Chuck (MT2)
  • 2 Pilot pins – 1 and 2 depth
  • 1 Safety chain
  • 1 Drift key MT2 (Order No. 1960002)
  • Tap collet adapters -1 4 , 3 8 , 1 2 and 3 4
  • 1 Warranty certificate
  • Standard Equipment also includes molded plastic carrying case, operating manual, auto lubrication, safety strap, carabin hook and allen keys.

  • Specifications:

    Motor Power		10.5 Amp 110 Volt
    Weight		29 lbs.
    Stroke		6-1 3
    Hole Capacity		2-1 16 dia.
    Twist Drill Capacity		7 8 dia.
    Tapping Capacity		15 16
    Speeds		50-250 and 100-450 RPM Variable
    Magnet Base Size		6-5 8 L x 3-1 3 W
    Dimensions		17-1 4 H x 11-5 8 L x 7 W
    Magnetic Force (1 Plate)		3,750 lbs.
    Arbor Bore		3 4 Weldon Shank
    Automatic Lubrication		Included
