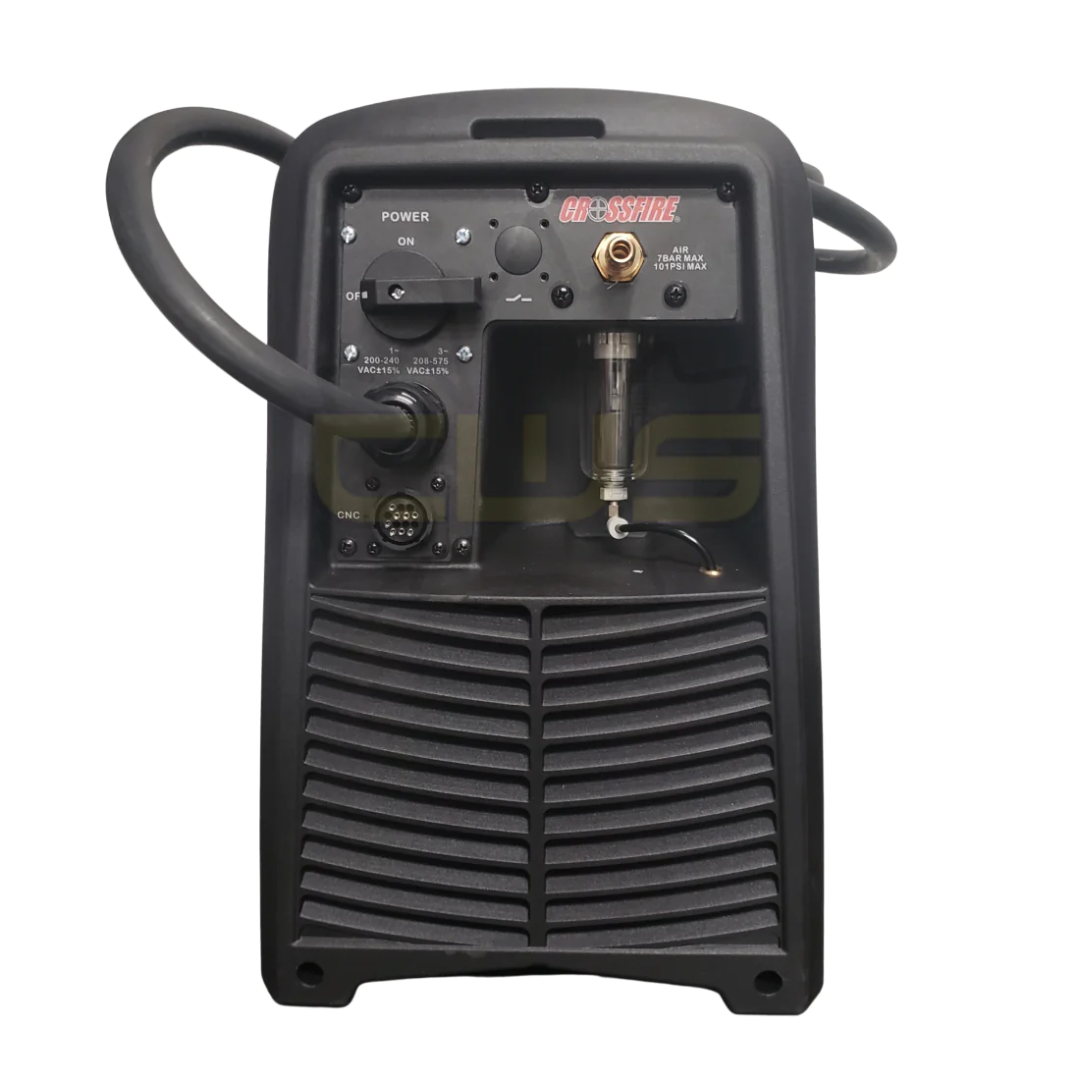

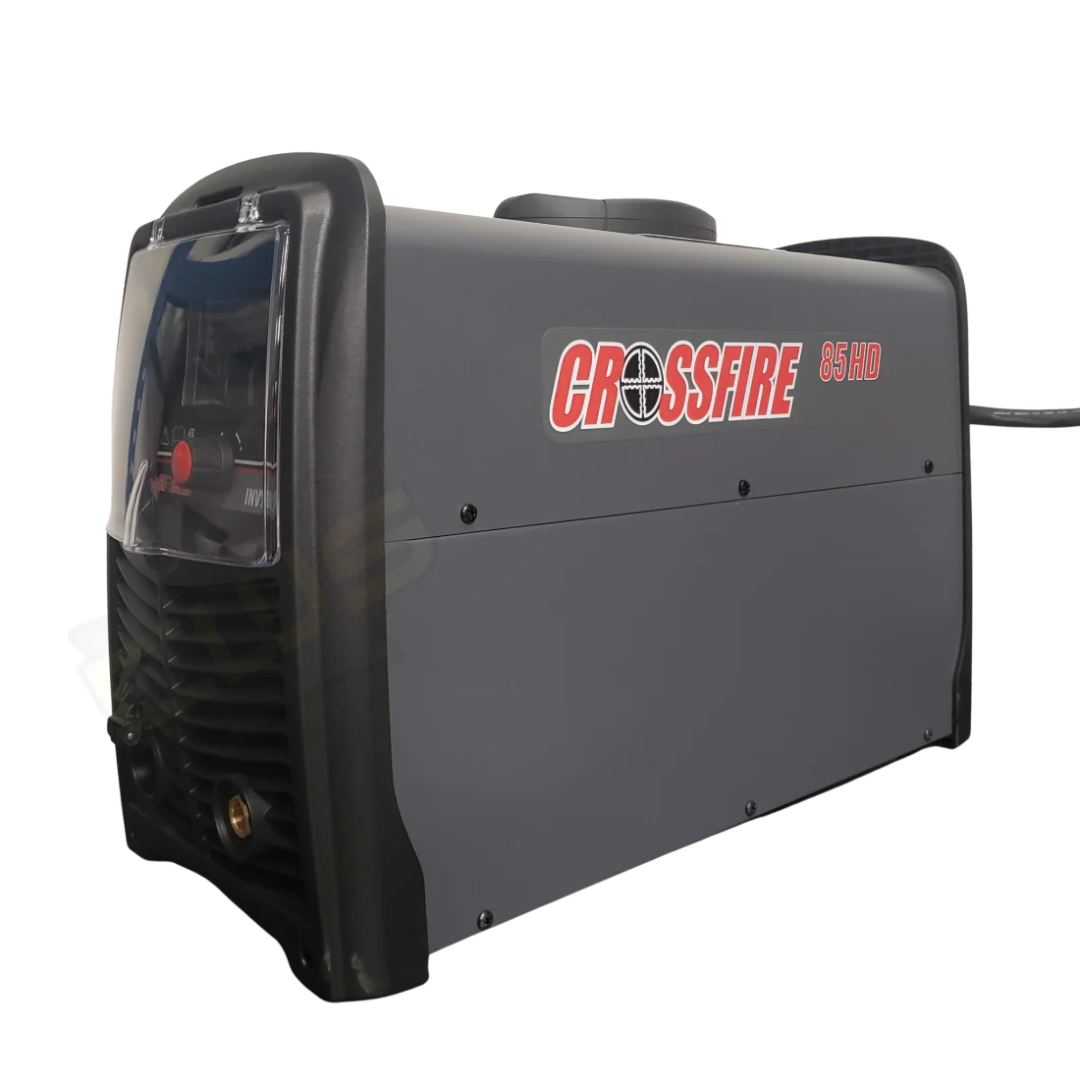

Crossfire Invercut 85HD Plasma Cutting System



3 4 Clean Cut & Pierce Capacity, 1-1 8 Sever Capacity

The Crossfire Invercut 85HD is a heavy duty, high output plasma cutting system designed to deliver top performance where it is needed, whether in the garage, job site, or shop.

Features

• Manual or Mechanized Performance – Machines are supplied with hand operated torches for manual applications, as well as a remote input connection to easily adapt to mechanized and automated applications

• Multi-Voltage Input – One machine, all input voltages. The Invercut 85HD is ready to connect to Single Phase 230V THROUGH 3-Phase 575V, ensuring maximum flexibility in any application.

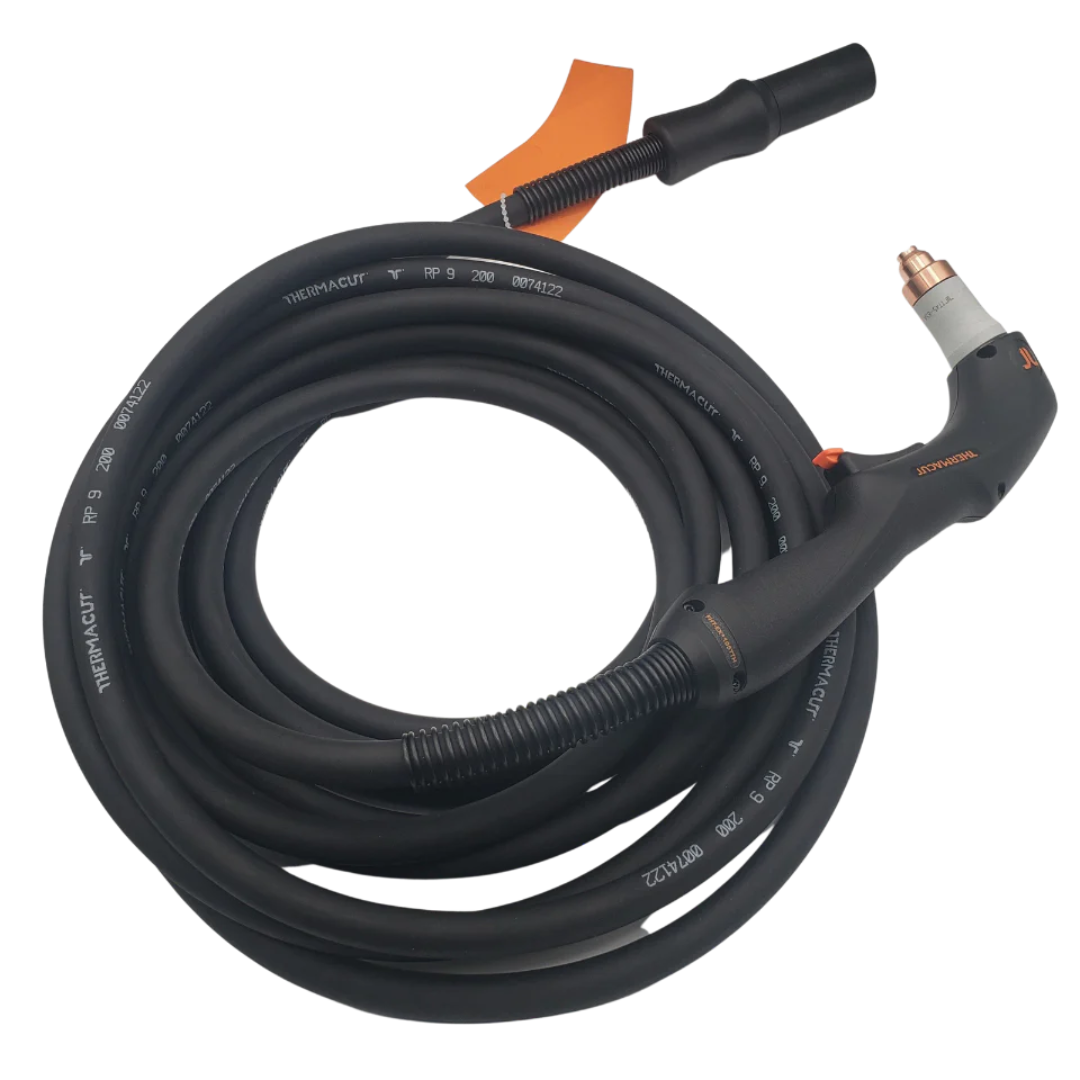

• No Cartridges! Spend Less on Consumables – The traditional style torch ensures that operators are able to change only the parts that have worn, rather than an entire consumable stack. Keep less consumables on hand, and save money by only changing consumables when they need to be replaced.

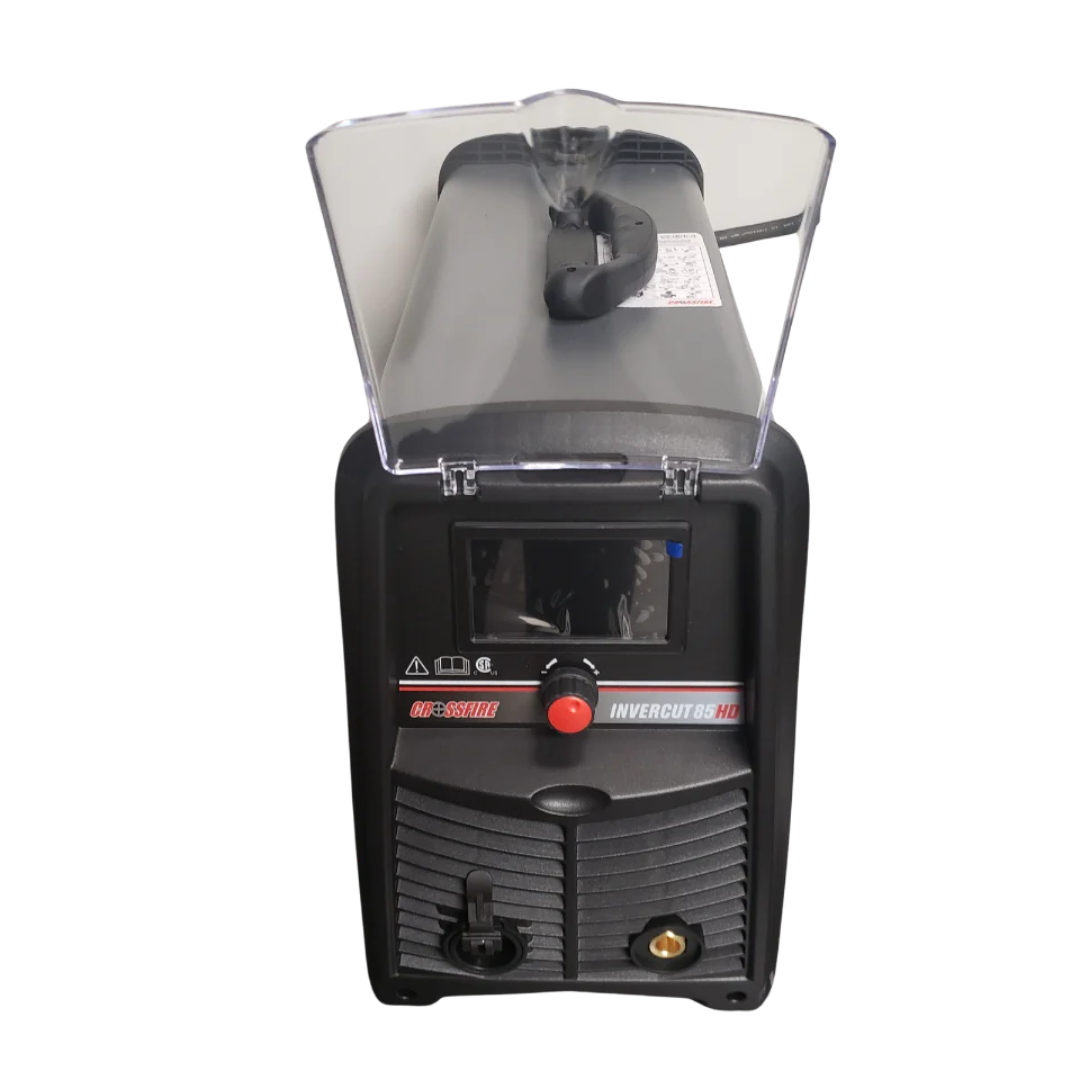

• Convenient and Easy Operation – The 4.3 LCD display and control, protected by a clear viewing cover allow for easy adjustment of cutting mode, air pressure, and output settings while providing accurate and easy to read data at a glance.

• 30+ Years of Experience – The Invercut 85HD is made with Thermacut® DNA, Thermacut brings over 30 years of knowledge and experience to all plasma cutting platforms

• Specifications

  Product Name Part Number		Crossfire Invercut 85HD  CF-99585
  Input Voltage Amp Draw		230V 1Ph 35.6A Eff, 45.9A Max 230V 3Ph  25.9A Eff, 41A Max 460V 3Ph  16.9A Eff, 18.2A Max 575V 3Ph  14.9A Eff, 16.7A Max
  Output Current		60% at 65 A, 1Ph 230V 100% at 50 A, 1Ph 230V 40% at 85 A, 3Ph 208V 100% at 54 A, 3Ph x 208 V 80% at 85 A, 3Ph 460 575V 100% at 76 A, 3Ph 460 575V
  Protection Rating		IP23S
  CSA Approved		✅
  Dimensions (L × H × W)		22 x 15.7 x 10.2 in
  Net Weight		66 lb.

  Full Product Spec Sheet | Plasma Torch Consumables
