Comparc MM 300 ES MIG Welding System Online

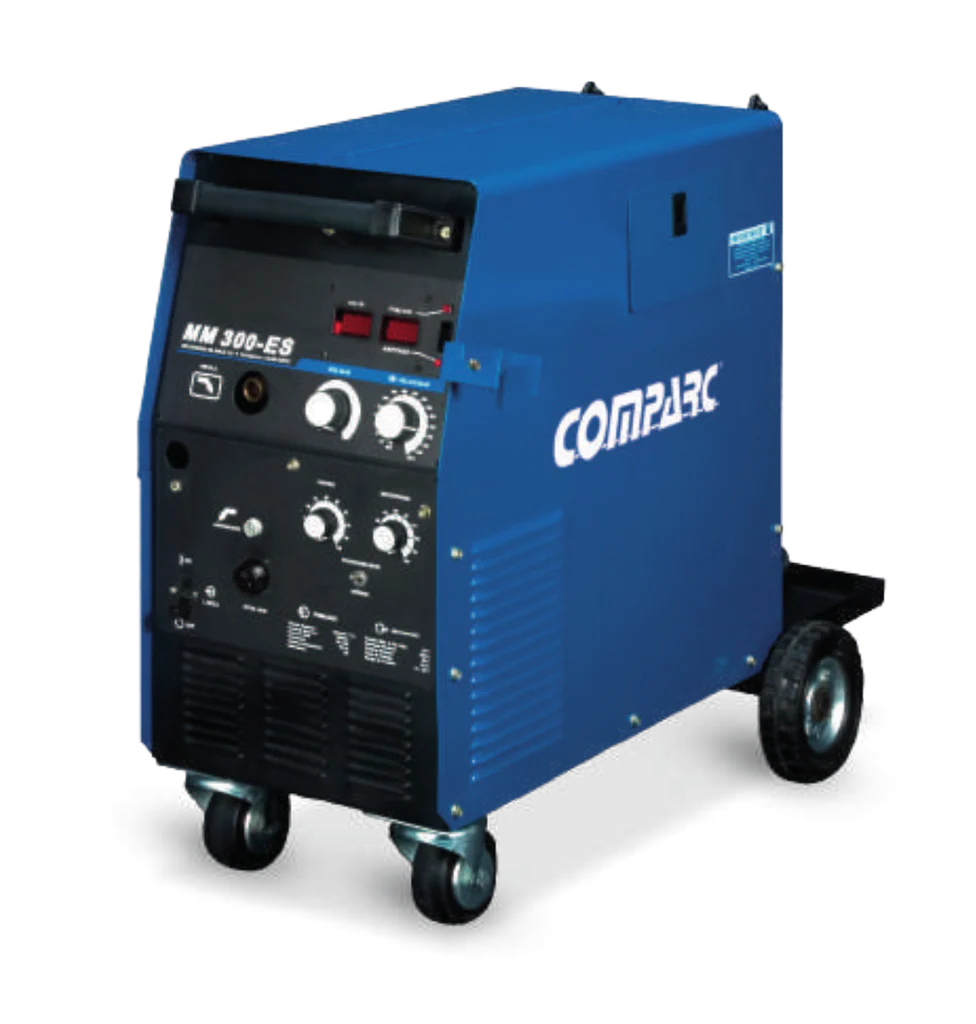

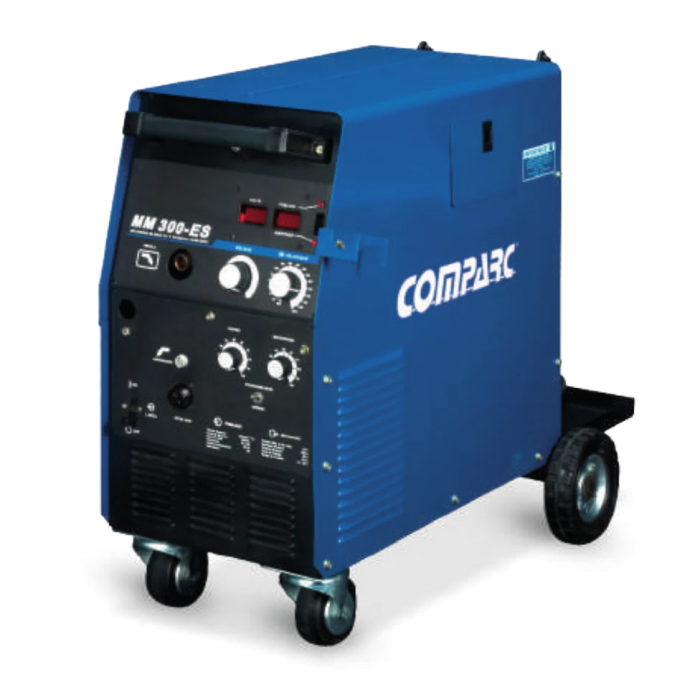

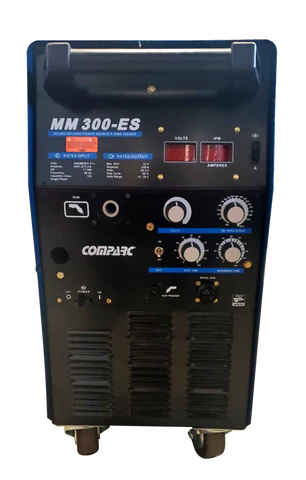

Comparc MM 300 ES MIG Welding System

The Comparc MM 300 ES is a light industrial MIG welding system ideal for small to medium sized fabrication shops. Made in North America, and boasting a 300A @ 40% duty cycle, the MM 300 ES equips you to handle a wide variety of projects that come through the shop doors.

Capabilities

• MIG Welding (GMAW) in diameters out of 0.6 to 1. 2 mm (0.023 0.045 )
• Flux cored (FCAW) in diameters of 0.9 to 1.2mm (0.035 to 0.045
• MIG welding (GMAW) aluminum diameters of 0.9 mm (0.035 )

• Comparc MM 300 ES Power Source Features

  • Adjustable Spot Timers
  • Two four stroke trigger lock

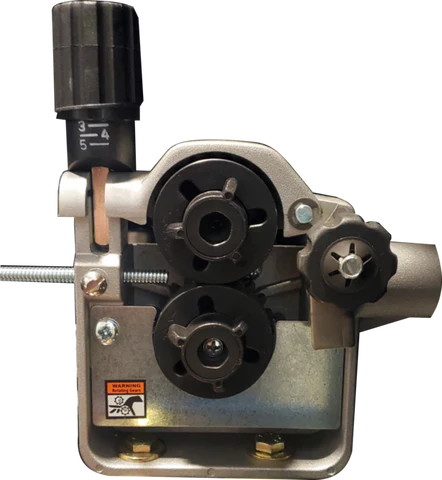

  • Wire feeder integrated at power supply
  • Infinite volt adjustment
  • Digital volt amp meter
  • 14 pin receptacle for aluminum spool gun

  • Product Name Part Number		Comparc MM 300 ES  302 451
    Input Power Supply		Single Phase, 230 460 575
    Input Amps at Rated Voltage		230V, 1Ph: 59A 460V, 1Ph: 30A 575V, 1Ph: 12.2A
    Rated Output		300A @ 40% Duty Cycle, DC-CV, 42V Max
    Net Weight		265lb
    Dimensions		Height: 31 Width: 14 Length: 38

    Welding Package Includes

    • Comparc MM 300 ES
    • Cylinder Rack and Handle
    • 15 ft. Tregaskiss style torch, with 10 ft. Ground Clamp
    • Drive Rolls for 0.035-0.045 Wire
    • Gas flowmeter with 10 ft. Hose

    • MM 300 ES Packages do not qualify for free shipping. Packages ship via freight. Approximate package weight is 280lb, forklift and loading dock are required. Contact us for a freight quote.

      MM 300 ES Data Sheet | MM 300 ES User Manual
