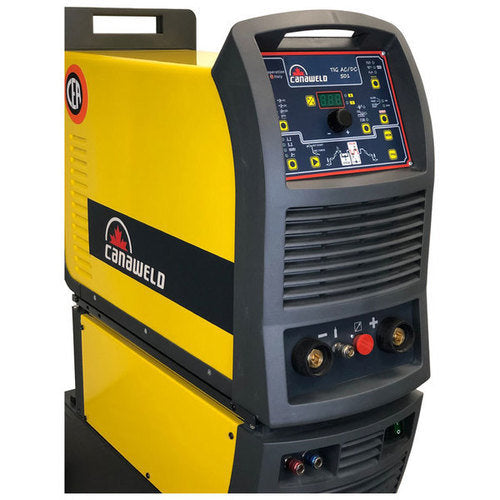

Canaweld TIG AC DC 301 Pulse



The TIG AC DC 301 Pulse is a powerful and intelligent welding machine. This unit is capable of either AC or DC TIG welding (stainless steel, mild steel or aluminum) or Stick welding.

The TIG AC DC 301 Pulse has advanced TIG welding parameters that allows user to fine-tune the TIG welding process to meet a variety of applications. This combination, with its high duty cycle and easy to use interface, make it the perfect choice for production TIG welders who demand the best all day, every day.

Features:

• Digital adjustment of all the welding parameters.
• Digital meters with current preset and meter hold after weld termination
• Welding process selector: TIG AC- TIG DC- TIG DC ‘Lift” – MMA
• Welding mode selector: 2 Stroke – 4 Stroke – Cycle – Spot Timer
• Personalized welding programs can be memorized
• AC square wave balance and Balance Plus
• AC square wave frequency adjustment
• Comprehensive 3 Year Warranty

• This Package Includes:

  • TIG AC DC 301 Power Source
  • Mains Transformer (575V Input)
  • Water Cooler
  • Welding Machine Cart
  • 18SC Series Water Cooled TIG Torch (12 Length)
  • Ground Clamp Set , 300 A, 10ft, Cable Size AWG 2 0
  • 1 Electrode holder Set , 300 A, 10ft, Cable Size AWG 2 0
  • FM250 Series Argon Regulator & Gas Hose
  • TIG Consumable Kit (1 16 , 3 32 , 1 8 )

  • Three phase input 50 60 Hz(V)		3Phase 575V, 50 60Hz
    Delayed Fuse(I? @ 100%)(A)		10 A
    Power factor cos		0.95 0.99
    Effciency Degree		0.76
    Current range		5-300 A
    Welding Current @ 100% Duty Cycle in 104° F(40° C)		210 A
    Welding Current @ 60% Duty Cycle in 104° F(40° C)		250 A
    Welding Current @ 35% Duty Cycle in 104° F(40° C)		300 A
    Weight : lb(Kg)		42 lb(19 Kg)
    Dimensions Including Handle(D , W , H): inch(mm)		19.5 x 17.4 x 15.4 inch



    Full Product Spec Sheet

    Select Package	Water Cooled, 575V – CWP004537W
