Canaweld Multi-Process 221 SM



The Multiprocess 221 SM is a powerful, portable, and intelligent welding machine. This unit is capable of MIG welding, stick welding and TIG welding with a lift start in manual or synergic mode.

The combination of synergic control and job programming ability makes this unit user-friendly for less experienced welders looking to perform high quality welds. It features a user-friendly panel which walks the user through setup one step at a time and then automatically adjusts its parameters to meet the required use.

The voltage of this unit is selectable between 230 V (±15%) or 115 V (±15%) which makes it suitable for any single voltage electrical network. It is the perfect choice for anyone; from a novice to the professional welder who has speed and quality in mind.

The Multiprocess 221 SM is capable of welding with Canaweld’s spool gun which ensures trouble-free Aluminum MIG welding.

Options:

• MIG Package – PLC7580158 MULTI-PROCESS 221 SM, Silver
• MIG TIG Package –  PLC7580159 MULTI-PROCESS 221 SM, Gold
• MIG TIG Package with wheel kit –  PLC7580160 MULTI-PROCESS 221 SM, Gold PLUS

• Features:

  • LCD display for quick intuitive setup whether you are an expert or beginner.
  • Digital control of the welding parameters based on the type of material, gas and wire diameter to be used.
  • Built-in polarity changeover feature for most common gas and gasless wires Lift TIG Arc start.
  • Professional wire feeding mechanism with 30mm rolls and sealed dust-proof motor
  • Double groove rolls replaceable without any tools.
  • ‘Energy Saving’ function to operate the power source cooling fan when necessary.
  • Spool Gun Compatible
  • Adjustable inductance, Burn Back and ARC Force control.
  • TIG Hot Start and Post-flow Gas Control.
  • Both 8 and 12-inch (203 and 305 mm) Wire Spool Size.
  • Metal face panel.
  • Comprehensive 3 Year Warranty

  • Product Name		Canaweld Multi-Process 221SM
    Welding Processes		MIG (GMAW), Flux Core (FCAW), TIG (GTAW), Stick (SMAW)
    Input Voltage		120V or 230V Dual Input
    Input Current		120V: 17.5 – 31.5A 230V: 9.8 – 29.8A
    Welding Output Amps (120V)		MIG: 10 – 140A TIG: 10 – 140A Stick: 10 – 110A
    Welding Output Amps (230V)		MIG: 10 – 210A TIG: 10 – 200A Stick: 10 – 200A
    Output Current		DC – CC CV
    Aluminum TIG		❌
    TIG Arc Starts		Lift Tig (No High Frequency)
    Spool Gun Ready		✔️ – Canaweld 150A Spool Gun
    Dimensions		24.4 x 13.3 x 16.1
    Weight		49 lb without spool
    Warranty		3 Year Comprehensive, serviced by Canaweld

    What s in the box?

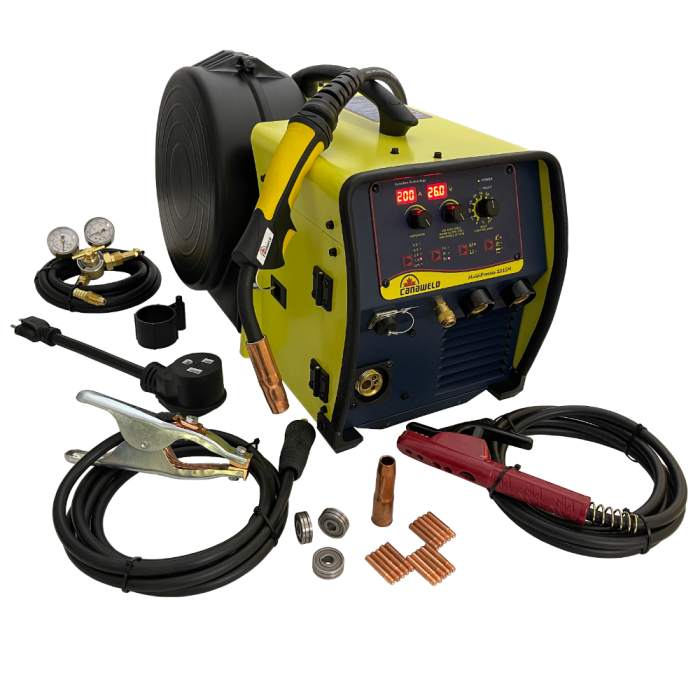

    • Canaweld 221 SM Multiprocess welding power source
    • Ground Clamp and Stick Electrode Holder (10 ft. Length)
    • MIG Torch and Consumable Set (10 ft. Length, Tweco Consumables)
    • Argon Co2 MIG & TIG Regulator with 10 ft. Gas Hose
    • Drive Rolls: .030 -.040 Solid Wire (V Groove), .030-.035 Flux Cored Wire (Knurled)
    • 120 230V Adapter Plug

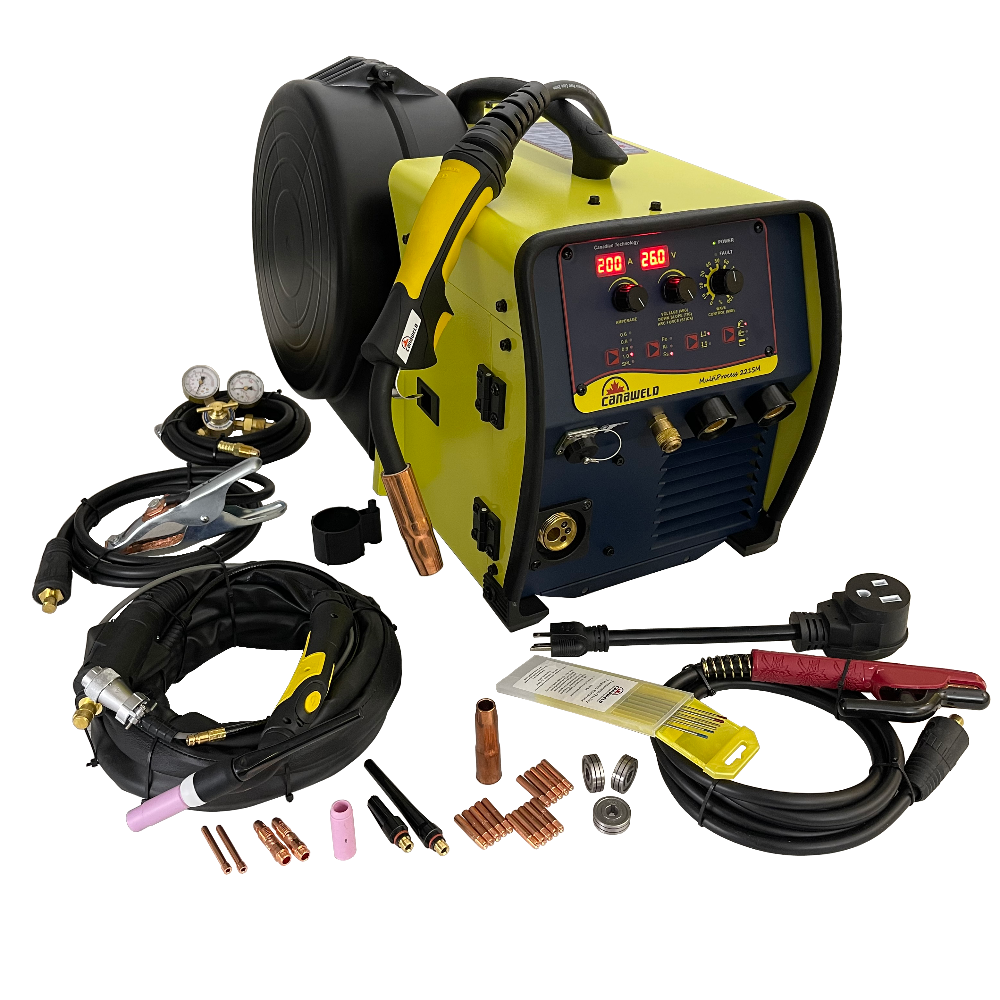

    • MIG TIG Gold package also includes:

      • 200A Tig Torch with Momentary PushButton Control (26 Style, 12 ft. Length)
      • TIG Starter Kit and Tungsten Electrode Sample

      • MIG TIG Gold PLUS package also includes:

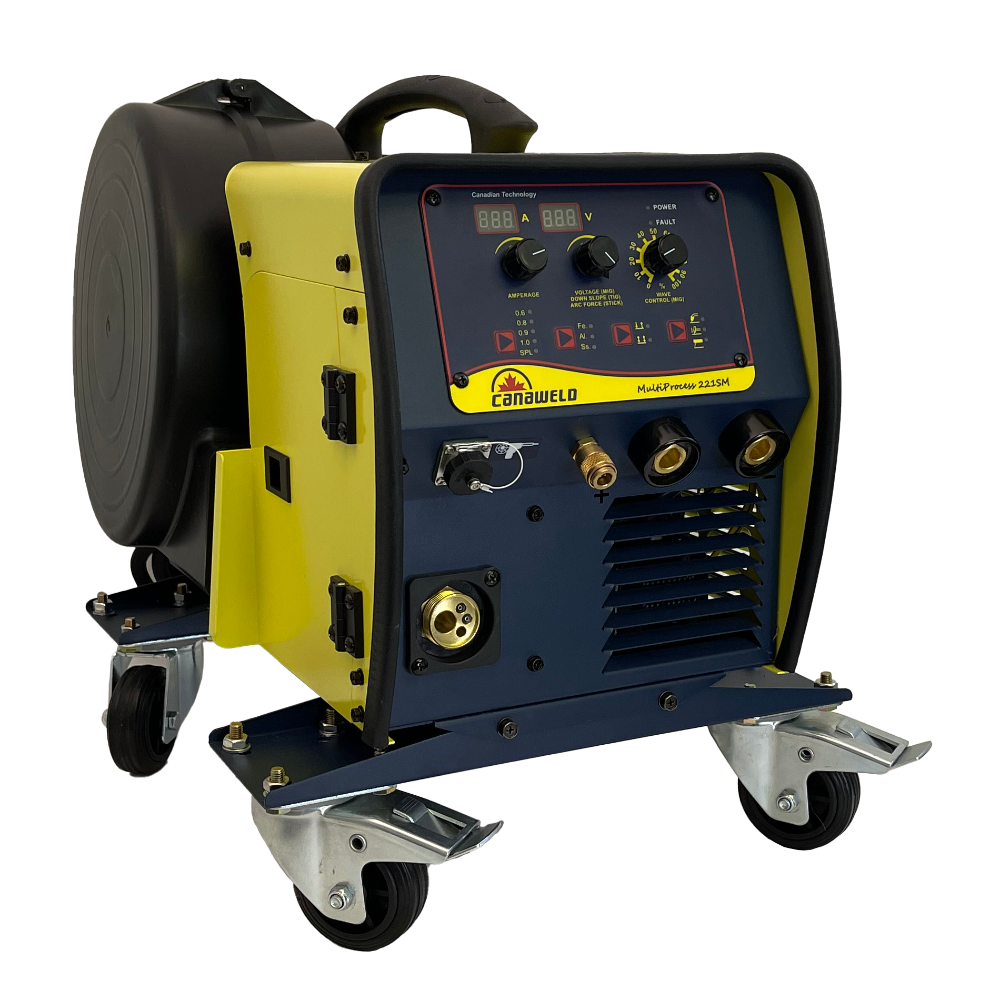

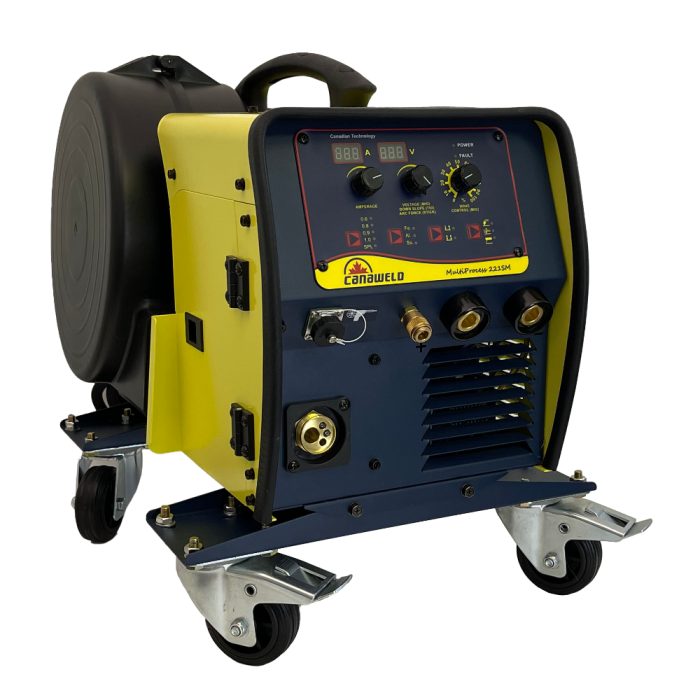

        • Swivel Caster Package

        • Full Product Data Sheet | MIG & TIG Torch Consumables

    Option	MIG Package – PLC7580158, MIG/TIG Package – PLC7580159, MIG/TIG Package with Wheel Kit – PLC7580160
