Canaweld MultiProcess 1601 Welding Machine

The Multiprocess 1601 is a very light and portable but unbelievably powerful and intelligent welding machine specially designed for the novice to a professional production welder who has speed and quality in mind.

This unit is capable of MIG welding, Flux cored welding, stick welding and TIG welding with a lift start in manual or synergic mode. The synergic control of welding parameters makes this unit user-friendly for less experienced welders looking to perform high quality welds. It features a user-friendly panel which walks the user through setup one step at a time and then automatically adjusts its parameters to meet the required use.

The voltage of this unit is 115 V (±15%) which makes it suitable for single phase applications including home and hobby work. The Multiprocess 1601 is capable of welding aluminum by using Canaweld’s spool gun which ensures trouble-free Aluminum wire feeding.

Options:

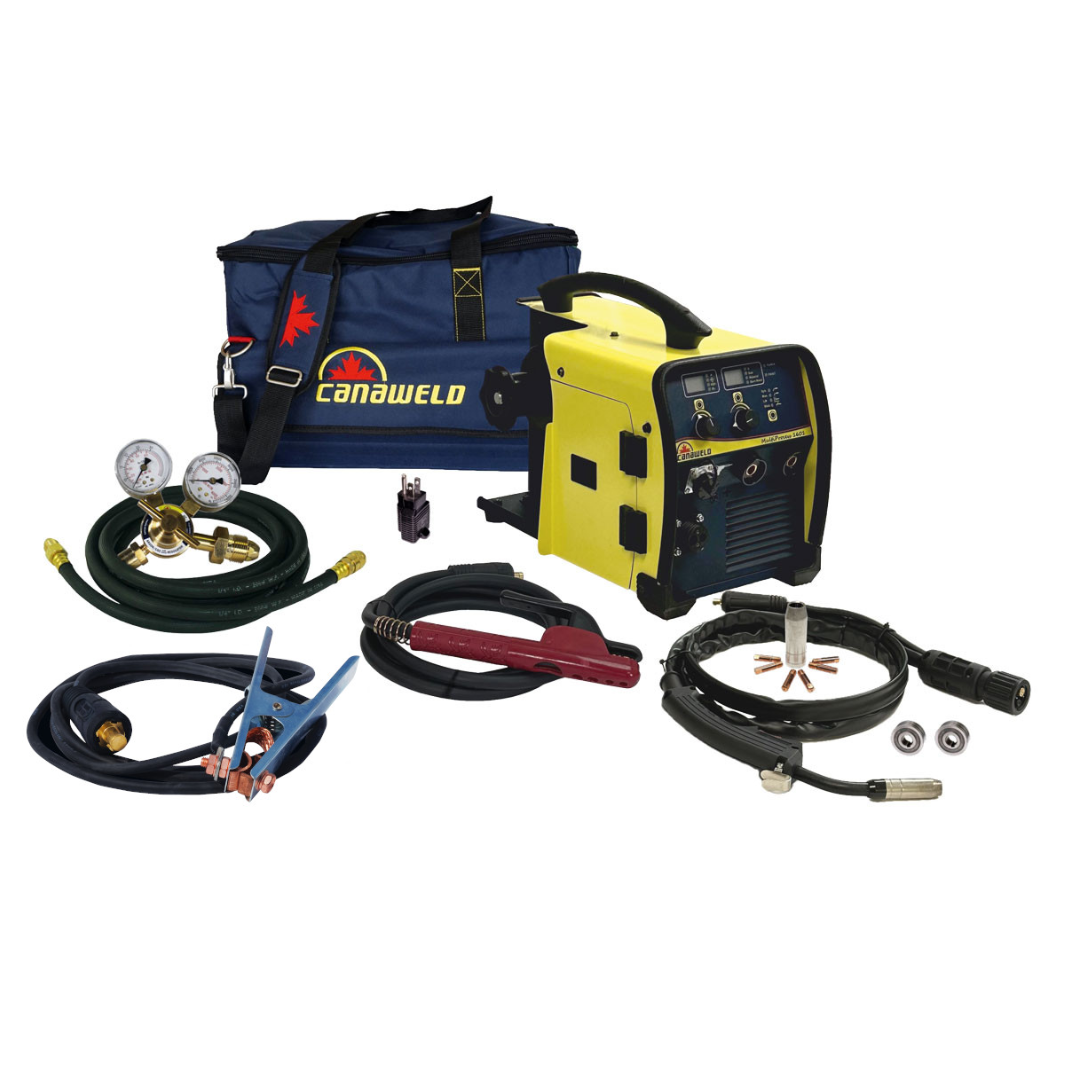

• MIG Package – PLC7580170 MULTI-PROCESS 1601, Silver
• MIG TIG Package –  PLC7580156 MULTI-PROCESS 1601, Gold

•  Features:

  • Possibility of Welding Processes MIG, Flux Cored, Gasless Wires, TIG, Stick Welding
  • Digital control of the welding parameters based on the material or gas type and the wire diameter.
  • Polarity changeover feature for most common gas and gasless wires and Lift TIG Arc start.
  • Replaceable Double groove rolls, no tools needed.
  • “Energy Saving” function to operate the power source cooling fan when necessary.
  • Spool Gun Compatible.
  • Adjustable Voltage, Wire Speed, Wave Form, Burn back (in MIG Process).
  • Possibility of Selection of Material, Wire Diameter, 2T 4T (in MIG Process).
  • Accepts 8 inch (203 mm) Wire Spool Size.
  • Metal face panel.
  • Comprehensive 4 Year Warranty

  • What s in the box?

    • 250A Ground Clamp w 10 ft. Cable
    • Electrode Holder w 10 ft. Cable
    • Inert Gas Hose, 10 ft. Length
    • Argon CO2 Regulator, CW-RLV-150-60CF-AR
    • 15 20A 110V Adapter Plug
    • V-Groove Drive Roll, for .023 -0.030 Solid Wire
    • V-Knurled Drive Roll, for 0.030 -0.035
    • MIG Gun 141, Euro Connect w Tweco Style Font End
    • MIG Consumable Kit
    • Canaweld Transport Bag

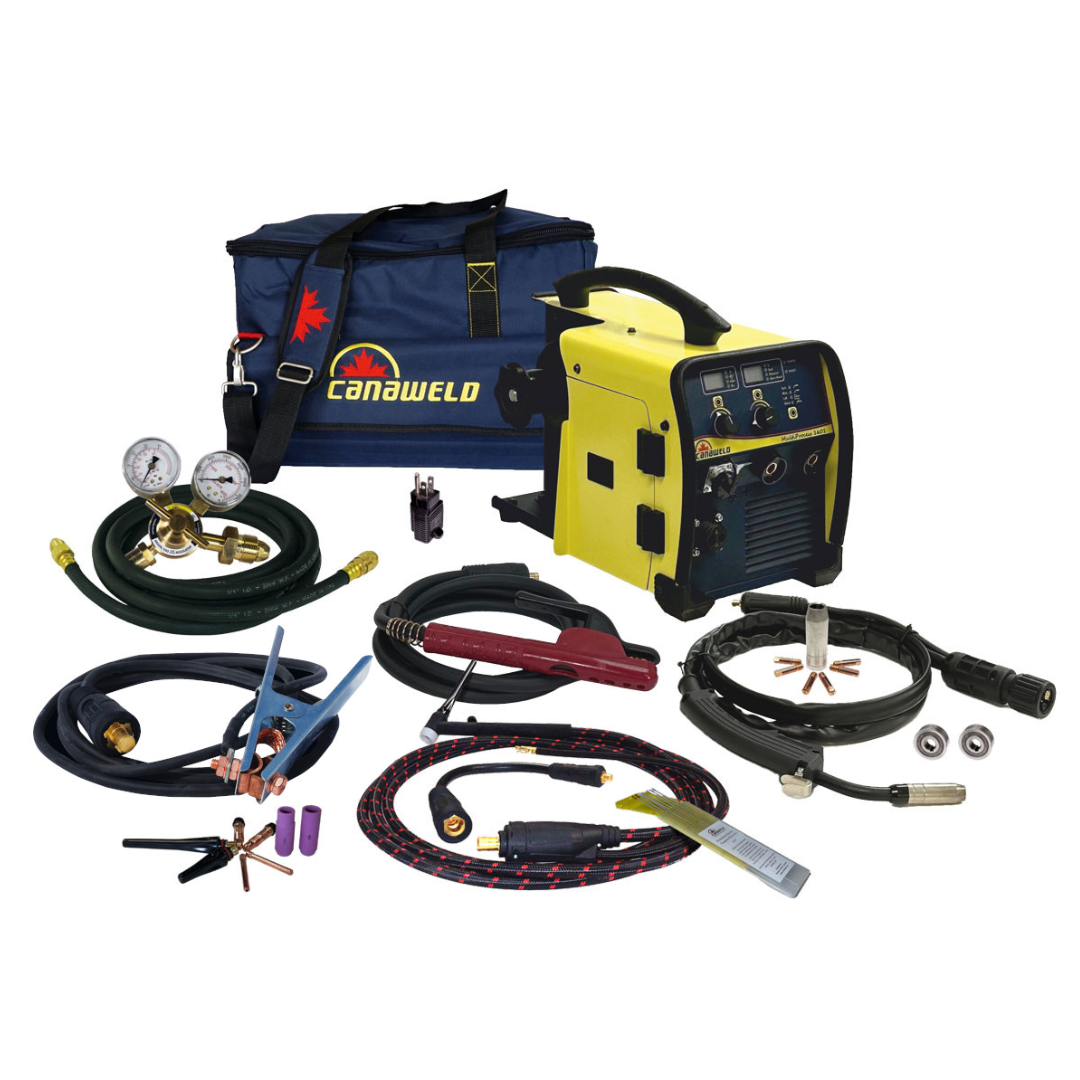

    • MIG TIG Gold package also includes:

      • 17 Style TIG Torch, Air Cooled, Valved, w 12 ft. Hose
      • TIG Consumable Starter Kit
      • TIG Torch Adapter
      • Mix of 6 Tungsten Electrodes

      • Full Product Spec Sheet
