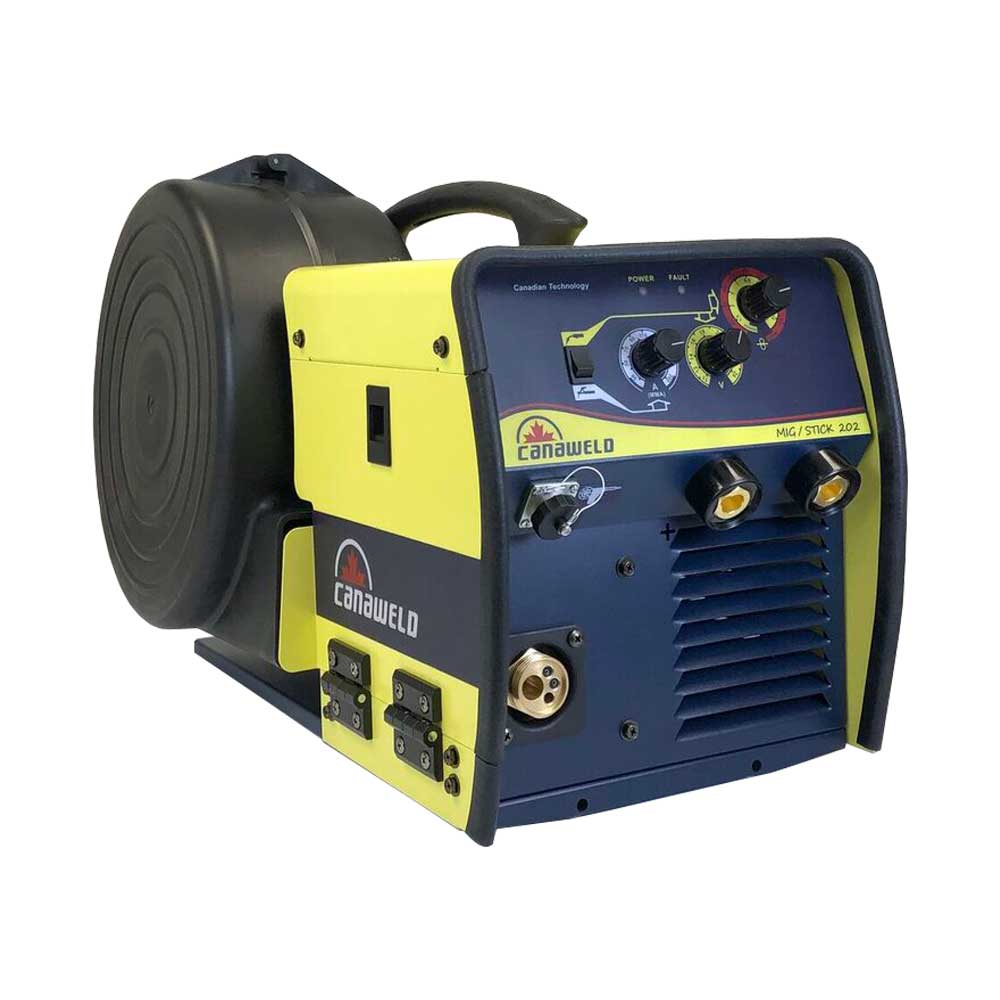

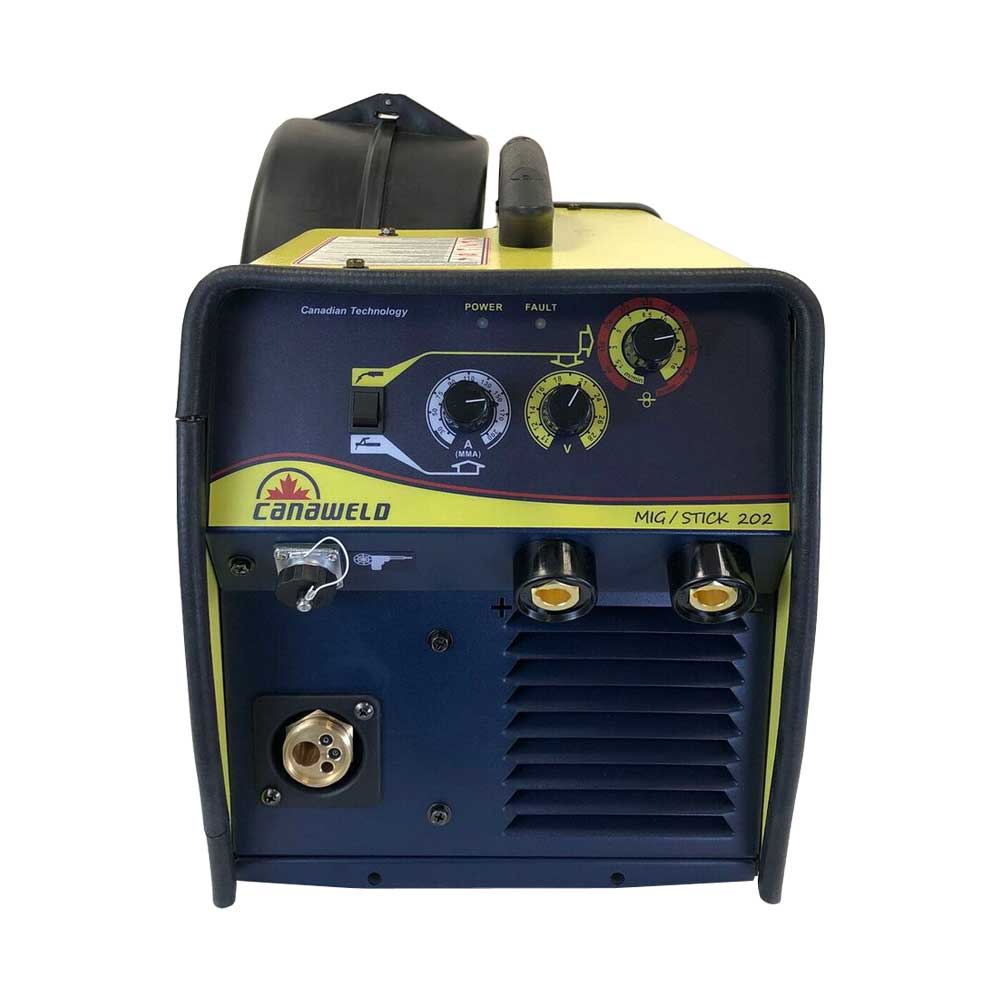

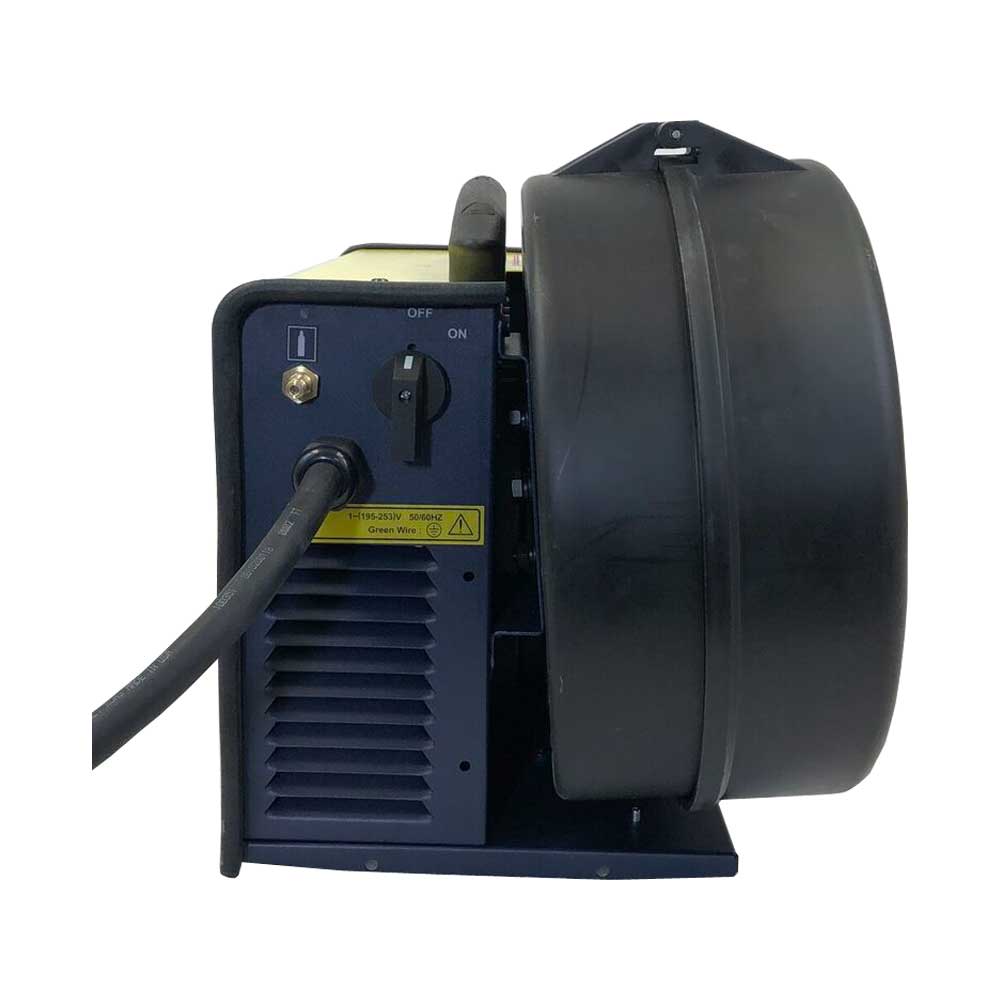

Canaweld MIG-Stick 202 Welding Machine

The MIG-STICK 202 is a powerful and versatile MIG-Stick welding machine. This unit can weld up to 1 2-inch thick steel in either MIG mode or SMAW setting.  Capable of running 0.023 – 0.045-inch MIG wire or up to 3 16-inch SMAW rods with a very stable arc.

Features:

• High power output, 170A @ 100% Duty Cycle & 200A @ 35% Duty Cycle.
• Tested in(104°F 40°C), designed for the toughest conditions.
• Inverter power source with optimal welding characteristics in MIG and Stick.
• Automatic compensation for main power fluctuations within ± 20%.
• Ability to use up to 165 feet(50 meters)leads without any power loss at the weld.
• High grade metal dual drive roll system for precise and constant wire feed that prevents bird nesting.
• Welds up to 1 2” steel and 3 8” aluminum.
• Graduated knob to achieve the most accurate settings.
• Automatically controls wire speed by voltage feedback to give and extremely stable arc with minimal spatter.
• Fan cooled and thermally protected against overheating.
• Built-in polarity changeover feature for most common gas and gasless wires.
• Spool gun ready.
• Metal face panel.
• Heavy duty NEMA 6-50 Plug
• Spool gun compatible.
• Fits both 8 and 12-inch wire spool sizes.
• Part No. PLC7580152
• Comprehensive 3 Year Warranty.

• *Please note: Canaweld machines are shipped direct from Canaweld s manufacturing plant in Concord, Ontario. Orders typically ship next business day and is not available for pick-up.

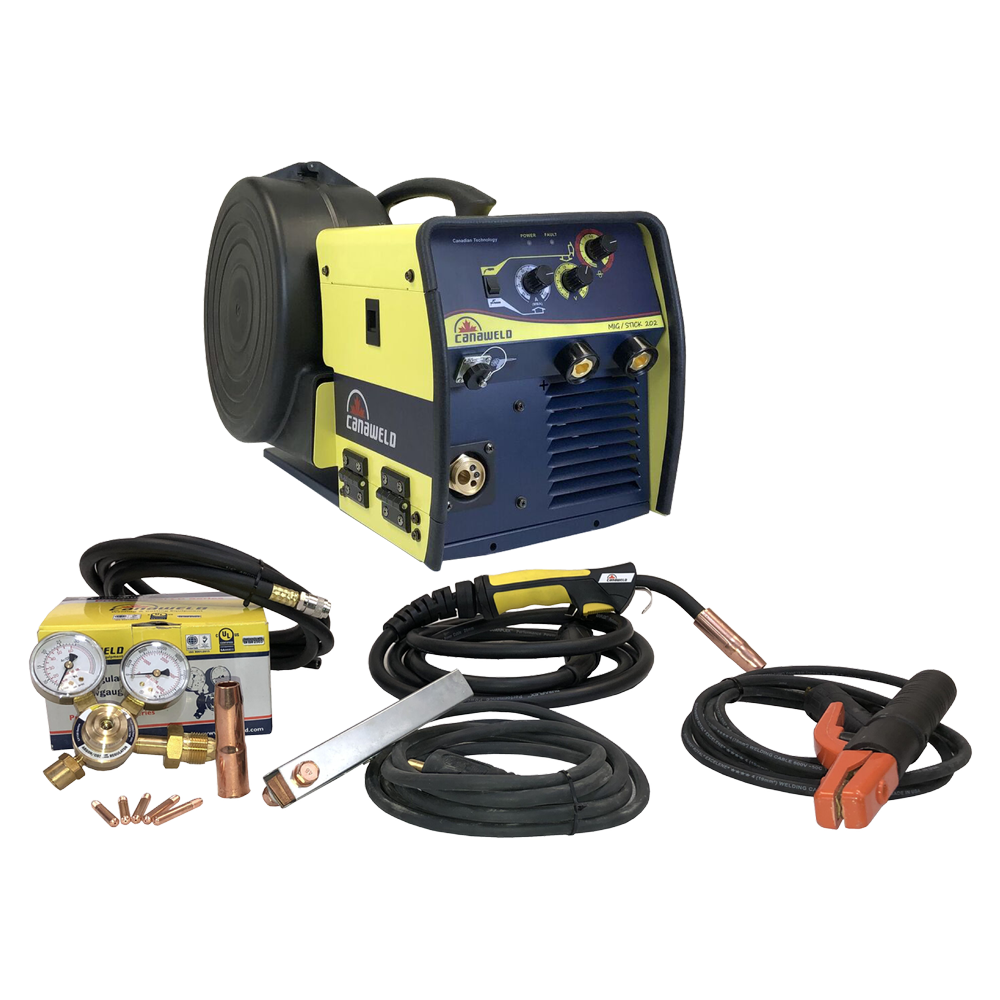

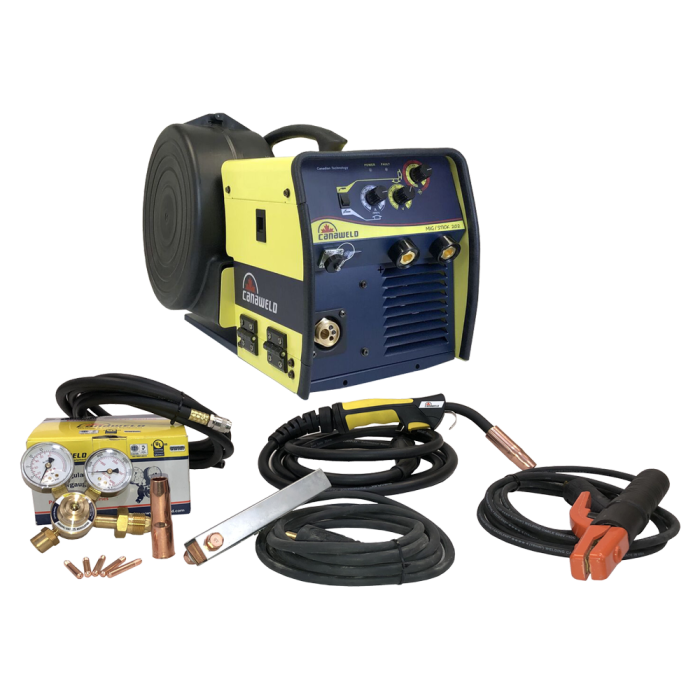

  What s in the box?

  • MIG Torch, Tweco® style 200 Amp, Euro termination, 12 Ft.
  • MIG TORCH Tweco® Style 200A Consumable Starter Set
  • Electrode holder Set , 250 A, 10ft , AWG 4 (21.2 mm), Cable Plug 35-70
  • Ground Clamp Set , 250 A, 10ft, AWG 4 (20 mm) , Cable Plug 35-70
  • Regulator, UL-Approved LV150 Series, Single Stage For CO2 Arg, Mix
  • 1 4 Argon Inert Hose (10 ft)
  • 0.030 – 0.035 drive rolls, V-groove & Knurled for hard wire and flux-core
