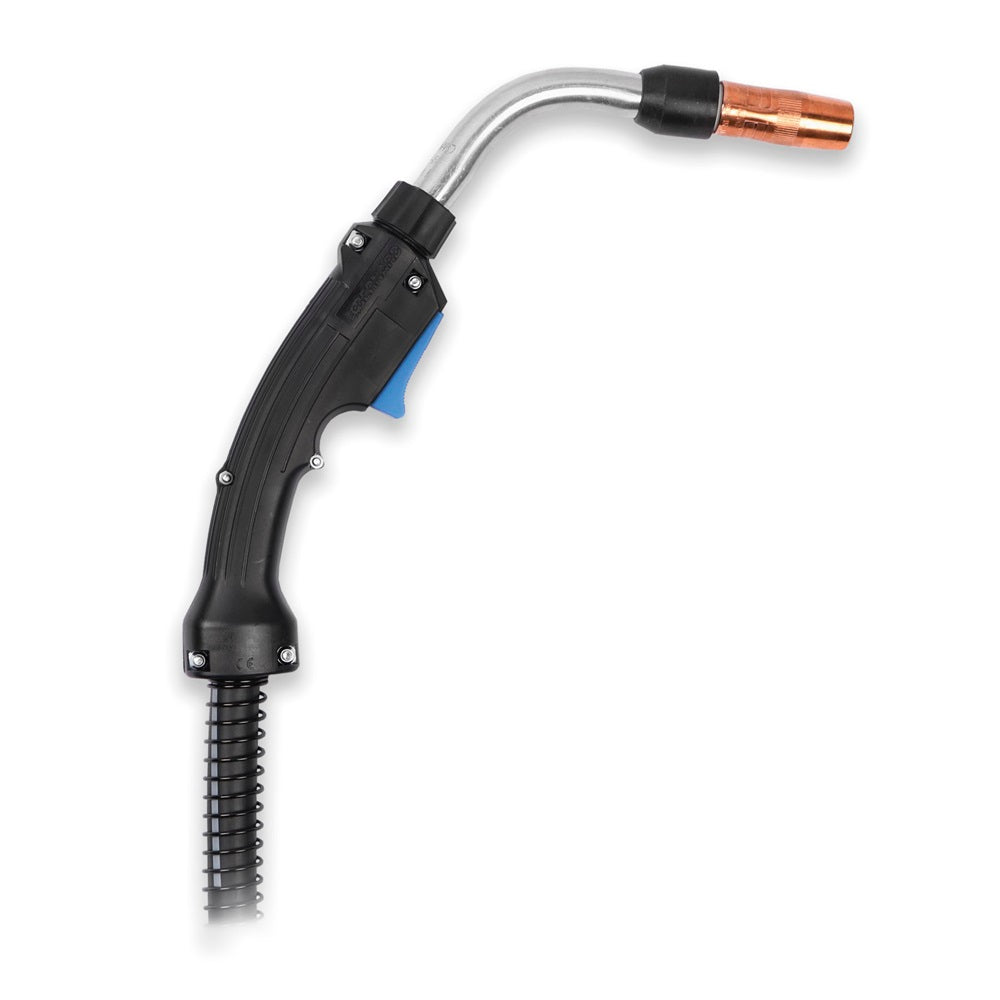

Bernard Pipeworx 300A MIG Gun



The Bernard PipeWorx gun with a tapered tip and nozzle is recommended for root pass welding, especially in fixed-position applications where visibility is difficult. Switch to a standard tip and nozzle for fill and cap pass welding with flux-cored or pulsed MIG welding processes. This allows one gas and one wire to make the weld

Features

• Versatility – Can be used for MIG, pulsed MIG, and flux-cored.

• Ergonomics – Compact, lightweight gun with high-amperage capability reduces operator  fatigue improving productivity.

• Visibility – The combination of tapered tips and nozzles and 60-degree neck provides  excellent visibility on root passes in pipe joints.

• Centerfire™ Tip – Provides “drop-in” tip with no threads providing quick changeover. No tools  are required.

• Specifications

  Bernard Model		Gas Type		100% Duty Cycle		60% Duty Cycle		Cable Length		Total Weight
  PipeWorx 300-15, 195400		100% Co2		320A		370A		15 ft. (4.6 m)		10 lb. (4.6 kg)
  80% Ar, 20% Co2		270A		310A

  • Genuine Bernard MIG Torch
  • 15 Lead
  • Manufactured in USA
  • Part Number: 195400

  • Centerfire Consumables | Bernard Replacement Parts
