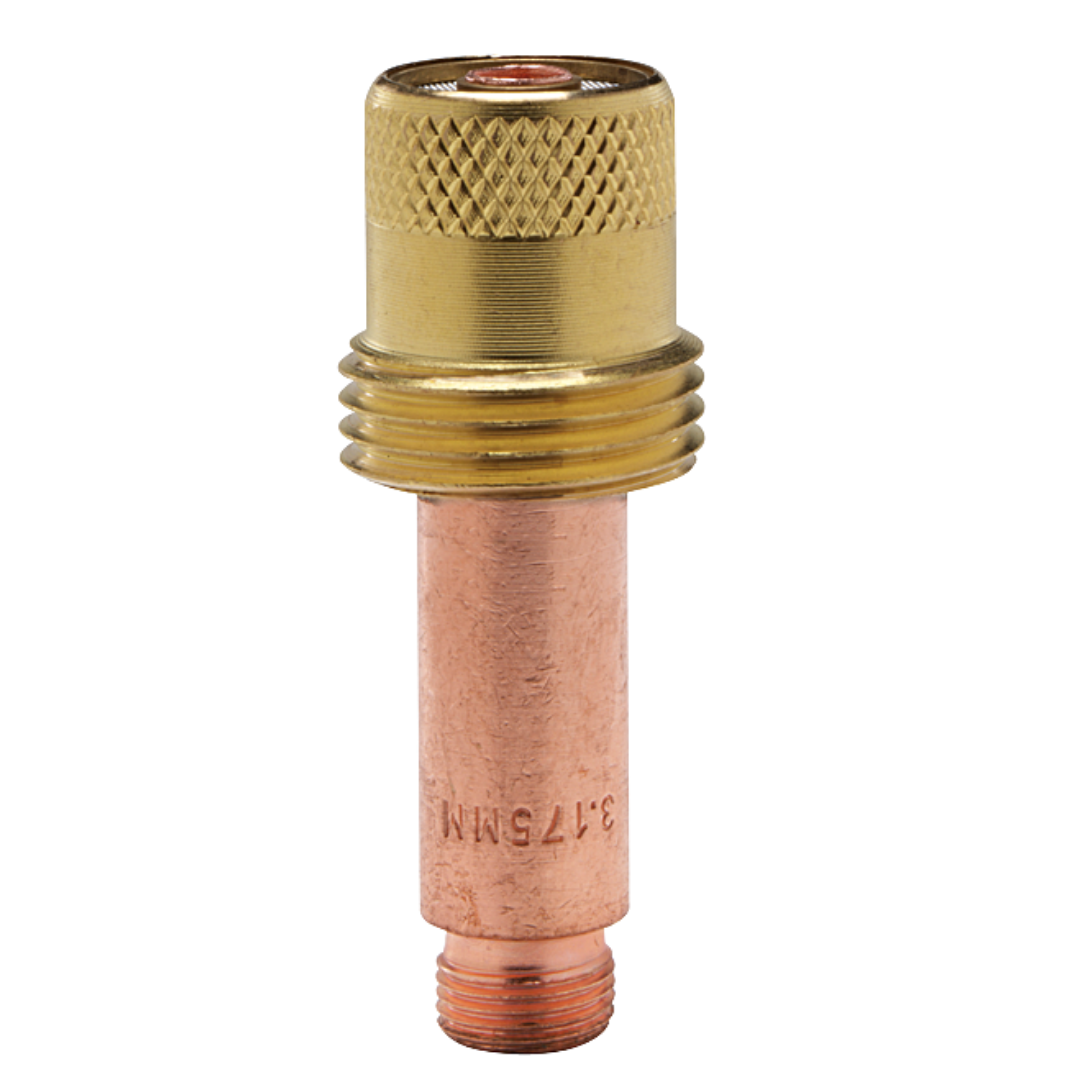

CK Worldwide 3 Series Gas Lens Collet Bodies

Gas lenses provide improved gas coverage of weld puddle by creating a laminar gas flow therefore allowing for a greater tungsten stick out while reducing gas consumption. Options below for available sizes with interchangeable Weldcraft part numbers.

Options:

3GL20 – .020 (0.5mm) – (Weldcraft 45V29)

3GL40 – .040 (1.0mm) – (Weldcraft 45V24)

3GL116 – 1 16 (1.6mm) – (Weldcraft 45V25)

3GL332 – 3 32 (2.4mm) – (Weldcraft 45V26)

3GL418 – 1 8 (3.2mm) – (Weldcraft 45V27)

3GL532 – 5 32 (4.0mm) – (Weldcraft 45V28)

3 Series Gas Lens Parts Relationship

Cup
Gas Lens Collet Body
Collet
Heat Shield
Torch
Back Cap

3AGX
3GLXXX
3CBXXX 3C XXXGS Wedge
3GHS
17 26 Series
300L 300M 300S

Fits the following torches:

17-Series
CK210
FL3L
MT100

18-Series
CK300
TL18
MT400

26-Series
CK510
TL26
MT500

CK150
FL150
TL210
CKM350

CKC150
FL25
TL300
CS300

Options
3GL20 – .020" (0.5mm) – (Weldcraft 45V29), 3GL40 – .040" (1.0mm) – (Weldcraft 45V24), 3GL116 – 1/16" (1.6mm) – (Weldcraft 45V25), 3GL332 – 3/32" (2.4mm) – (Weldcraft 45V26), 3GL418 – 1/8" (3.2mm) – (Weldcraft 45V27), 3GL532 – 5/32" (4.0mm) – (Weldcraft 45V28)
